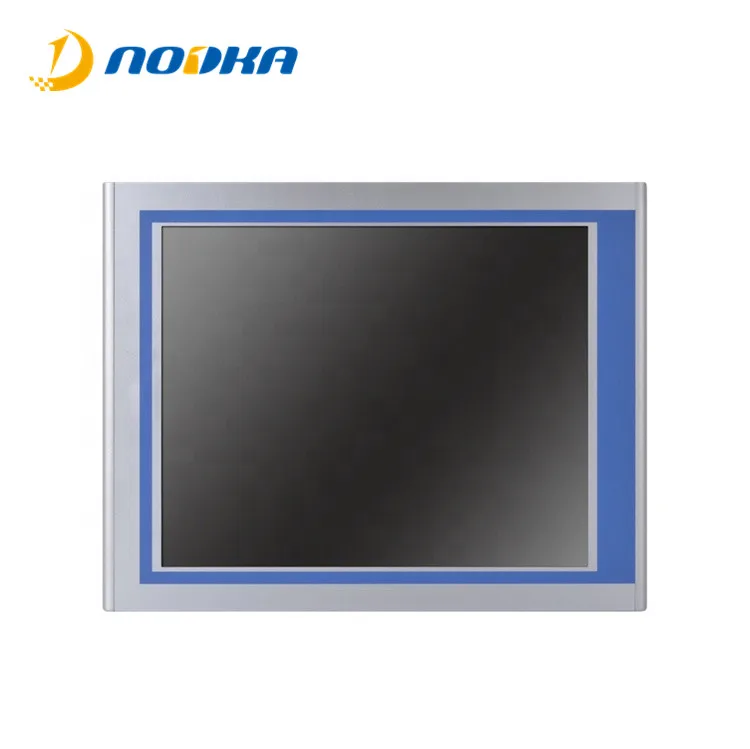

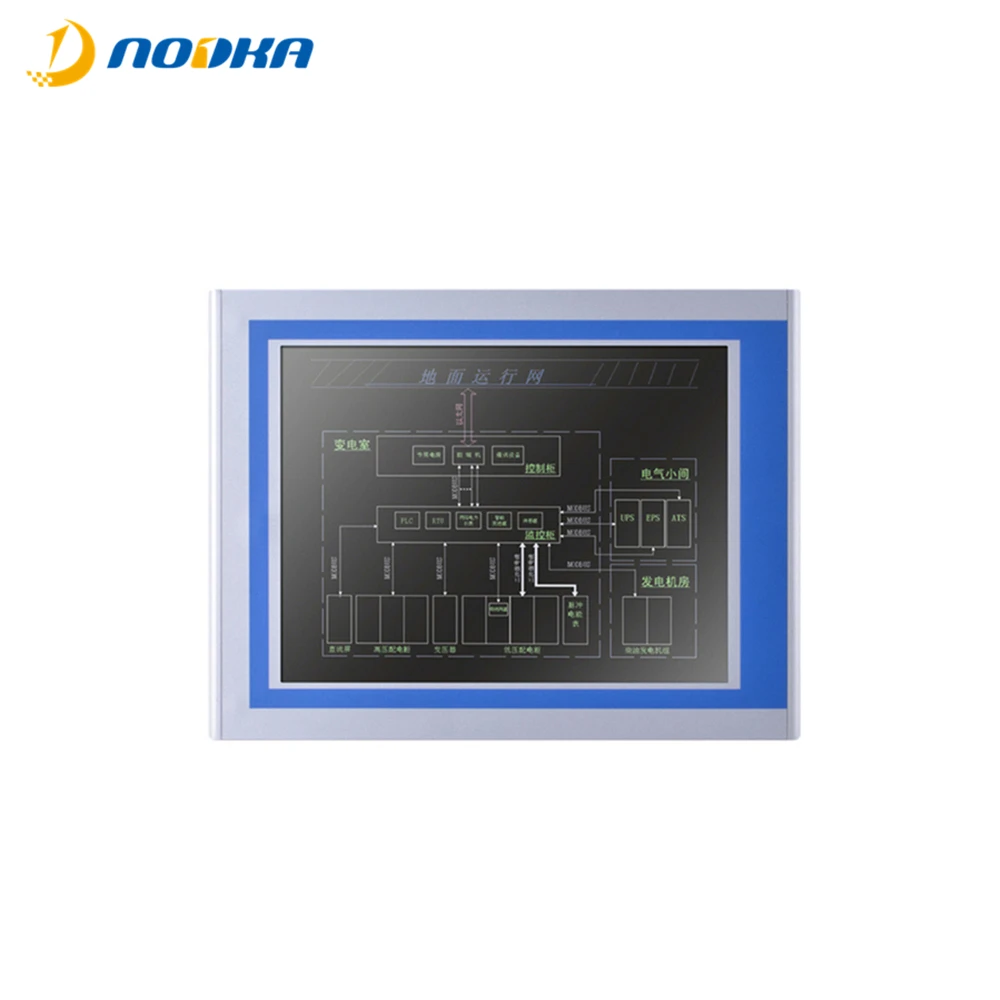

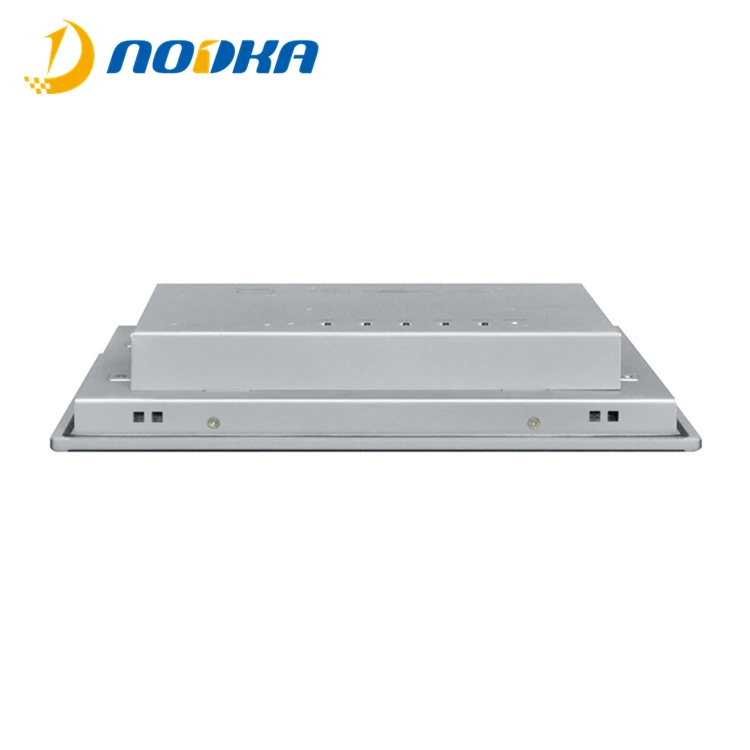

NODKA Square Screen 10 inch TFT LCD LED Industrial Touch Screen Monitor with VESA holes
- Category: >>>
- Supplier: Shanghai NODKA Automation Technology Co. Ltd.
Share on (60817825797):
Product Overview
Description
Poster
Product Description
General | ||||||

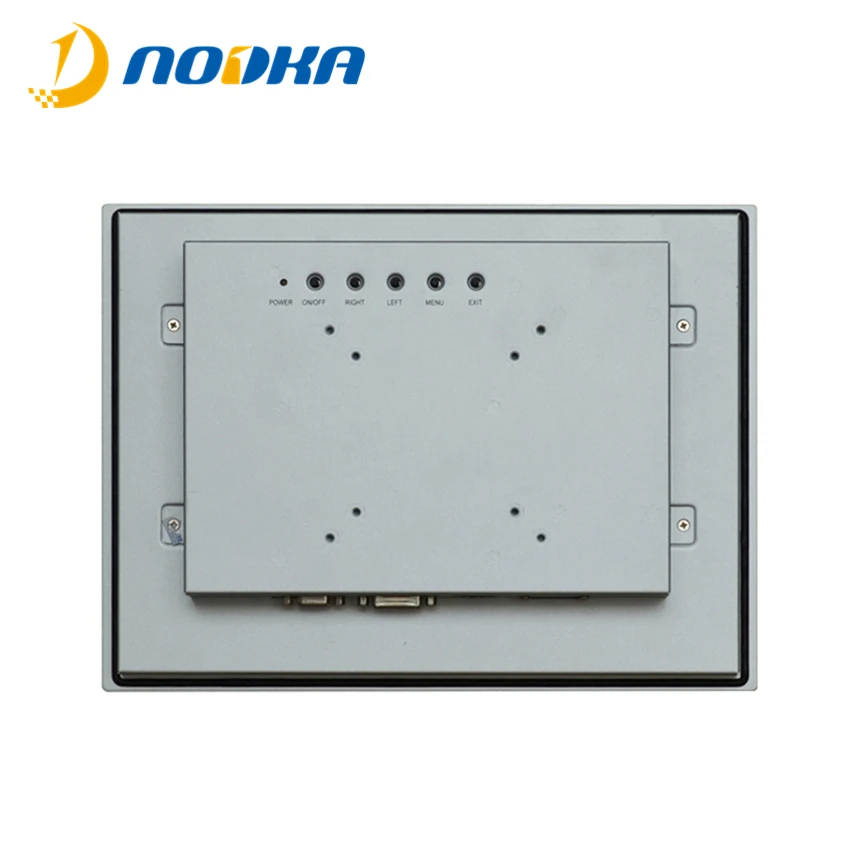

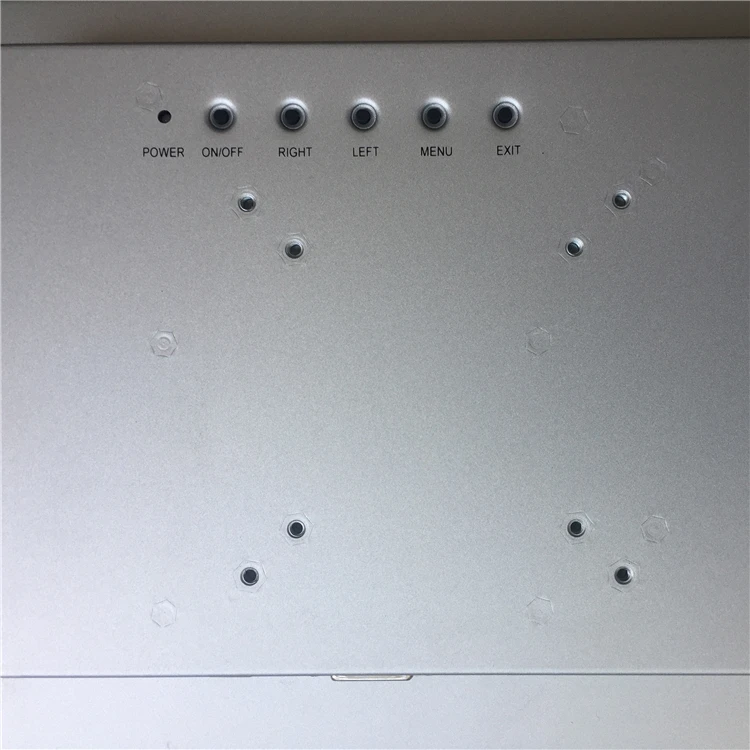

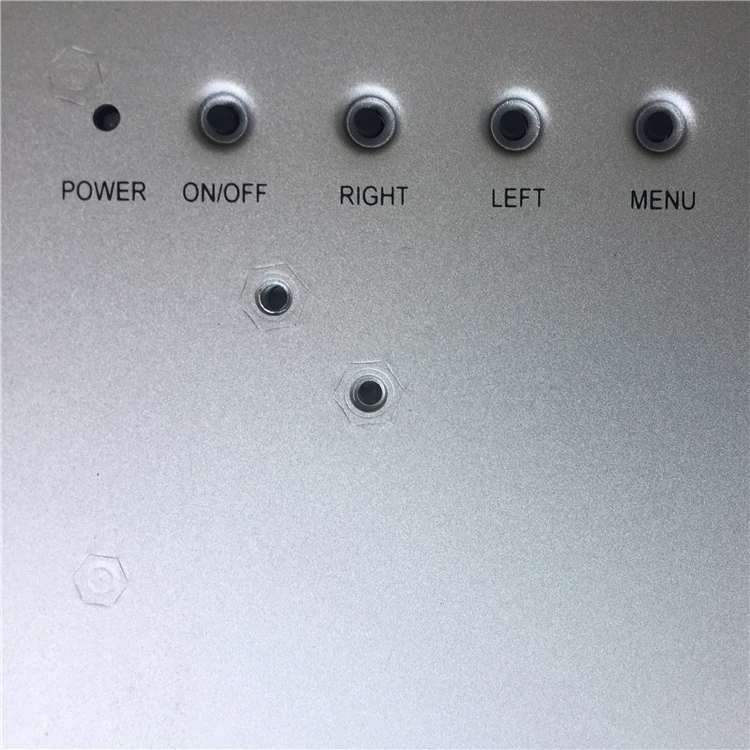

Control button | Set Contrast ratio and Luminance via OSD at the back panel | |||||
Dimensions(WxHxD) | 300.5mm×234.5mm×50mm(11.83"×9.23"×1.97") | |||||
Drill Hole Size(WxH) | 282mm×222mm(11.10"×8.74") | |||||
Box structure | Front panel : aluminum-magnesium alloy , anodized coating ; Back cover : SGCC , Ground isolation protection | |||||
Mounting | Support Embedded , wall-mounted , Desktop and VESA mounting | |||||
Power Supply | DC12V to DC24V | |||||
Power Dissipation | 5W | |||||

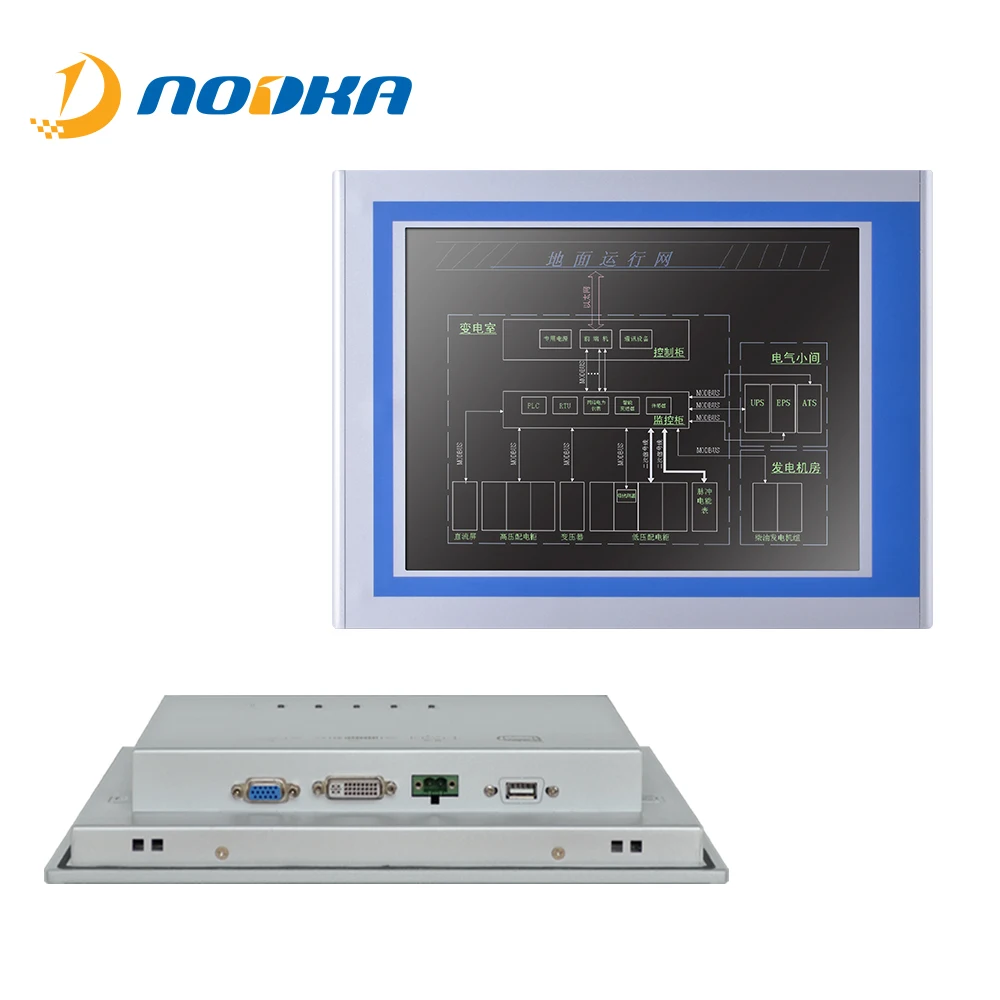

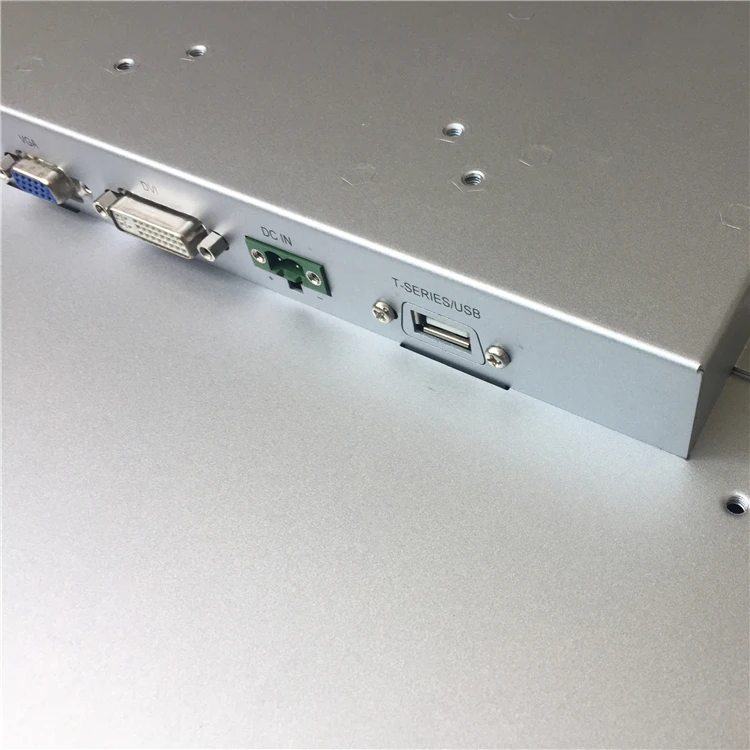

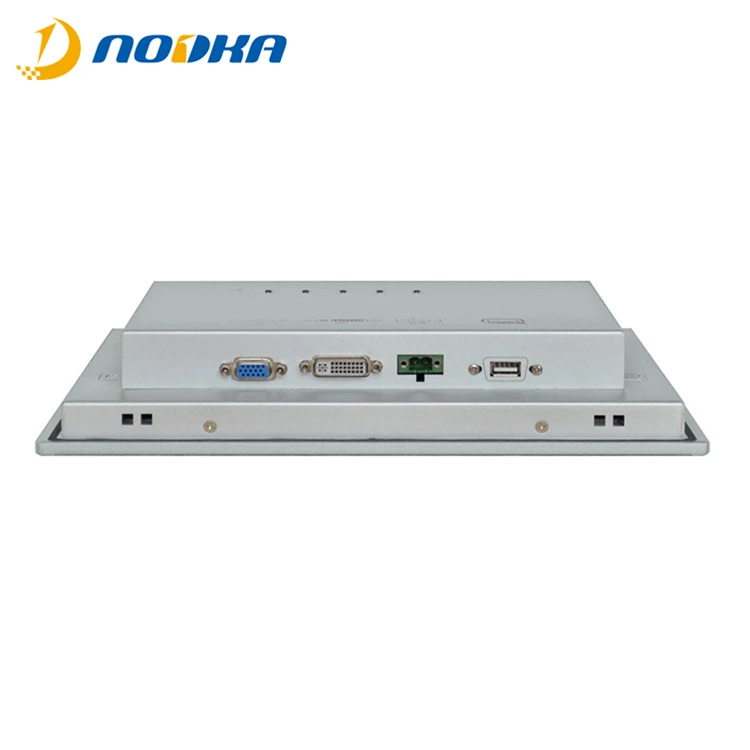

Signal input | VGA&DVI-D | |||||
NW | 2.32kg (5.11lb) | |||||
Environmental | ||||||
Work Temperature | -10~50°C(14~122°F) | |||||
Storage Temperature | -20~60°C(-4~140°F) | |||||
Relative humidity | 5~95%(Non condensation) | |||||
Shake | SSD applied: 1.5 Grms, IEC60068-2-64, random, 5~500 Hz, 1 hr/axis | |||||
Shock | SSD applied: 10 G, IEC60068-2-64, Half-sine wave, 11ms duration | |||||
EMC | CE / FCC ClassA | |||||

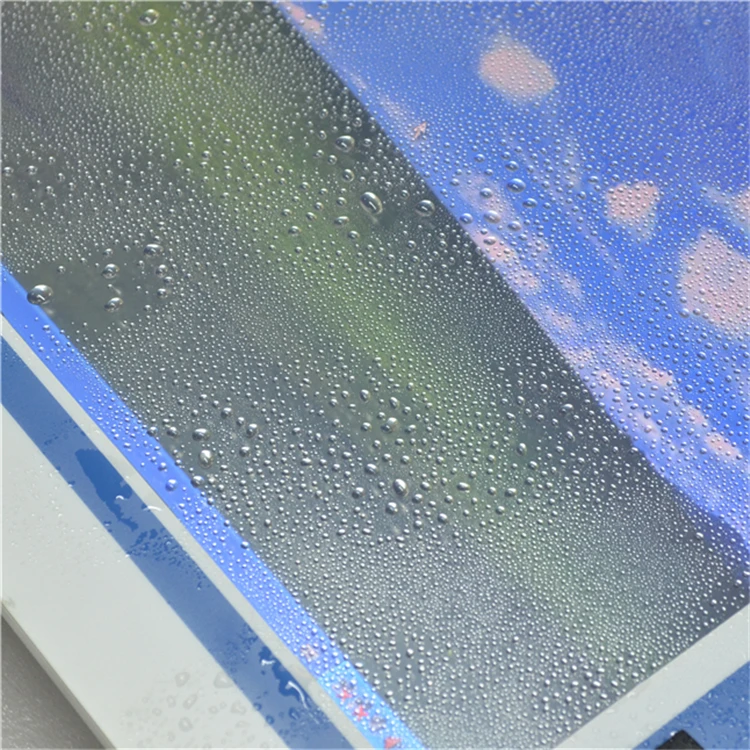

Water-proof | Front panel IP65 | |||||
LCD | Touchscreen | |||||
LCD Size | 10.4" SVGA TFT | Type | Resistive touch screen | |||
Resolution | 800×600 | Resolution | 4096×4096 | |||
Colors | 16.7MB | Transmittance | >81% | |||
Active Area(WxH) | 211.2mm×158.4mm(8.31"×6.24") | Controller interface | USB/RS-232C | |||
Backlight | LED | Driver Support | Win XP , Win 7 , Win8 , Win 10 , Linux | |||
MTBF | 30000hrs | Response Time | <5ms | |||
Pixel Pitch(HxV) | 0.264×0.264 | Surface Hardness | Mohs'Number 3H | |||
Luminance | 250cd/m2 | Click life | 250g/35,000,000 times | |||
Contrast Ratio | 500:1 | Draw life | 250g/5,000,000 times | |||
Viewing Angle | (L)70/(R)70/(T)50/(B)60 | |||||
Related Products
Our Company
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not for free charge.
Q: What is your terms of payment ?
A: Payment<=100000USD, 100% in advance.
If you have another question, pls feel free to contact us with email:
