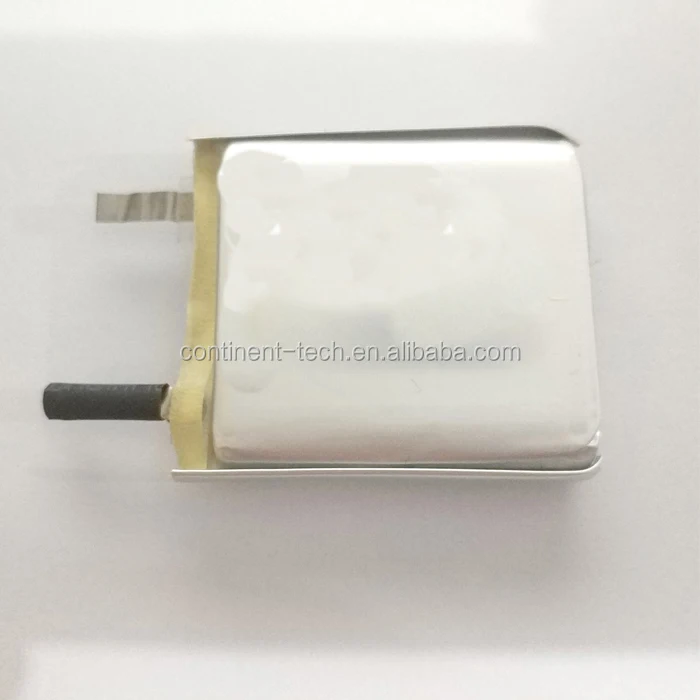

3.7V 70mAh Small Rechargeable Li Polymer Battery 301820 for Headset Ultra Thin Lipo Battery with PCM

Product Overview

Description

Factory Supply Small Size 301820 3.7V 70mah Lithium Polymer Battery

Lipo battery Specification:

Model	CTLP301820-70
Battery Type	Lithium ion polymer battery
PCM	Available
Accembly Composed Type	1S1p/ 1 cell
Nominal Capacity	70 mAh	@0.2C discharge
Nominal Voltage	3.7 V
Charge Voltage	4.2±0.12 V
Cut-off Voltage	3.0 V
Standard charge Current	35mA	@0.5C charge
Max. charge current	70 mA	@1C charge
Standard Discharge Current	35 mA	@0.5C discharge
Max. Discharge Current	70 mA	@1C discharge
Resistance
Cycle Life:	Over 500 times
Weight (Approx.)	4 g
Dimensions(T.W.L.)	3.0*18*20 (mm)
Charge Temperature	0 ~ 45℃
Discharge Temperature	-20 ~ 60℃
Storage Temperature	-10~40℃	Less than one month
	0~30℃	More than one month
Protection Function(PCM)	Over charge, Over discharge, Over load, Short Circuit
Warranty	12 Months

Battery OEM Service:

-Selected color of shrinkable tube.
-Selected Discharge plug and Balance connector
-High quality OEM label are welcomed

Advantages:
1, High energy density
2, Factory price& High quality
4, Pollution-free
6, Good consistency, low self discharge
2, High working voltage for single battery cells
5, Safe and reliable, With short-circuit protection function,

Battery Warranty:
The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.

Our services:

1.Your enquiry will be replied in 8 working hours.
3.Professional engineers & Exclusive and unique battery solution
5.Good sales: From begining to end,any quality problem with our products,new free one will be replaced.
4.Good quality assurance:All the cells are A grade cells,100% quality check and full one year warranty.
