Haijia High Quality Diameter 0.3mm low light degradation polymethylmethacrylate optical fiber

Product Overview

Description

     polymethylmethacrylate optical fiber



Technical parameter list

Item No.	Outer diameter	Inner diameter	Length /roll	Attenuation	Bending	Working temperature	Weight
HJ - 0.25mm	0.25mm	0.25mm	12000m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 0.3mm	0.3mm	0.3mm	8000m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 0.5mm	0.5mm	0.5mm	6000m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 0.75mm	0.75mm	0.75mm	2700m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 1.0mm	1.0mm	1.0mm	1500m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 1.5mm	1.5mm	1.5mm	700m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 2.0mm	2.0mm	2.0mm	350m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 2.5mm	2.5mm	2.5mm	250m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll
HJ - 3.0mm	3.0mm	3.0mm	150m/roll	≤ 0.23 db/m	10 times of its diameter	-45~+75℃	2.6kg/roll

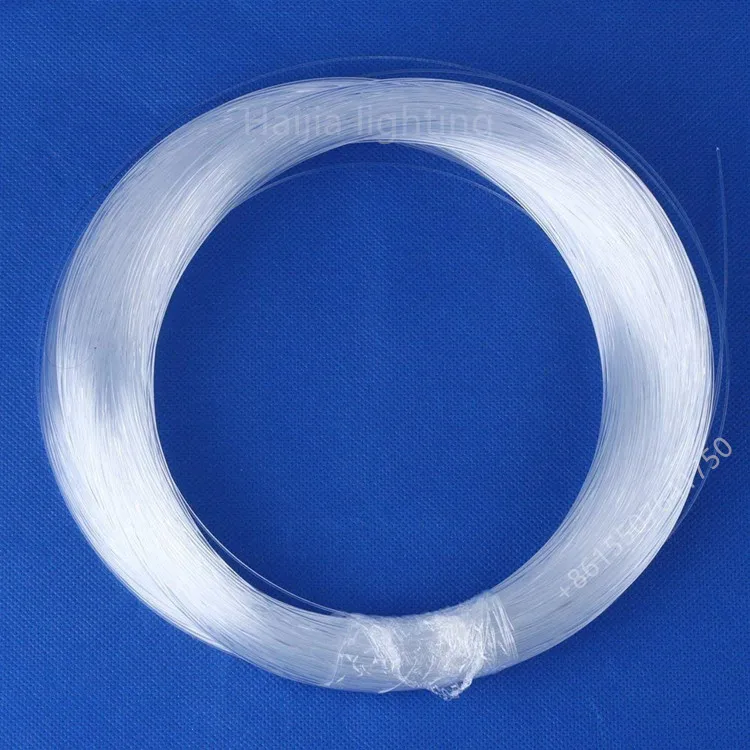

polymethylmethacrylate optical fiber photos :





straight fiber optic

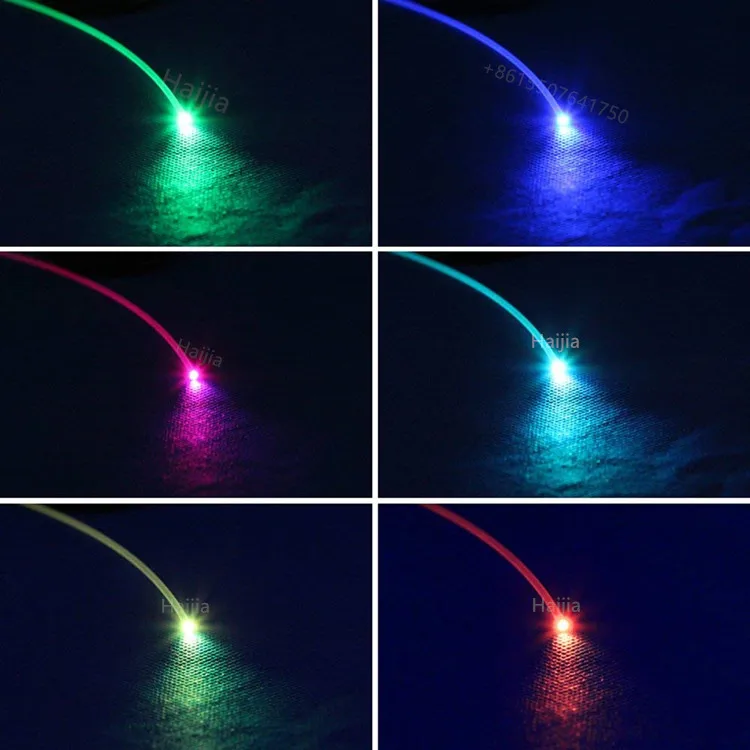

polymethylmethacrylate optical fiber for fiber optic star light kit





polymethylmethacrylate optical fiber- end product :



Can i have customized size , such as 0.35mm or 0.6mm etc ?

Answer : Yes . we make customized fiber optic , but the MOQ is more than 5 rolls .

Can you cut it in my side and make it straight ?

Answer : Yes , we can make it straight and cut it in your sizes .

Can i get 1-5m for testing ?

Answer : Yes , we can send you 1-5m for your testing .

What is your MOQ ?

Answer : MOQ : 1 roll

Do you have in stock  ?

Answer : Yes , within 1000 rolls can delivery in one day .
