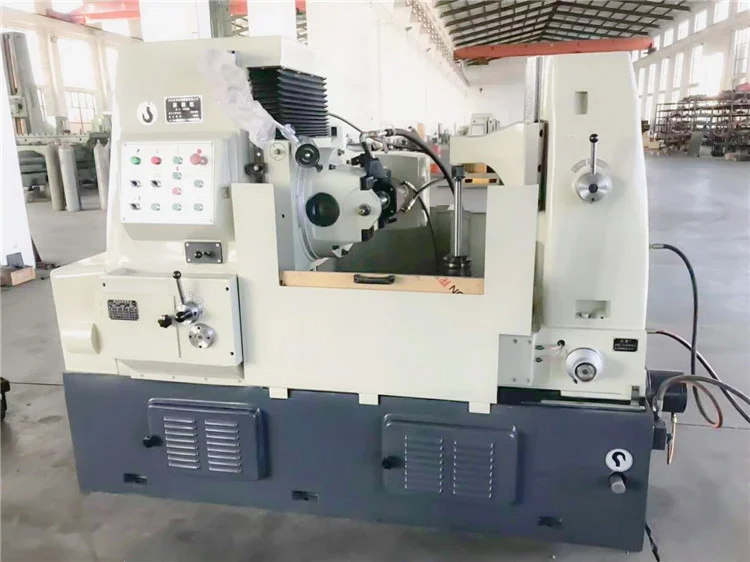

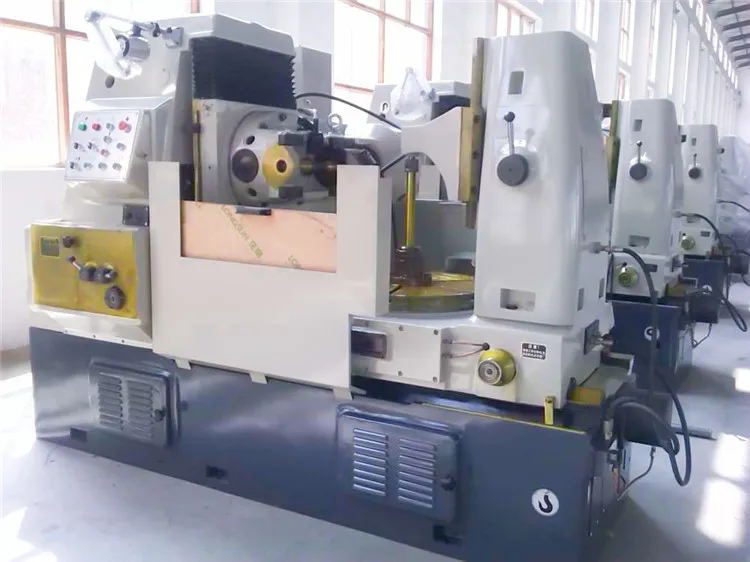

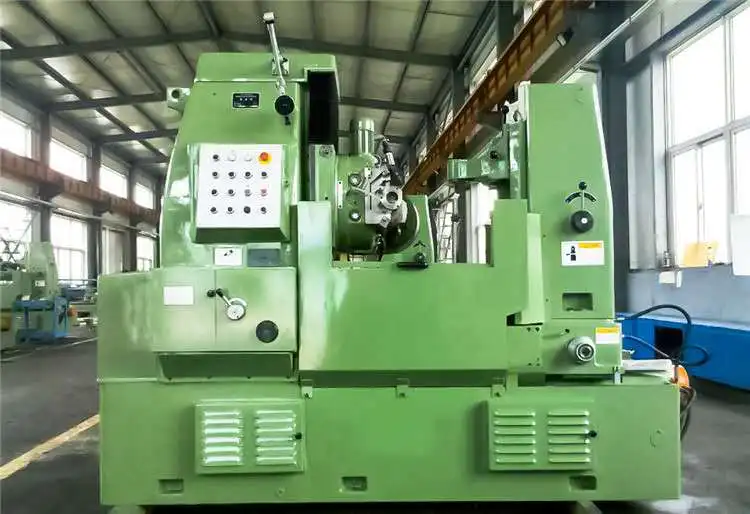

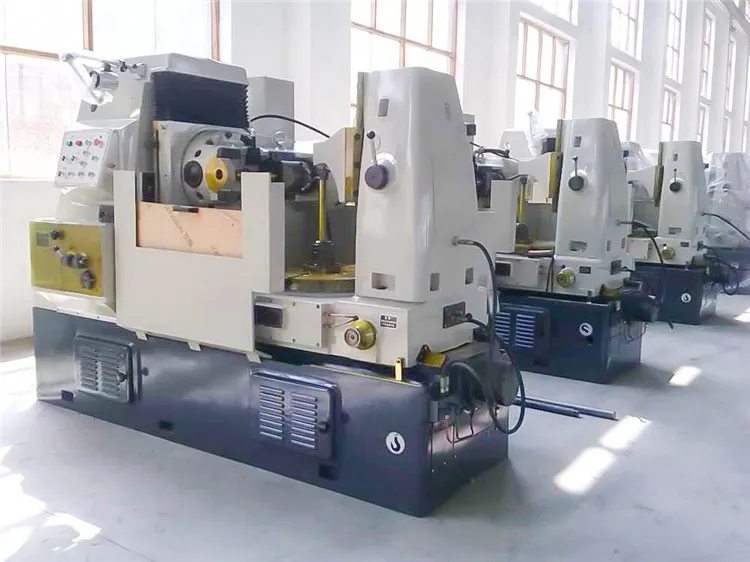

Y3180 gear hobbing machine can process straight and helical gears, worm gears, sprockets and short spline shafts. It is suitable for single-piece, small batch or batch production of gears. The machine tool has excellent structure, strong rigidity, good working precision, convenient operation and simple adjustment. When processing gears, the machine tool can work in down milling or up milling. The machine tool is equipped with an automatic shutdown mechanism, a safety device and an automatic lubrication system.
U IIFeatures
(1) Suitable for batch, small batch and single-piece production of cylindrical helical gears and worm gears. It can also roll-cut Huajian shafts with a certain range of parameters.
(2) Easy to adjust, with automatic parking mechanism
(3) It has a reliable safety device and an automatic lubrication gear hobbing machine (gear hobbing machine) is the most widely used machine tool in gear processing machines. It can cut straight and helical cylindrical gears on the gear hobbing machine, and can also process worm gears and sprockets. Wait. A gear processing machine for machining straight, helical and herringbone cylindrical gears and worm gears with a hob according to the generative method. This machine tool can also process various special tooth-shaped workpieces such as splines and sprockets when special hobs are used. The machining accuracy of the ordinary gear hobbing machine is 7 to 6 (JB179-83), and the high precision gear hobbing machine is 4 to 3. Maximum machining diameter up to 15 meters.
Technical data
Model
Y3180
Max.dia.of workpiece (without back column/with back column)
800/550mm
Max.modulus(casting iron/steel workpiece)
10/8mm
Max. helix angle in turning bevel gear
±45°
Max. dimension of cutter (Dia. x Length)
180x180mm
Diameter of changeable hobbing centre axis
22, 27, 32, 40 mm
Cutter tool spindle taper hole
Mohs 5
Worktable diameter
650mm
Worktable hole diameter
80mm
Worktable mandrel tapper
Mohs 5
Distance between axis of cutter and work table face
235~585mm
Distance from hob center to workable center
50~550mm
The distance between under end surface of the support bearing hole and the worktable
400-600mm
Rapid moving speed of work table
50mm
Max. axial movement of cutter
50mm(manual)
Spindle speed steps
8
Spindle speed range
40~200rpm
Axial feeds range
12 steps 0.4~4 mm/rev
The max speed of worktable
5.3r/min (3.5r/min)
Power of main motor and synchro-speed
5.5/1500 kw/rpm
Power of rapid axial motor and synchro-speed
1.1/1500 kw/rpm
Power of hydraulic pump motor and synchro-speed
1.1/1000 kw/rpm
Power of rapid worktable motor and synchro-speed
0.55/1500 kw/rpm
Power of motor of cooling pump
0.55kw
Weight
5500kg
Overall size
2752X1490X1870mm
Machine Accessory List
Item
Unit
Qty
Main machine
SET
1
Hob arbor assemblies of Ø32 and Ø40
SET
one set/each
Change gears
SET
1
Tools for installation and setup
SET
1
Dead Center
PCS
1
Documents
PCS
1
Company Information
Packaging & Shipping
Our Services
