Product Overview
Description

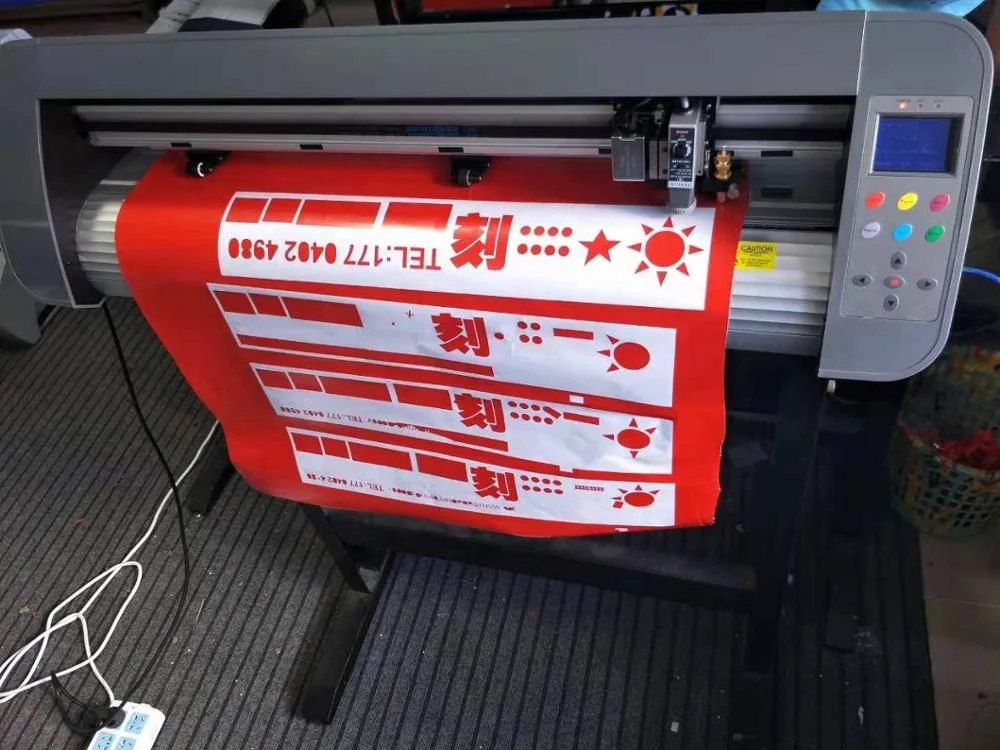

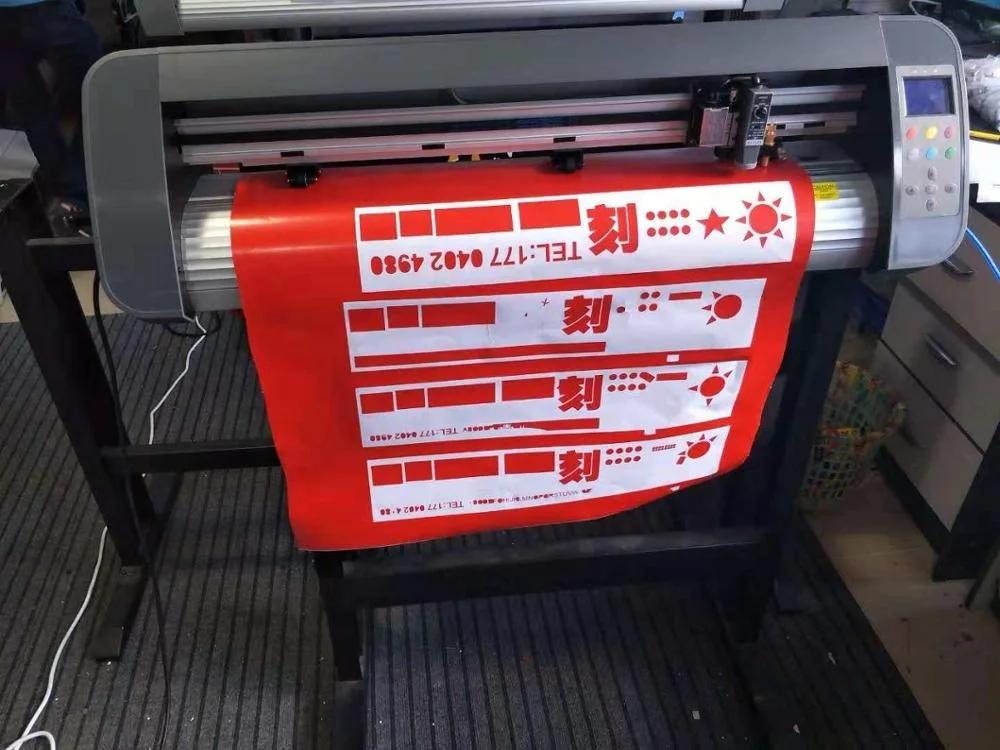

laser vinyl plotter /laser vinyl cutter/laser plotter paper
(1600mm / 1300mm /750mm /450mm cutting size available)
Advantanges:
1 32-bit ARM CPU with 4M internal cache;
2 16M memory for cutting job storage ,data remain after power lose;
3 support repeat cutting function for last cutting job;
4 cutting thickness on normal vinyl is 0.05mm up to 2mm;
5 minimal can cut 2mm height English letter;
6 0-1000gram cutting pressure digital adjustable;
7 support standard HPGL and DMPL language;
8 micrp stepping motor driving system with 0.005mm per step;
9 with red dot laser pointer build in ,wupport contour cutting;
10 Flexisign is a professional sign cutting software and able to control the vinyl cutter for normal cutting and contour cutting;
Specification:
| Model | YT-1600C / YT-1300C /YT-750C/YT-450C | ||||
| Media way | Floor stand/ floor stand / optional / without floor stand | ||||
| Mainboard | 32-bit ARM7 CPU, 128Mb,High-speed CACHE memory | ||||
| Control Panel | 3.0in screen,11 membrane buttons | ||||
| Driver | High speed, big power step motor, micro-step driver | ||||
| Maximum Cutting Area | 1550mm / 1205mm /630mm /330mm | ||||
| Maximum cutting speed | 500mm/s | ||||
| Cutting force | 500g | ||||
| Mechanical precision | 0.025mm | ||||
| Repeatable precision | 0.025mm | ||||
| Type of plotter pen | All types of diameter 11.4mm plotter pen | ||||
| Plotter instuction | Compatible DM/PL, HP/GL | ||||
| Interface | USB, U disk , serial port | ||||
| Power supply | AC220V / 110V,50~60Hz | ||||
| Power consumption | <80W | ||||
| Knife(blade) | Imported blade | ||||
| Operating environment | Temperature; 5 -35℃ Relative humidity: 30% - 70% | ||||
| Package size | 1900mm/ 1590mm/1060/710mm *340*400mm | ||||
| Gross weight | 40kg / 35 kg / 22kg / 12kg |
Main Features:
1. More Interface: USB,U disk, serial Port, WIFI
2.Our machine can work without PC
2.Our machine can work without PC
3.High-precision Steel Axes: Guarantee the tolerances
4.4MB CACHE memory: our machine can repeat the words or images for 0-500 times(Repeat Function)
5.Noise less than 60 DB: keep our user away from noise pollution
6.Our control panel: 11 membrane and 3.0 LCD touching screen, and our machine have 5 kinds of backlight for select.
7.Our professional cutting force,it is easy to draw rigid PVC, card paper and reflective film.
4.4MB CACHE memory: our machine can repeat the words or images for 0-500 times(Repeat Function)
5.Noise less than 60 DB: keep our user away from noise pollution
6.Our control panel: 11 membrane and 3.0 LCD touching screen, and our machine have 5 kinds of backlight for select.
7.Our professional cutting force,it is easy to draw rigid PVC, card paper and reflective film.
8.our machine can cut 2mm words and have the function of contour cut
9. 4MB CACHE memory, teneth will not scribble no matter how long or how big is you products.
9. 4MB CACHE memory, teneth will not scribble no matter how long or how big is you products.
10.Advanced aluminum,matte painting,excellent technology,real luxury model.
YT-450C (330mm cutting size):
YT-750C (630mm cutting size):
YT-1300C (1205mm cutting size):
YT-1600C (1550mm cutting size):

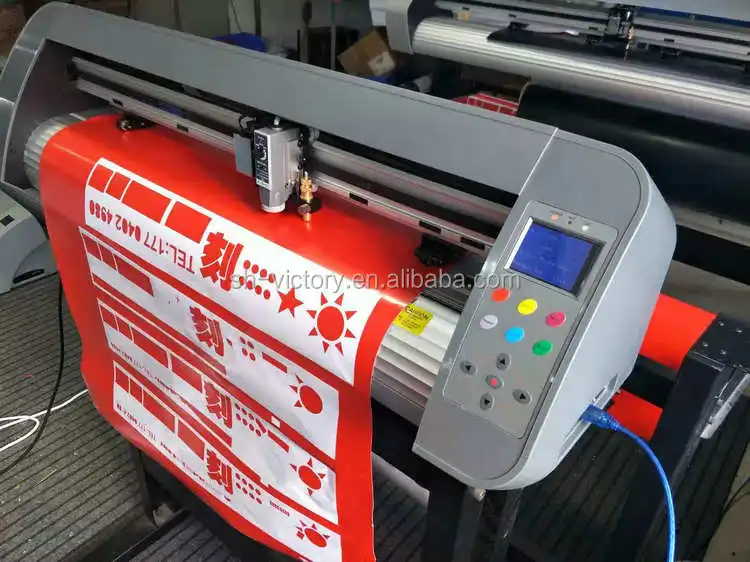

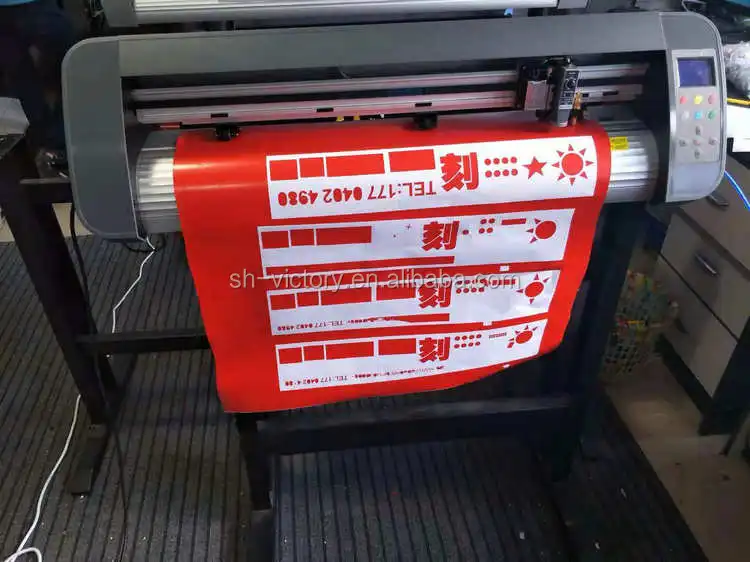

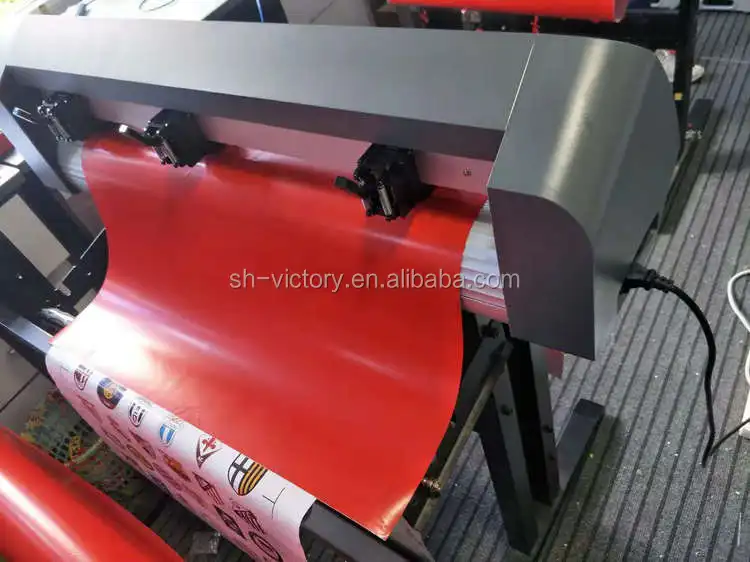

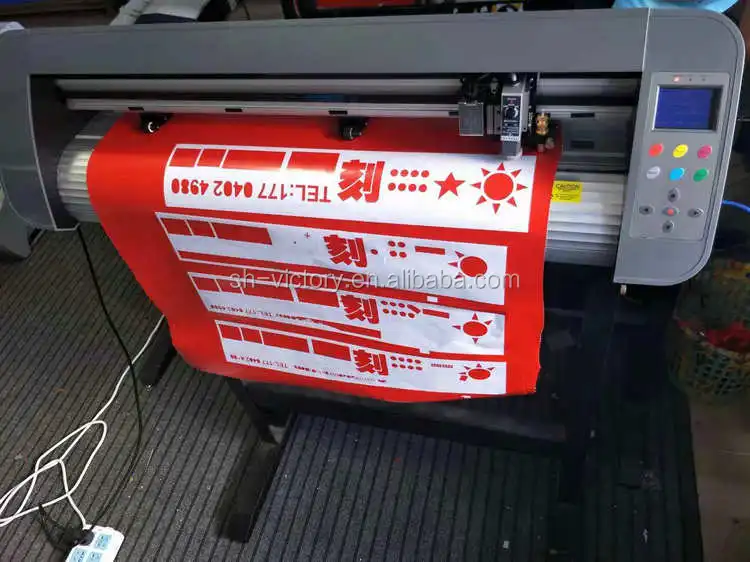

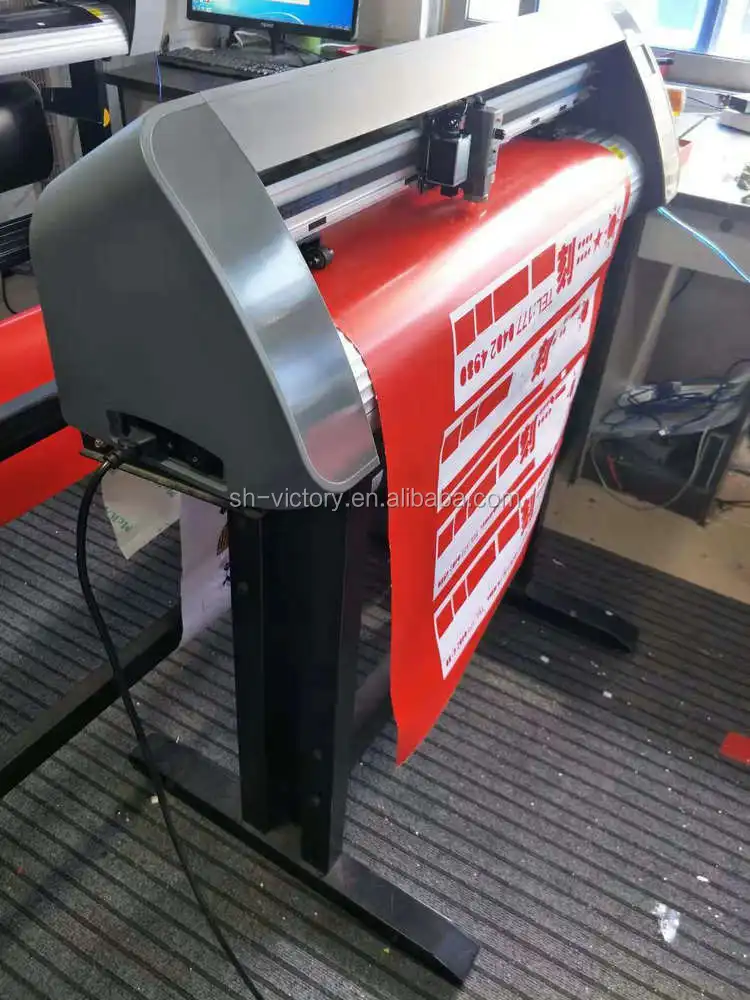

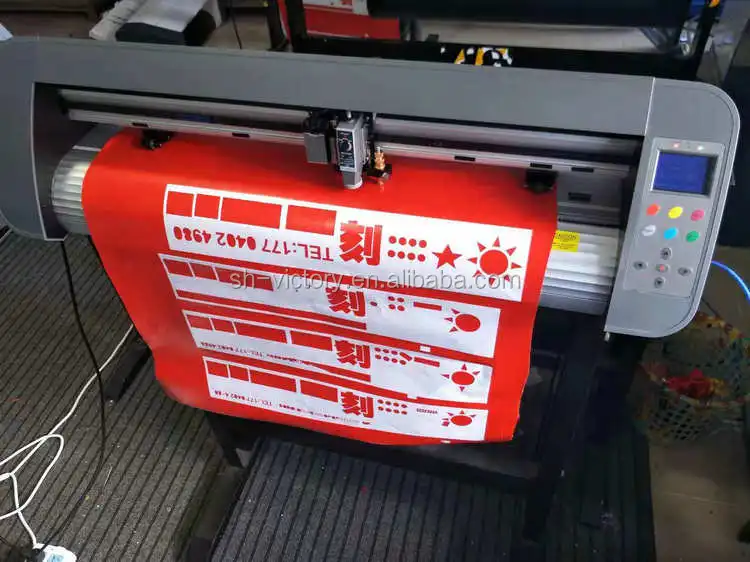

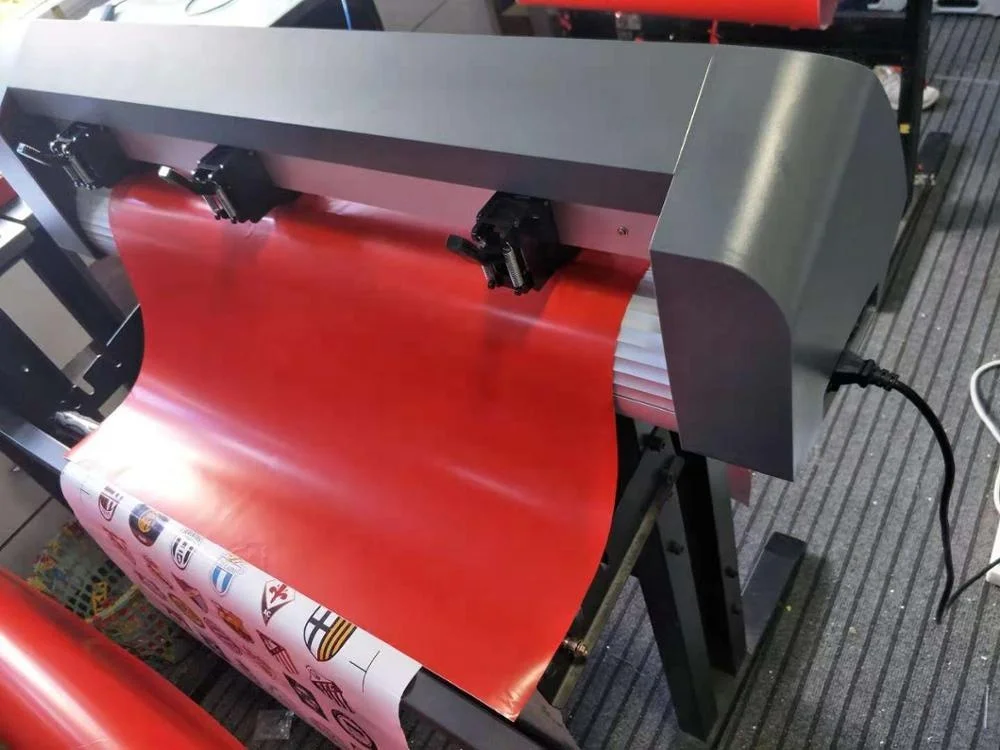

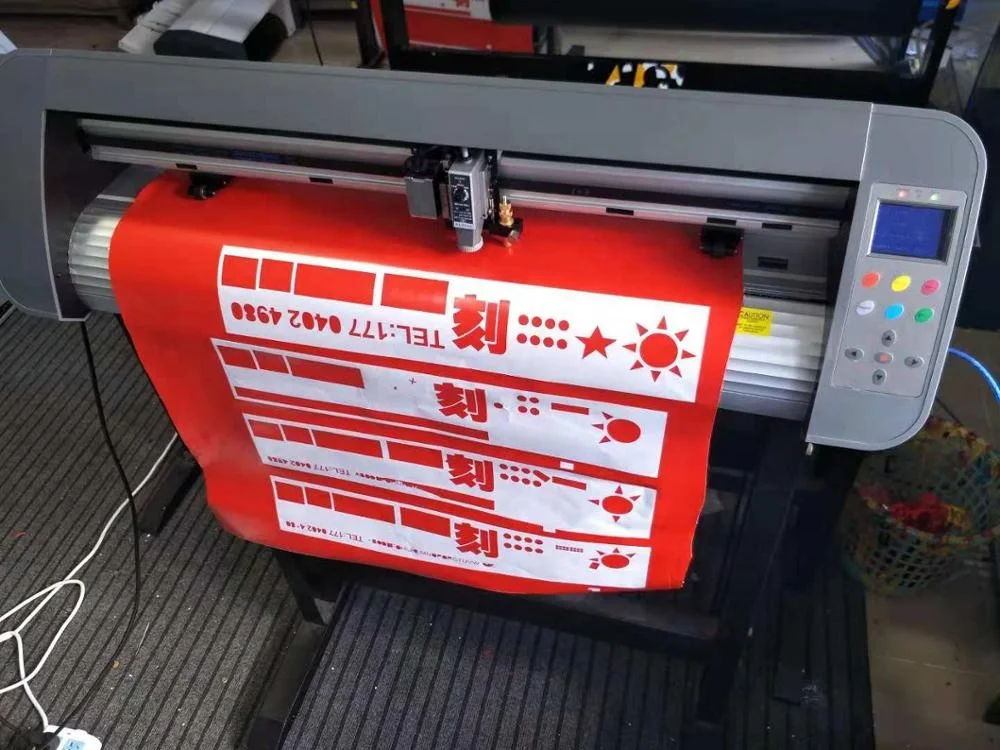

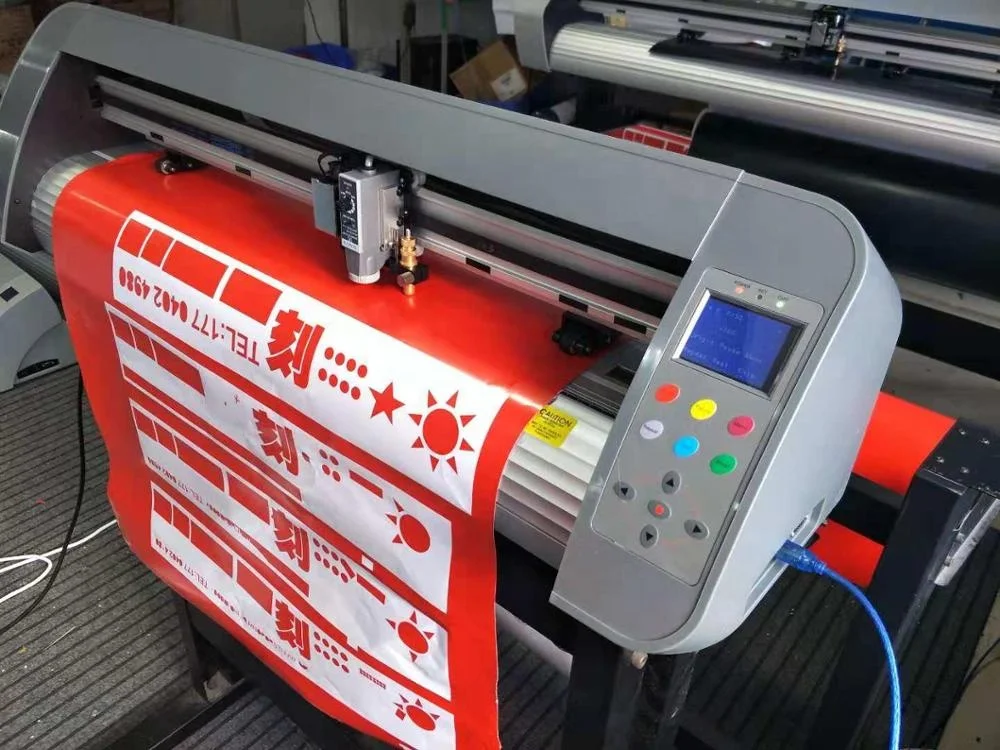

More plotter photos :
Packaging Photos :
