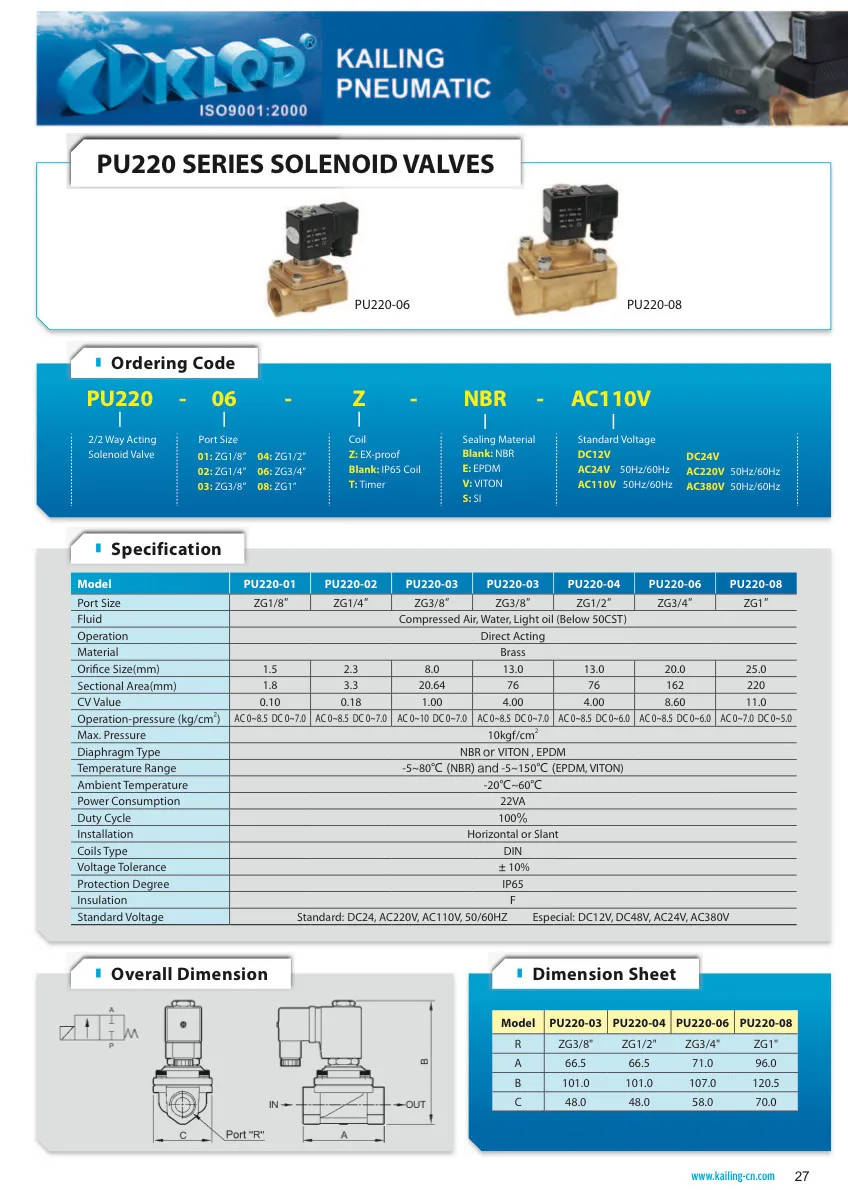

2/2 Way PU220 Series PU220 08 24V Brass Direct Acting Normally Closed Water Solenoid Valve

2/2 Way PU220 Series PU220-08 24V Brass Direct Acting Normally Closed Water Solenoid Valve

1.Replace the solenoid can make the valves explosion-proof.
2.Working Medium:Compress air,water,light oil(Below 50CST)
3.Orifice Size(mm):1.5,2.3,8.0,13.0,20.0,25.0
4.Sectional Area(mm):1.8,3.3,20.64,76,162,220
5.CV Value:0.10,0.18,1.00,4.00,8.60,11.0
6.Max.Pressure:10kgf/cm²
7.Temperature Range:-5~80℃(NBR)and -5~150℃(EPDM,VITON)
8.Ambient Temperature:-20~60℃
9.Standard Voltage:Standard:DC24,AC220V,AC110V,50/60Hz Especial:DC12V,DC48V,AC24V,AC380V

Q1. Is sample order acceptable?
A: Yes.It's ok.

Q2. How to place the order?
A: You can send us email or inquiry at alibaba directly.

Q3. How many days for delivery?
A: We have stock for standard products.

Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.

Q7. How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.

Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
