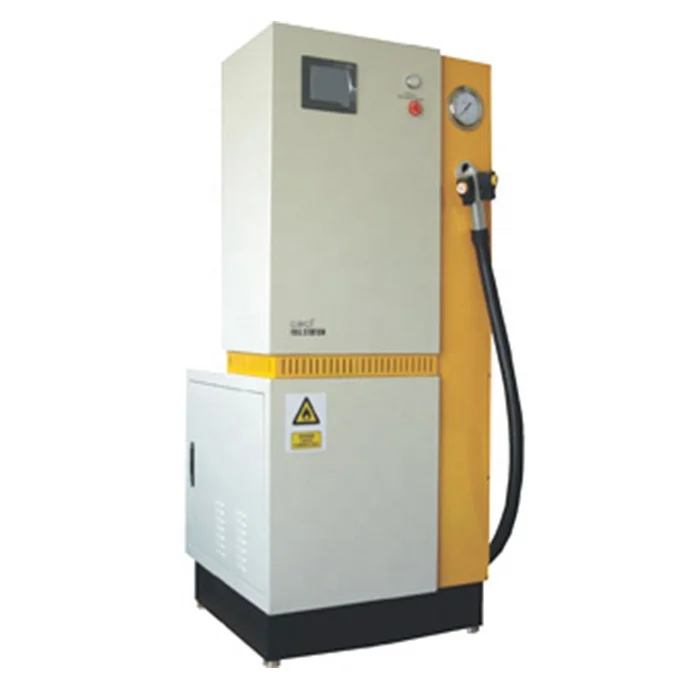

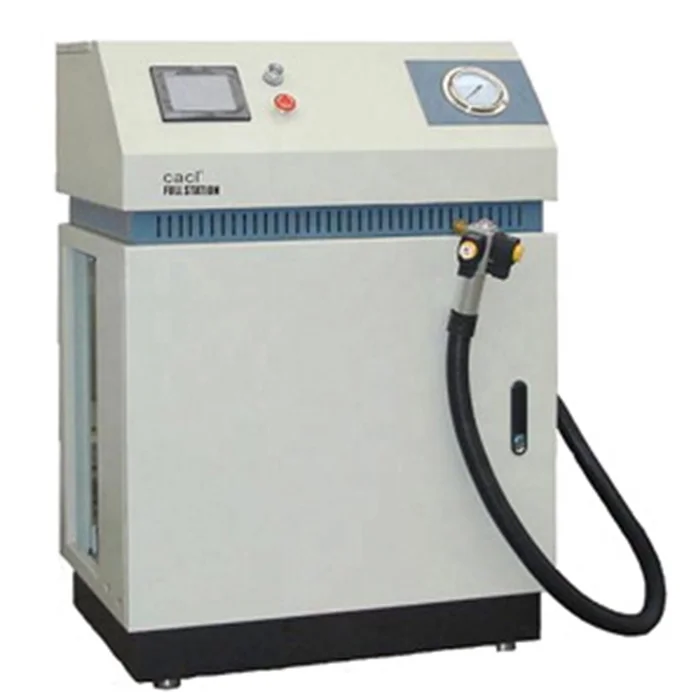

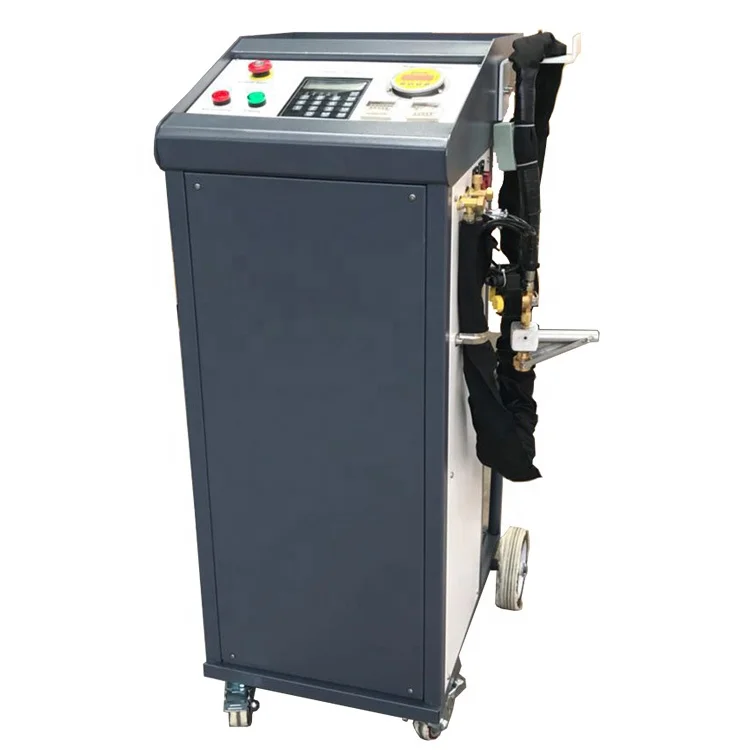

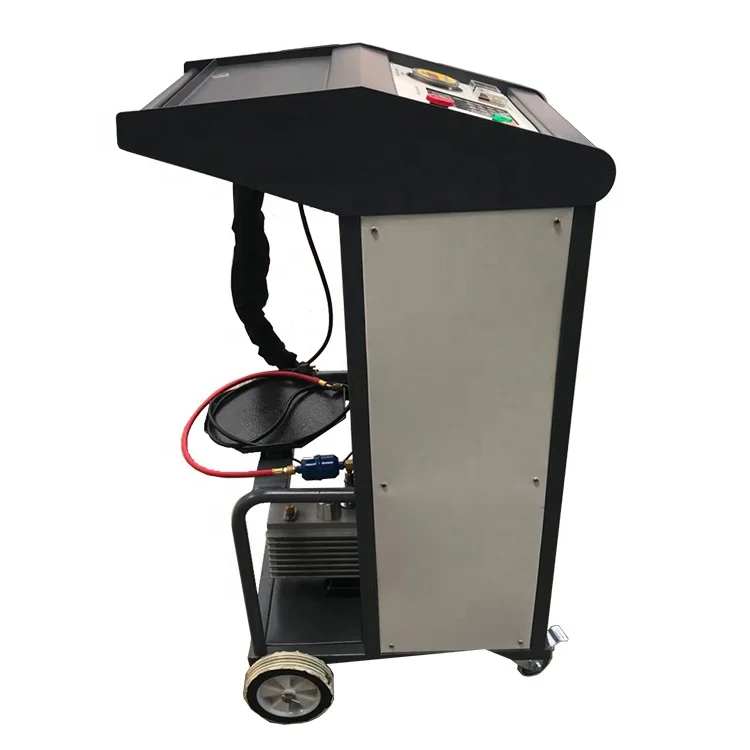

Automatic Refrigeration Equipment Machine Unit R600A Refrigerant Charging Machine

S.N.

Name/Specification

1

R134A NC refrigerant charging machine

Remarks

Charging amount;50g-1000g;Vacuum pump:4l/s(Language for Screen operation interface and instruction manual are English and Chinese)

S.N.

Name/Specification

1

R22,R404A,R407C,NC refrigerant charging machine

Remarks

Charging amount;50g-10KG;Vacuum pump:8l/s(Language for Screen operation interface and instruction manual are English and Chinese)

S.N.

Name/Specification

1

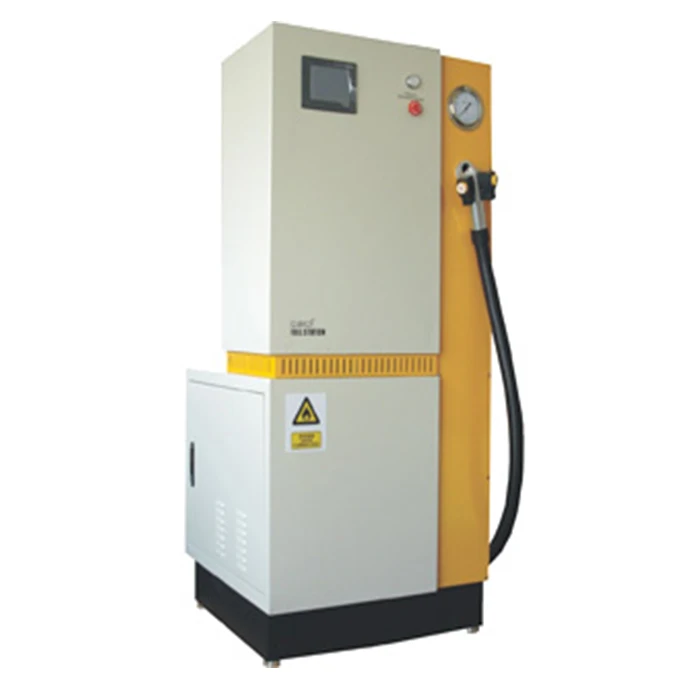

R600A,R290 Refrigerant charging machine

Remarks

Charging amount;0g-1000G;Vacuum pump:4l/s(Language for Screen operation interface and instruction manual are English and Chinese)

1

Refrigerant

Refer to Above form

9

Metering system

Turbine flowmeter

2

Work pressure

1.8MPa-2.2MPa

10

Vacuum degree checking

10-300Pa

3

Accuracy

   ±0.5G

11

Charging gun connector

Fast connector G1/4

4

Speed

Above 100g/S

12

Charging gun tube length

2.5M

5

Vacuum degree

≤5Pa

13

Power source and rated power

AC380V±10% 0.75KW

6

Charging amount

Refer to above form

14

Compressed air pressure

>0.5MPa

7

Vacuum speed

 As per vacuum pump

15

Measurement and weight

L930*W550*H1120/250Kg

8

Preset channel

100

16

Cylinder charging accuracy

≤±0.5%g,
