  • 10 Meters Flexible Aluminum Foil Duct For Exhaust Fan
10 Meters Flexible Aluminum Foil Duct For Exhaust Fan
10 Meters Flexible Aluminum Foil Duct For Exhaust Fan
10 Meters Flexible Aluminum Foil Duct For Exhaust Fan
10 Meters Flexible Aluminum Foil Duct For Exhaust Fan
10 Meters Flexible Aluminum Foil Duct For Exhaust Fan

10 Meters Flexible Aluminum Foil Duct For Exhaust Fan

Share on (60817965382):


Price:$22.00 - $30.00

Quantity:


Product Overview

Description





Product Description


Product Features
1.PP material,anti-acid and alkali.
2.Big airflow and air pressure.
3.Double NMB ball bearings,long working life-over 50000 hours.
4.Easy installation.
5.Protection grade:IP44
6.Operation temperature range:-20℃~60℃.
7.Perfect for office,meeting room,public place,hotel,apartment,hospital,ktv,etc.

Optional Functions:
1.Three-speed motor(high,middle,low)
2.Timer
3.Temperature,humidity sensor.

CCC CE CB SAA UL ERC

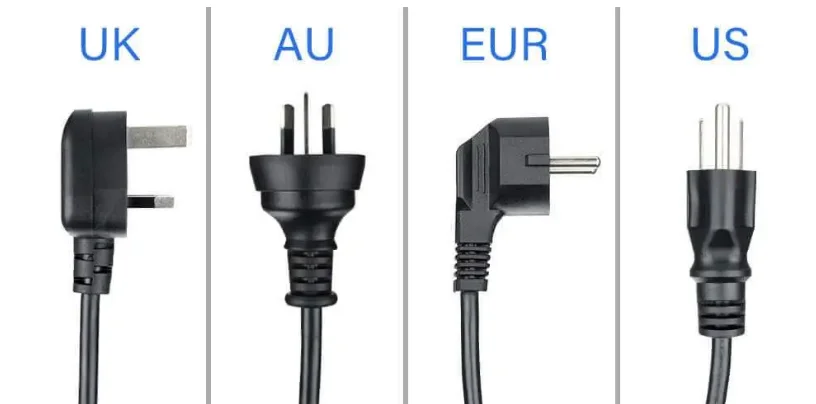

Please send us a message informing us of the customized plug specifications you need !




Why Choose Us


1. Product Material Quality Assurance
Our product materials are more advanced or durable than other manufacturers' products, using environmentally friendly plastic.
2. Long product lifecycle
Our fan has a service life of over 50000 hours, Japanese NMB bearing.
3. Energy conservation and environmental protection
Our products have the advantages of energy conservation and environmental protection, such as low energy consumption, low noise, and effective reduction of air pollution.
4. Customization
The advantage of customized services is to customize air volume, voltage, etc. according to customer needs.
5. Safe and reliable
If the product has high safety and reliability, such as using special anti-corrosion, explosion-proof materials or high-quality components.




AC controller
Please send a message to contact us, which controller do you need to match !


Wireless intelligent switch
Wireless intelligent controller
No punching, no screws, just double-sided adhesive.
Wireless intelligent controller
Air volume regulation, humidity control switch, delayed start stop, VOC induction setting. Manual automatic mode selection
Wired intelligent controller
Delayed shutdown, temperature sensing, wind speed regulation,




Specification


Model No.
Speed
Voltage/ Frequency     (V/Hz)
Current(Amps)
Power(W)
Speed(RPM)
Airflow(m³/h)
Air Pressure    (Pa)
Noise  (dB)
Net Weight
(kgs)


HF-100P
H

220~240/50
0.12
26
2200
198
156
31


1.5
L
0.11
23
1850
165
131
26
H
100~120/60
0.31
35
2200
198
156
31
L
0.28
30
1850
165
131
26


HF-125P
H

220~240/50
0.14
33
2250
284
159
32


1.5
L
0.13
28
1850
248
106
26
H

100~120/60
0.35
38
2250
284
159
32
L
0.31
32
1850
248
106
26


HF-150P
H

220~240/50
0.22
54
2550
530
300
33


2.6
L
0.19
44
1850
410
240
29
H

100~120/60
0.55
62
2550
530
300
33
L
0.45
49
1850
410
240
29


HF-200P
H

220~240/50
0.53
128
2450
840
352
63


4.9
L
0.52
123
1950
690
274
55
H

100~120/60
1.60
165
2450
840
352
63
L
1.3
135
1950
690
274
55


HF-250P
H

220~240/50
1.2
225
2450
1405
488
66


7.5
L
1.75
165
1850
1064
371
58
H

110~120/60
2.6
290
2450
1405
488
66
L
1.8
210
1850
1064
371
58


HF-315P
H

220~240/50
1.9
390
2350
2206
693
69


11.0
L
1.4
275
1650
1750
435
61
H

110~120/60
3.7
412
2350
2206
693
69
L
3
330
1650
1750
435
61


OEM Service


Can I customize other parameter specifications?

Please send us an inquiry and let us know the specifications you need. We are a factory that accepts customization. OEM/ODM.




About us




HongGuan pursues the most cost-effective solutions to meet market demands. Our quality as well as each technical performance index reaches an advanced level in the world. The products have many properties, such as nice appearance, compact structure, finely processed, high wind pressure, large air flow, light weight, thin in depth, low noise, long service life, high adaptability to environment, low price and good reliability, which are favored by customers. They are very popular in Europe, North America and South Asia. Our products are widely used in computer information industry, network communication industry, industrial production equipment, medical equipment, home appliance, etc.
HongGuan advocates and tries to practice the modern enterprise management idea, to own the most advanced production and testing equipment, to build the first-class management, research and development and sales teams, and to achieve the goal of "a great variety of goods, reliable quality, timely delivery and good service".
HongGuan regards "Quality First" as the management policy, and always adhere to the idea of "Customers First and Service First" to build HongGuan Mecchatronics brand. Your satisfaction is always HonGuan's pursuit.
HongGuan's service tenet: Good faith cooperation to create interest. Your satisfaction is our pursuit.


3D Showroom


VR

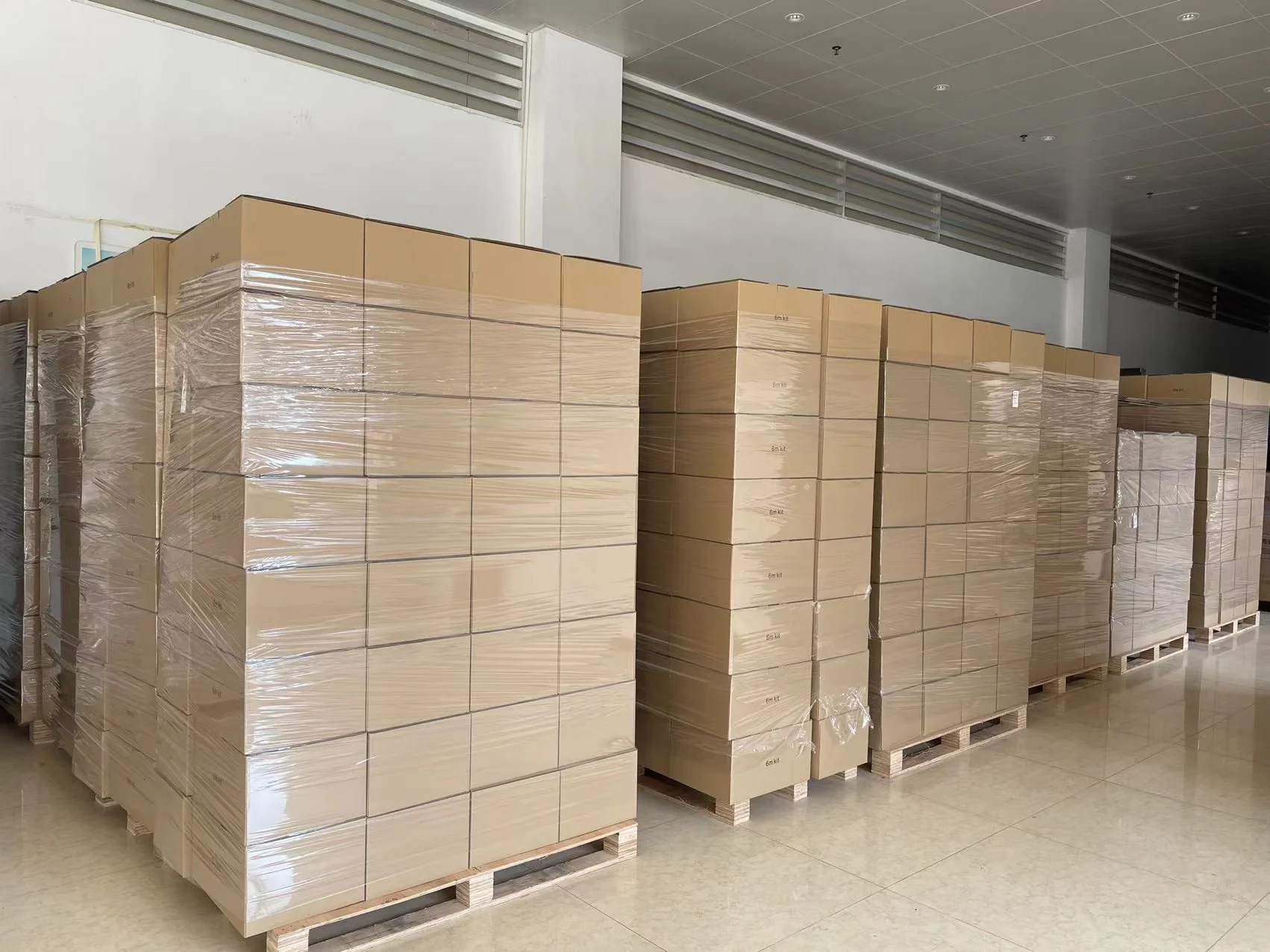

Packing & Delivery








FAQ


1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(55.00%),North America(15.00%),Eastern Europe(10.00%),Oceania(10.00%),Western Europe(10.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Ventilation Fans,Duct Fans,Exhaust Fans,Fresh Air System

4. Why should you buy from us not from other suppliers?
Leading manufacturer of fans, including inline duct fan, ac fan and dc fan.
The in line duct fan has been patented.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
