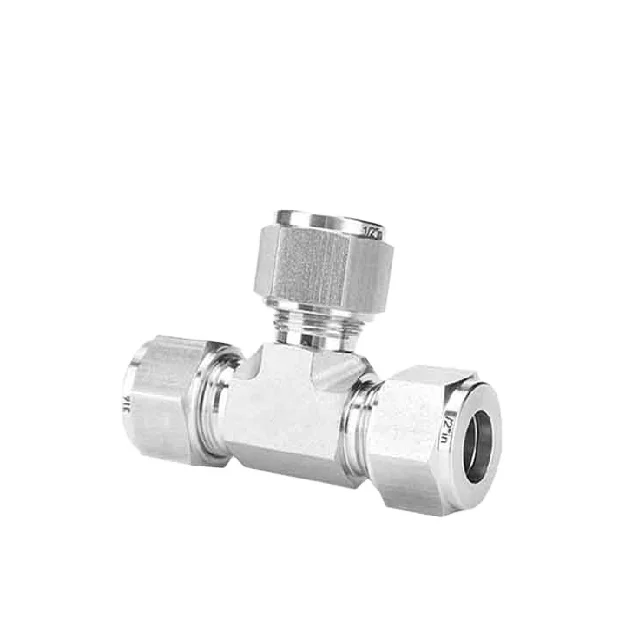

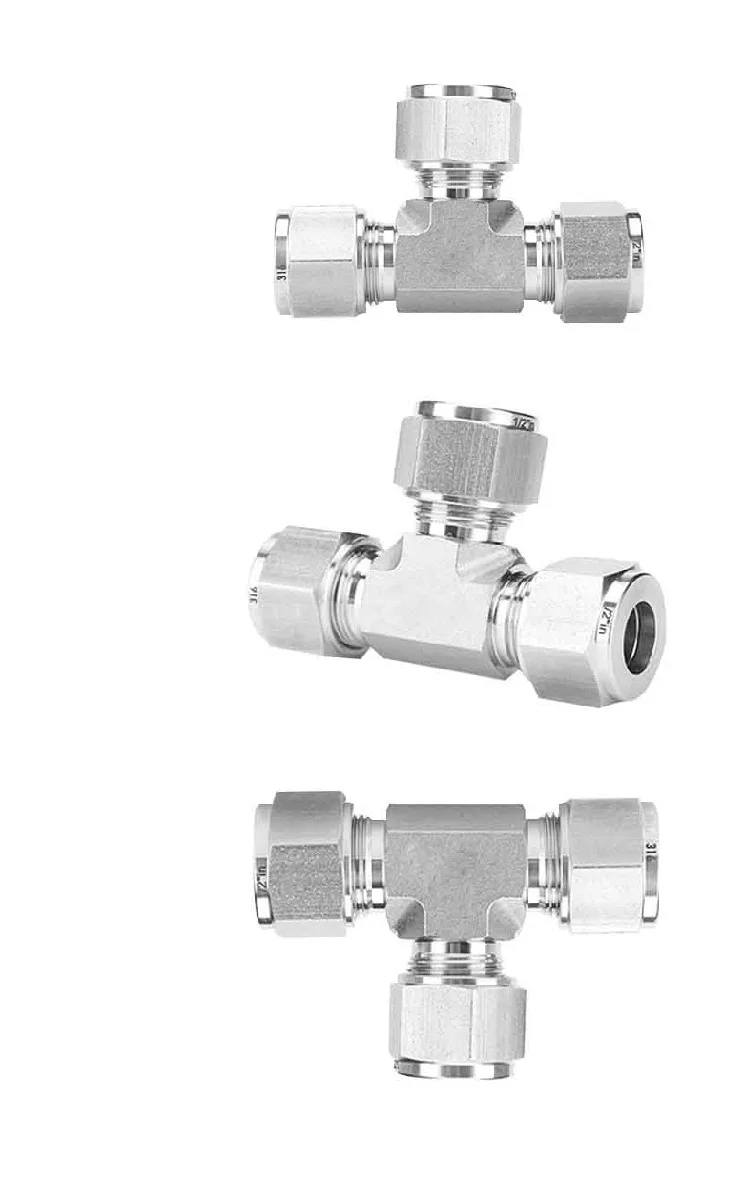

Swagelok Type Stainless Steel Compression Fitting SS316L 3/8' Tube OD Double Ferrule Equal Tee Union

Product Overview

Description



Applications:

Instrumentation,High pressure and temperature, Cryogenic service.

Specifications:

Material: A105, Stainless Steel, Brass, Alloy 400(Monel), 2205 duplex stainless steel, Inconel, Hastelloy;

Sizes: range from 1/16" to 2" and 2 mm to 50 mm;

Maximum Operating Pressure: 1000-15000psig @70℉(21℃);

Operating Temperature Range:  -325℉(-198℃) to 1200℉(648℃);

Features:

♦ Fittings are easy to disconnect and retighten.

♦ Every fitting is stamped with size, material, and heat code.

♦ Radius junction design with elbows provides smooth flow path.

♦ Female nut threads are silver-plated to reduce the friction against the body threads.

♦ Hardened threads with smooth surface finish avoid galling and help to extend the fitting service life.
