UIC860-0 Standard UIC60 Heavy Steel Rail For Railway Construction
US $590.00-$720.00

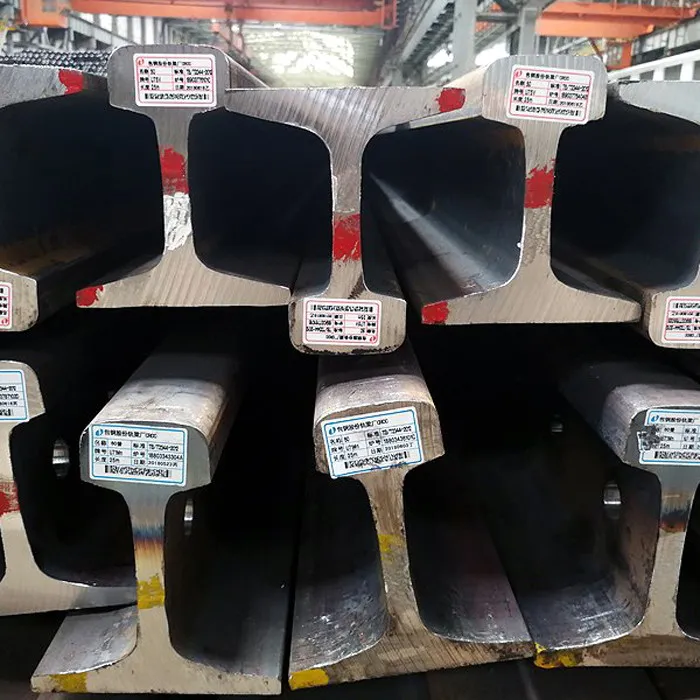

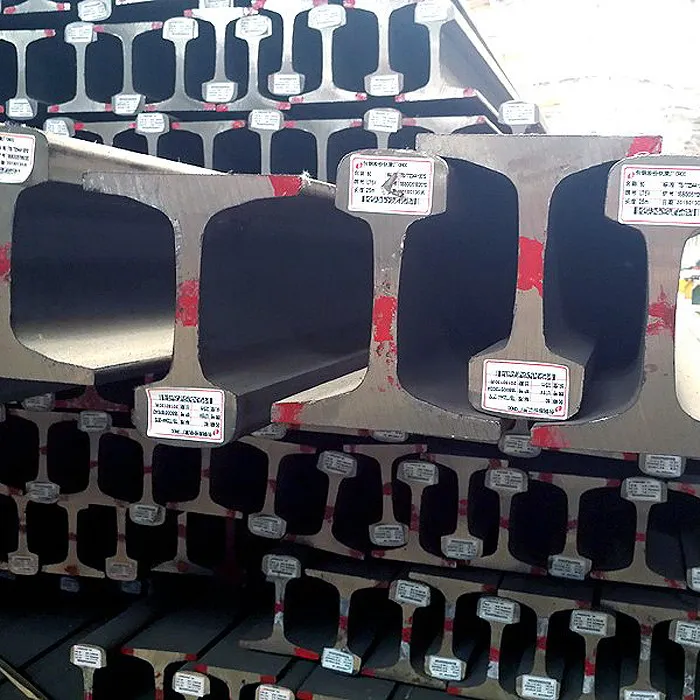

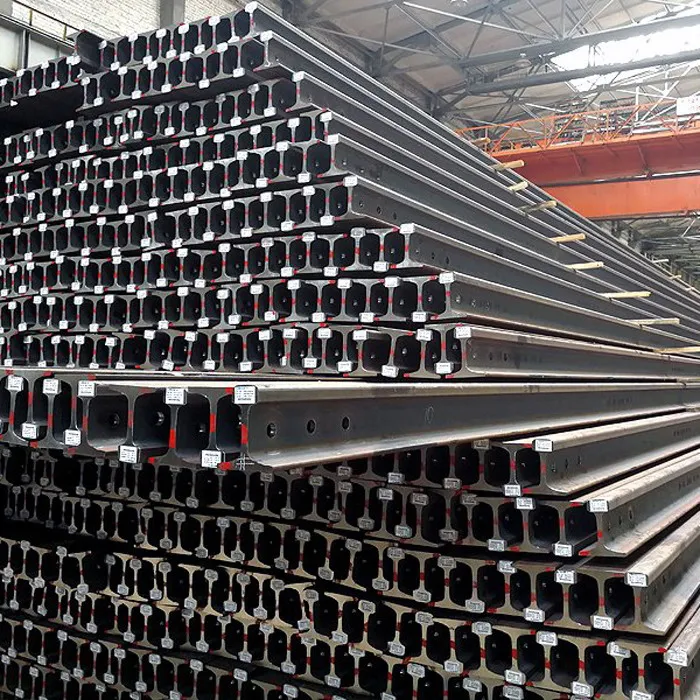

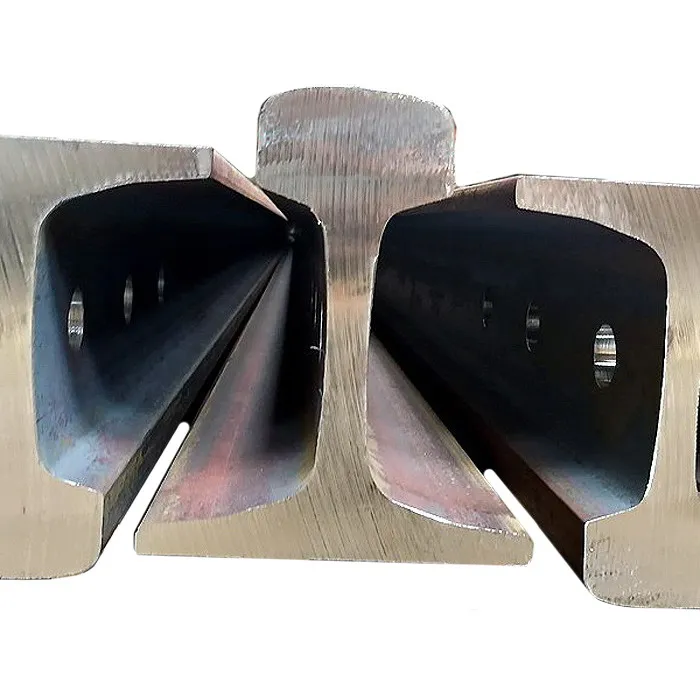

136RE railway steel rail
- Category: Steel Rails >>>
- Supplier: Shanghai Yueqi Industrial Co. Ltd.
Share on (60818020135):
Product Overview
Description
TR68 (136RE) America standard steel rail
This type of rail is used for America and South America area, it is used in heavy railway line, we can produce it by order, the MOQ should more than 400 tons.
Please leave message to us to ask the details.
| Heavy rail | Height (mm) | Bottom width (mm) | Head width (mm) | Middle thickness (mm) | Length (m) | Weight (kg/m) |
| TR-45 (90 ARA-A) | 142.9 | 130.2 | 65.1 | 14.3 | 12-36 | 44.64 |
| TR-50 (100 RE) | 152.4 | 136.5 | 68.2 | 14.3 | 12-36 | 50.35 |
| TR-57 (115 RE) | 168.3 | 139.7 | 69 | 15.9 | 12-36 | 56.9 |

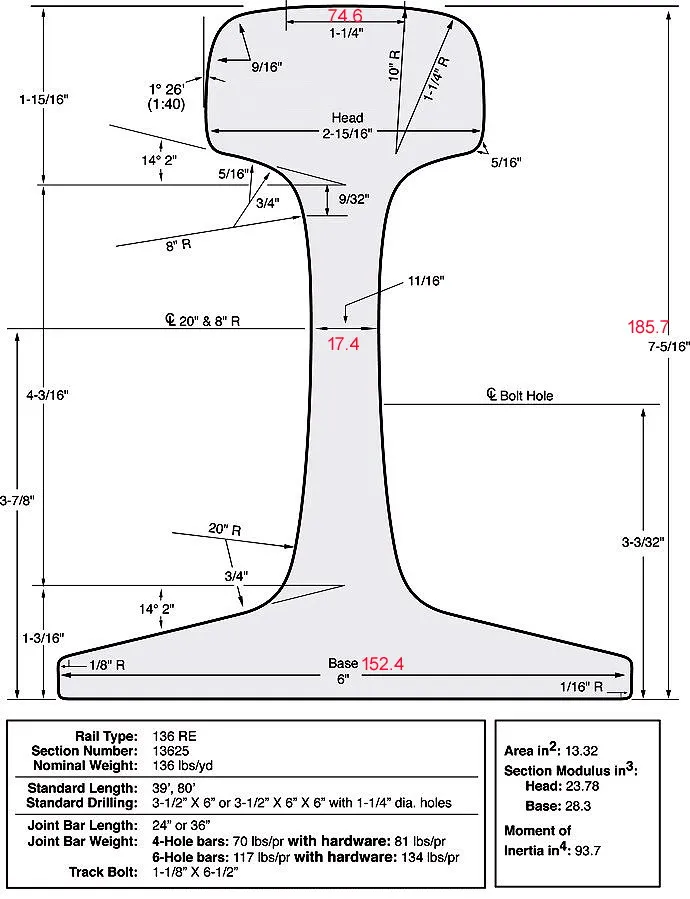

| TR-68 (136 RE) | 185.7 | 152.4 | 74.6 | 17.4 | 12-36 | 67.56 |
| MRS 87B (CR 175) | 152.4 | 152.4 | 102.4 | 38.1 | 12-36 | 86.8 |
