Roof commercial duct evaporative air cooler with 18000 airflow
- Category: >>>
- Supplier: Fuzhou Lifeng Comfort Technology Co. Ltd.
Share on (60818071793):
Product Overview
Description
Tech Specification
Description of 18APV

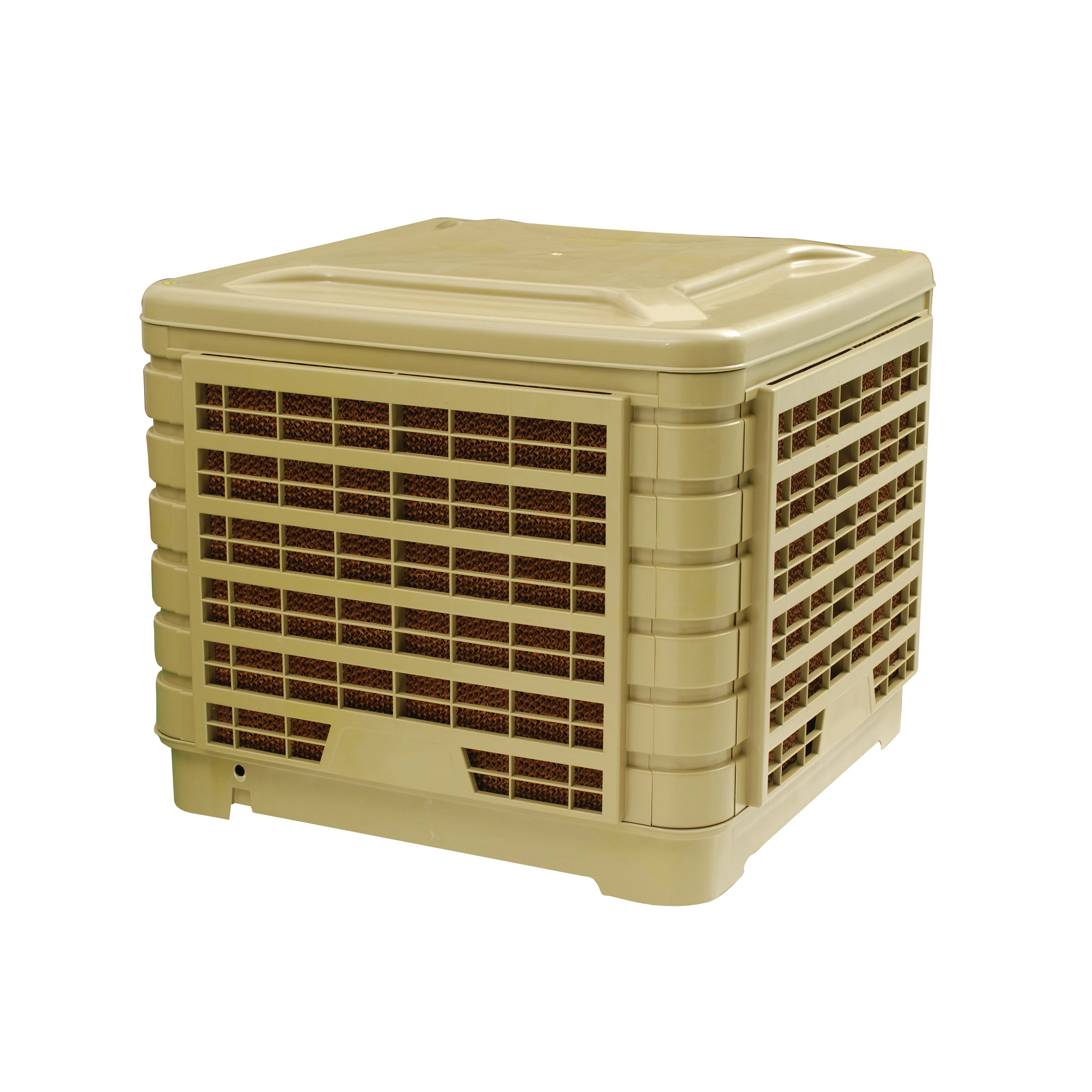

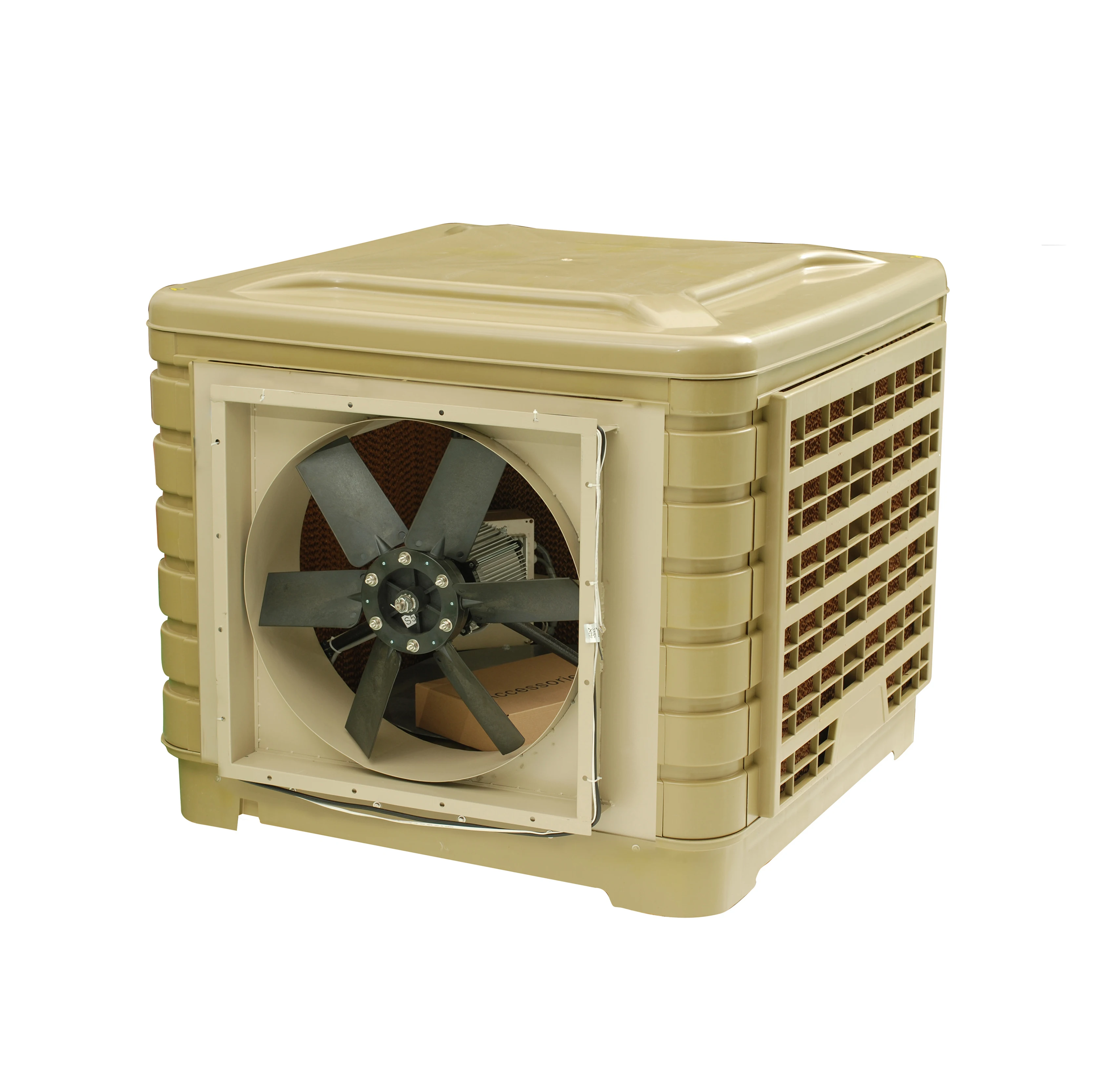

Roof commercial duct evaporative air cooler with 18000 airflow
Nature's most efficient means of cooling is through the evaporation of water. Clima air conditioner works on the principle of heat absorption by moisture evaporation. It also happens on human skin, the body sweat to cool temperature down.
18APV is an environmental ducted evaporative air cooler which set to ventilation, cooling, dedusting and other functions in one. It through water evaporation to make cooling instead of compressor. The power consumption of 18APV is only 1/8 of traditional air-conditioning with advanced technology. In addition, it can be used in, factory, supermarket etc. .
* Axial fan type evaporative ventilation system.
* 18000cmh airflow, suitable for 100~150sqm
* Down/Top/Side discharge for window and wall installation
* Superb quality with luxury plastic cabinet
* Ideal evaporative cooling systme for the warehouse, factory, workshop, green house ETC.
* Engergy saving
* Ieal for the open space cooling.
* Wall mounted or roof top mounted.
| Item | 18APV | Air discharge | Down/Top/Side |
| Fan type | Axial(11blades) | Airflow | 18000cmh |
| Pressure | 180Pa | Cover area | 100~150sqm |
| Fan speed | 16 | Power resource | 3PH 380V/50Hz |
| Power | 1.1KW | Noise | <78dB(A) |
| Water consumption | 15~20L/H | Pad size | (675+30)*790*100mm |
| Operating Weight | 130kg | Water tank | 30L |
| Packed size(assembled) | 1170x1170x1090mm(down discharge) | ||
| 1170x1170x1160mm(top discharge) | |||
| 1170x1250x1090mm(side discharge) | |||
| Packed size(skd) | 1120x1120x430mm+900x760x570mm | ||
Working principle
Nature's most efficient means of cooling is through the evaporation of water. Evaporative cooling works on the principle of heat absorption by moisture evaporation. It also happens on human skin, the body sweat to cool temperature down.
evaporative cooler produces effective cooling by combining the natural process water evaporation with a simple, reliable air moving system. Fresh outside air is filtered through the saturated evaporative media, cooled by evaporation, and circulated by a blower.

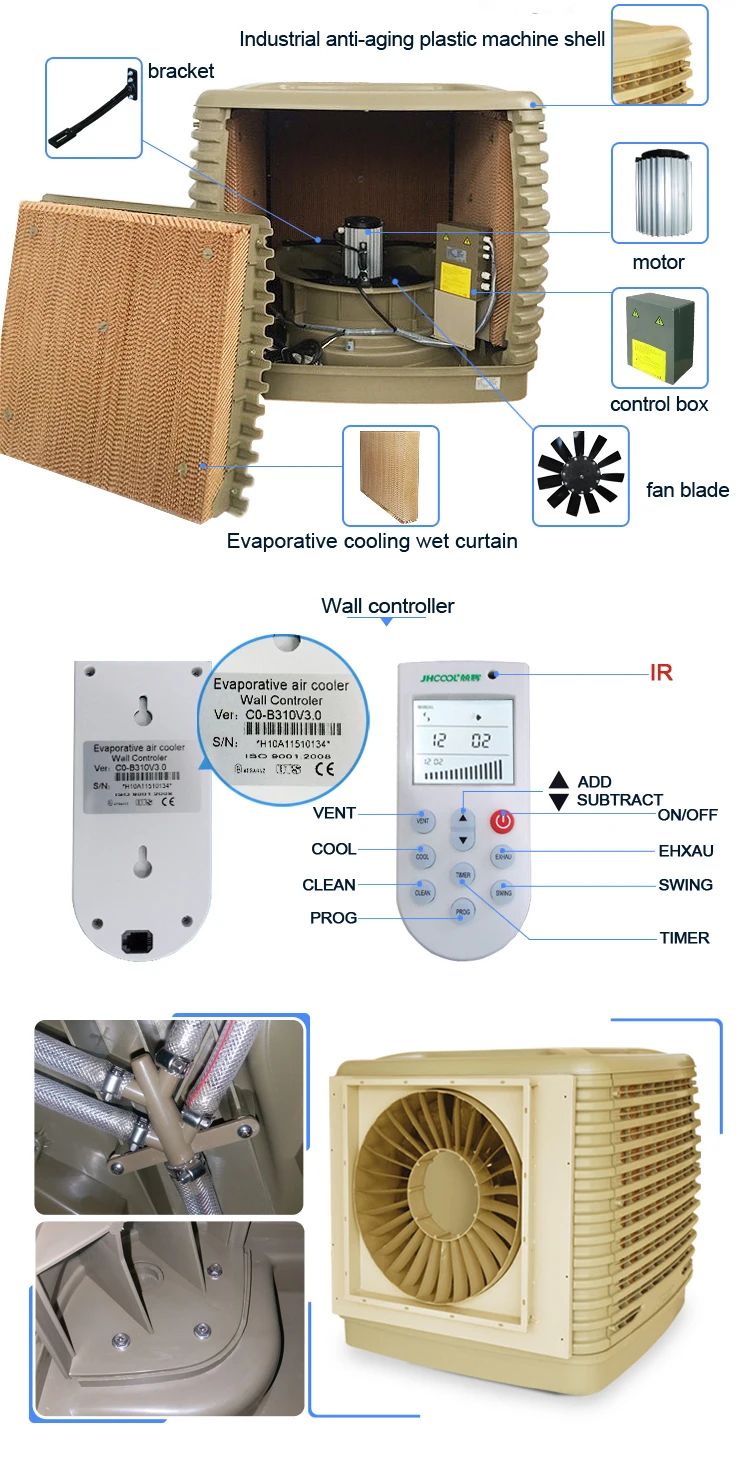

Detailed Images
1. Dust Filter
Prevent dust and flies into the cooling pad
2. Cooling Pad
Obvious cooling effect in top quality
3. Water Pump
Water pump protection design, keep product last longer
4. Sealed Aluminum Motor
Super quality pure copper motor with efficient heat exchange
5. Draw-off Valve
Timing drain circulating water by manual or automatic
6. Water Level Probe
Water control system to protect your water air condition
7. Water distributor
Water flows uniform smoothly & no-blocking with water distributor
8. PP Plastic Shell
Anti-UV, anti-corrosion, anti-aging, anti-deformation
9. Electric Board
Prevent moisture and safe in use
10. Auto Water Inlet Valve
Auto water to keep the appropriate water level
11. Fan blade
To clean air in using time
12. Hand Controller
Intelligent LCD controller show operating state
Our advantages
Advantage of 18APV industrial air cooler
* Axial fan type electric air conditioner with lower noise with 18000cmh airflow
* Intelligent LCD controller show operating state of equipment or malfunction
* Can be controlled by centralized and single with infrared remote control
* New modified PP plastic shell, anti-UV, anti-corrosion, anti-aging, anti-deformation
* Super quality pure copper motor with sealed alloy enclosure design
* Efficient heat exchange, temperature control stably with high degree of protection
* Water flows uniform smoothly & no-blocking with water distribution device
* High performance of evaporative cooling media, obvious cooling effect, easy to clean
* Automatic water control system & automatic cleaning function

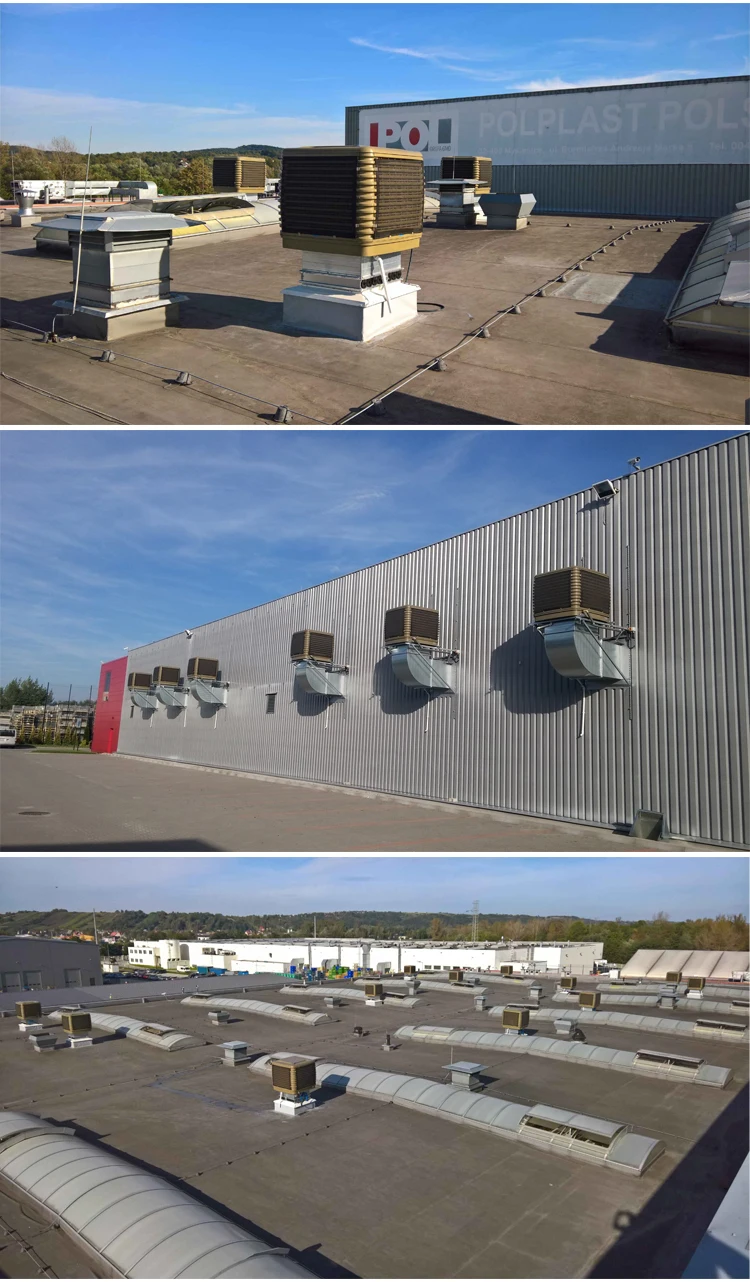

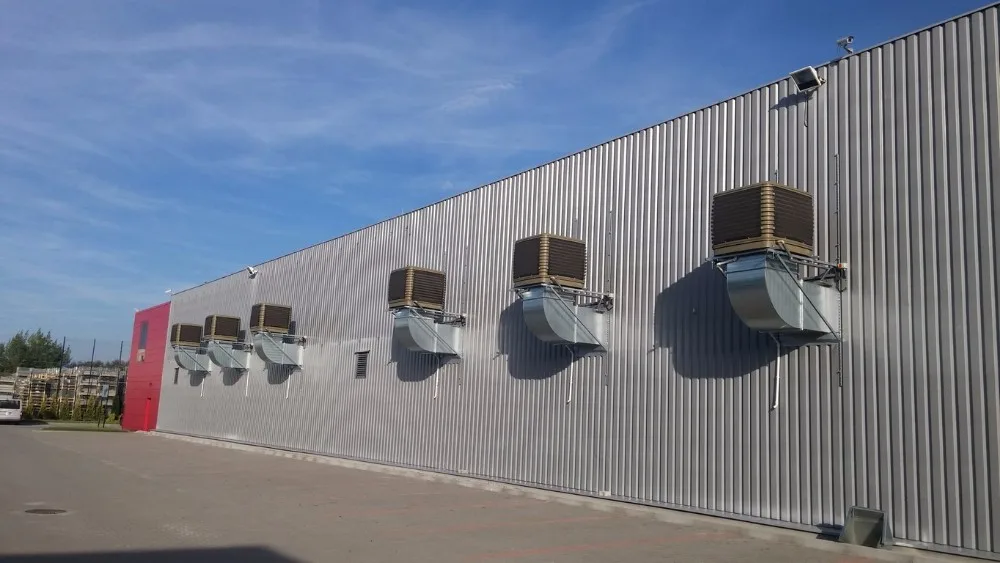

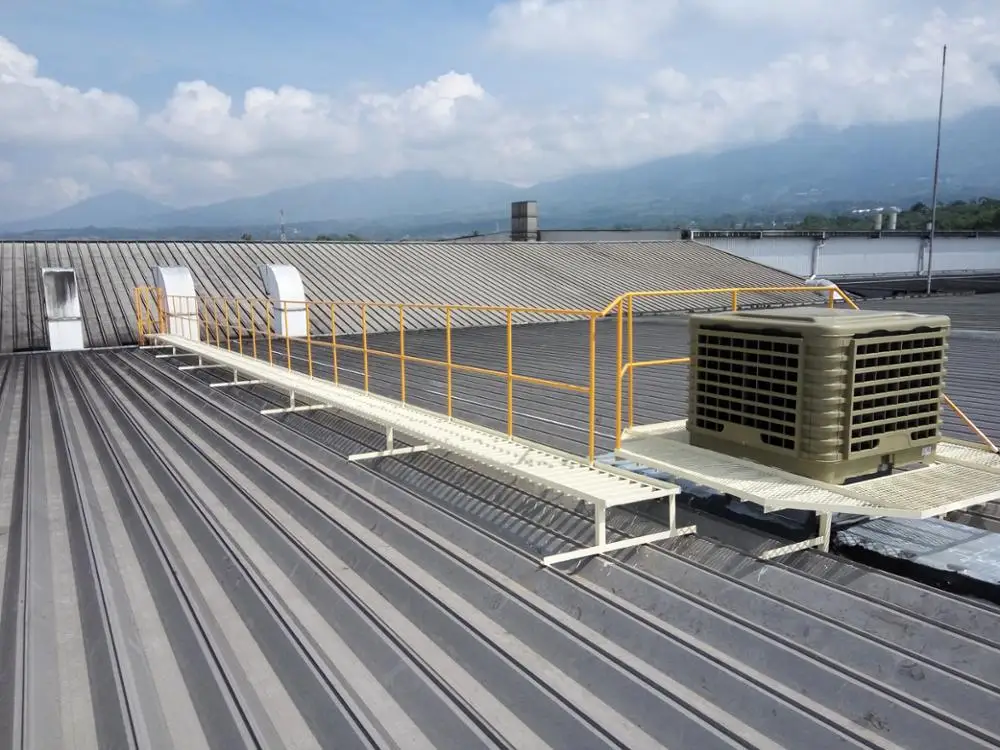

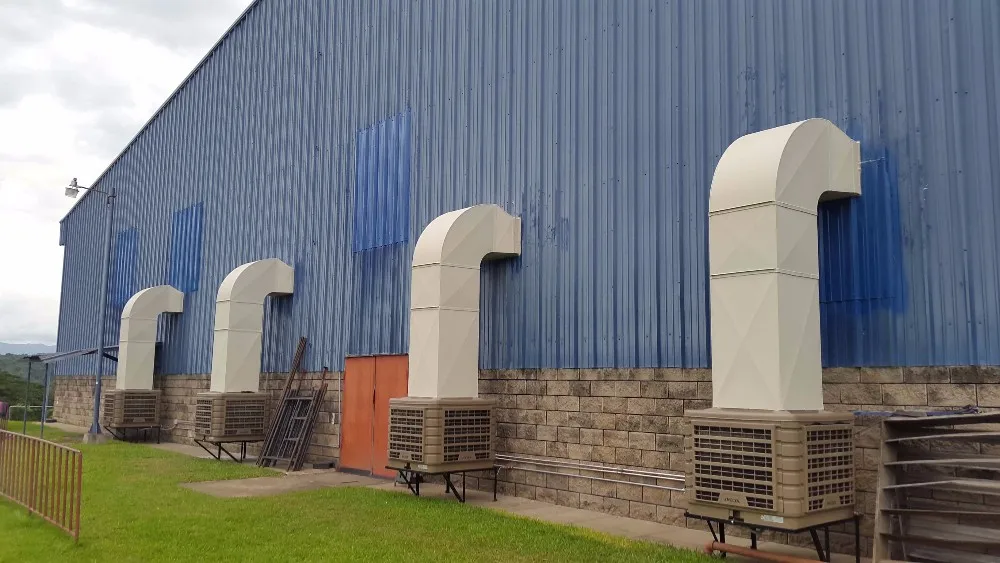

Product Uses
Packing & Delivery
PACKAGE:
Standard export carton packing.
Standard export carton packing.
DELIVERY TIME:
20-30 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Certifications
Contact Us
Name: Neo Xie
Tel : +86-15880706701
Web:www.lifengcomfort.com
Tel : +86-15880706701
Web:www.lifengcomfort.com
If you want to know more information about our air cooler or other any questiosn, please do feel free to contact us in any time
