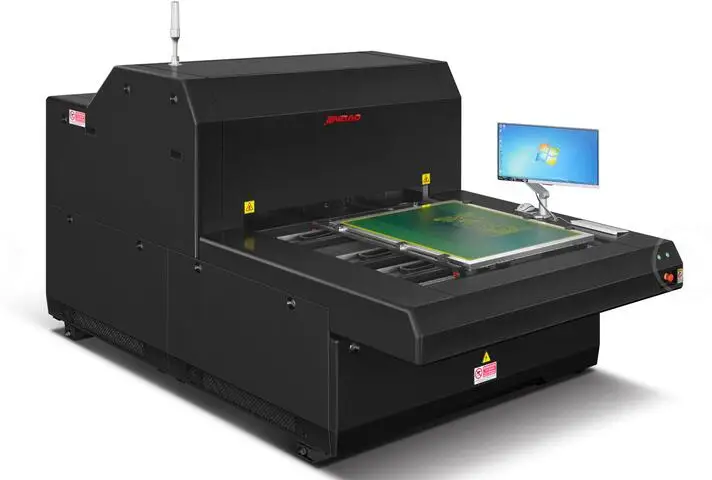

TC-1300CTS is using UV laser technology to make the screen plate by computer.With 405nm high power module, as well as the high precision linear motor systems and water cooling system. No film, Laser direct to screen plate. To bring customer high resolution, high efficiency and low cost products. This is new digital exposure system and will become the new standard.
Frame Processing
Specification
Overall size
2930mmx1900mmx1650mm
Weight
280kg
Supporting point
4pcs
Load of each support point
10KN/¢>120mm
Rated voltage
Single 220V/50HZ
Max.power
4KW
Rated compressed air pressure
0.4Mpa
Max.screen frame size
1200mmx1300mm
Max.imaging area
1100mmx1100mm
Screen frame
20mm-40mm
Wave of laser
405mm
Input file format
Gerber274X
Service life of laser head
≥8000h
FAQ
1.Q : What about the price of the machine? A:Pls contact with our sales manager to get quotation or pls send mail to us to get more information.
2.Q:How long is the warranty of the machines ?And other Service ? A: Warranty is 12 months after the machines arrive. Our engineer can provide service overseas if you need. And we also provide installation and operation training.
3. Q : How about your delivery time ? A:The delivery time is within 30-60 days depend on the different type or machine. Pls contact with us to learn more.
4.Q:What`s the price term and payment method? A:We usually use FOB, CIF and CFR. Payment method : 100 % T/T (30% deposit + 70% before shipment ) or other payment method.
