TC72/92/105 Automatic Stop cylinder Screen Press
- Category: >>>
- Supplier: Shanghai SHM International Trading Co. Ltd.
Share on (60818139102):
Product Overview
Description
Product Description

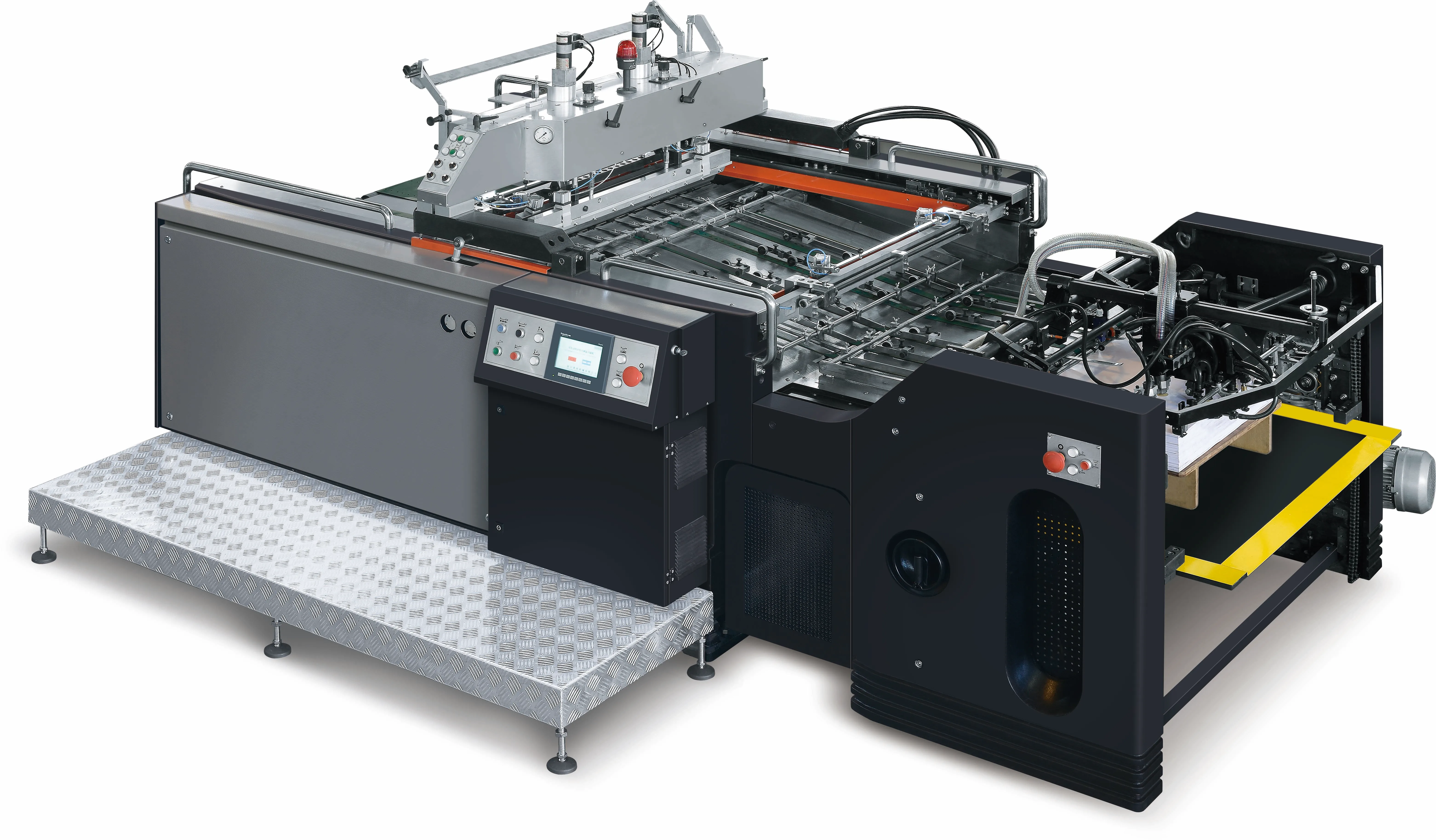

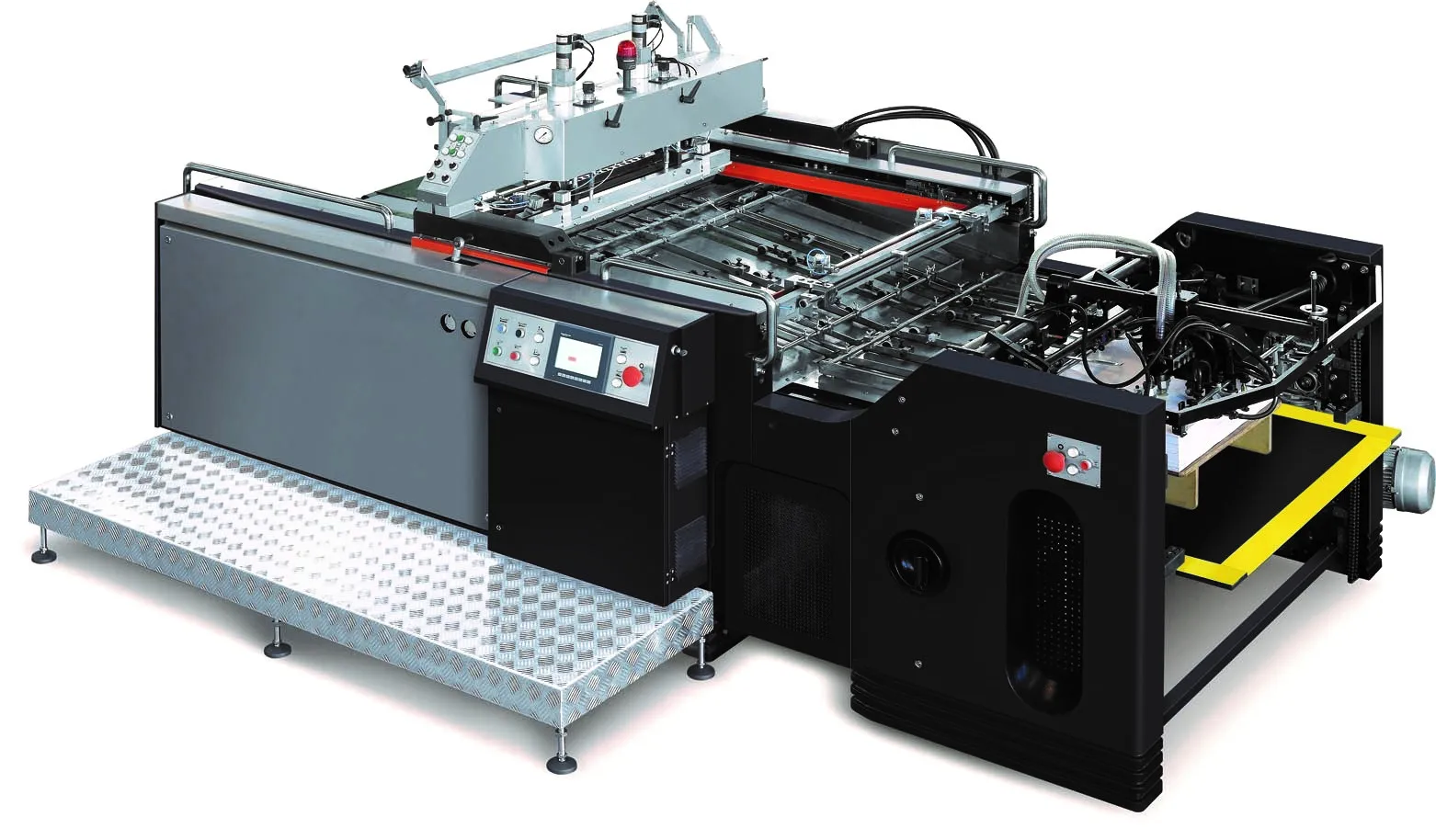

TC72/92/105 Automatic Stop-cylinder Screen Press
1. New designed patented machine, with advanced design and production technology, combine with German Japanese technology.
2. Adopts classical stop cylinder technology, equipped with heavy pneumatic squeegee system, the max. speed can be 4200sheets/hour.
3. It is suitable for screen printing of ceramic and glass decal, advertisement, package printing, brand, textile transfer,
electric etc.
2. Adopts classical stop cylinder technology, equipped with heavy pneumatic squeegee system, the max. speed can be 4200sheets/hour.
3. It is suitable for screen printing of ceramic and glass decal, advertisement, package printing, brand, textile transfer,
electric etc.
Specification
Model | TC-72 | TC-90 | TC-105 |
Max. sheet size | 720x510mm | 900x600mm | 1050x760mm |
Min. sheet size | 350x270mm | 350x270mm | 560x350mm |
Max. printing size | 700x500mm | 900x590mm | 1050x750mm |
Screen frame size | 880x880mm | 1140x1140mm | 1300x1170mm |
Sheet thickness | 108-400g/m² | 108-400g/m² | 90-420g/m² |
Printing speed | 800-3600 PCH | 800-3300 PCH | 800-4200 PCH |
Installation power | 3P 380V 50Hz 10.5kw | 3P 380V 50Hz 8.9kw | 3P 380V 50Hz 10.7kw |
Total weight | 3550kg | 3650kg | 6600kg |
Overall size | 4050x2500x1680mm | 3340x2580x1680mm | 6700x3060x2050mm |
Details Images
1. Machine frame with precision works and casting
It adopts grey cast iron(HT250), found by polyester sand patterns, aging treatment, completed a one-time processing by imported large vertical type CNC, deformation little, guarantee of accuracy, ensure the long-term stable operation

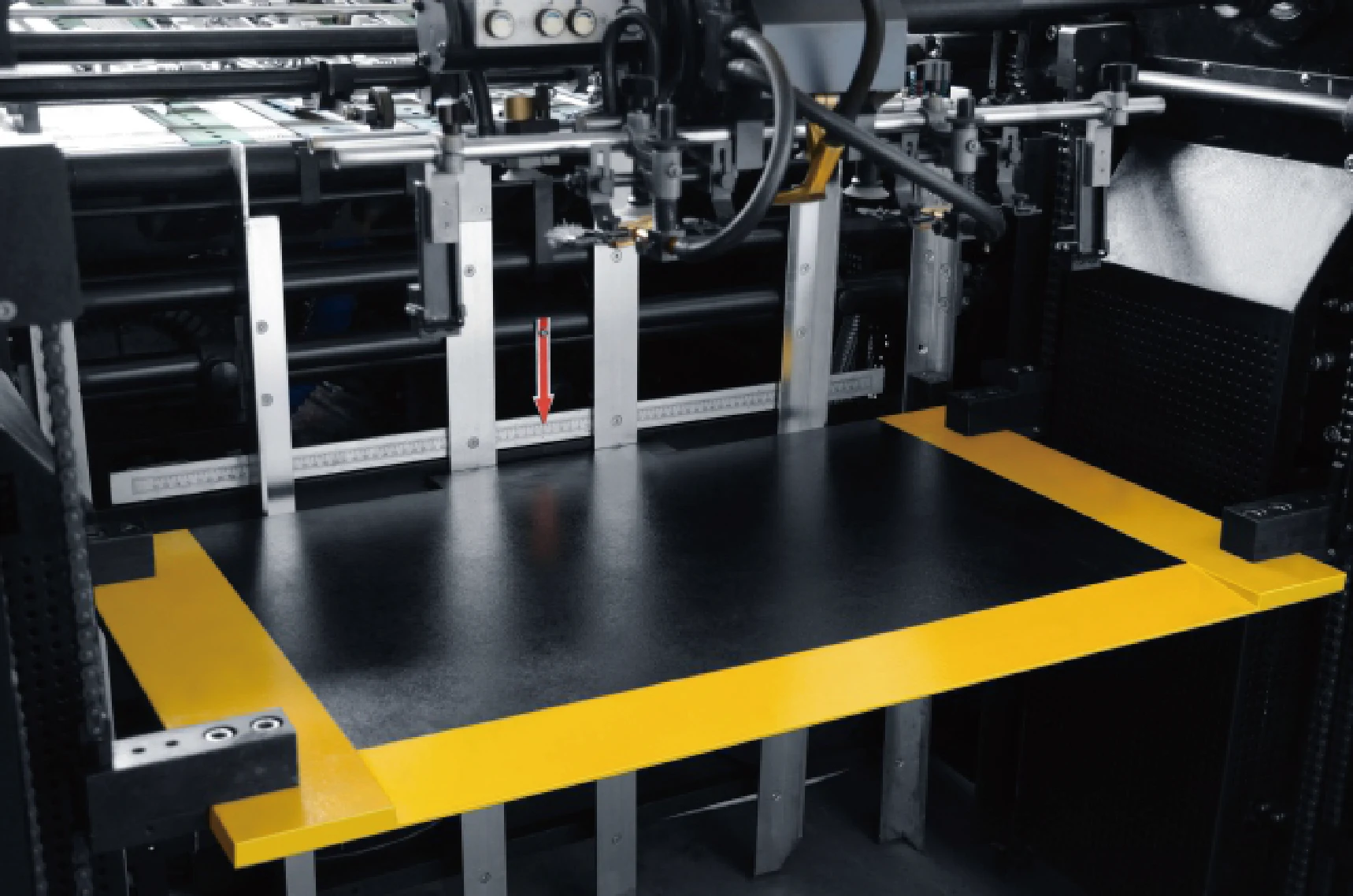

2. Opened loading board
Completed lifting steel loading board of feeder, can pull the sheet pile directly, load sheet much more easily and save operation time

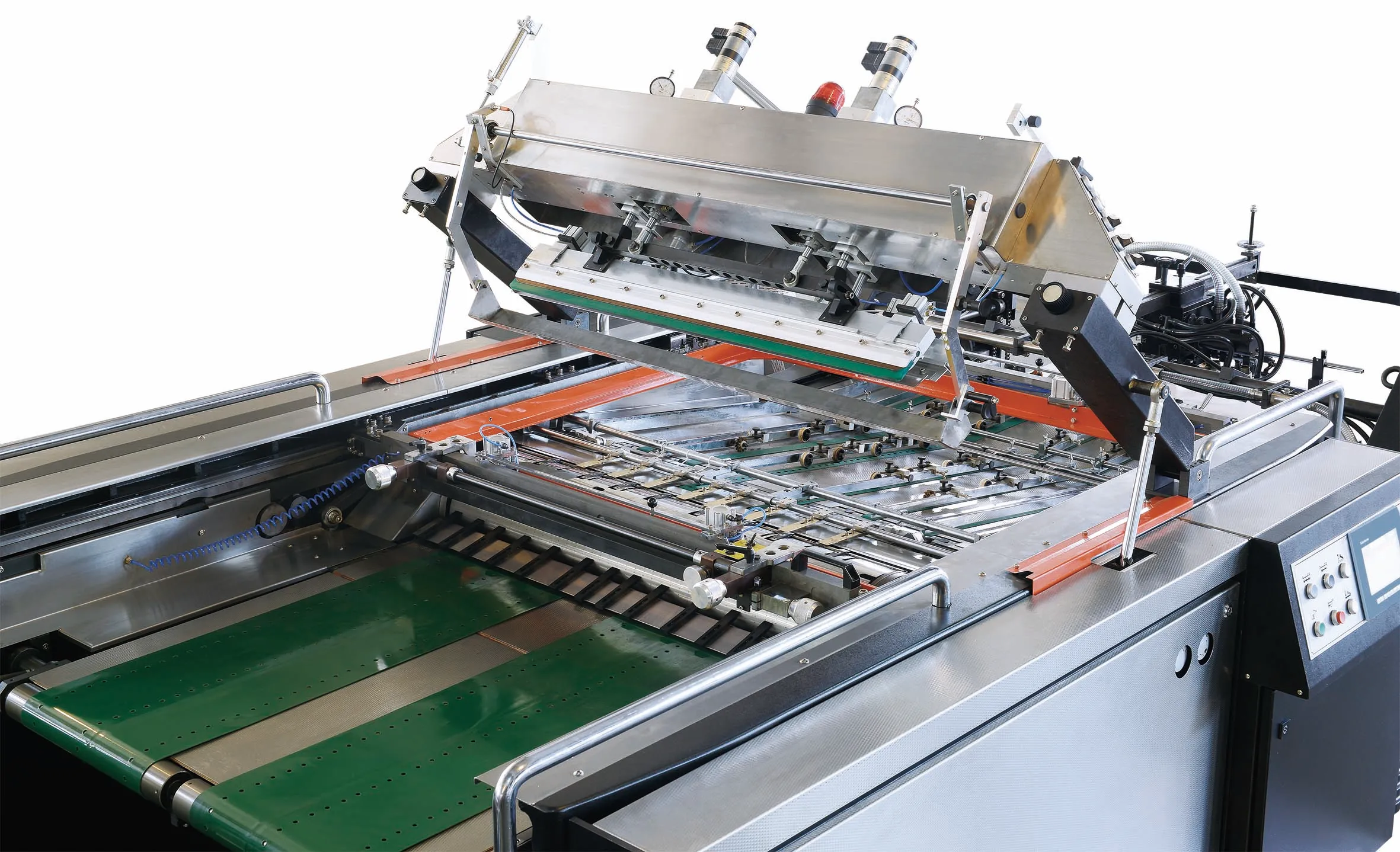

3. Heavy pneumatic squeegee system
Integrated application of electrical, pneumatic, hydraulic technology, automatic control squeegee movement, the start printing point and end point can be set independently, the entire pressure e equilibrium stability, completely eliminates the disadvantages of the squeegee movement controlled by mechanical cam, to ensure the ink layer and definition of image constant stable whether any printing and printing speed

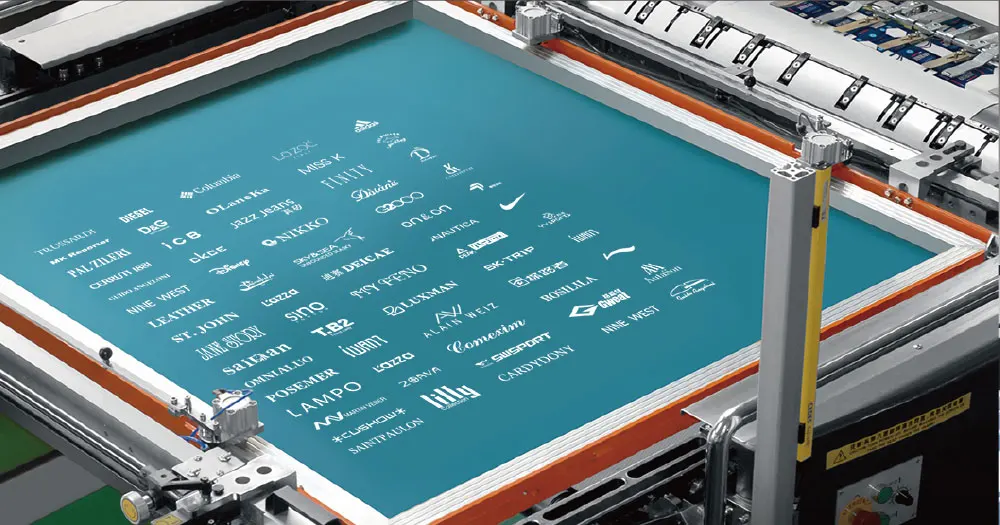

4. Separated screen frame structure
Screen frame can break away from transmission part and be pulled out, it is easy for adjusting the registration and feeding, meanwhile it is must safer and faster for cleaning of cylinder and screen, Opo sensors automatic detection system to ensure the reliability of the action and avoid rack breakage or damage of main drive

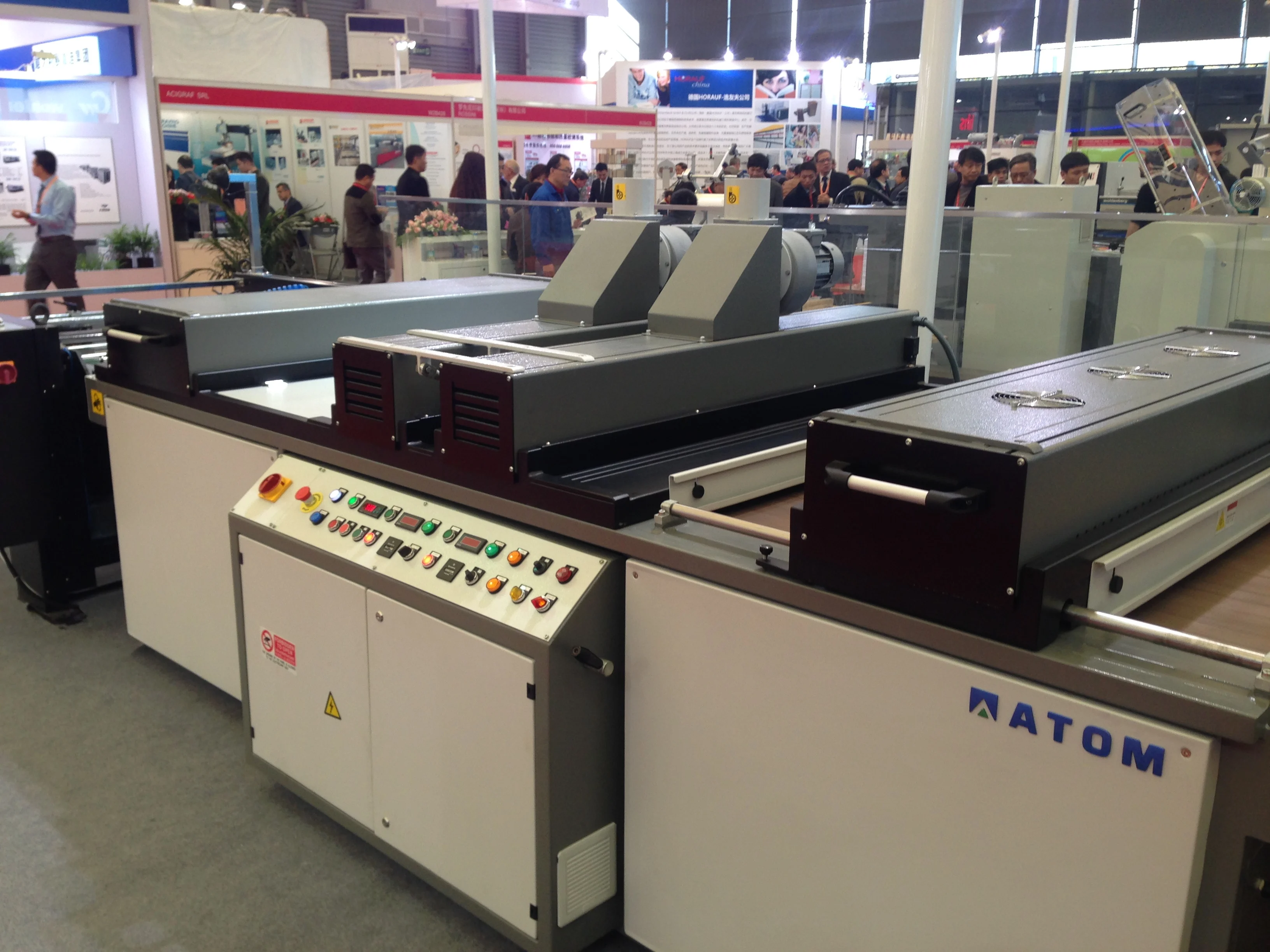

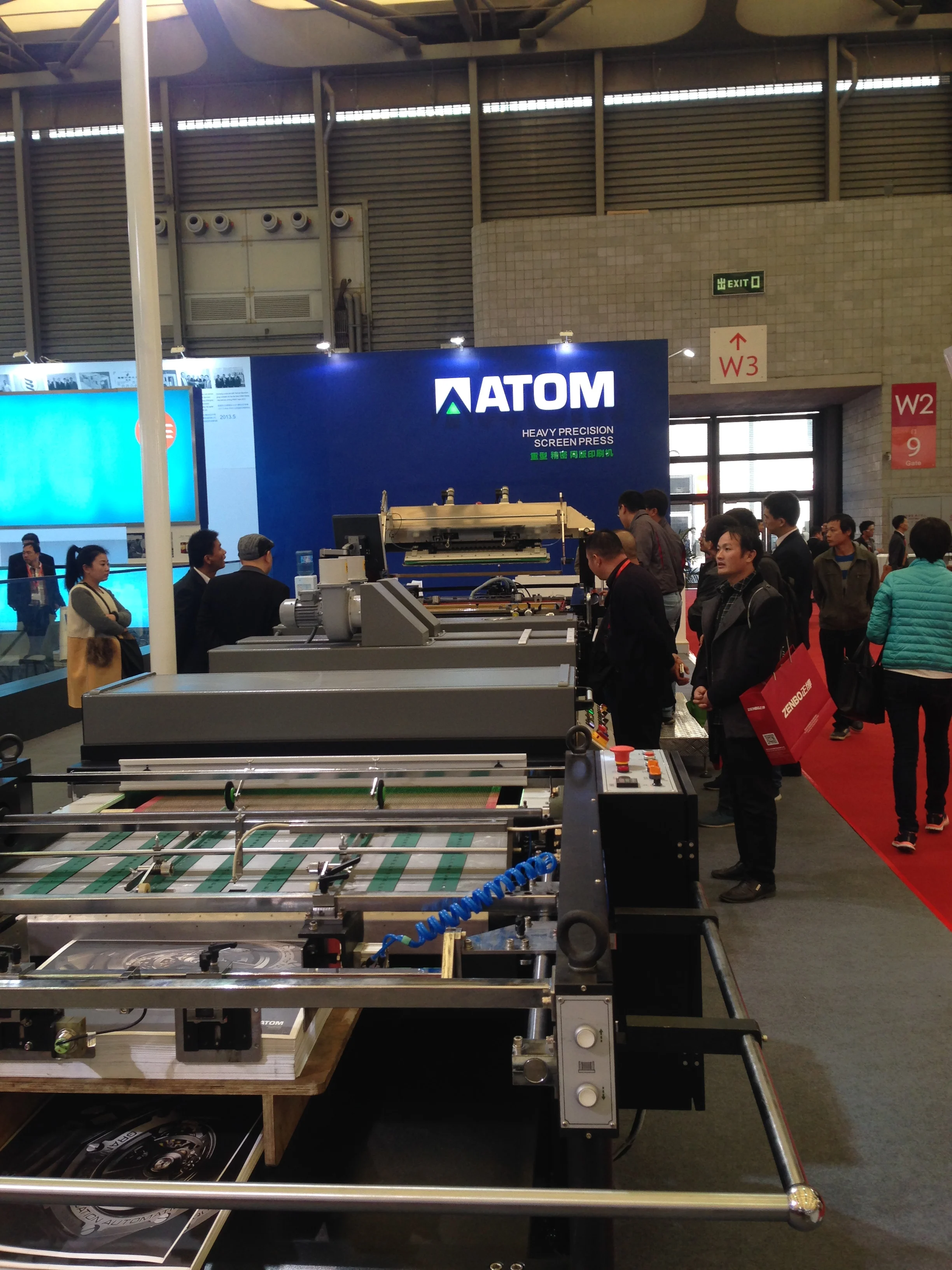

Exhibition
Samples
FAQ
1.Q : What about the price of the machine?
A:Pls contact with our sales manager to get quotation or pls send mail to us to get more information.
2.Q:How long is the warranty of the machines ?And other Service ?
A: Warranty is 12 months after the machines arrive.
Our engineer can provide service overseas if you need.
And we also provide installation and operation training.
3. Q : How about your delivery time ?
A:The delivery time is within 30-60 days depend on the different type or machine. Pls contact with us to learn more.
4.Q:What`s the price term and payment method?
A:We usually use FOB, CIF and CFR.
Payment method : 100 % T/T (30% deposit + 70% before shipment ) or other payment method.
A:Pls contact with our sales manager to get quotation or pls send mail to us to get more information.
2.Q:How long is the warranty of the machines ?And other Service ?
A: Warranty is 12 months after the machines arrive.
Our engineer can provide service overseas if you need.
And we also provide installation and operation training.
3. Q : How about your delivery time ?
A:The delivery time is within 30-60 days depend on the different type or machine. Pls contact with us to learn more.
4.Q:What`s the price term and payment method?
A:We usually use FOB, CIF and CFR.
Payment method : 100 % T/T (30% deposit + 70% before shipment ) or other payment method.
