Для использования в жилых и универсальных помещениях и номинального тока 15 А, металлический удлинитель
- Category: Power Strips >>>
- Supplier: Wenzhou Saijin Electrical Alloy Co. Ltd.
Share on (60818183584):
Product Overview
Description

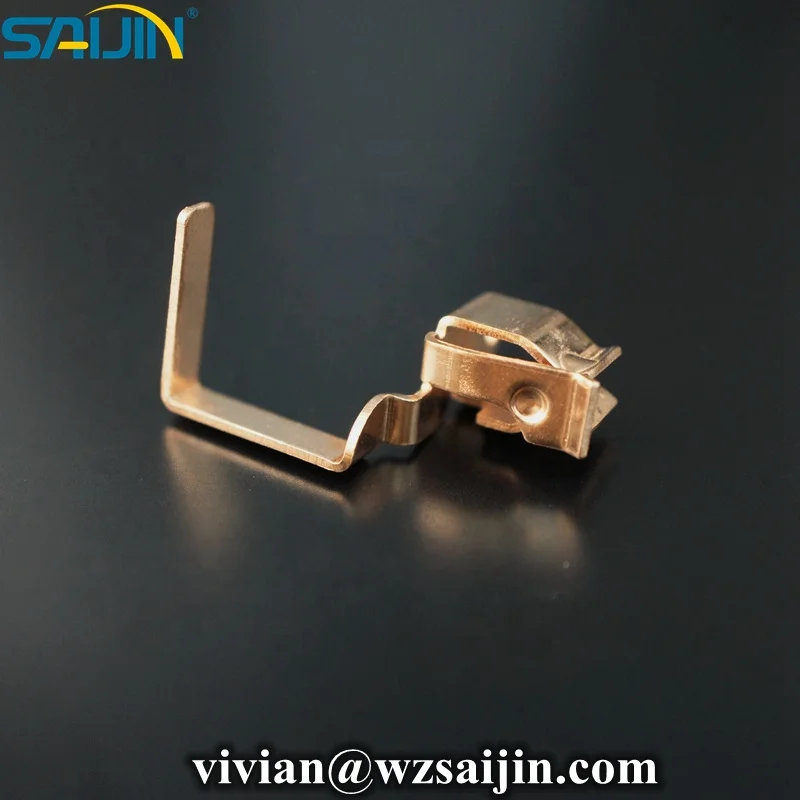

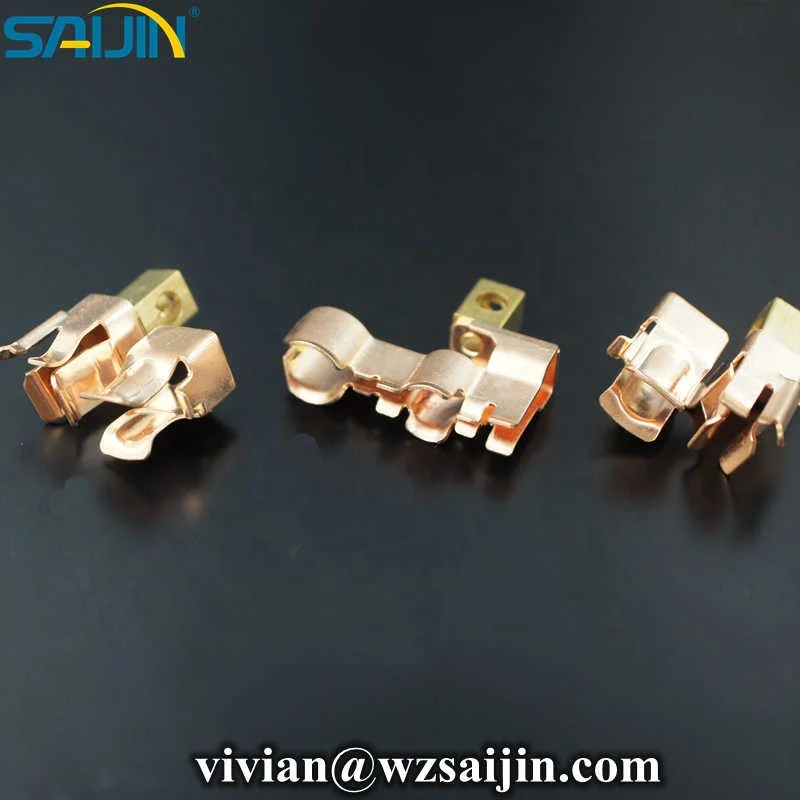

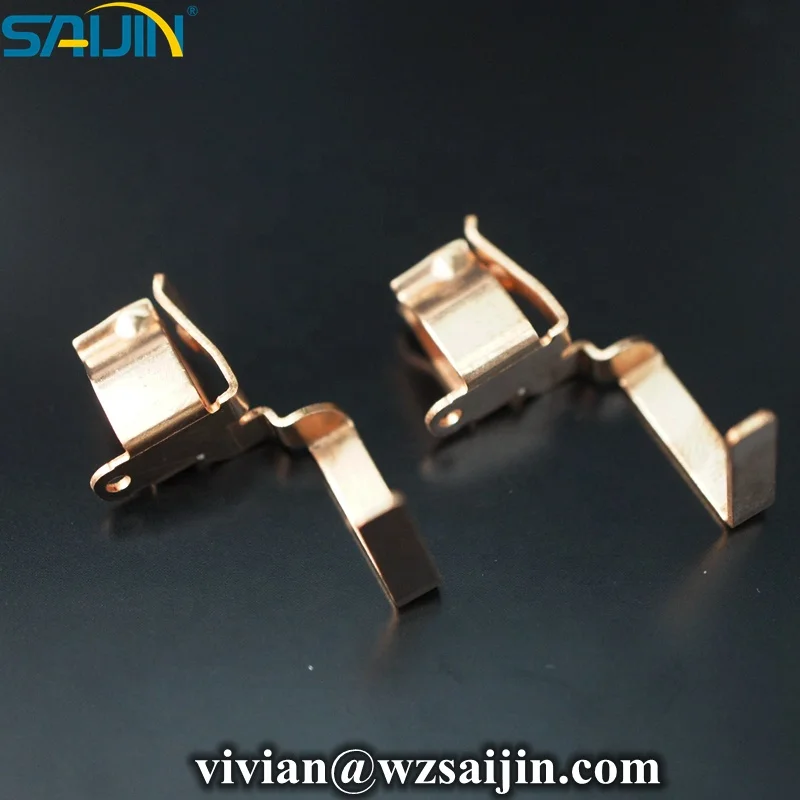

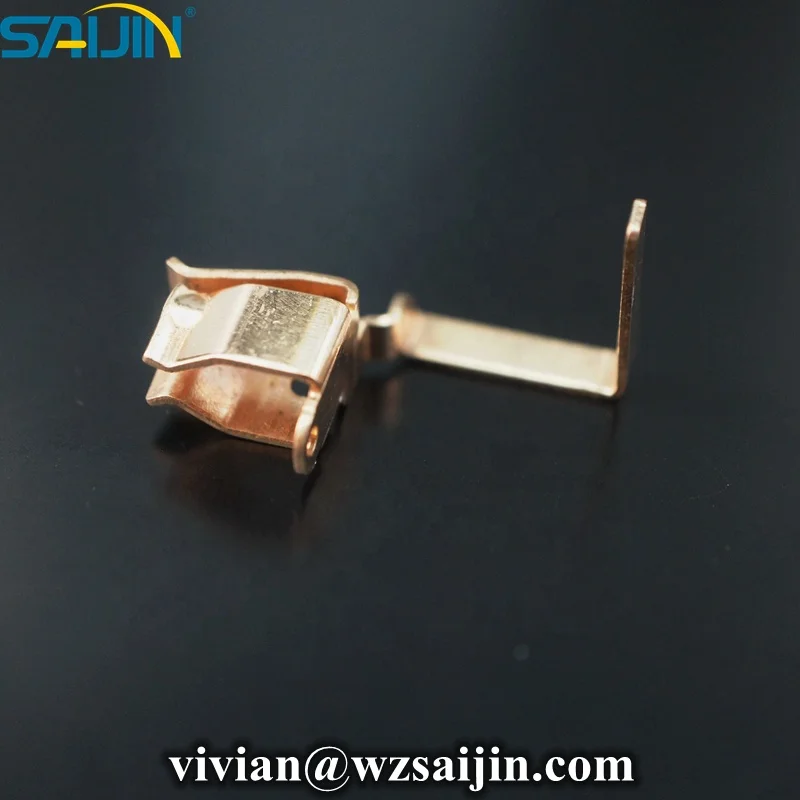

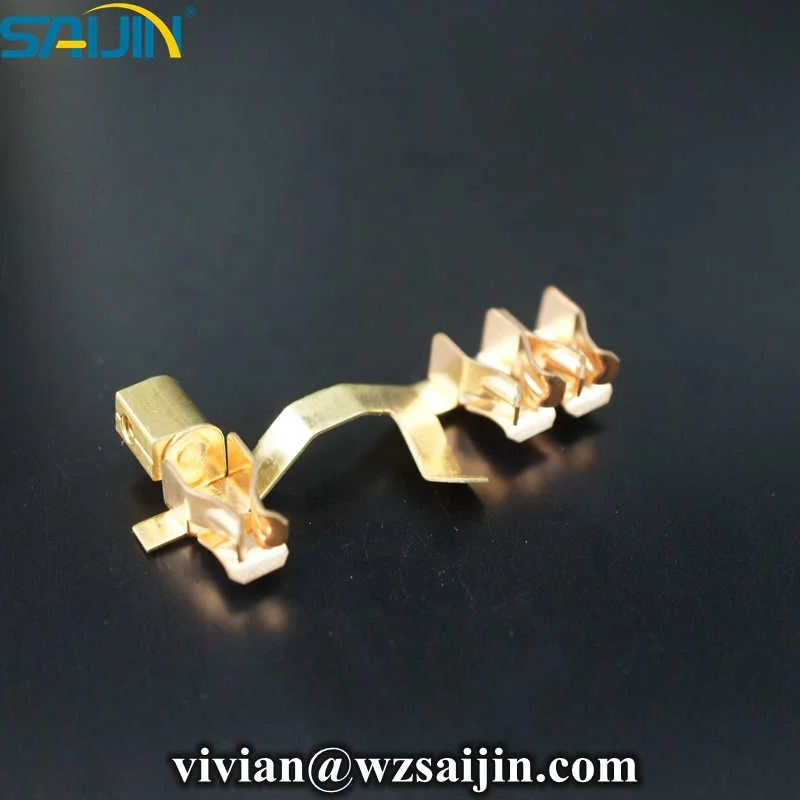

Residential / General-Purpose Application and 15A Rated Current Metal Power Strip
Product Description
| Product Description | Stainless steel latch for power distribution | ||
| Capabilities Applied/Processes | Progressive Die Metal Stamping
| ||
| Equipment Used to Manufacture Part | 45 Ton Punch Press Cold Heading Toggle | ||
| Test Equipment | Hardness tester,Chemical analysis,Digital Measuring Projector, Dynamic Balancing Tester, Plating Tester | ||
| Tightest Tolerances | Flatness of ±0.05 | ||
| Material Used | Terminal: Brass-CDA260,Copper ,Phosphor copper ,Beryllium Copper Rivet:
| ||
| Surface Treatment | Silver/Zinc/Nickel/Tin/Chrome Plating, Pickling, Powder Coating,Hot Galvanized,Polishing,Brushing, etc. | ||
| In process testing/inspection performed | Full Dimensional Contact Torque | ||
| Features | Customized Design, Small Order Allowed, Sample Product Available, Competitive Price | ||
| Industry for Use | Automotive Switch , Socket, Relay | ||
| Delivery Location | China | ||
| Standards Met | Customer supplied print, 2D,3D CAD Drawing | ||
| Product Name | Electric switch terminals |
A client in the appliance industry approached Wenzhou Saijin Electrical Alloy Co,for the manufacturing of a brass staked assembly. Using the customer supplied drawings we were to manufacture the assembly, which was to be used within an appliance safety switch.
The manufacturing processes included auto staking, cold heading, and progressive die metal stamping. Equipment used in the process included a bimetal machine-composite contact and a 45 ton punch press.
The assembly was made using CDA 260 brass, the contact was composed of; 90% silver and 10% cadmium oxide on copper.
Upon completion of manufacturing, we performed contact torque and full dimensional testing. The client was extremely satisfied with all aspects of service and production, and we were commissioned to supply them with 1 to 1.5 million units per order of this brass staked assembly.
To learn more about this project, or for more information on our other products and services, please contact VIVIAN(vivian(at)wzsaijin.com).

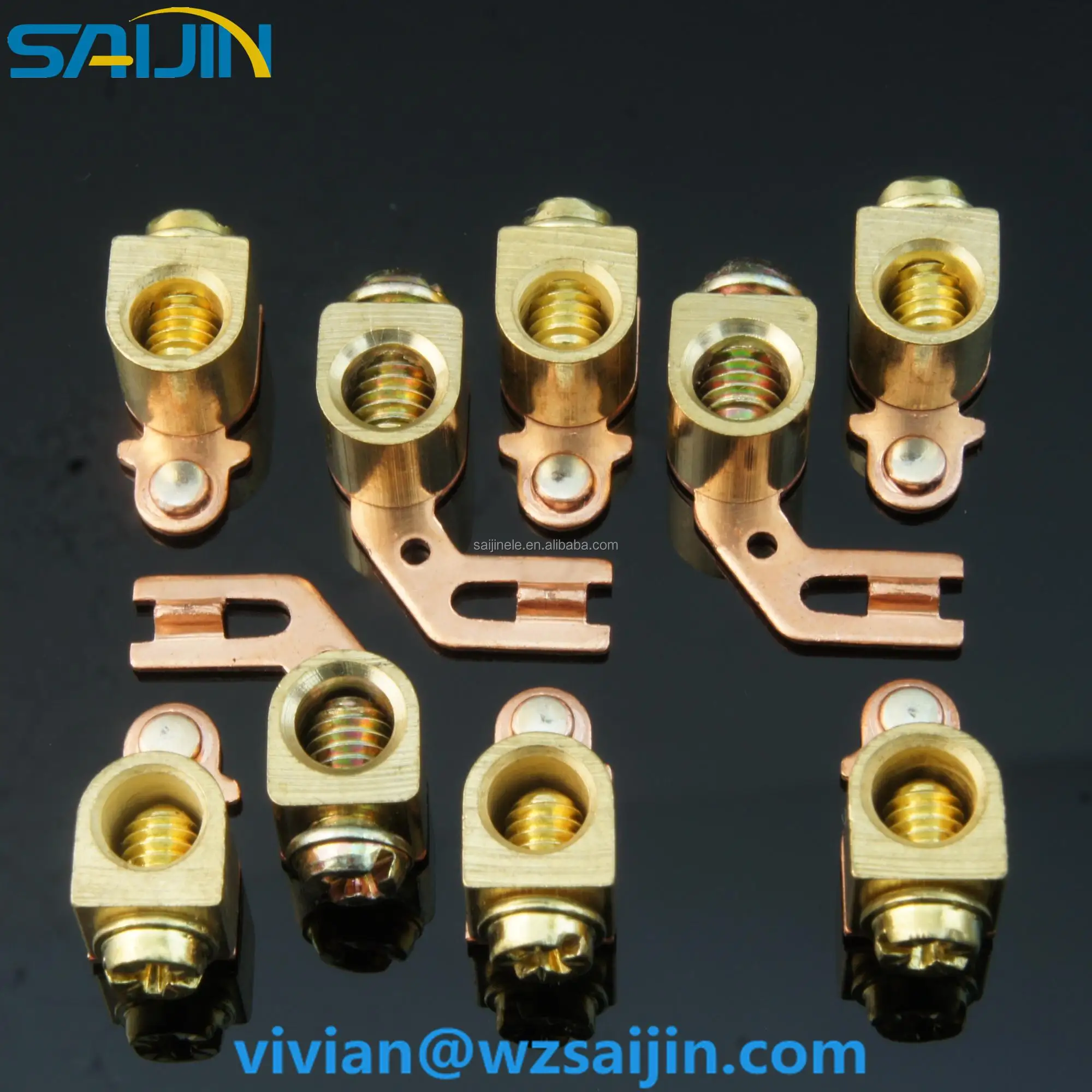

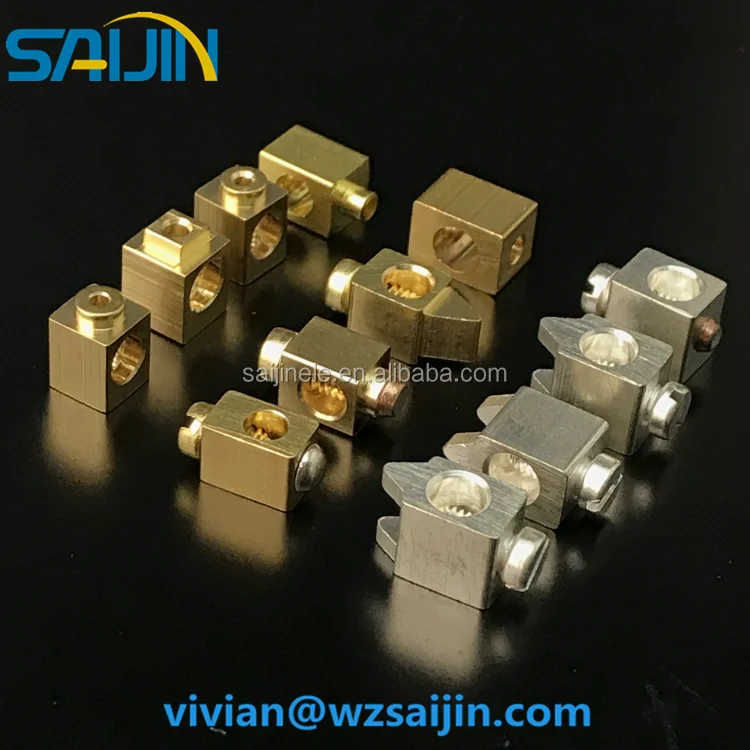

What are the properties of our brass terminal connectors?
- Highly durable and long shelf life
- High tensile strength
- Corrosion resistant and chemical free
- Dimensionally accurate and remarkable surface finish
- Available in custom solutions and varied configurations
Raw Material (ROHS Directive Approved:
These Components are made from the following Grade of Brass :
- Free Cutting Brass Grade I and Grade II
- CuZn36Pb3 / CuZn37Pb2 / CuZn39Pb2 / CuZn39Pb3 / CuZn40Pb2 / CuZN43Pb2
- CW603N / CW606N / CW608N / CW612N / CW614N / CW617N / CW623N
- CZ120 / CZ121 / CZ122 / CZ131
- C37700 / C35300
- MS58
- Any Other Equivalent Grades
Surface Finish
- Natural Colour
- Nickle Plated
- Tin Plated
- Silver Plated
Packaging & Shipping
Trade terms
1) Payment: T/T,L/C, western Union or Paypal
2) Delivery: 3-7 work days for sample, 12-15 work days for products
3) Port: Wenzhou/Ningbo/Shenzhen
4) Logo/shipping marks: According to your requirement
5) Packaging: inner with plastic bag, external with carton. or as per customers requirement.
6) Shipping: By Express (EMS, DHL, UPS, ARAMEX), By Air or By Sea
Way of Testing Rocker riveted brass parts Size:
Thickness 0.7mm Brass 63 Neutral Terminal for 6A 5 pin socket Specification:
1.Certification: ISO9001, SGS, RoHS
2.Material: Brass ,Stainless steel etc
3.Type: riveting parts, stamping parts
Characteristic:
There are mainly three kinds of Contact spring :
(1) Riveting Parts: contact is riveted on copper component
(2) Welding Parts: sheet contact is welded on copper component
(3) Stamping Parts: precious clad metal is stamped into contact bridge component
Application:
Contact Components are widely used in low voltage electrical appliances and households, such as Switch Sockey, Relay, Thermal Controller Circuit Breaker Contactor Controller Timer, etc.
Our other parts:
Packaging & Shipping
Package:
Inner package: vacuum, Outer package: carton ,Then put into pallet
Customer design are welcome!
VARIOUS METAL PARTS CAN BE PRODUCED ACCORDING TO CUSTOMER'S REQUIREMENT
Our Services
Our Service:
1) You inquiry will be replied in 24hours
2) Well-trained and experienced staffs to answer all your enquires in fluent English
3) OEM & ODM
4) Protect your sales area, ideas of design and all your private information
- Customized sizes and materials are welcome
- OEM orders are welcome
FREE SAMPLE can be sent for your evaluation!
Samples policy:
-1. We accept sample order for testing our quality.
-2. Sample charged will be higher than our offer, negotiability!
-3. Charge sample offered depends on customer’s design
-4. Shipping cost need to pay by customers
-5. Customer’s express courier account is acceptable
-6. Without courier account ,we will ship by DHL, FedEx, UPS or TNT
-7. Lead time would be up to the quantity, usually 2-5 work days
Note: This sample charge is for the first deal only and will be deducted in your future formal orders.
Company Information
About Us:

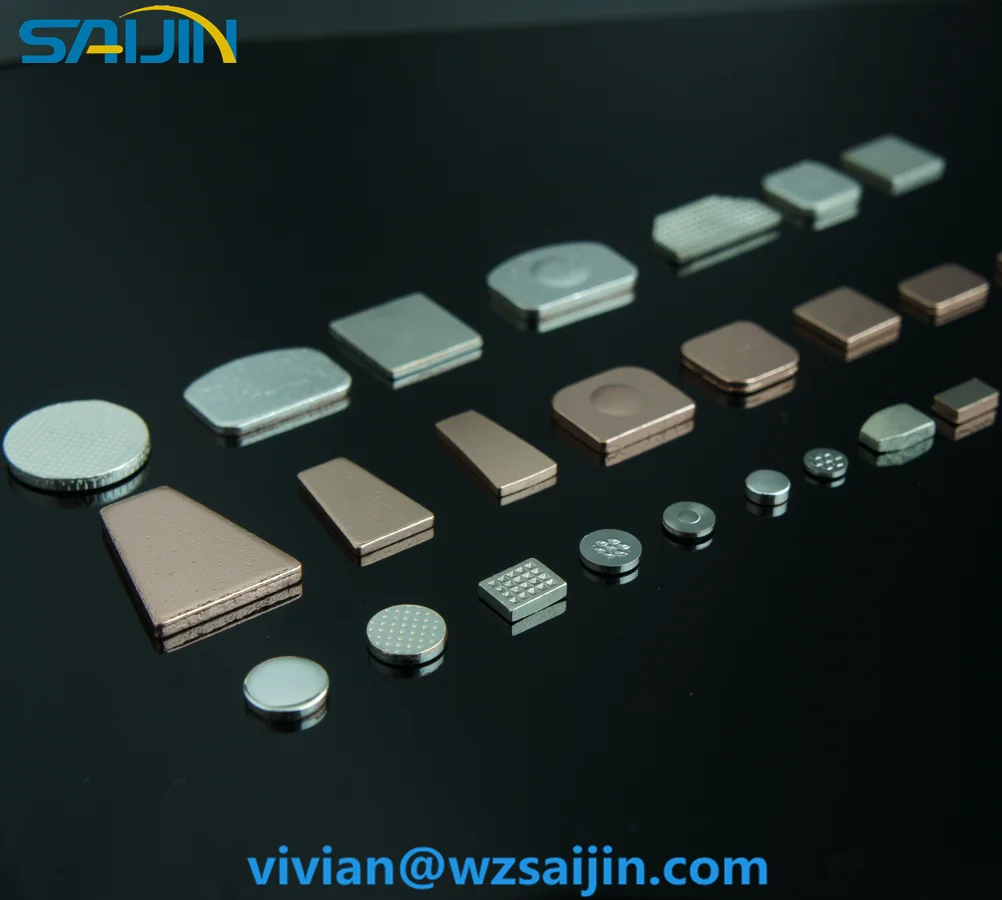

Wenzhou Saijin Electrical Alloy Co., Ltd has our own manufacturing base to supply series of Electrical contact rivets: such as solid contact rivet, bimetal rivet, tri-metal rivets and other special contact.
1.Certification: ISO9001, SGS,RoHS,VDE
2.Place of origin: Wenzhou,China(mainland)
3.Specification: All dimensions are fully according to customers requirements.
Workshop
Certifications
Contact Information
