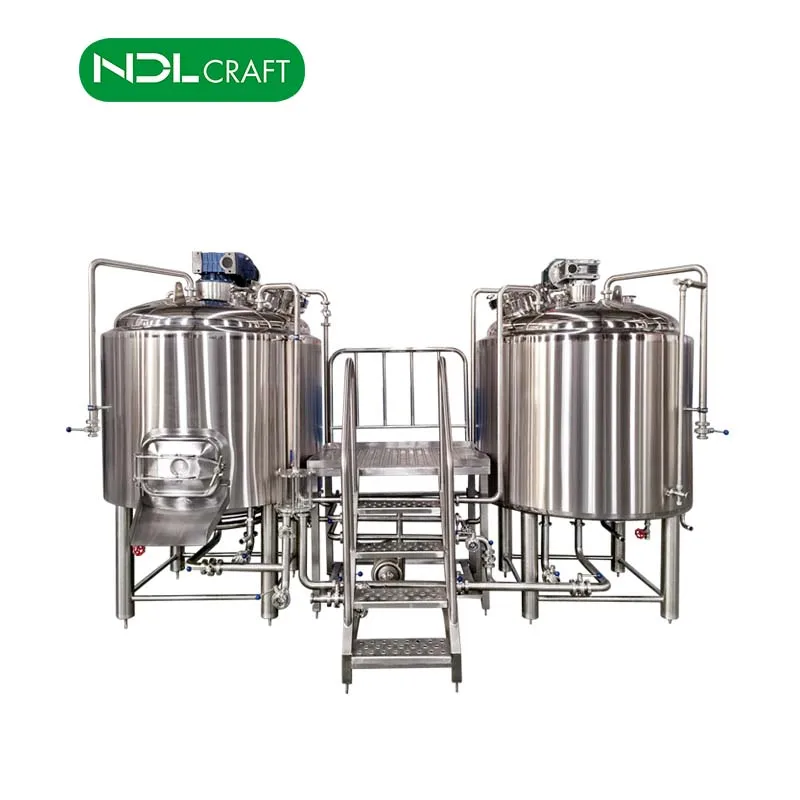

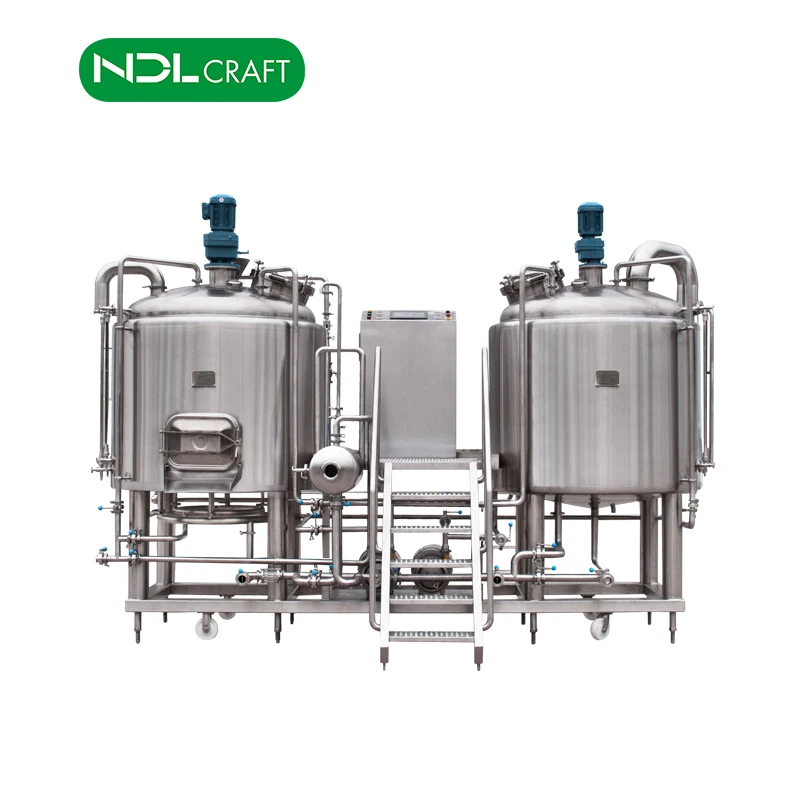

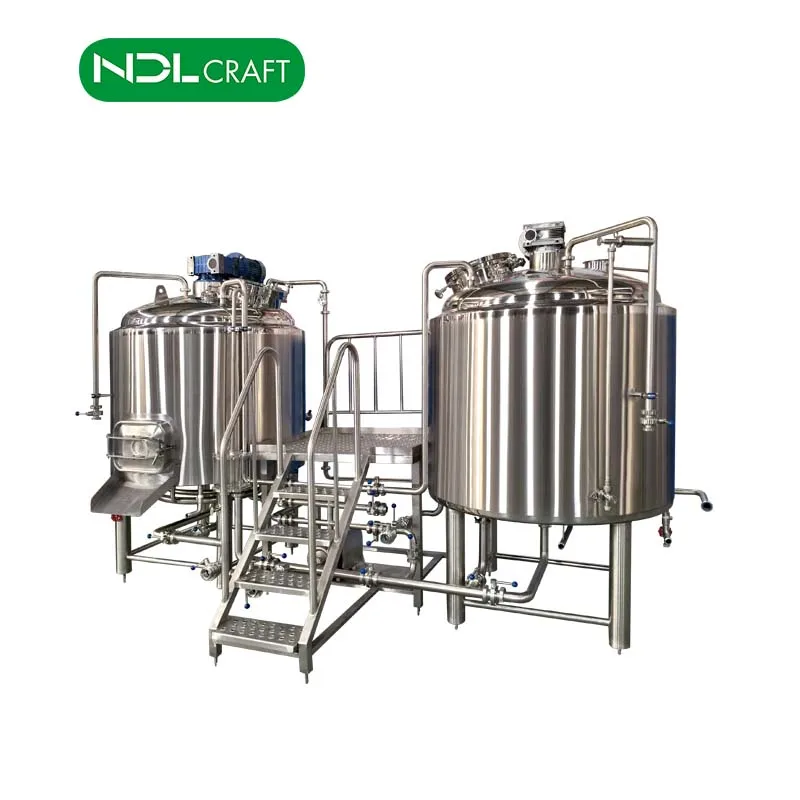

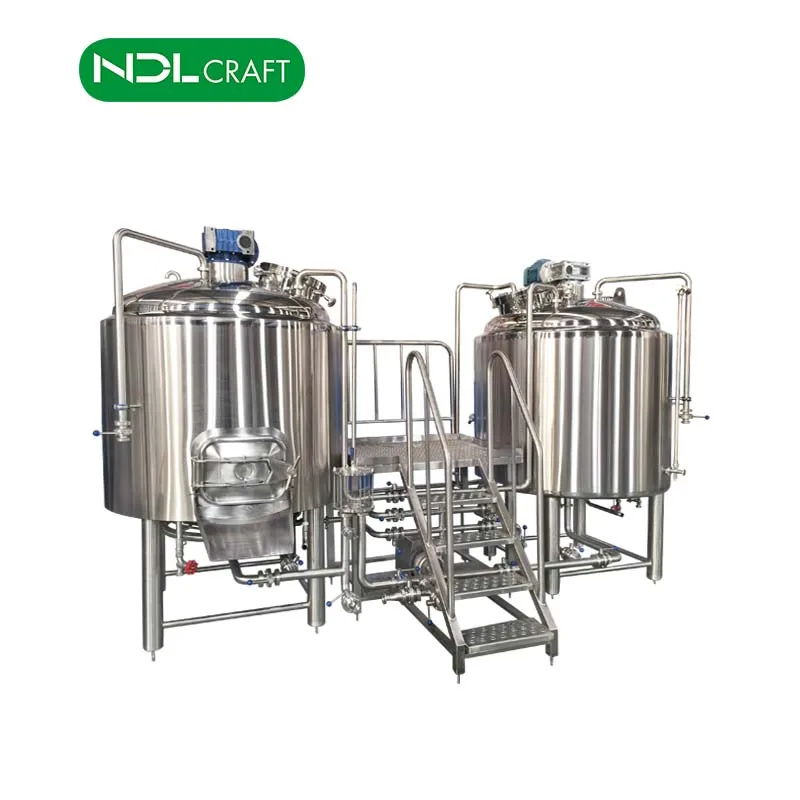

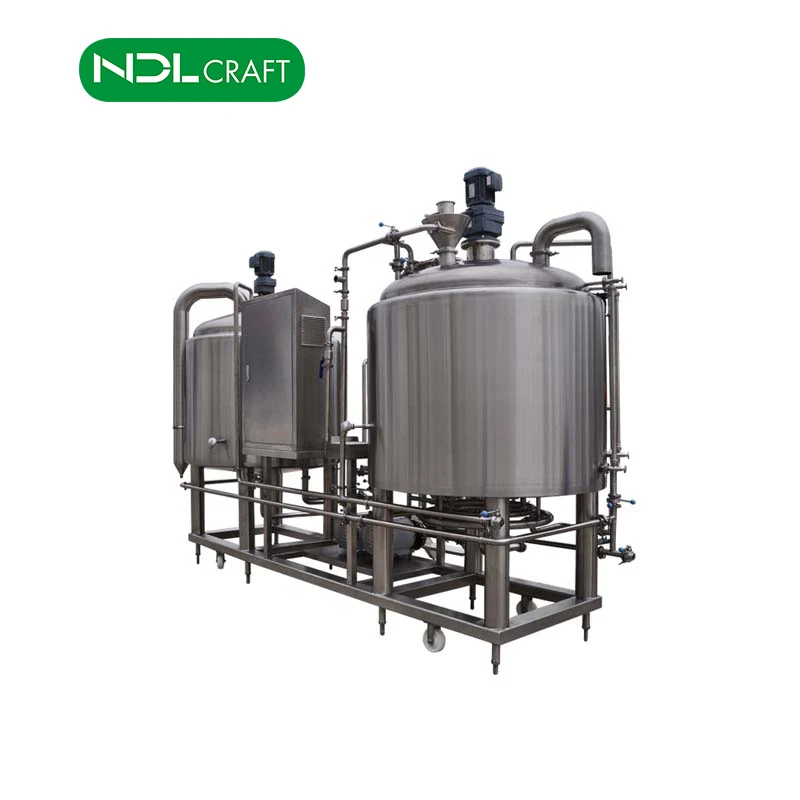

NDL Craft 1000l standard beer brewing equipment
- Category: Fermenting Equipment >>>
- Supplier: Shandong Shendong Fermentation Equipment Co. Ltd.
Share on (60818221346):
Product Overview
Description
NDL Craft 1000l standard beer brewing equipment
Product Description
1. 1000L Brewery Configuration
Milling system | Malt miller | 300-500kg/h | 1pcs |
Auger(option) | Ability is 1000KG/h | 1pcs | |
Hopper(option) | Volume is 0.6m3. SUS 304 with pre-masher | 1pcs | |
Brewhouse | Mash tun/ Lauter tank | Volume is 1000L, with false bottom, grant, raker with motor | 1pcs |
Kettle/whirlpool tank | Volume is 1000L, steam heating | 1pcs | |
HLT water tank | Volume is 2000L, steam heating | 1pcs | |
Includes plate heat exchanger, wort pump, motors, hops filter, yeast adding tank, oxygen device and pipelines | |||
Fermenting | Fermenters | Volume is 1000L or 2000L (double batches) | 6pcs |
BBT(option) | Volume is 1000L or 2000L (double batches) | 2pcs | |
Racking arm, spunding valve, pressure gauge, carbonation stone, sample valve | |||
Cooling system | Glycol tank | Volume 2000L or 3000L | 1pcs |
Cold water tank(option) | Volume 2000L, cooled by glycol tank | 1pcs | |
Chiller | 5HP, Copeland | 2pcs | |
Cleaning | CIP | 100L two tanks, heated by electric, with pump and trolley | 1pcs |
Controlling | Control cabinet | PLC touch screen or PID controller | 1pcs |
2. 1000L Saccharifying System
3. 1000L Fermentation System
| No. | Item | Introduction |
01 | Volume | 1000L |
02 | Dimension | 1260*2650mm |
03 | Material | Stainless steel 304 or 316,or red copper |
04 | Insulation | Polyurethane, TH: 80mm |
05 | Fermentation tank | Glycol jacket: Dimpled jacket on the cone and side Or single wall with jacketed, or single layer fermentor. |
06 | Head | Double or single dish head on the top |
07 | Accessories | Sample valve, pressure gauge, solenoid valve, pressure relief valve, racking arm, CIP arm and Blow off arm, dry hops port and so on. |
Send Inquiry>>
4. Auxiliary Equipment

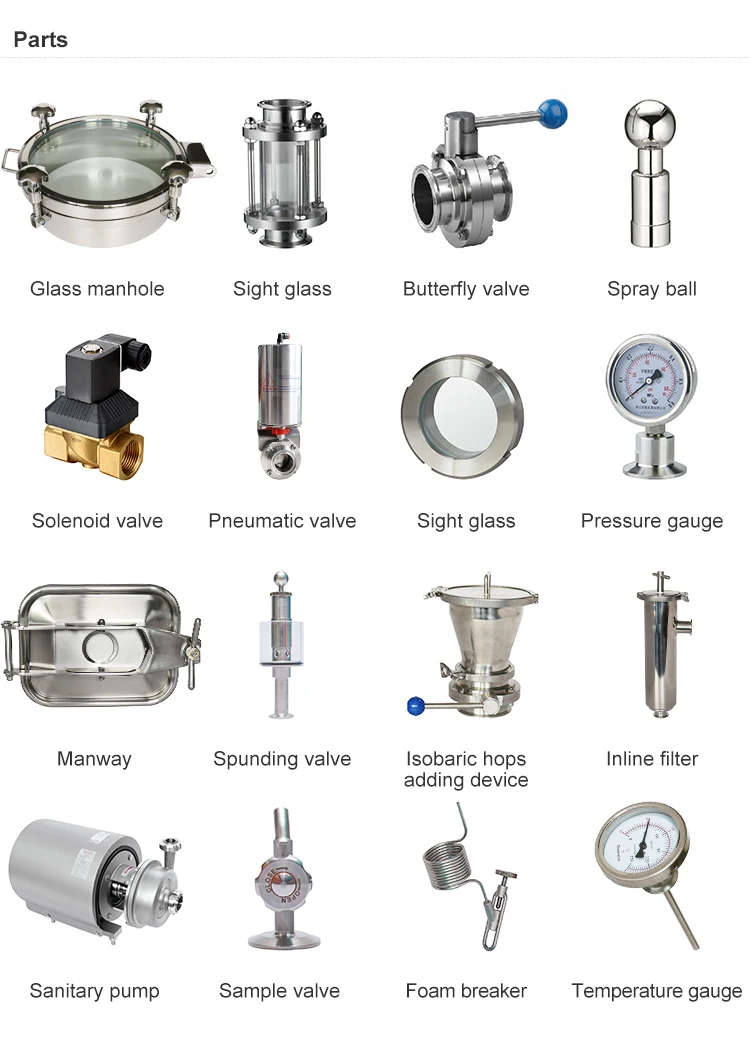

5. Accessories
Company Information
NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.
Based on the customized requirements of global customers, the company has established an ERP management system and has passed quality audits for internationally recognized certifications; ISO9001, 2000 International Quality Management System Certification, ISO14001 Environmental Certification, ISO18001 Occupational Health and Safety System Certification, DI, and DII Pressure Vessel Certification. We have also been recognized at a national-level as a scientific and technological innovation enterprise with 15 patented technologies granted in China.
Certifications
Exhibition
Customer Visit
Packaging & Delivery
Our Services

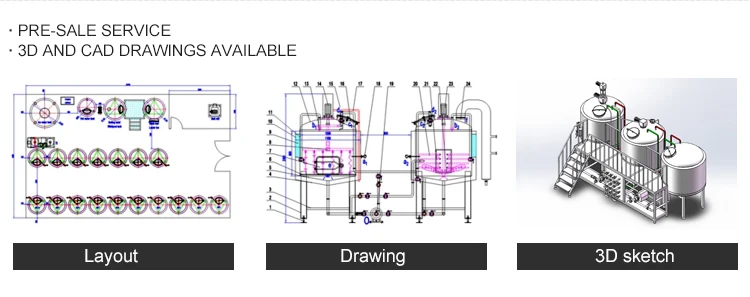

1. Pre-sales:
– Layout: Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an equipment footprint according to your requirement.
– Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout .
– 3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience.
2. After-sale
– installation by trained work team of the company NDL Craft;
– regulation and launching the brewery at the client company;
– first brews of beer;
– recipes and brew technologies for 4 different varieties of beer;
– staff training;
– warranty service: 5 years.
