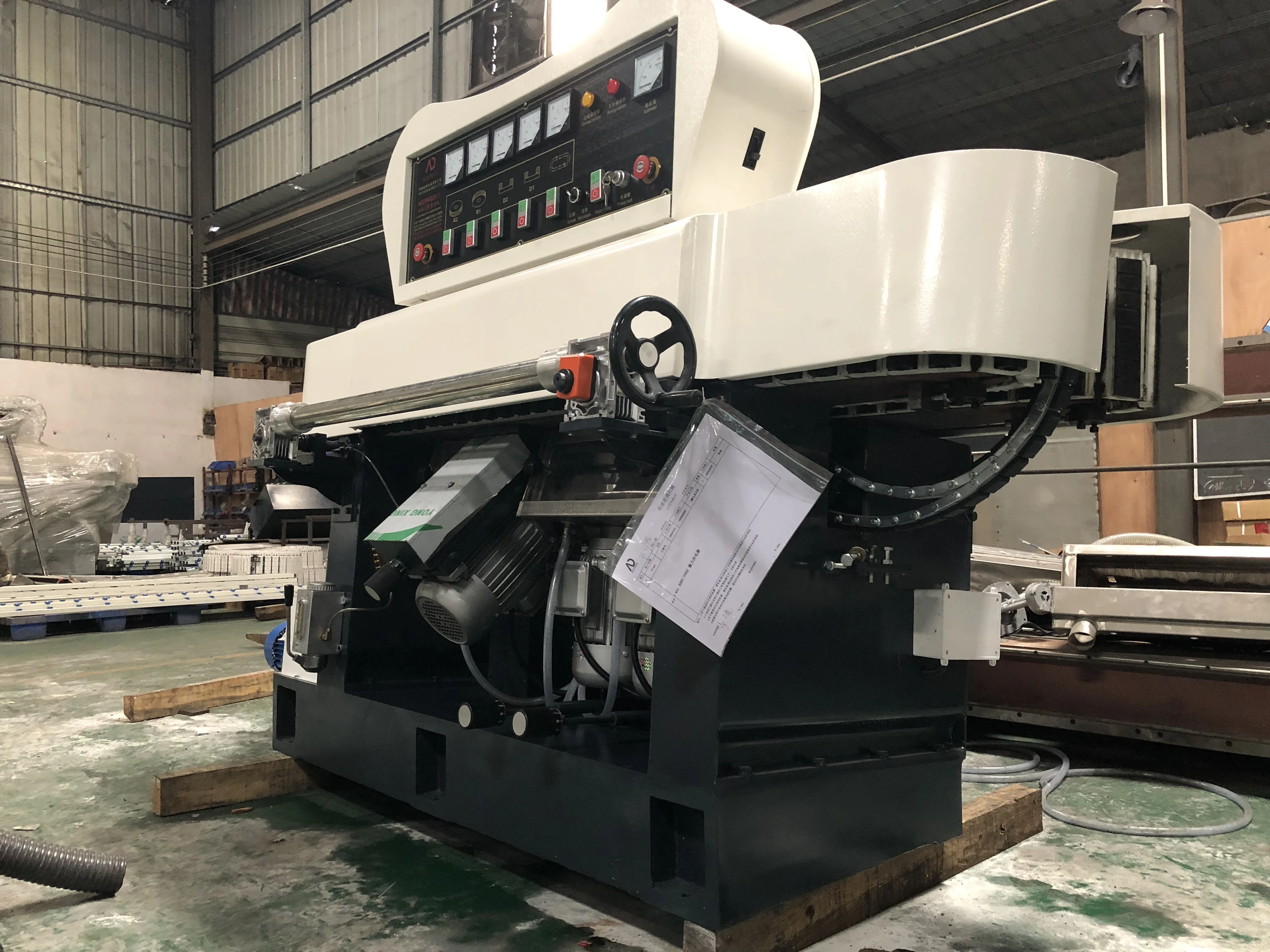

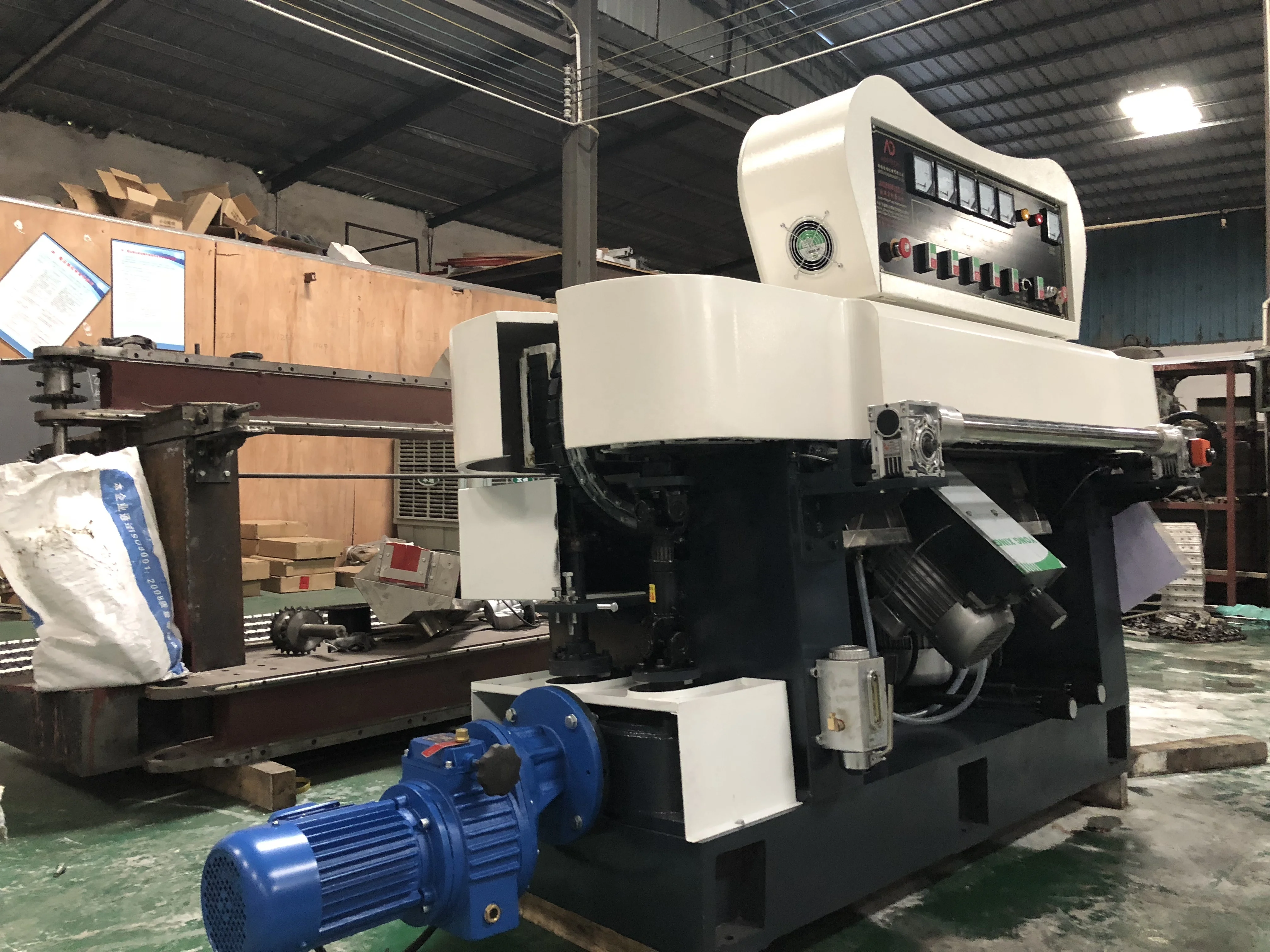

Small Flat glass edging machine

ADZM4325 Glass straight line edging machine

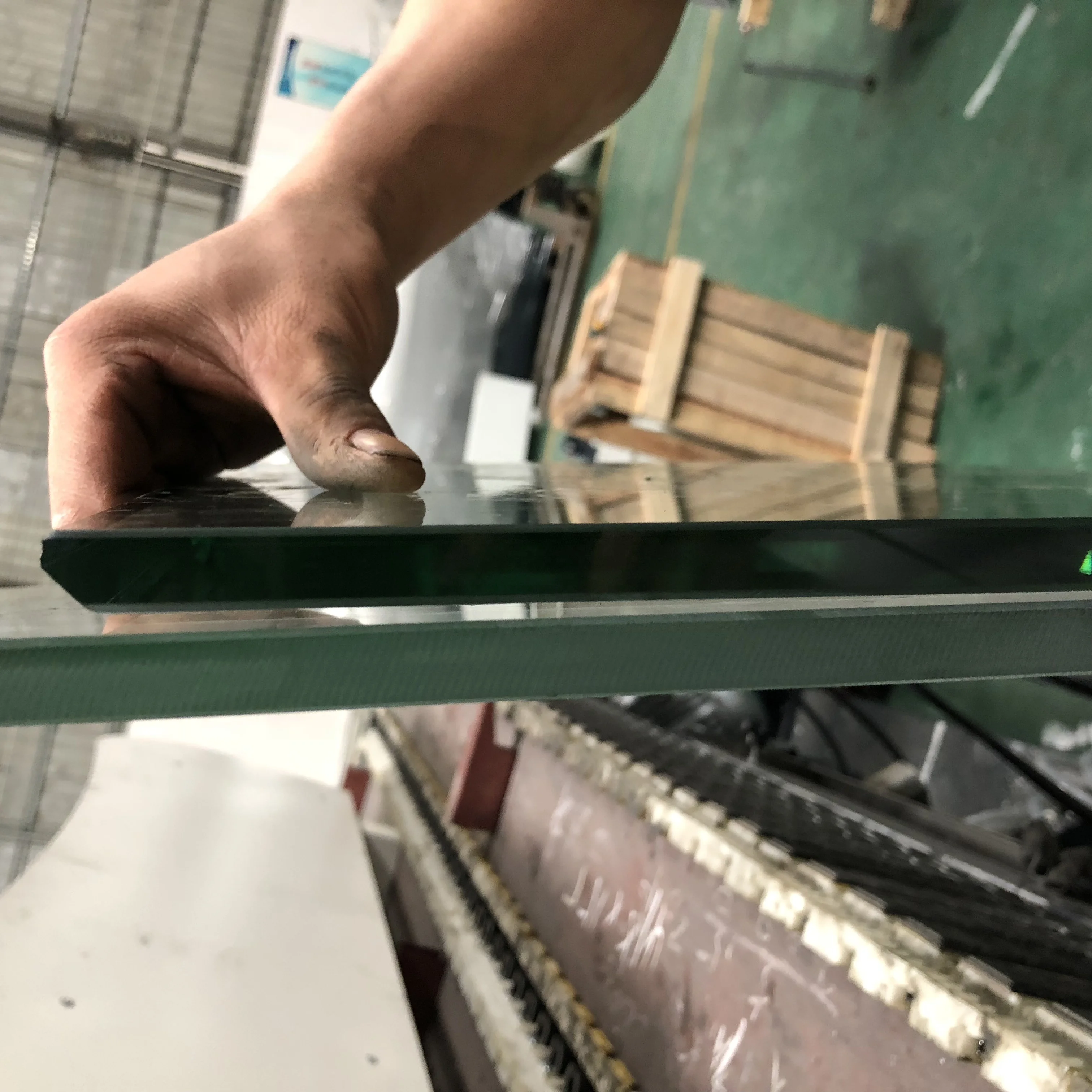

1. Suitable for grinding straight edge of different size and thickness flat glass.

2. The coarse grinding, fine grinding and chamfer can be finished at one time.

3. Working speed and working load can be adjusted smoothly by continuously variable mechanism transmission.

4. Can adjust front rail to match different glass thickness.

TECHNICAL SPECIFICATIONS
Item	Specifications
Min glass size	80*80mm
Glass thickness	3-25mm
Feeding speed	0.5-5m/min
Weight of machine	1800kg
Voltage	220/380/415/480V,50/60HZ
Installed Power	10kw

Detailed Image

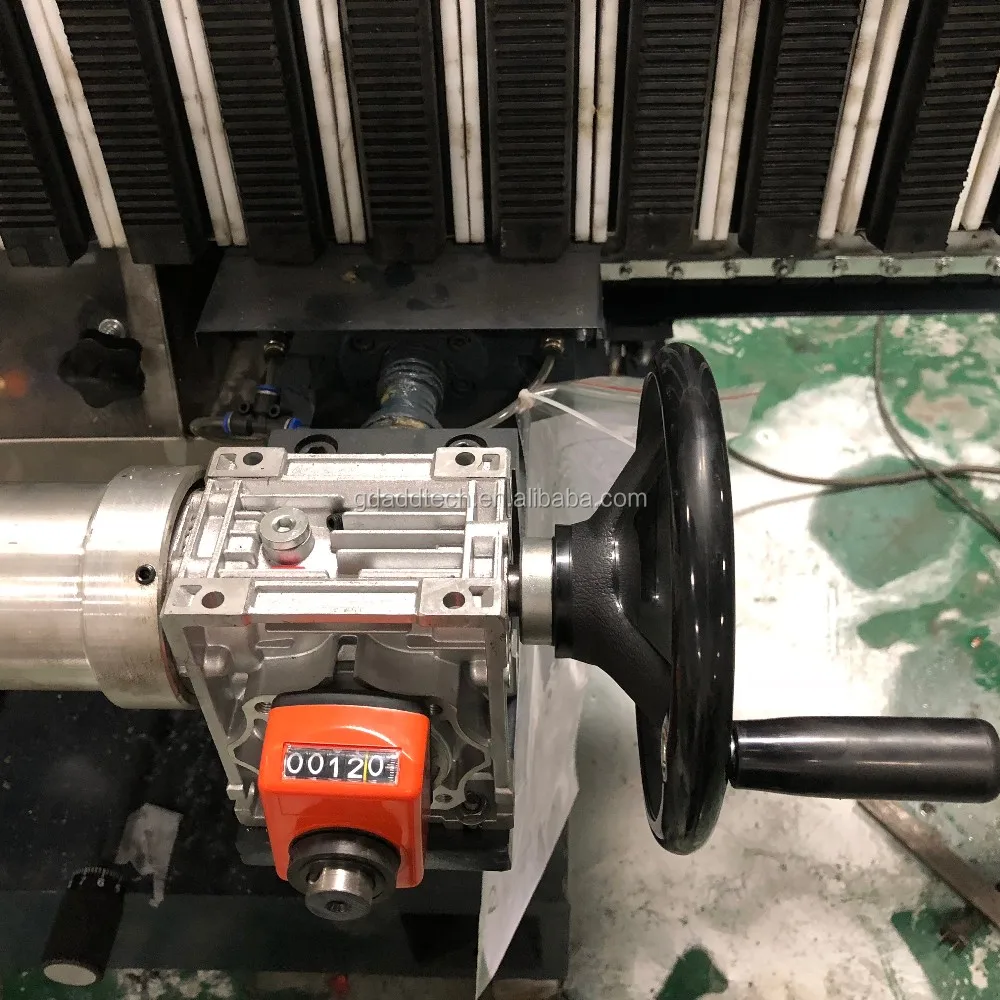

Manual operation

Easy to adjust glass thickness .

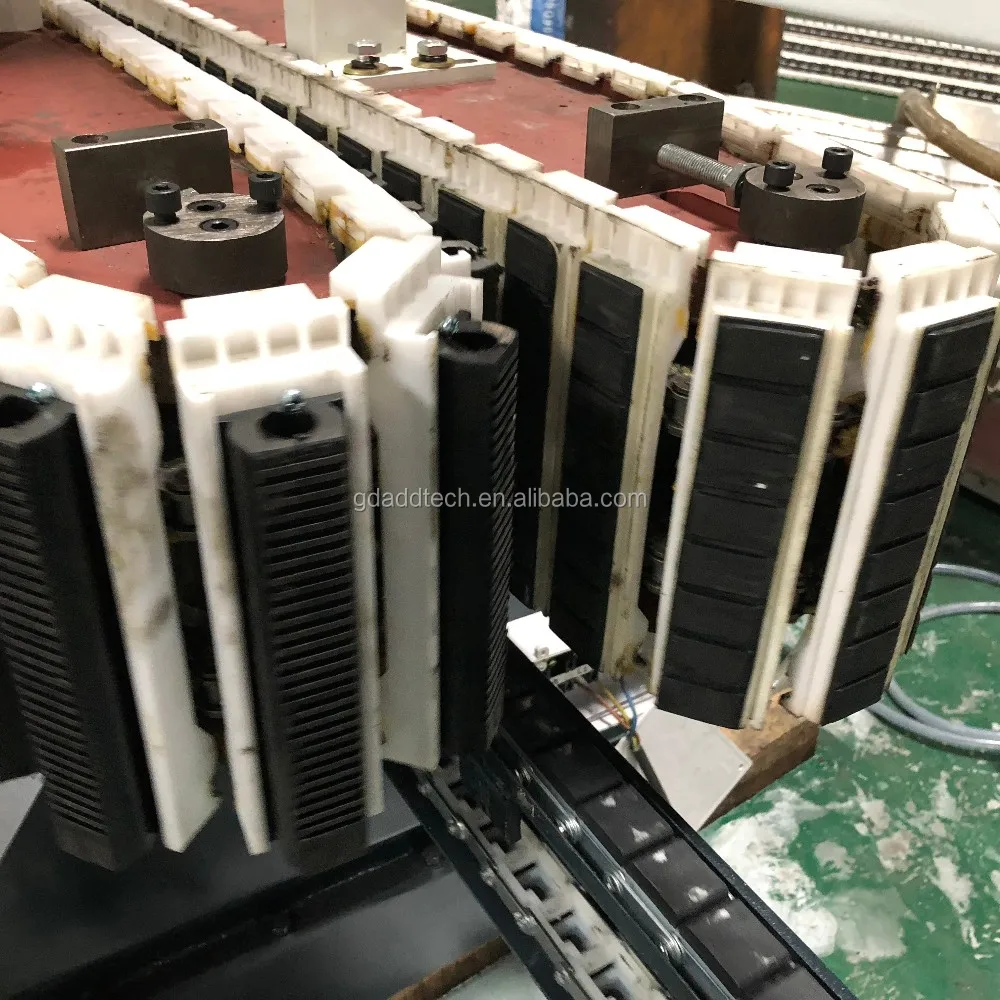

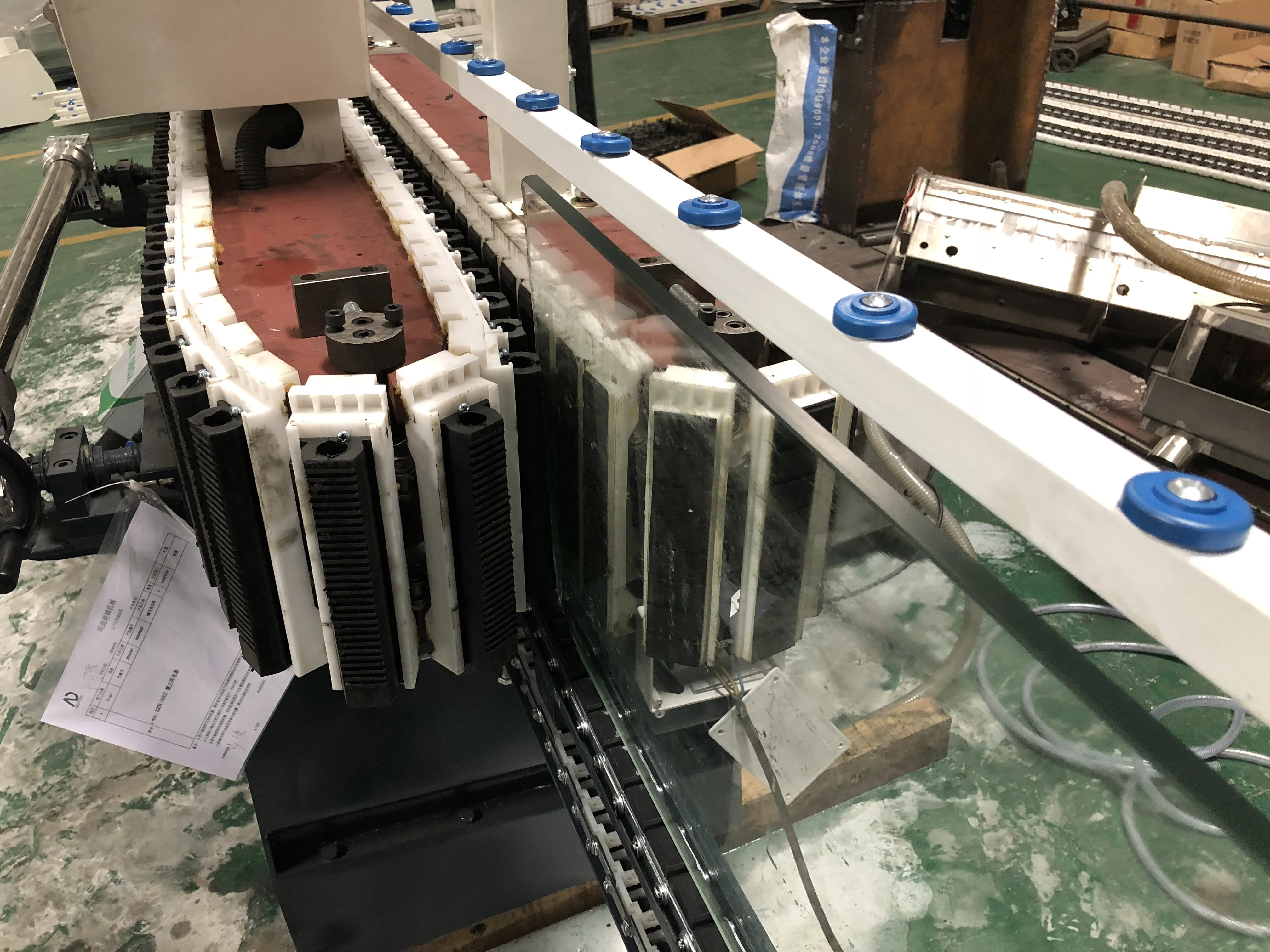

Machine platen

Good quality : Front platen good for thin glass .

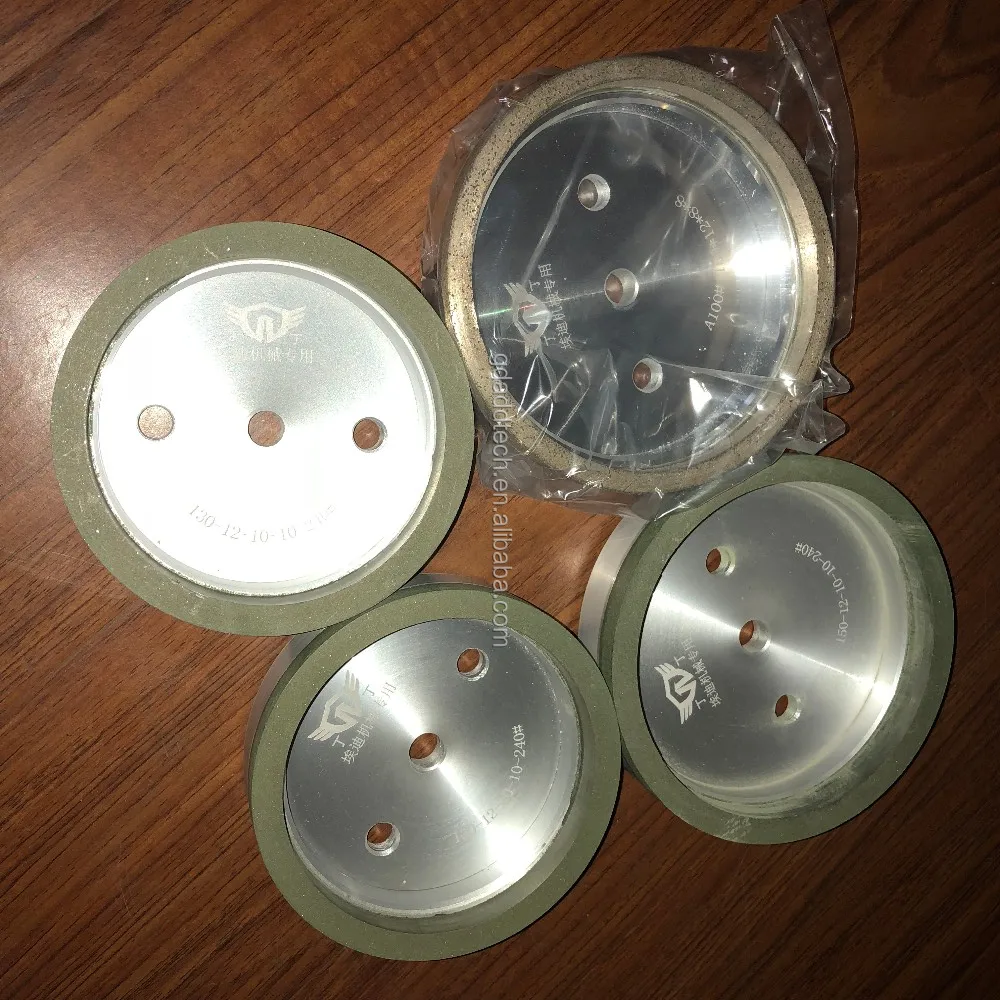

Grinding wheels

#1 Diamond  #2 /3 /4 Resin wheels

Certifications

Our Company

We are a professional glass machinery company for glass machine manufacturer and sales! We had exported to more than 40countries and areas like South America,,South Africa,India all over the world!

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	2300*1000*1550MM
Weight	3200KGS
Packaging Details	The package is wooden box(Size: L*W*H) By LCL Ship .If container is too tigher,we will use pe film for packing or pack it according to customers special request.
