Glass elevator cabin panoramic lift
Configuration:
1.Capacity:630kg,800kg,1000kg,1150kg,1350kg,1600kg
2.Speed:1.0m/s,1.5m/s,1.75m/s,2.0m/s,2.5m/s
3.Permanent magnet synchronous and gearless traction machine
4.Frequency converter:VVVF
5.Elevator car: stainless steel hairline
6.Energy feedback system
Specification:
For square panoramic elevator
Parameter and Specification Table | |||||||
Rated Loading Capacity |
Rated Speed |
Cab Size Width*Length
|
The width of opening door |
Hoistway Size (Width*Length) |
Machine Room Size |
The height of top |
The height of pit |
kg | M/s | Mm | Mm | Mm | Mm | Mm | Mm |
630 | 1.0 |
1400*1100 |
800*2100 |
2250*1600 |
2250*1600 | >=4500 | >=1800 |
1.5 | >= 4600 | >=1800 | |||||
1.75 | >=4800 | >=1800 | |||||
800 | 1.0 |
1400*1350 |
800*2100 |
2250*1800 |
2250*1800 | >=4500 | >=1800 |
1.5 | >=4600 | >=1800 | |||||
1.75 | >=4800 | >=1800 | |||||
1000 | 1.0 |
1600*1400 |
900*2100 |
2450*1900 |
2450*1900 | >=4500 | >=1800 |
1.5 | >=4600 | >=1800 | |||||
1.75 | >=4800 | >=1800 | |||||
For round/circular panoramic elevator
Rated Loading Capacity |
Rated Speed |
Cab Size Width*Length
|
The width of opening door |
Hoistway Size (Width*Length) |
Machine Room Size |
The height of top |
The height of pit |
kg | M/s | Mm | Mm | Mm | Mm | Mm | Mm |
800 | 1.0 |
1200*1750 |
800*2100 |
2200*2200 |
2200*2200 | >=4600 | >=1800 |
1.5 | >=4800 | >=2000 | |||||
1.75 | >=5000 | >=2000 | |||||
1000 | 1.0 |
1400*1900 |
900*2100 |
2550*2500 |
2550*2500 | >=4600 | >=1800 |
1.5 | >=4800 | >=2000 | |||||
1.75 | >=5000 | >=2000 |

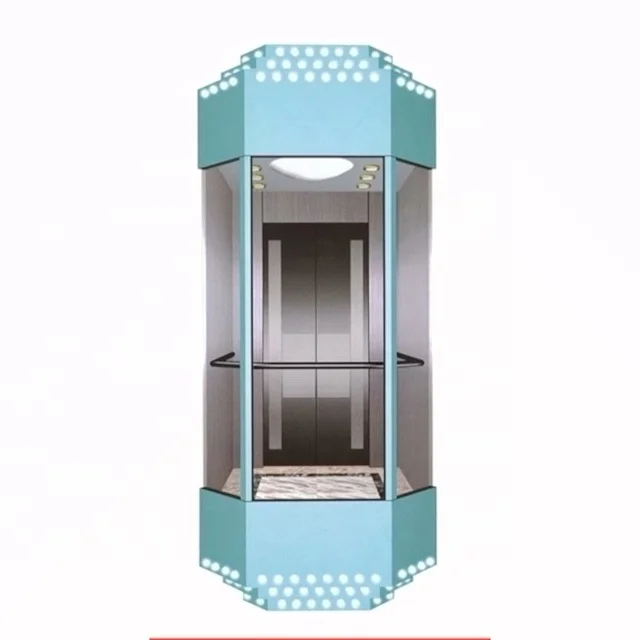

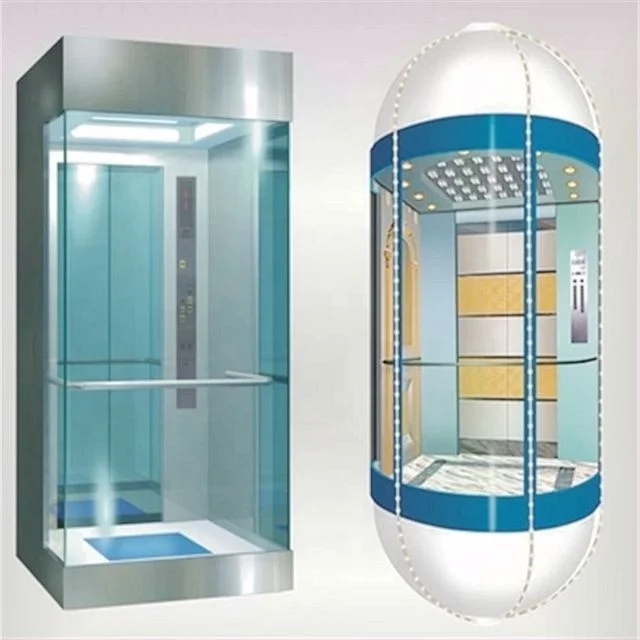

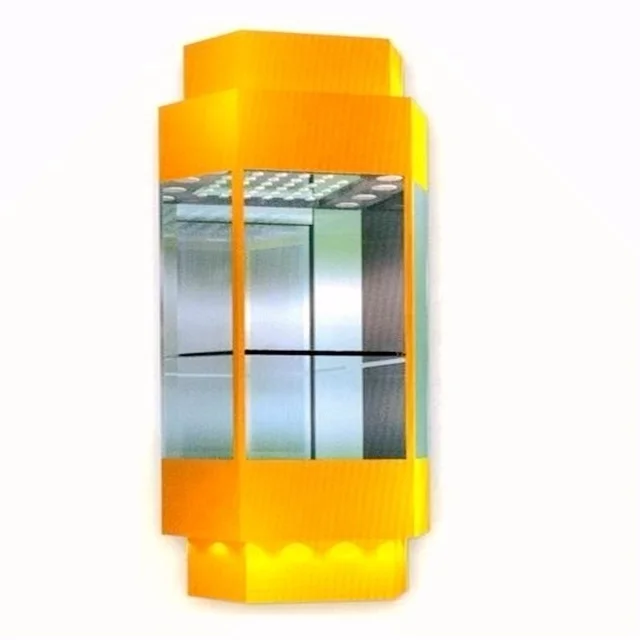

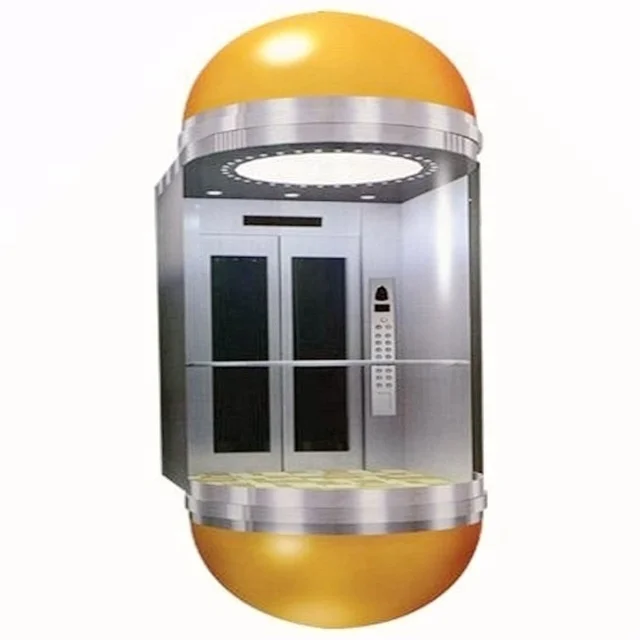

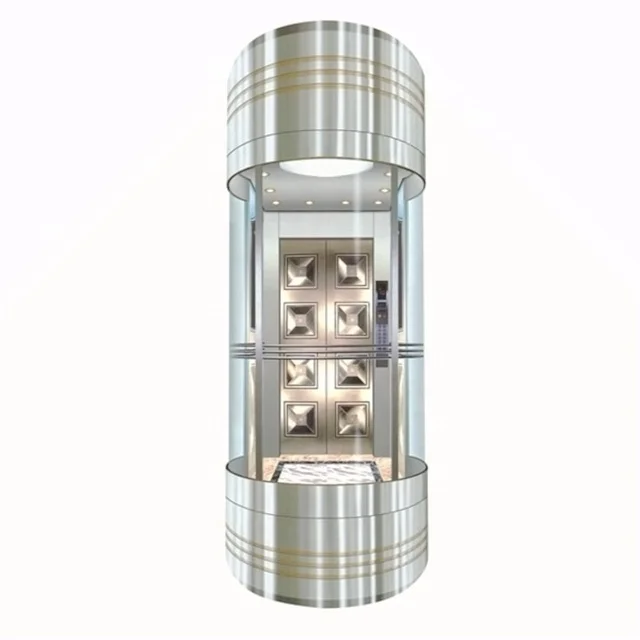

The panoramic elevator picture

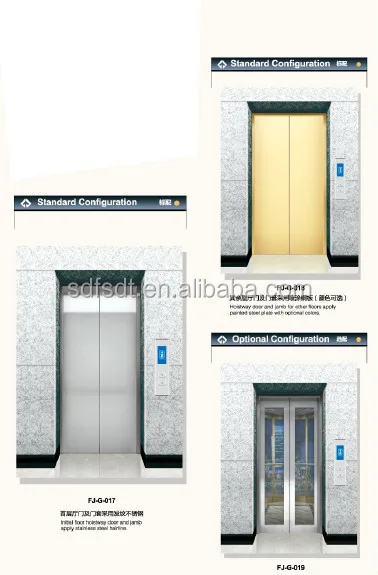

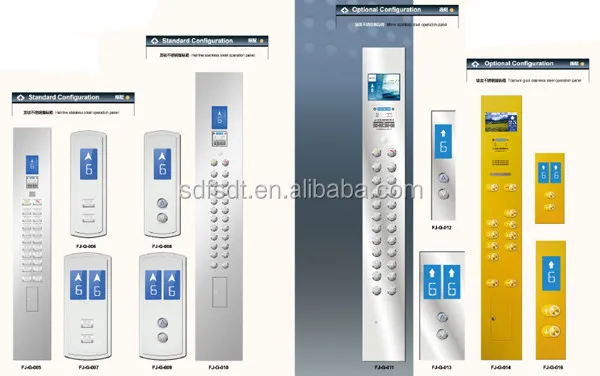

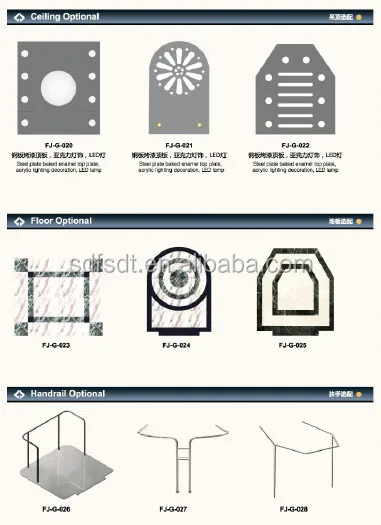

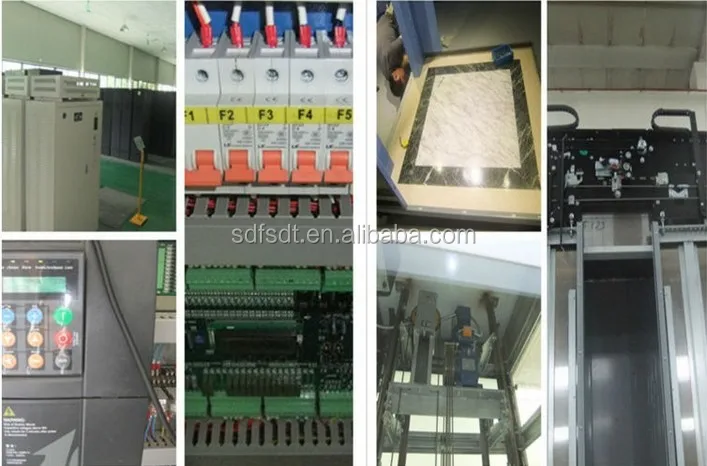

The panoramic elevator details pictures

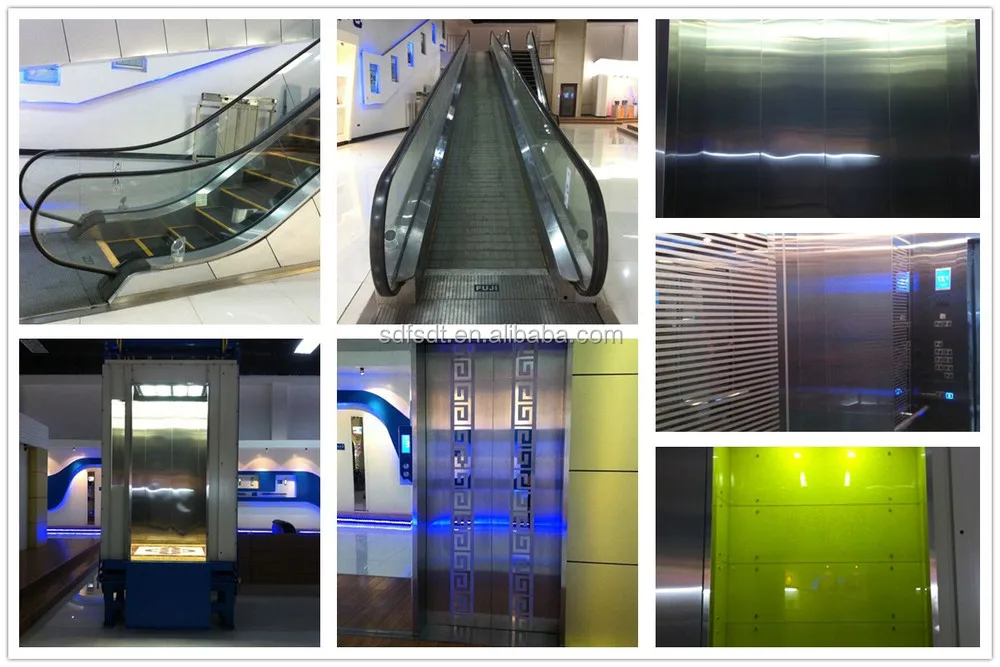

The related products

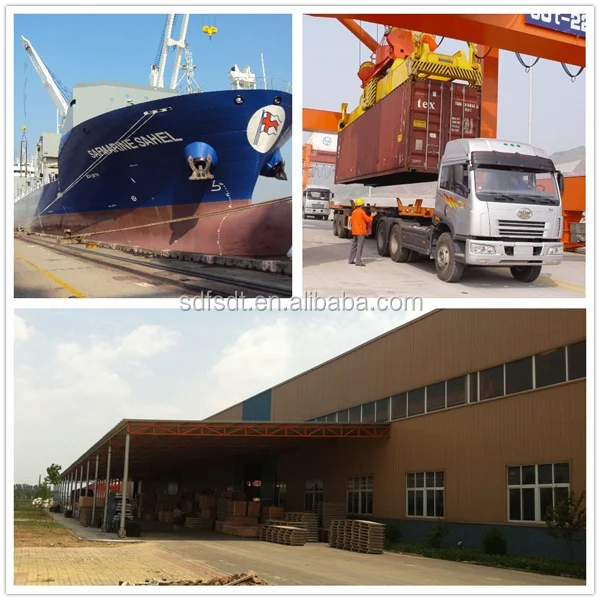

The panoramic elevator packing

1.Warranty:1 year guarantee
2.Payment term:T/T,L/C
3.Delivery time:withine 15 days
4.Port:FOB Qingdao

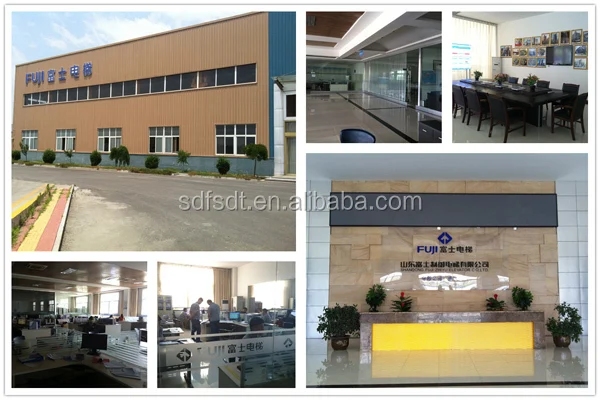

Our elevator factory and exhibition

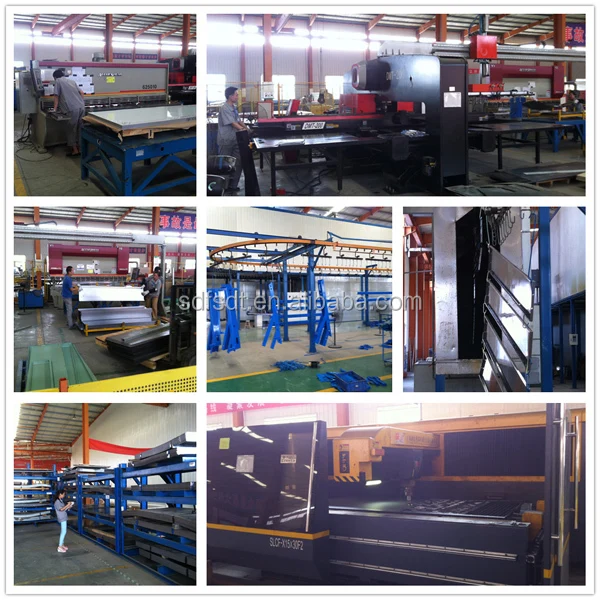

Our panoramic elevator workshop

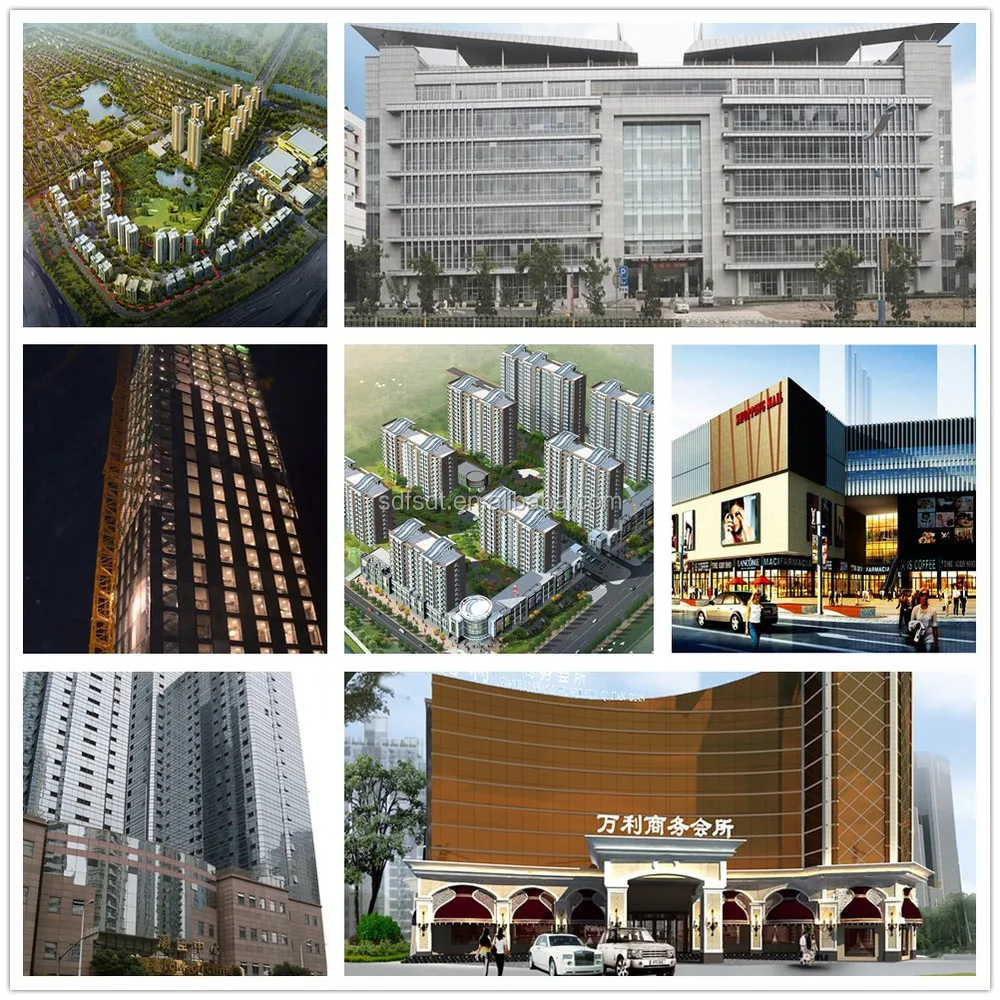

Classic project

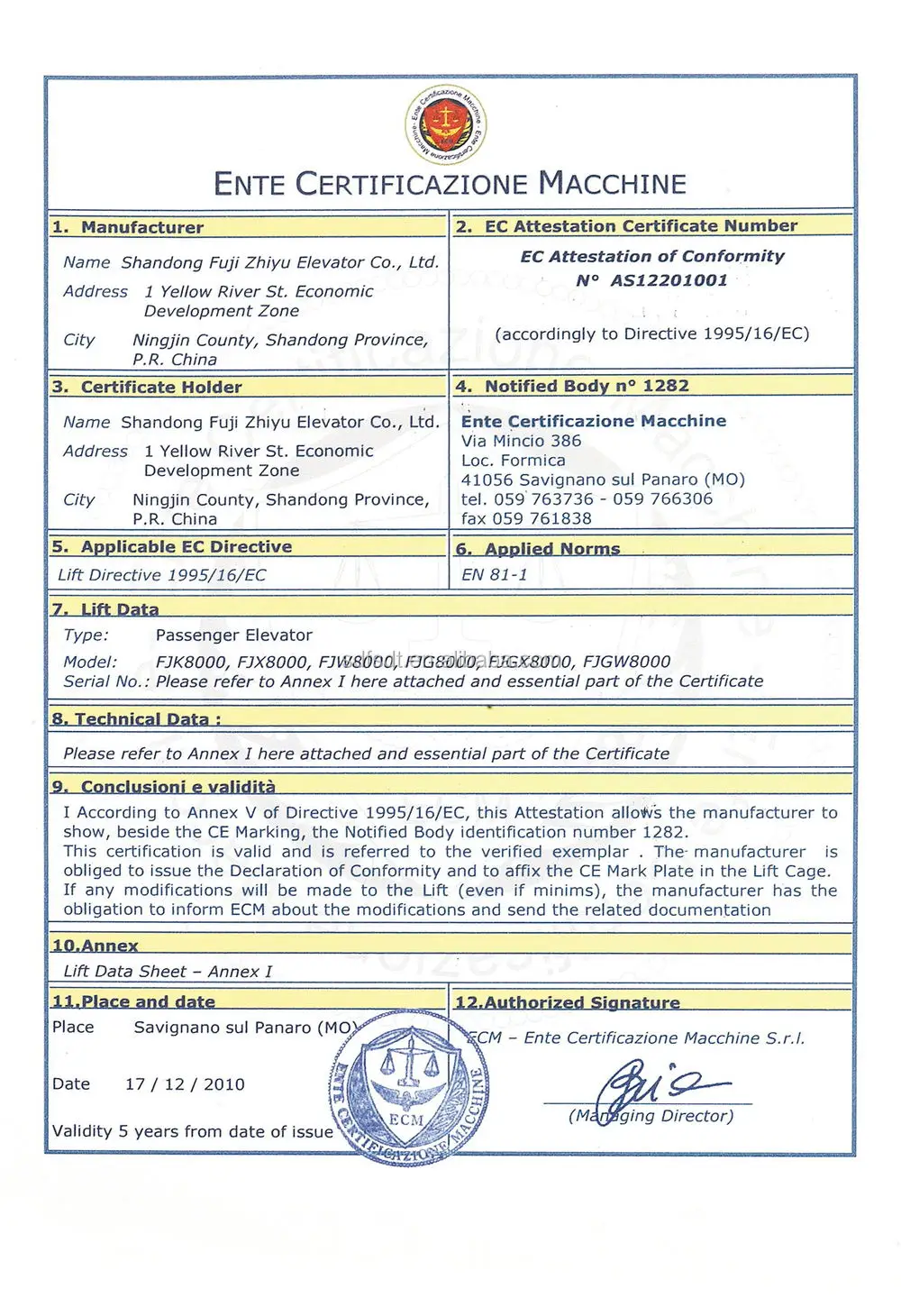

Certificate
