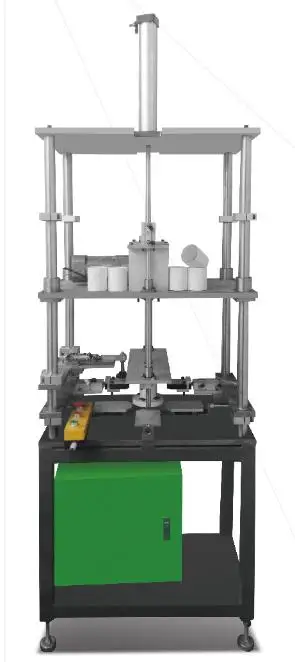

RW350/RW350s Semi Automatic Round Box Wrapping Machine
INTRODUCTIONS:
The semi-automatic round box wrapping machine is aimed at the round boxws withe the internal edge-fold and bottom edge-fold.
MAIN FEATURES:
1.Fever glue stains
It reduces hand contact time and oppotunity,so there will be a few glue stains on the formed round boxes.
2.Fast speed
A single person can operate the double-station working.The speed can reach 12pcs/min,which is 5~8 times of the manual work.
3.Energy saving,small space,simple operation
4.The semi-automatic round box wrapping machine can choose single station or double stations.
MAIN SPECIFICATIONS:
Model | RW350(single station) | RW350S(double stations) |
Max diameter of round box | 350mm | 350mm |
Min diameter of round box | 70mm | 70mm |
Max height of round box | 300mm | 300mm |
Min height of round box | 30mm | 30mm |
Speed | 6pcs/min | 12pcs/min |
Air | 0.5~0.7Mpa | 0.5~0.7Mpa |
Power | 220V 50Hz/300W | 220V 50Hz/300W |
Weight | 300kg | 600kg |
Dimension(LxWxH) | 800x500x2200mm | 1800x500x2200mm |
