Gemflex fittings are machined from cold drawn bar stock. Shape fittings (elbows, tees, and crosses) are made from forgings. Gemflex fittings are machined with NPTF threads for greater holding power and resistance to leakage.
APPLICATIONS
For use in lubrication, instrumentation, and most high pressure hydraulic systems.
PRESSURE RATINGS
Working pressures up to 5000 PSI - Working Pressure will vary depending on Tube & Fitting Size.
(For applications using extreme pressures at 5000 PSI or above, contact Gemflex.)
MATERIAL
Steel - 45
Stainless Steel - Type 304.316
PLATING
Clear Zinc Trivalent
Passivated
HOW TO ORDER
3000 Series pipe fittings are available in sizes 1/8” through 2”
(Contact Gemflex for availability of specific shapes and sizes.)
CONFORMANCE
Gemflex fittings meet SAE J514 specifications

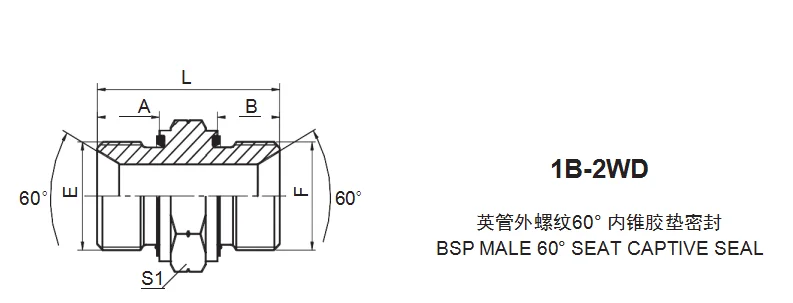

PART NO.
THREAD
CAPTIVE
DIMENSIONS
E
F
E
F
A
B
L
S1
1B-02/2WD
G1/8"X28
G1/8"X28
WD-B02
WD-B02
8
8
25
14
1B-02-04/2WD
G1/8"X28
G1/4"X19
WD-B02
WD-B04
8
12
29.5
19
1B-04/2WD
G1/4"X19
G1/4"X19
WD-B04
WD-B04
12
12
34
19
1B-04-06/2WD
G1/4"X19
G3/8"X19
WD-B04
WD-B06
12
12
36.5
22
1B-06/2WD
G3/8"X19
G3/8"X19
WD-B06
WD-B06
12
12
37
22
1B-06-08/2WD
G3/8"X19
G1/2"X14
WD-B06
WD-B08
12
14
41.5
27
1B-08/2WD
G1/2"X14
G1/2"X14
WD-B08
WD-B08
14
14
44
27
1B-08-12/2WD
G1/2"X14
G3/4"X14
WD-B08
WD-B12
14
16
46
32
1B-12/2WD
G3/4"X14
G3/4"X14
WD-B12
WD-B12
16
16
47
32
1B-12-16/2WD
G3/4"X14
G1"X11
WD-B12
WD-B16
16
18
52
41
1B-16/2WD
G1"X11
G1"X11
WD-B16
WD-B16
18
18
55
41
1B-16-20/2WD
G1"X11
G1.1/4"X11
WD-B16
WD-B20
18
20
57
50
1B-20/2WD
G1.1/4"X11
G1.1/4"X11
WD-B20
WD-B20
20
20
61
50
1B-20-24/2WD
G1.1/4"X11
G1.1/2"X11
WD-B20
WD-B24
20
22
63
55
1B-24/2WD
G1.1/2"X11
G1.1/2"X11
WD-B24
WD-B24
22
22
65
55
1B-24-32/2WD
G1.1/2"X11
G2"X11
WD-B24
WD-B32
22
20
66
75
1B-32/2WD
G2"X11
G2"X11
WD-B32
WD-B32
20
20
65
75
Thread Type Option

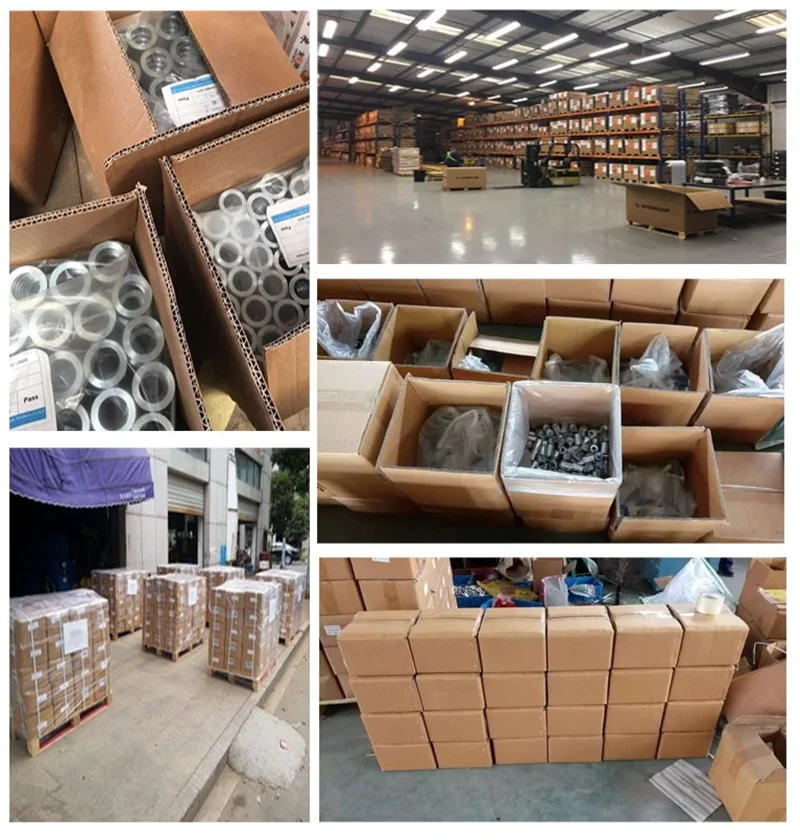

Packaging & Shipping
Company Information
Gemflex is one of main manufacturers of wire braided,spiral and textile hoses for high and ultrahigh pressure.Located in North of China where take 100,000 square meters.Gemflex has passed ISO 9001 Certification and API 7K,MSHA,REACH etc.
Gemflex specializes in manufacture,distribution and sales of comprehensive range of high pressure hydraulic and industrial hoses,the company has developed a good reputation among domestic and abroad customers both in quality and services.Our mission is exceeding our customers’ and employees’ through continuous improvement driven by innovation,teamwork and integrity of our people and embracing change.
Gemflex products supplied to a wide range of industries,including mining,construction,marine,utilities,oil and gas.OEM and more.Gemflex continue to expand their own products range to meet growing needs of worldwide industry.
Our Services
We can offer OEM Services
We can provide FREE SAMPPLE for our customers
We can crimp hose assembly for our customers.
We welcome clients to visit our factory leading to better understanding of our production.
