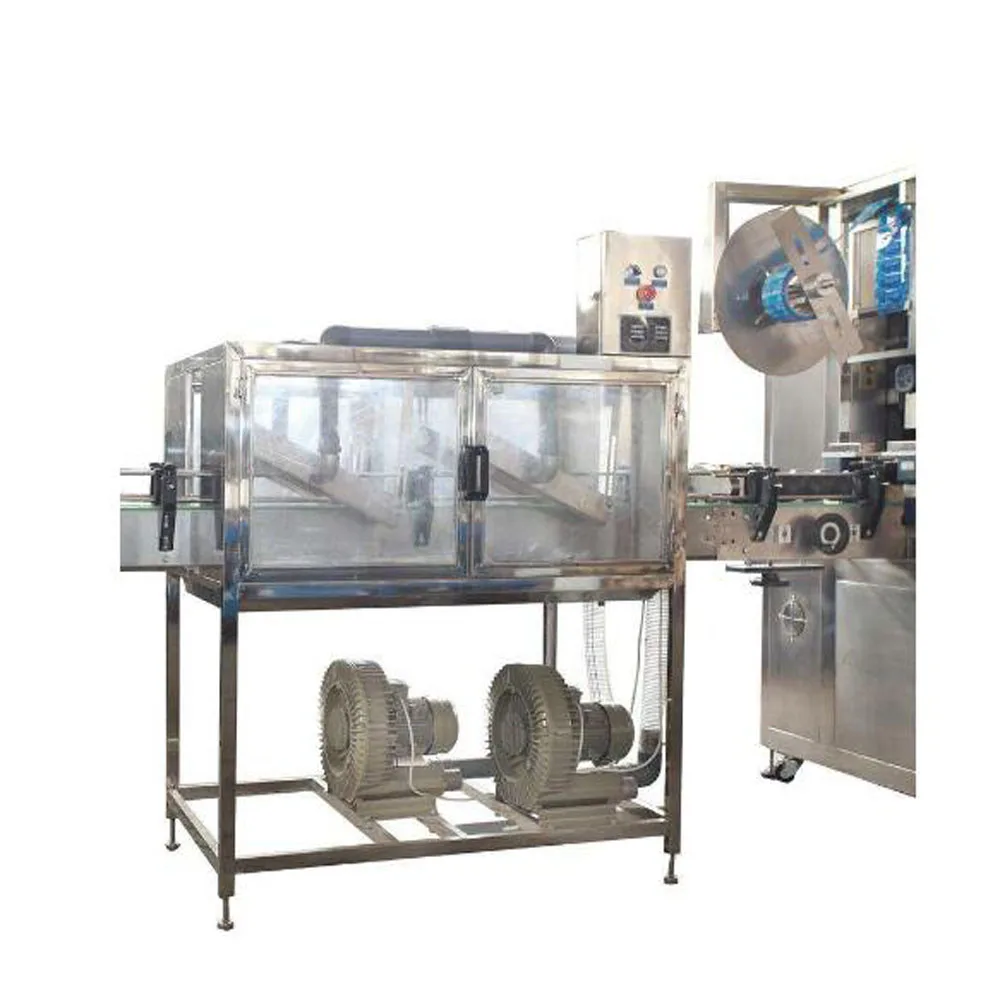

Air Blowing Type Bottle Dryer with Blowing Knife

Share on (60818296173):


Price:RUB 191,921.50

Quantity:


Product Overview

Description

Product Description

 Air Blowing Dryer Machine Introduction
      Blowing Dryer Machine is used to remove water after sleeves shrinking by steam tunnel for easy packing or inkjet codes printing on bottles.
The dryer can remove most of the water on the surface of bottles, but it can not remove 100%.
Blowing Dryer have following Features.
(1) High–performance 5.5 kw blower motor with double fan, much more efficient
(2) Adjustable air volume blowing.
(3) Overload protection, safe.
(4) Simple and clean appearance
(5) 4 blowing knifes, total 0.5*4=2meters blowing length
(6) Inlet air protection to prevent debris

Technical Parameter



Machine model
CG-1
Powder supply
AC 3Phase :220V/380V/440V
Total powder
5.5~7.5KW
Entrance width to suit conveyor
100mm or customized
Blowing knifes
4 Pieces
Length of Blowing knifes
0.5m
Blowing motor
1 set/5.5kw~7.5kw
Overload protection
yes
Frame material
ss304
Weight
250kg
Size L*W*H
1.5m*0.85m*1.7m

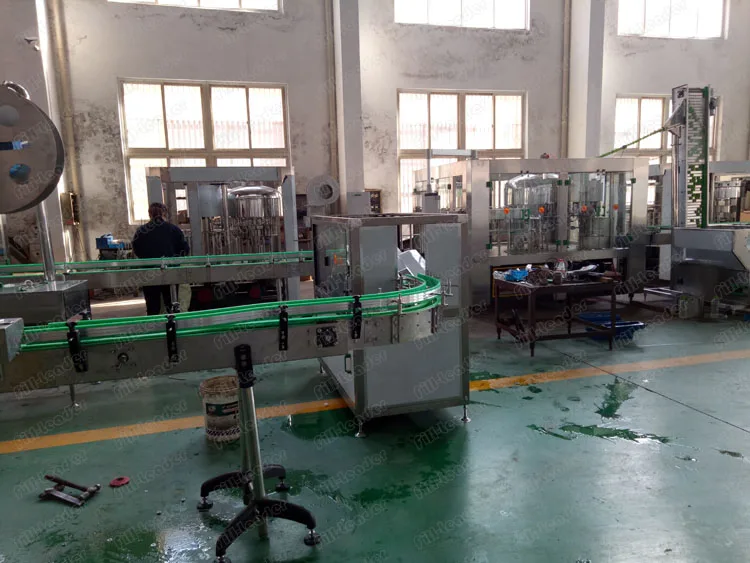

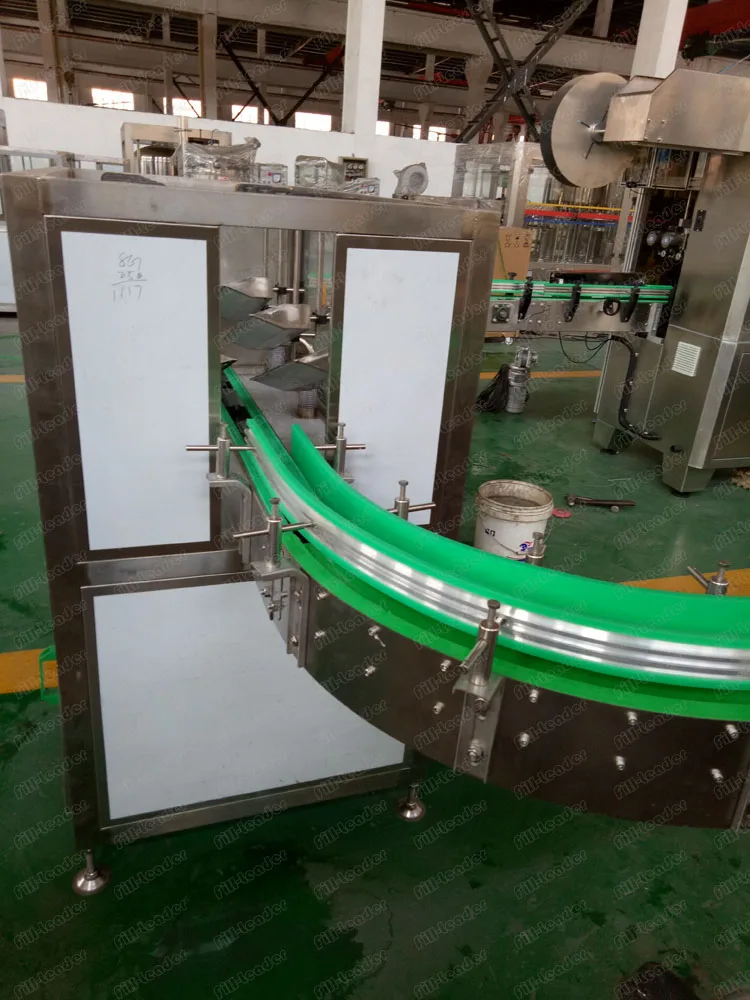

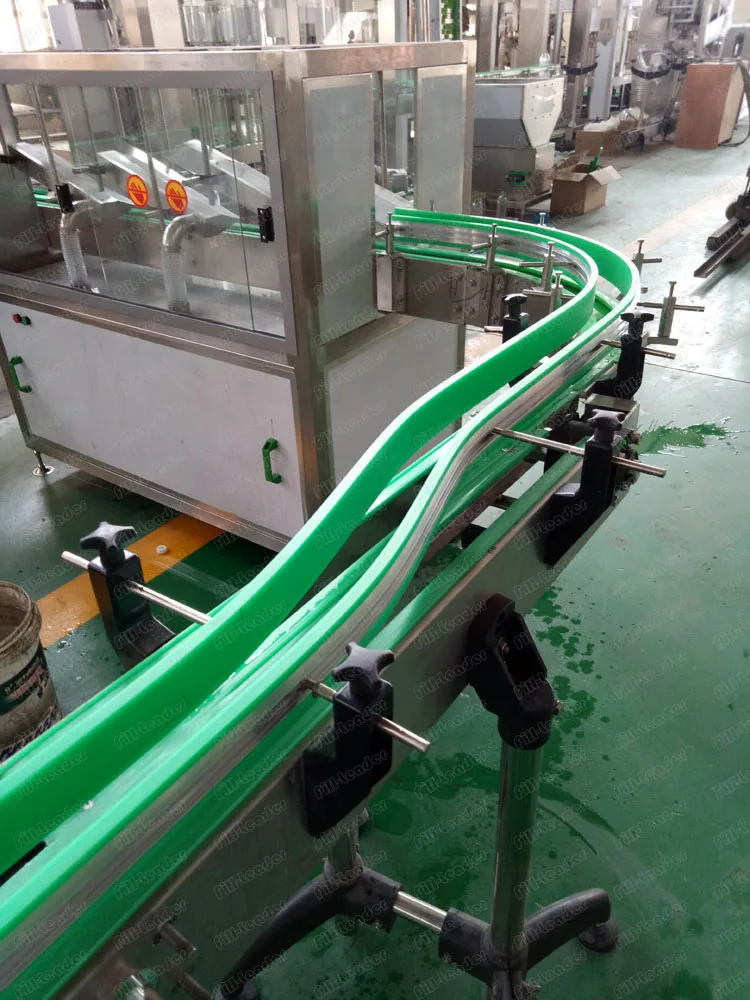

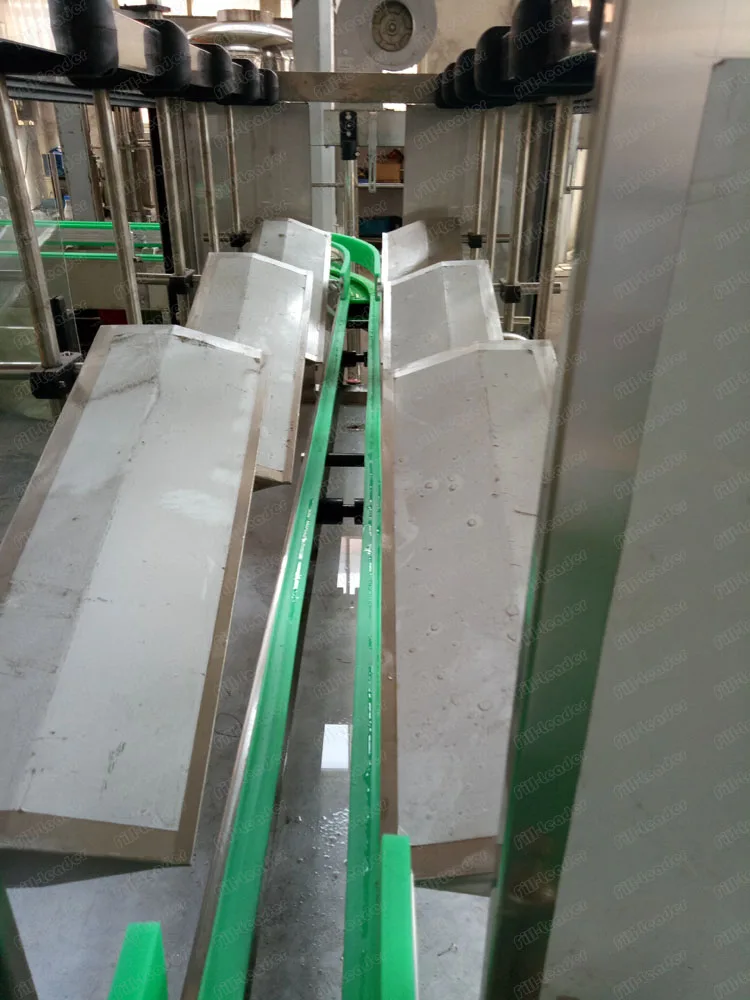

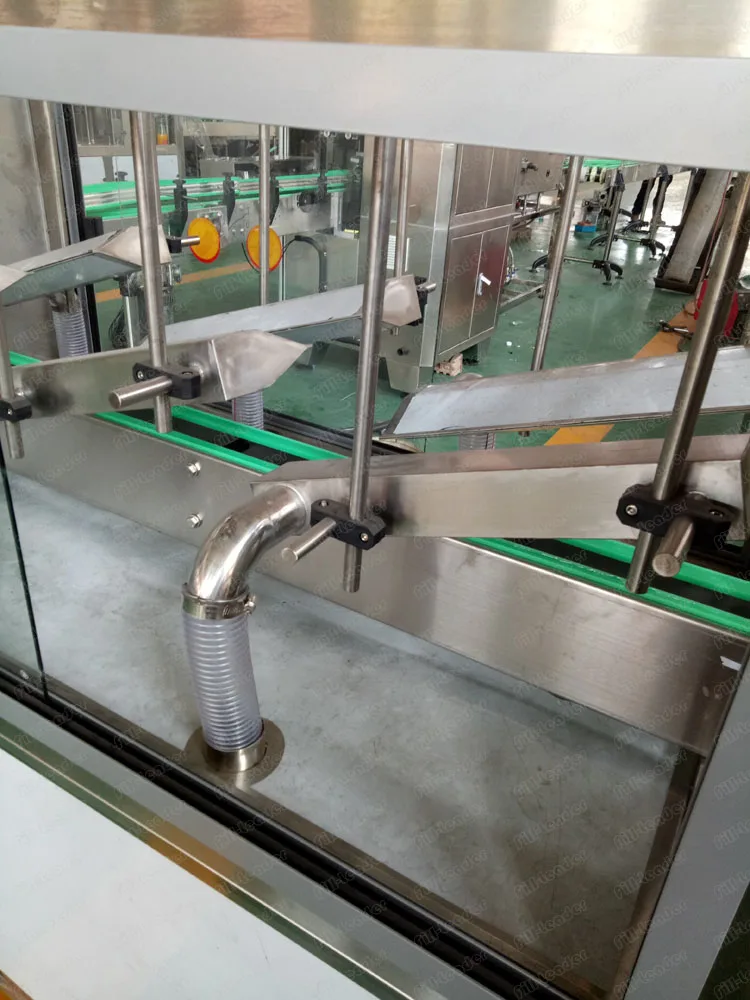

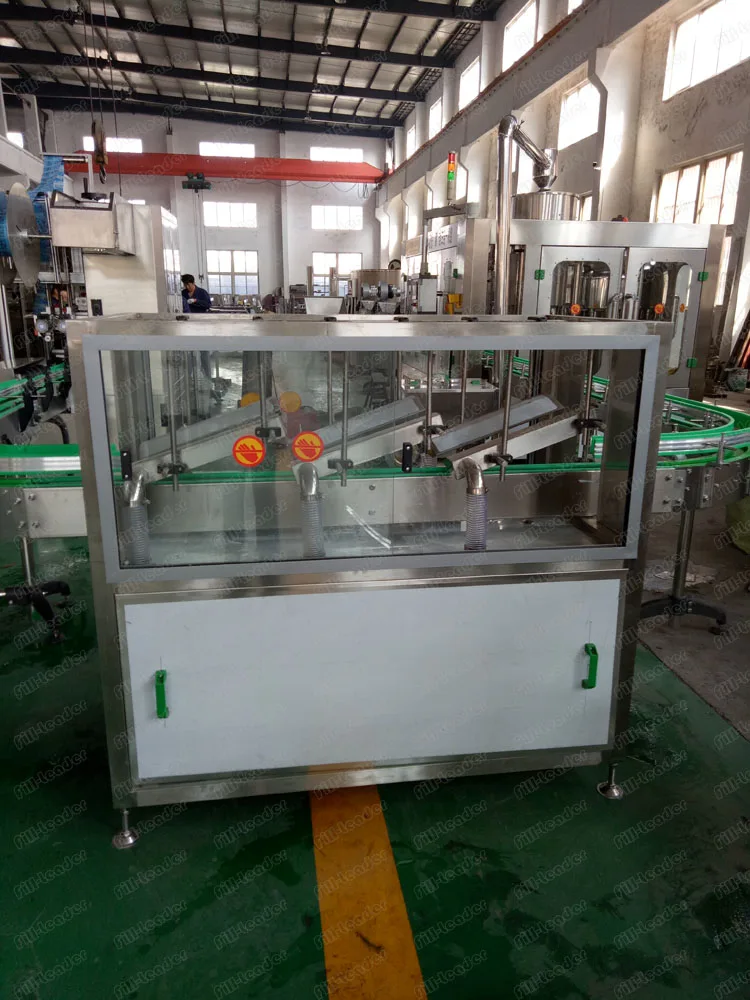

Detailed Images

 323835313436
