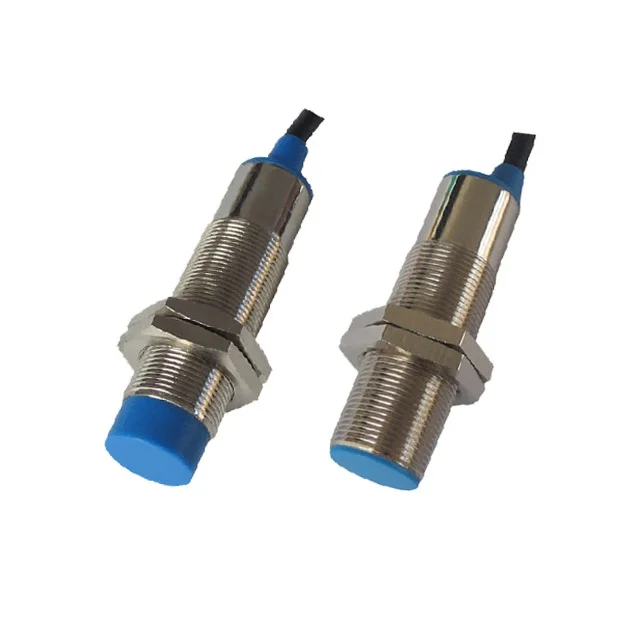

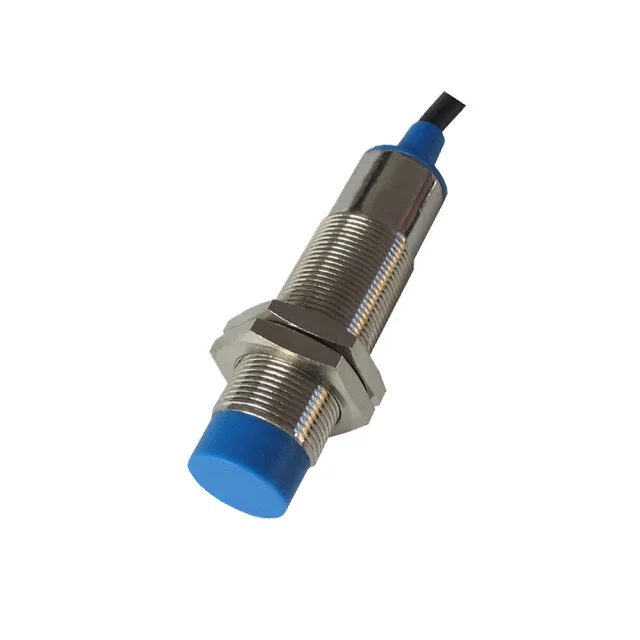

M18 NPN/PNP 4 Pin Connector Capacitive Fuel Liquid Level Proximity Sensor Switch 12V/24VDC IP67 Waterproof (IBEST)

Product Overview

Description

  IBEST M18 Cylinder Capacitive Proximity Sensor/Switch

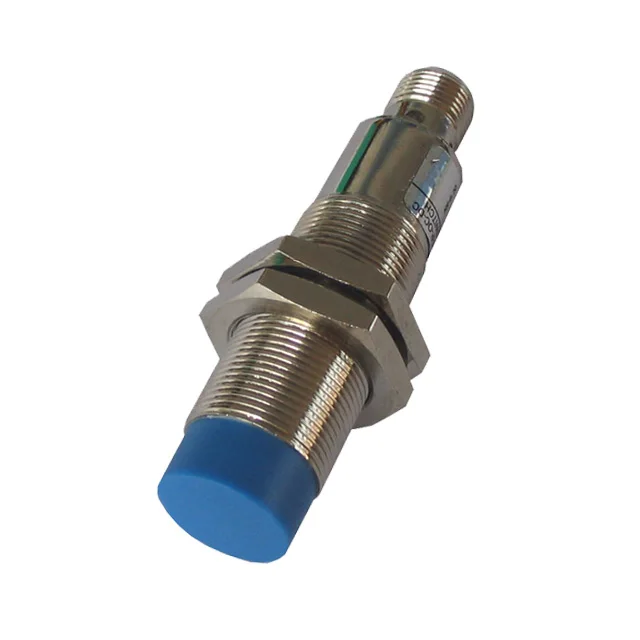

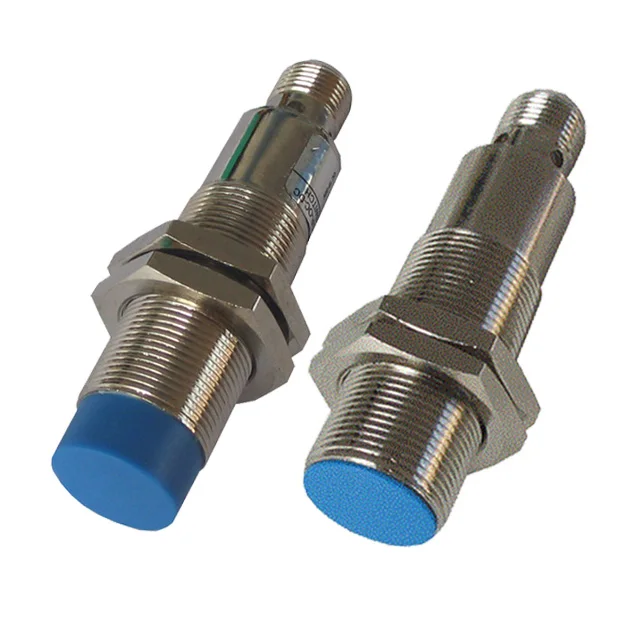

With M12 Connector / NPN or PNP NO +NC Dual Output





1. Features:

--    Style: cylinder 18mm, lenth: flush 55mm, Non-flush 63mm.

--    Standard sensing object: metal or non-metal objets. (Except thin paper, thin plastic objects and thin poly bag are not sensitive)

--    Shielded / Flush: 5mm; Unshielded / Non-flush: 8-10mm.

--    DC 3wire or 4 wires (10-30V DC), PNP or NPN, NO or NC or NO+NC. (or AC 2 wires 90-250V supply or AC24V supply can be specially made as per customer's request)

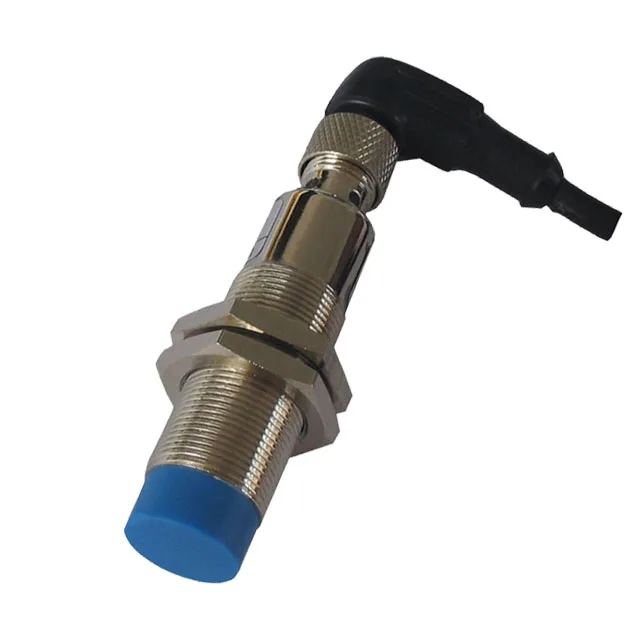

--    Connection mode: cable=2M or with M12 connector and cable.

--    With LED operation indicate lamp, easily identifiable.

--    Brass chrome plated, proof of oil, water acid, alkaline.

--    Protection rate: IP67, water resistant.

--    Reliable quality to replace famous brands, such as: Omron, Sick, Bafflus...etc.

--    CE approved.

--    Widely applied in measuring, Counting, Rpm measuring in mechanism,paper  manufacture light industry, chemical etc



2.Ordering code:

CPSI-18PO5B	PNP NO	5mm	≤200mA	DC 10-30V	shielded/flush	W/Connector	IP67
CPSI-18NO5B	NPN NO	5mm	≤200mA	DC 10-30V	shielded/flush	W/Connector	IP67
CPSI-18PO8B	PNP NO	8mm	≤200mA	DC 10-30V	unshielded/non-flush	W/Connector	IP67
CPSI-18NO8B	NPN NO	8mm	≤200mA	DC 10-30V	unshielded/non-flush	W/Connector	IP67
CPSI-18AO5C	AC 2 Wire	5mm	≤300mA	AC 90-250V	shielded/flush	W/Connector	IP67

CPSI-18AO8C

AC 2 Wire

8mm

≤300mA

AC 90-250V

unshielded/non-flush

W/Connector

IP67

CPSI-18NOC8B

NPN  NO+NC

8mm

≤200mA

DC 10-30V

unshielded/non-flush

W/Connector

IP67

CPSI-18NOC8B

PNP NO+NC

8mm

≤200mA

DC 10-30V

unshielded/non-flush

W/Connector

IP67



3. Size &Technical Specifications:

Our company is a professiona manufacutures of:

1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor,  hall sensor, color mark sensor and analog sensor.



Welcome to contact us!
