IBEST M12 NPN PNP NO 3 Wires Waterproof 5V 12V 24V DC Capacitive Water Tank Fluid Level Proximity Touch Switch Sensor

Product Overview

Description

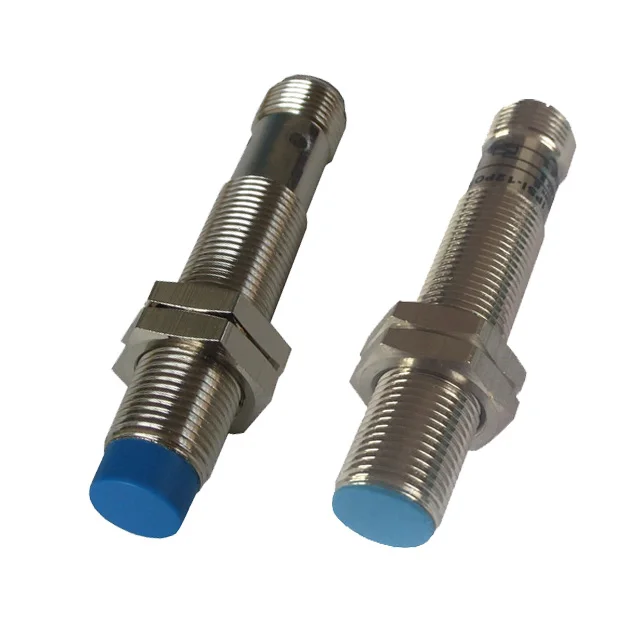

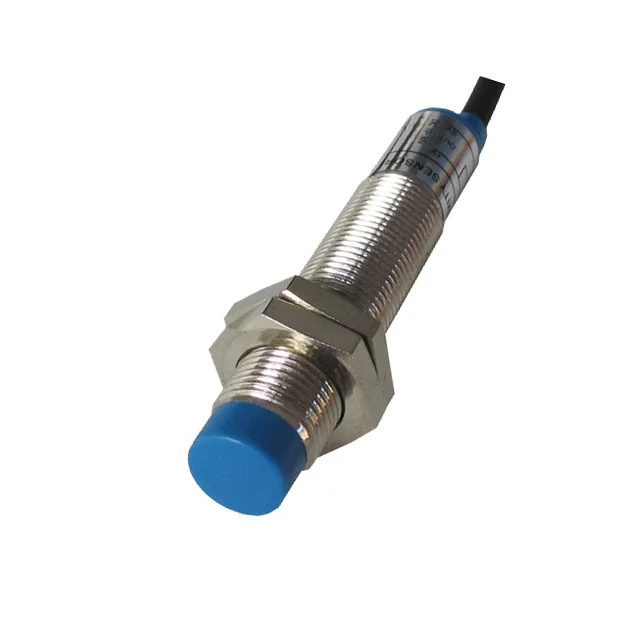

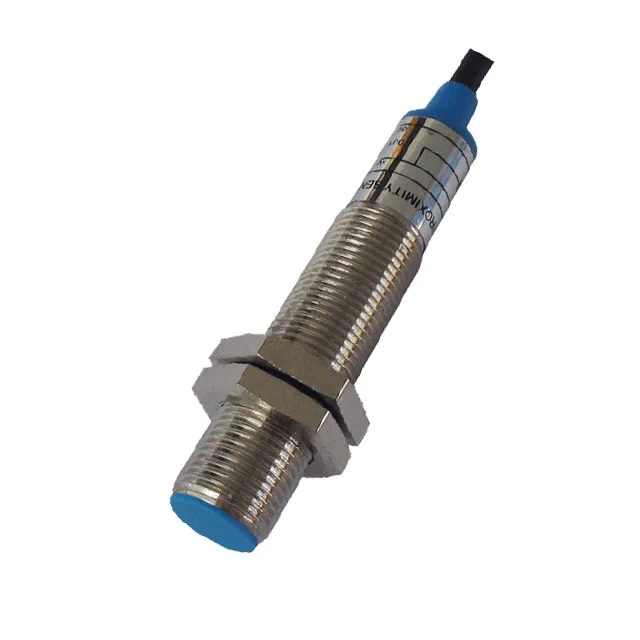

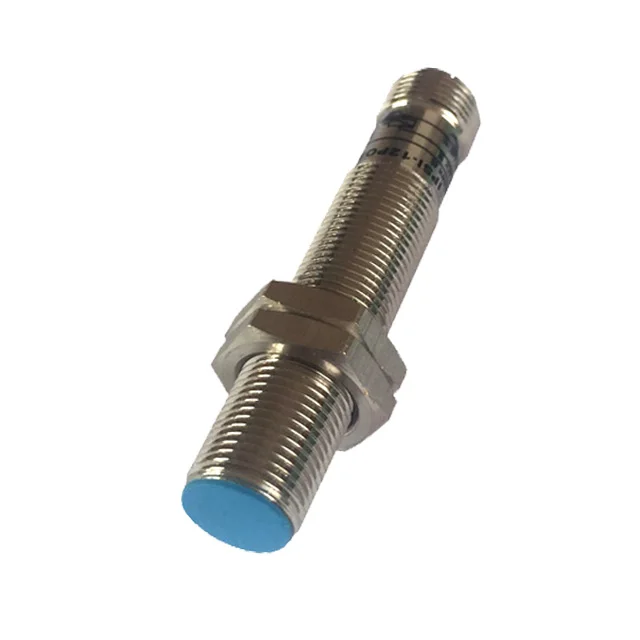

  IBEST M12 Cylinder Capacitive Proximity Sensor/Switch

NPN or PNP 3 Wires / With 2M Cable





1. Features of IBEST M12 Capacitive Sensor Switch  :



--    Style: cylinder 12mm, lenth: flush 55mm, Non-flush 60mm.

--    Standard sensing object: metal or non-metal objets. (Except thin paper, thin plastic objects and thin poly bag are not sensitive)

--    Shielded / Flush: 2mm; Unshielded / Non-flush: 4mm.

--    DC 3wire or 4 wires (10-30V DC), PNP or NPN, NO or NC or NO+NC.

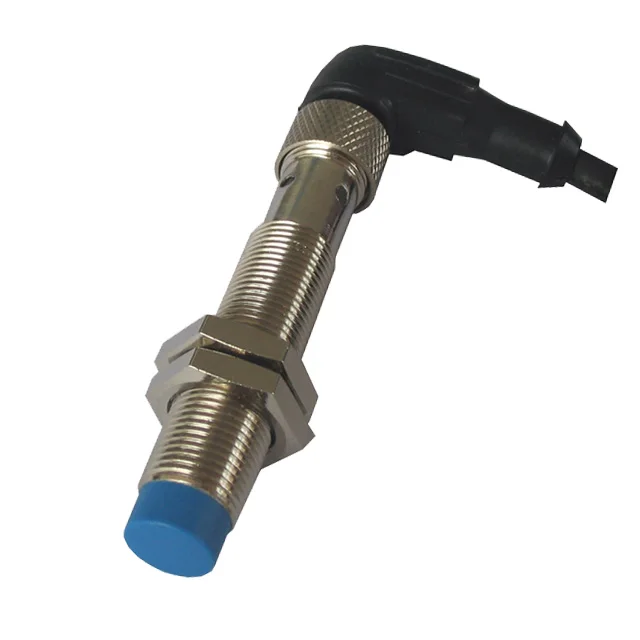

--    Connection mode: cable=2M or with M12 connector and cable.

--    With LED operation indicate lamp, easily identifiable.

--    Brass chrome plated, proof of oil, water acid, alkaline.

--    Protection rate: IP67, water resistant.

--    Reliable quality to replace famous brands, such as: Omron, Sick, Bafflus...etc.

--    CE approved.

--    Widely applied in measuring, Counting, Rpm measuring in mechanism,paper  manufacture light industry, chemical etc



2.Ordering code:

Output type	Power supply	Current output	Connector mode	Installation	Mounting distance	IP Rating
CPS-12PO4B	PNP NO	DC 10-30V	200mA	DC 3 wire	Unshielded	4mm	IP67
CPS-12PC4B	PNP NC	DC 10-30V	200mA	DC 3 wire	Unshielded	4mm	IP67
CPS-12NO4B	NPN NO	DC 10-30V	200mA	DC 3 wire	Unshielded	4mm	IP67
CPS-12NC4B	NPN NC	DC 10-30V	200mA	DC 3 wire	Unshielded	4mm	IP67



CPS-12PO2B	PNP NO	DC 10-30V	200mA	DC 3 wire	shielded	2mm	IP67
CPS-12PC2B	PNP NC	DC 10-30V	200mA	DC 3 wire	shielded	2mm	IP67
CPS-12NO2B	NPN NO	DC 10-30V	200mA	DC 3 wire	shielded	2mm	IP67
CPS-12NC2B	NPN NC	DC10-30V	200mA	DC 3 wire	shielded	2mm	IP67



CPS-12POC2B	PNP NO+NC	DC 10-30V	200mA	DC 4 wire	shielded	2mm	IP67
CPS-12POC4B	PNP NC+NC	DC 10-30V	200mA	DC 4 wire	unshielded	4mm	IP67
CPS-12NOC2B	NPN NO+NC	DC 10-30V	200mA	DC 4 wire	shielded	2mm	IP67
CPS-12NOC4B	NPN NC+NC	DC10-30V	200mA	DC 4wire	unhielded	4mm	IP67

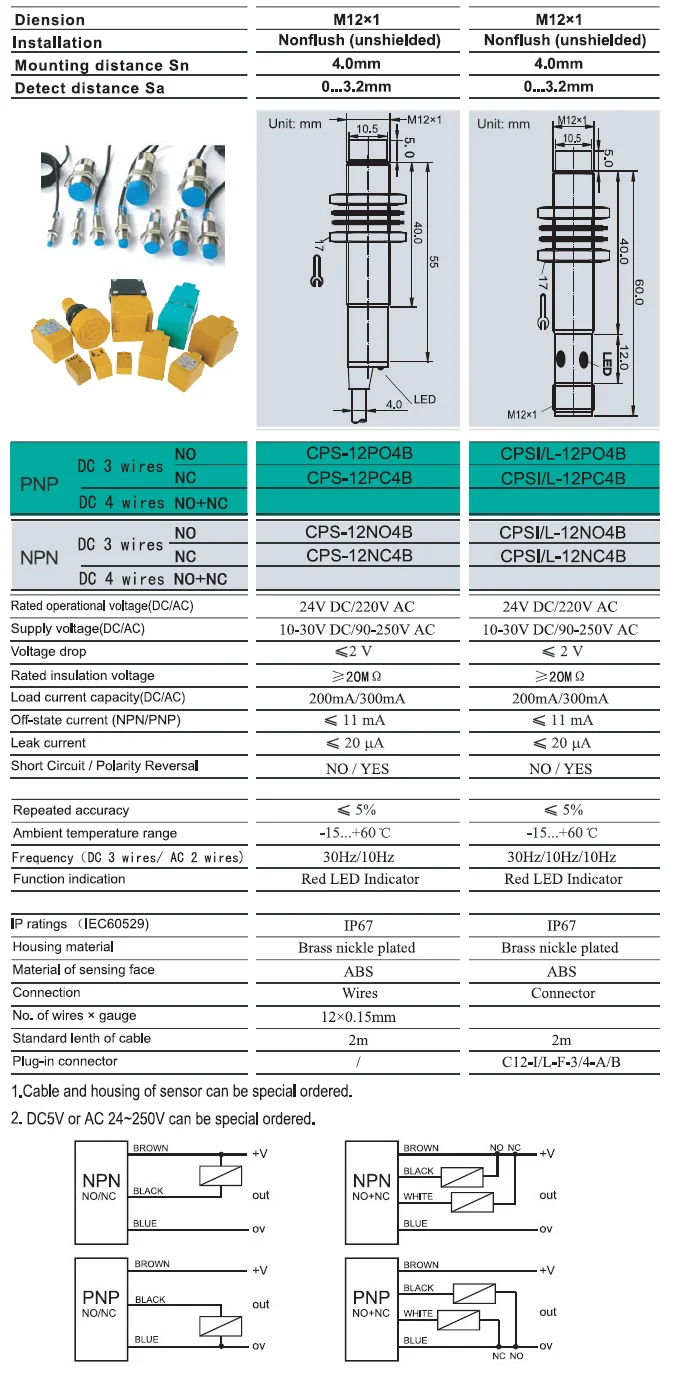

3. Size &Technical Specifications:



Our company is a professiona manufacutures of:

1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor,  hall sensor, color mark sensor and analog sensor.



Welcome to contact us!

IBEST ELECTRICAL CO.LTD

wwwibestchinacom
