28 in 1 5050 SMD LED 90X120 Degree 30W/60W Waterproof Outdoor White LED Light Parts Components
- Category: >>>
- Supplier: Shenzhen Sunshine Opto-Electronics Technology Ltd.
Share on (60818351617):
Product Overview
Description
28-in-1 5050 SMD LED 90X120 Degree 30W/60W Waterproof Outdoor White LED Light Parts Components
Product Feature:
1. This led street light module has a small size can match a variety of lamp housing .
2. Whole led light module use PH5050 leds ,High quality leds guarantee long life .
3. We have a competitive price for PH5050 leds .
4. We can according your requirements to customized PCB board and Lens mold .

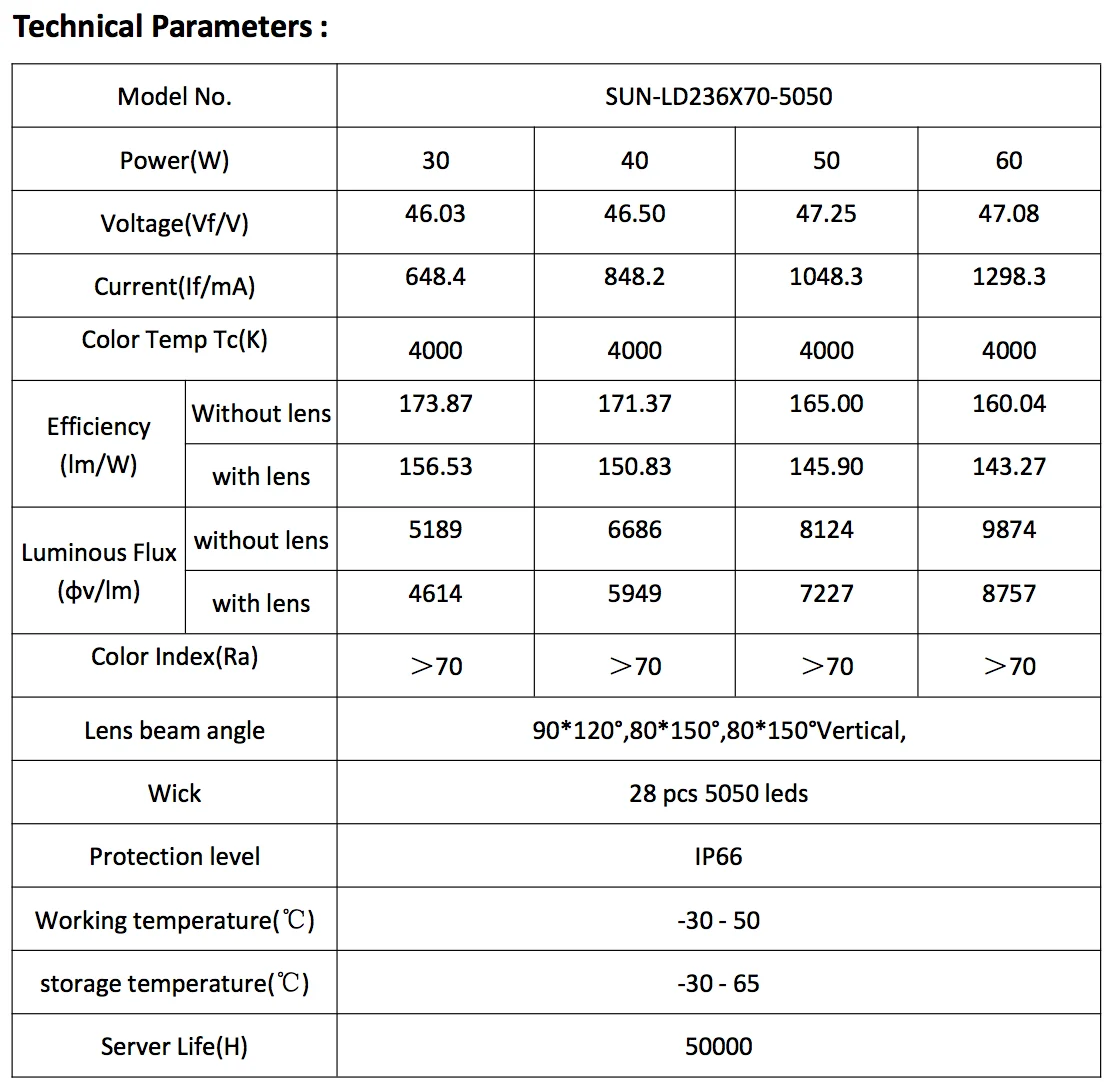

| Model | SUN-LD236X70-5050-90x120 |
| Beam angle | 90x120 degree |
| Other angle | 30/60/90/80x150 degree and Vertical 80x150 degree |
| Lens size | 236x70mm |
| PCB size | 218x44x1.5mm |
| LED CHIP | 5050SMD @ 160mA,24V 156lm/w for 30w CRI70 |

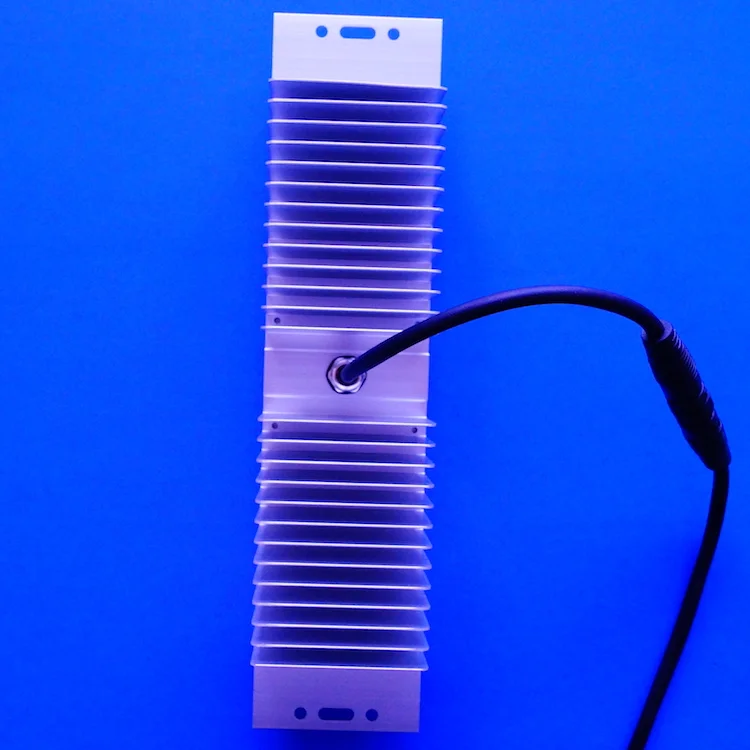

| Heat sink size | 300x70X40mm |
| Dense array of 28 LED | Small footprint, high light output |
| Materical for lens | Optical grade PC |
| Lens transmittance | 93% |
| Work temperature | -40-120 degree |
| Samples | Available |
| Delivery time | 5-7 work days for 1-1000 |

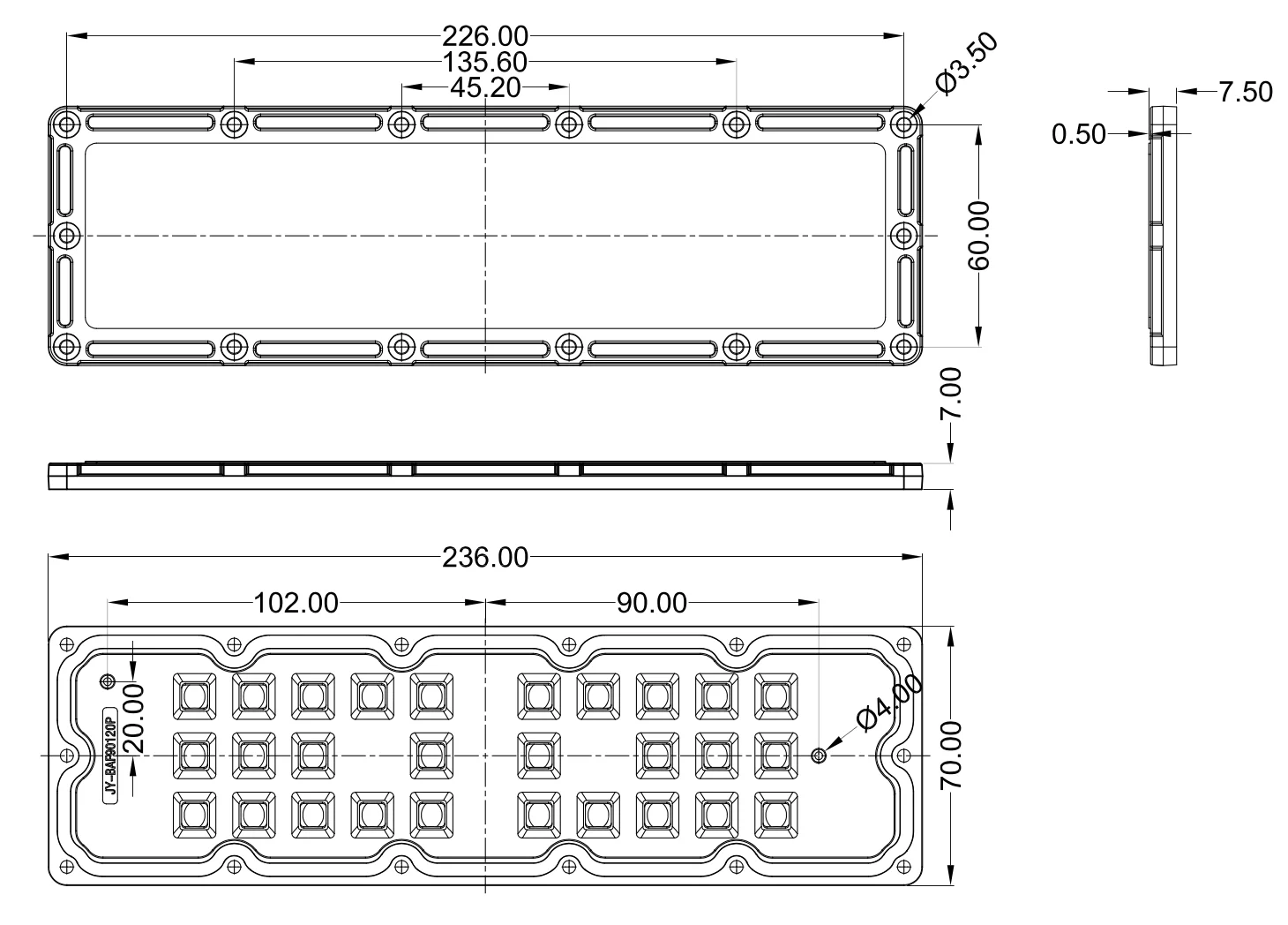

Dimensions of 28 5050SMD LED lens:
Silicon gasket drawings:
5050SMD PCB Board size:

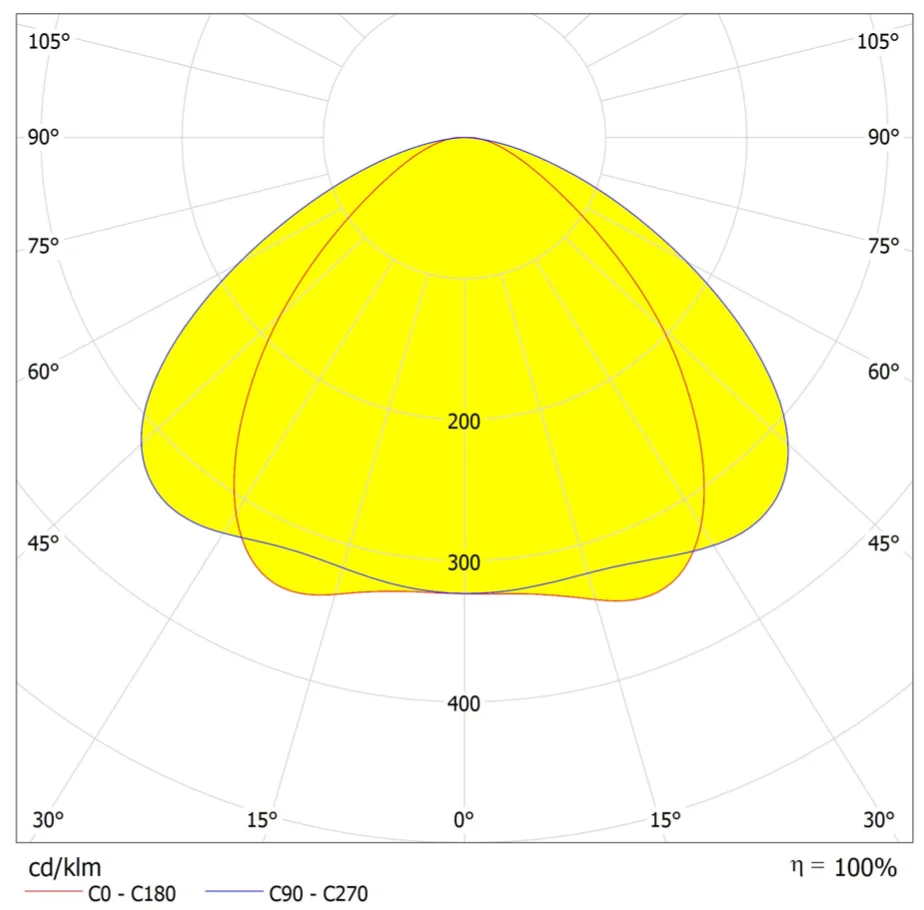

Light distribution:
Packing informaitons :
Features :
- This SKD 28 LED 5050SMD Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps like 50-90w for per.
- It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- The LED retrofit kits contain no any mercury or lead.
- Does not produce UV rays that harm people’s eyes.
- Directional light means no light pollution, dark sky compliance.
- Optic lenses are available for projects that need smaller beam angles, like 30 degree,60 degree,90 degree 130 degree,90x120 degree, 80x150 degree and so on.
| Payment Terms | T/T,Western Union, Paypal, MoneyGram |
| Minimum Order | 1pc |
| Lead Time Delivery Time | 5-7 days,it based on your quantity |
| Sample Available | Yes |
| Delivery ways | DHL/Fedex/UPS express, Sea or air shipping for your choice |
| Packing Info | carton package |

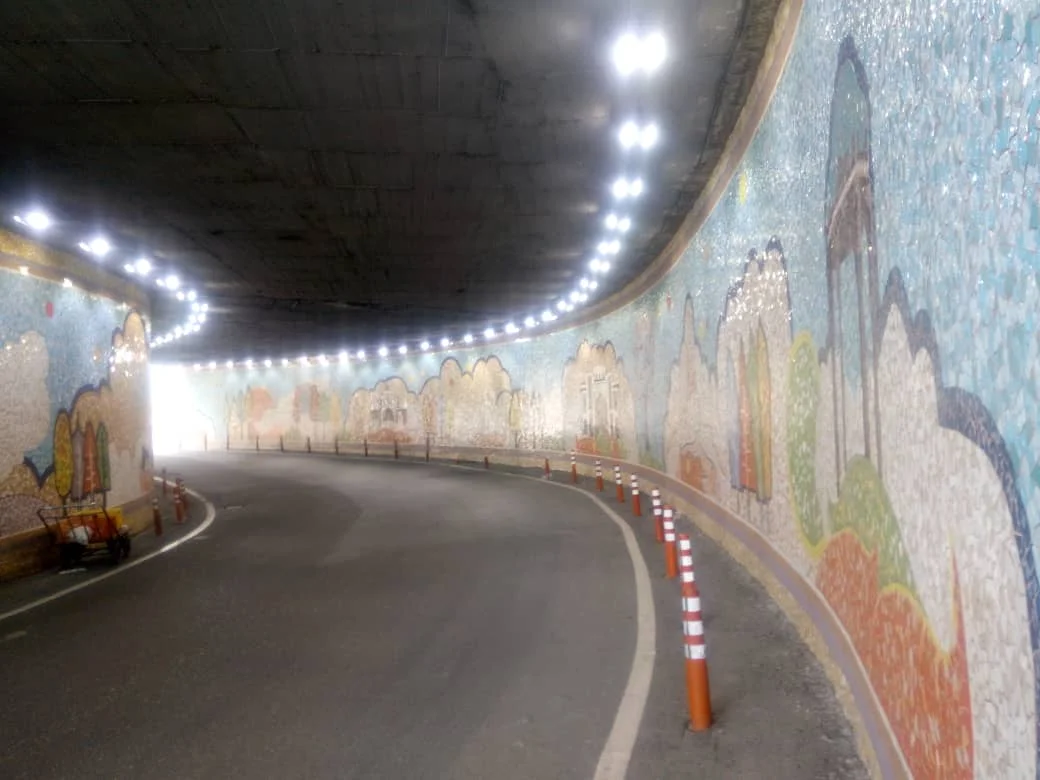

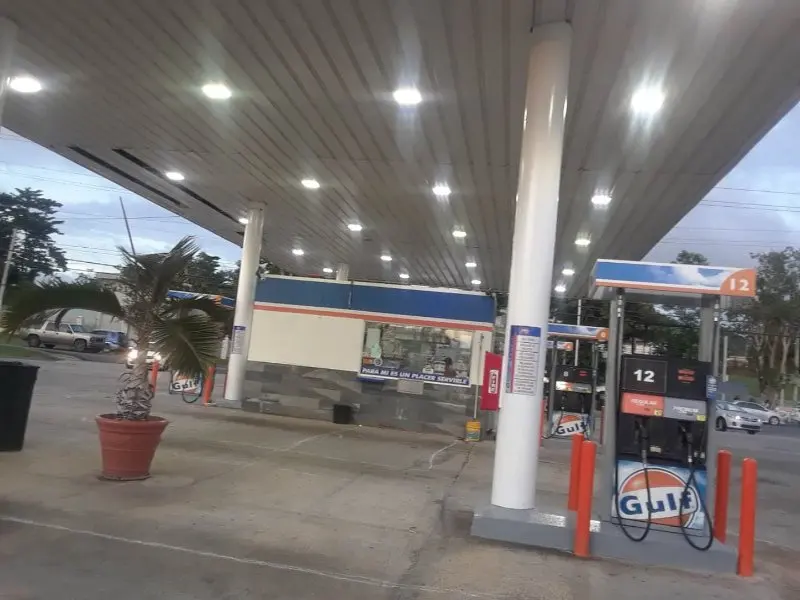

Application: It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Related for LED lens :
Production line:
Export Markets : North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East,Eastern Asia, Western Europe
Why choosing us - SUNSHINEOPTO ?
1. About 12 years specializing in High Power LED
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Good raw materials used in production
5. Strong design and production capability
