Sodium Silicate Board for Manufacturer of Sodium Silicate Lumps

Production details

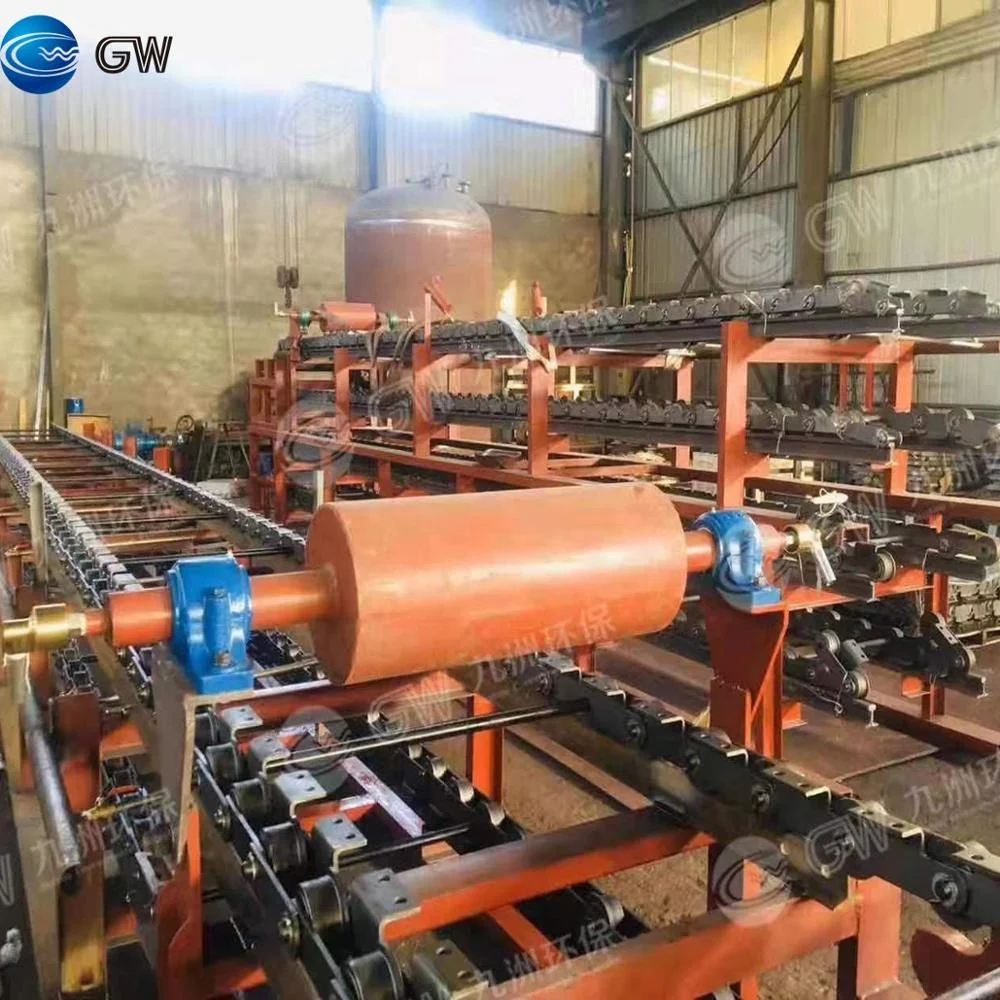

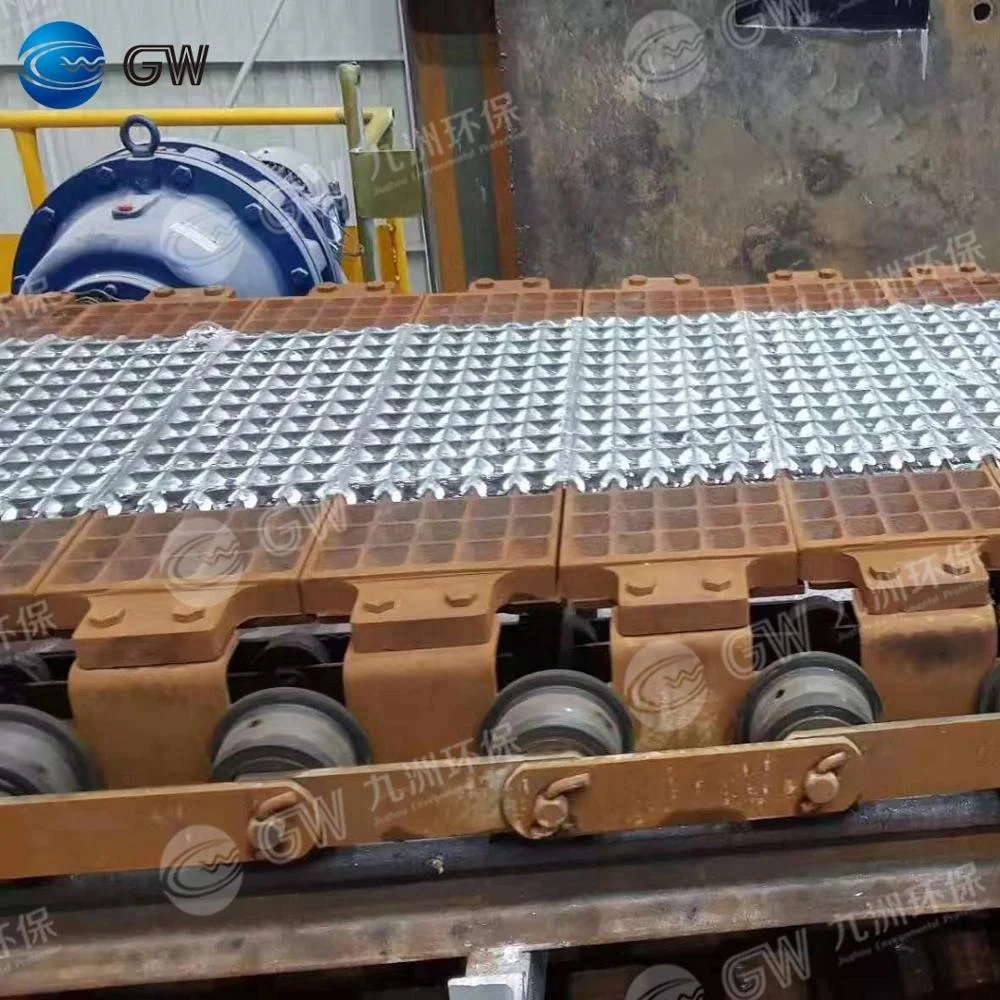

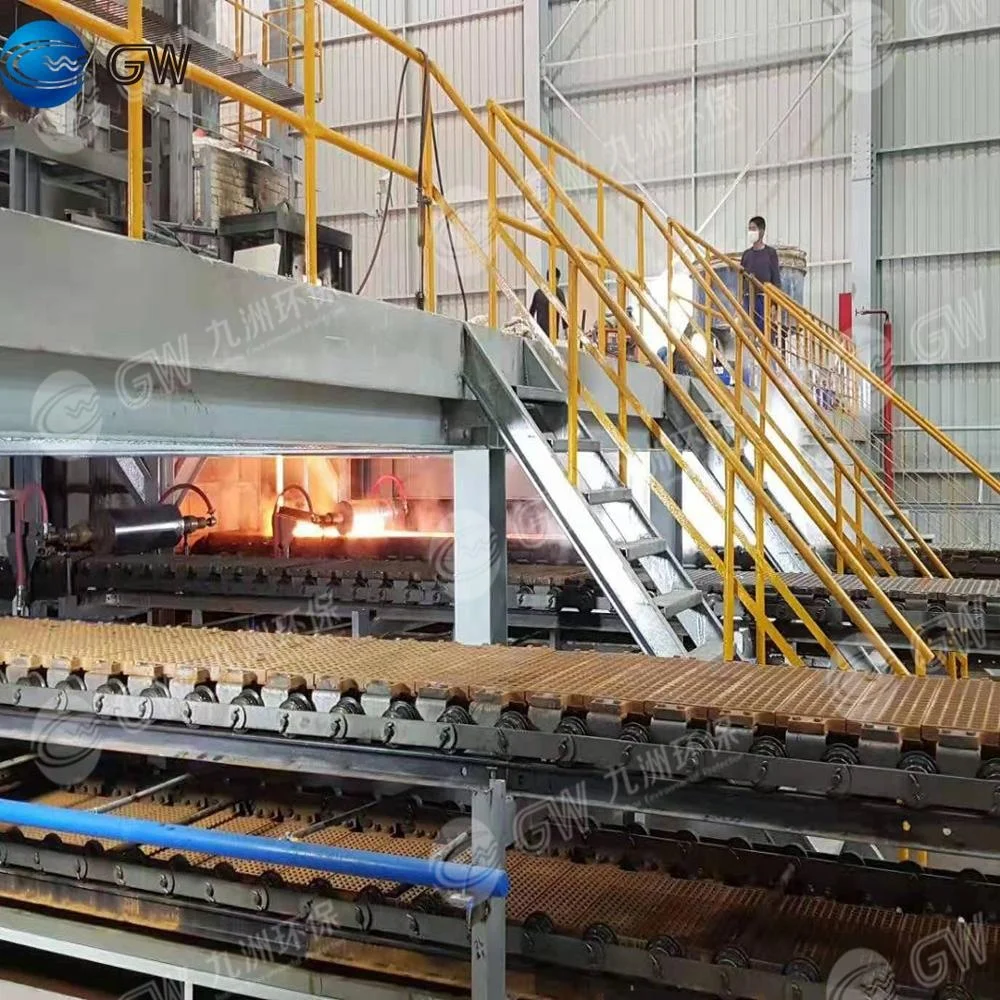

The chain plate conveyor is a sodium silicate board used for manufacturer of sodium silicate lumps. The machine adopts a frame type rack and is arranged obliquely. At the head and end of the frame, there are equipped with a pair of driving sprocket and a pair of driven sprocket respectively . They are connected by chains, and chain plates are arranged between the chains as material support. Cooling water pipes are respectively arranged under the upper chain plates, a small hole is on the pipe, and a cooling water tank is installed in the lower part of the rack for cool water supply.

Main components

1 Driving system: motor, reducer, sprocket, chain, bearings and so on.
2 Supporting system: chain plate, headstock, tailstock, intermediate frame stand, etc.
3. Control system
4. Cooling system, etc.
5.Other
Common specifications, 16 meters, 18 meters, 20 meters, 22 meters, 25 meters, or customized according to customer requirements, suitable for 20-120 tons / day delivery.

Feature

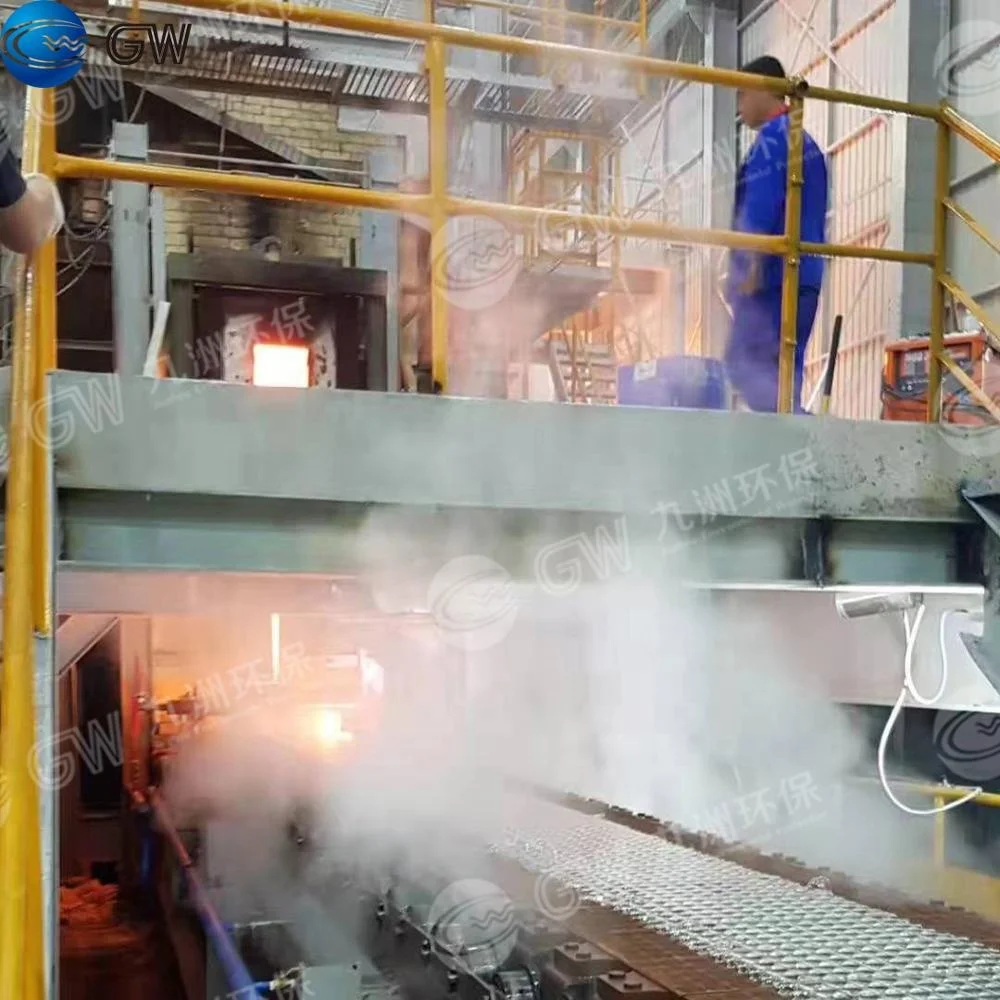

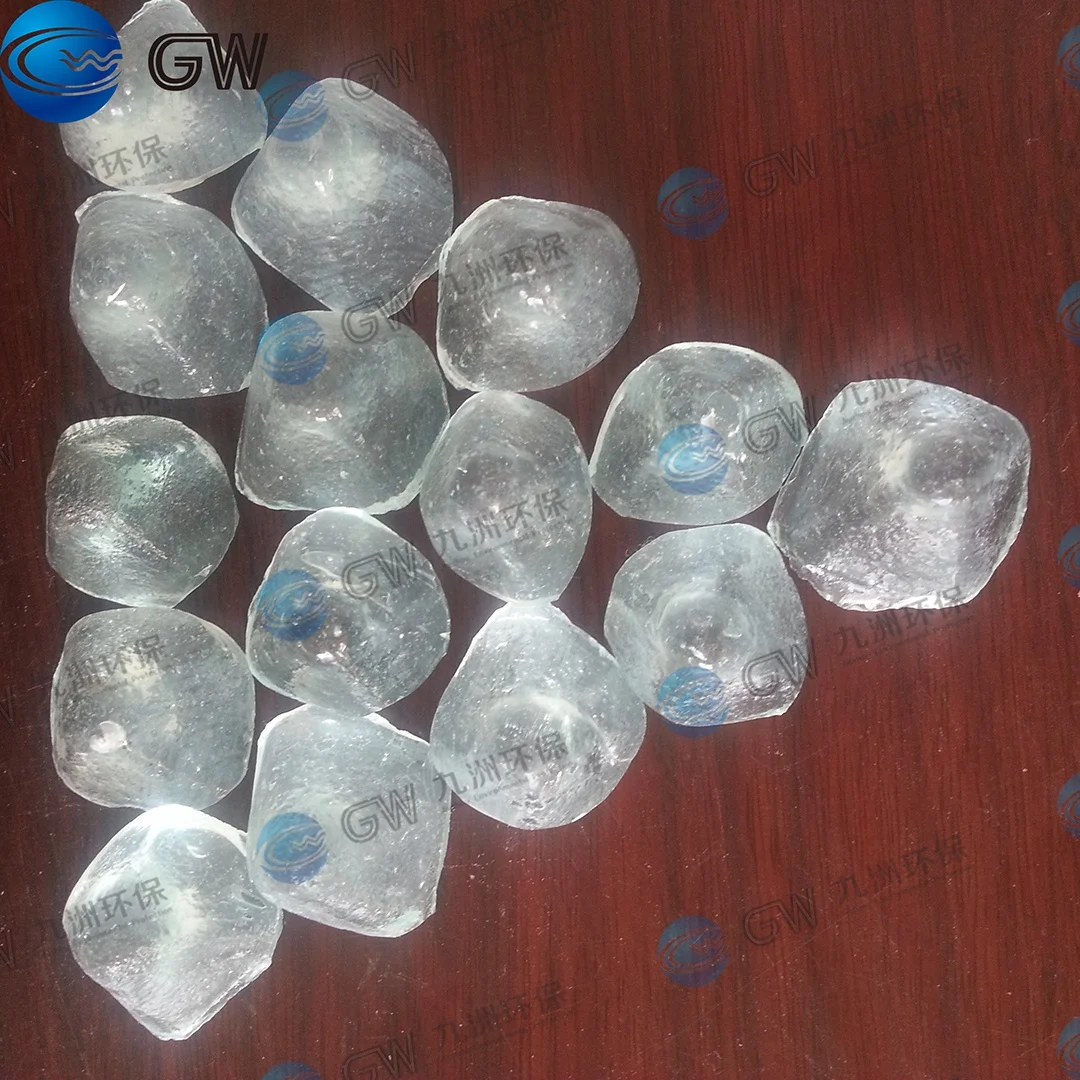

1. taking chain board forming machine as molding device, the high-temperature material liquid flows from the kiln to the chain board directly, and according to the shape of the plate hole, it can meet the requirement of various shapes of solid sodium silicate lumps.
2. The cooling medium is water, but the material is not in contacted with water and will not be hydrolyzed or hydrous
3. The formed material can be directly entered into the silo, then for package or storage\t. Sodium silicate bonding phenomenon rarely occurs
4. The cooling water is circulating water with less pollution and consumption, saving water and electricity, high product yield, is a clean production process.

Characteristics

1.Less loss: Product loss is 1% or more in water quenching method; while product loss for chain conveyor machine can be as low as 0.01%.
2.Higher quality: Final product is not directly contacted with cooling water, thus improving thepurity of the solid sodium silicate and avoiding the agglomeration
3.Less water waste, less pollution: water quenching method will use great amount of water, thus causing water pollution to the environment, the PH value can be as high as 10 or more; while cooling water is cyclic utilization in the bottom of the chain plate for chain conveyor.
4.Better use: final product will be with certain shape in uniformity, will be easy for package and transportation, storage as well as be very suitable for the dissolving.
