Automatic Voltage Regulator 10kva Diesel Engine Parts Generator AVR R450

Product Overview

Description



  Note: Price displayed of the product is for reference only. Please talk to us for a formal quote





Our advantage:



1.one year warranty



2.Fast delivery time



3.In stock, manufactory



4.made in china







Product Description:

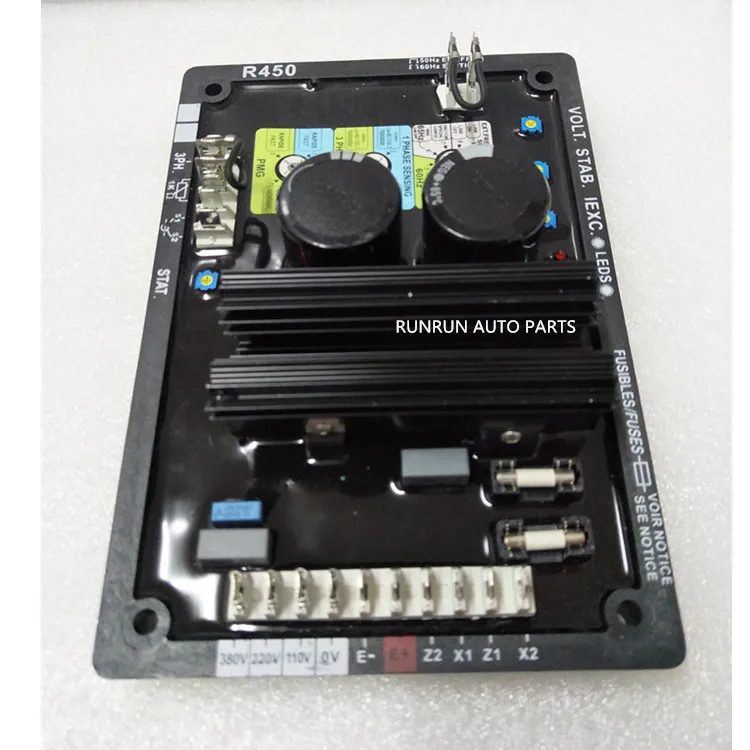

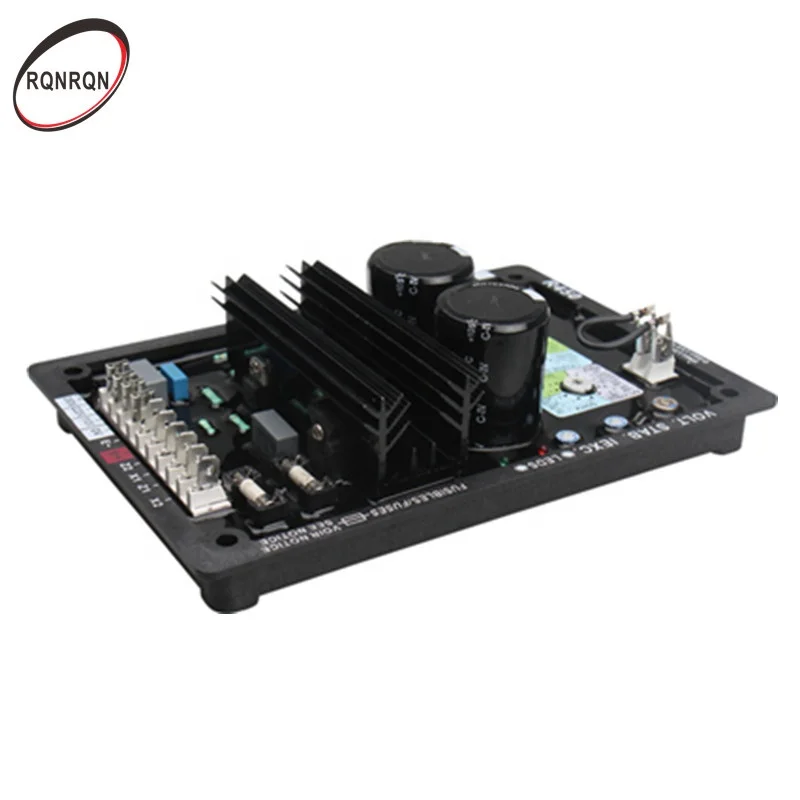

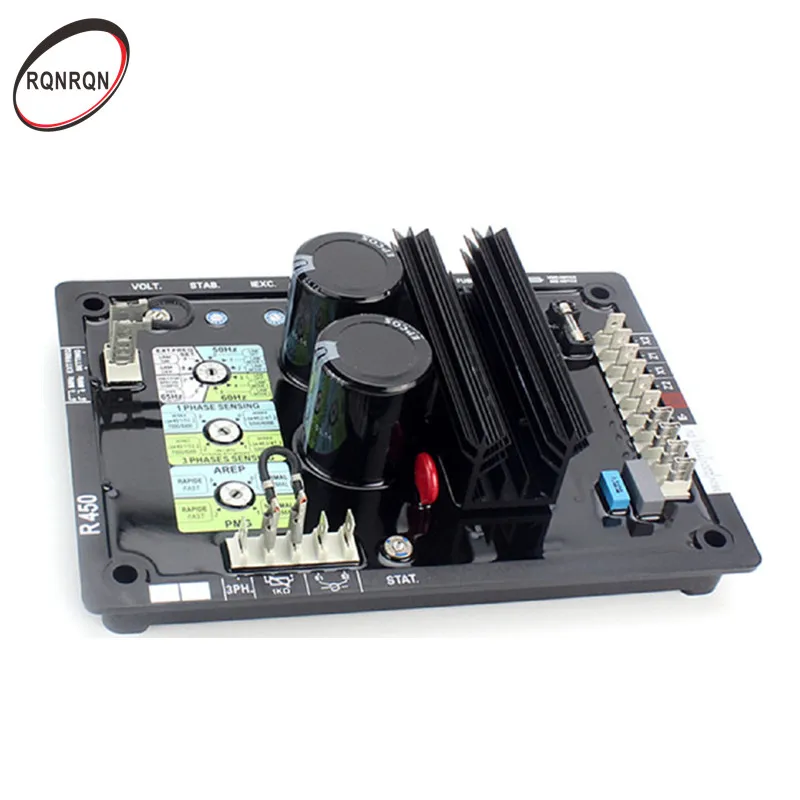

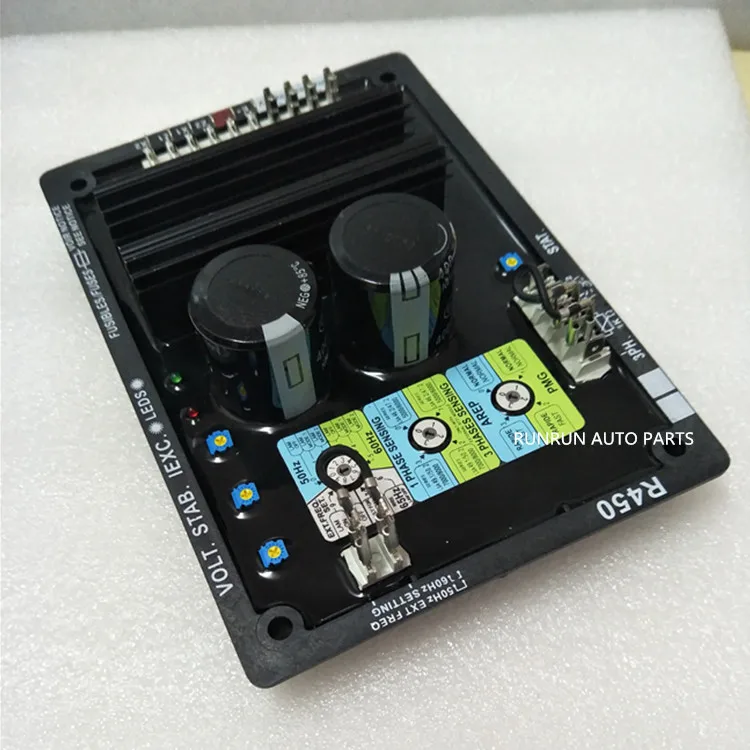

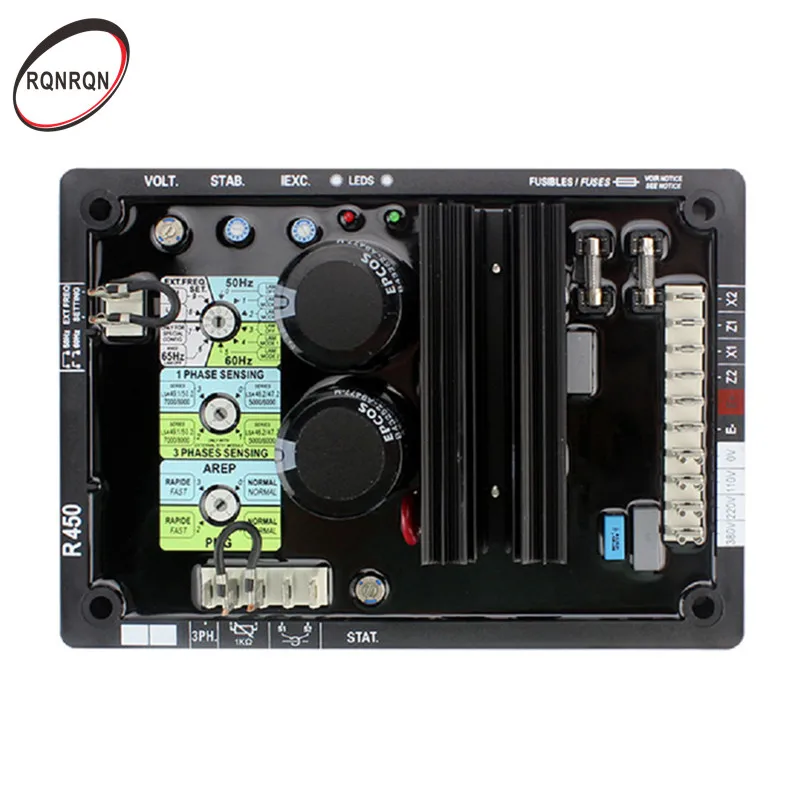

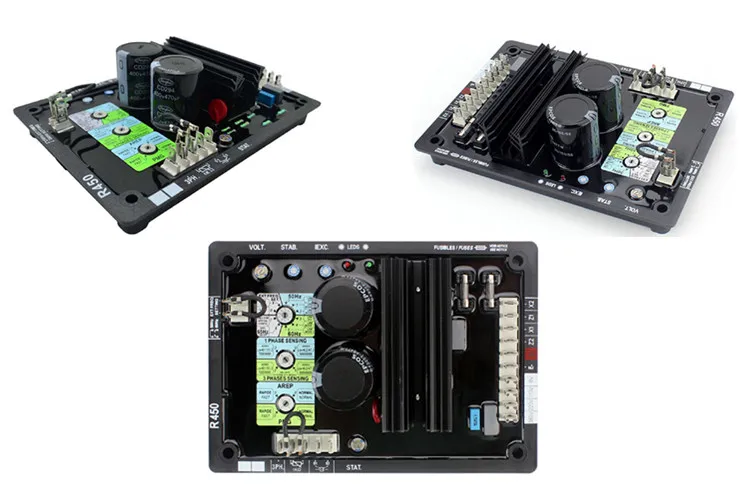

  AVR R450



  R450 is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR.







Product details presentation:



Sensing/Power input	Voltage:40-150Vac,3 phase
	Frequency:50/60 Hz jumper selectable
Magnetic Field Output	Voltage:Max. 160Vdc at 120 Vac input
	Current: Max 8A
Pressure Regulating Accuracy	< +/-0.5% RMS with 4% engine governing



Products Show:









Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.

Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Paypal,Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make your logo.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you need to pay the sample and courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 5-45 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:12 months
