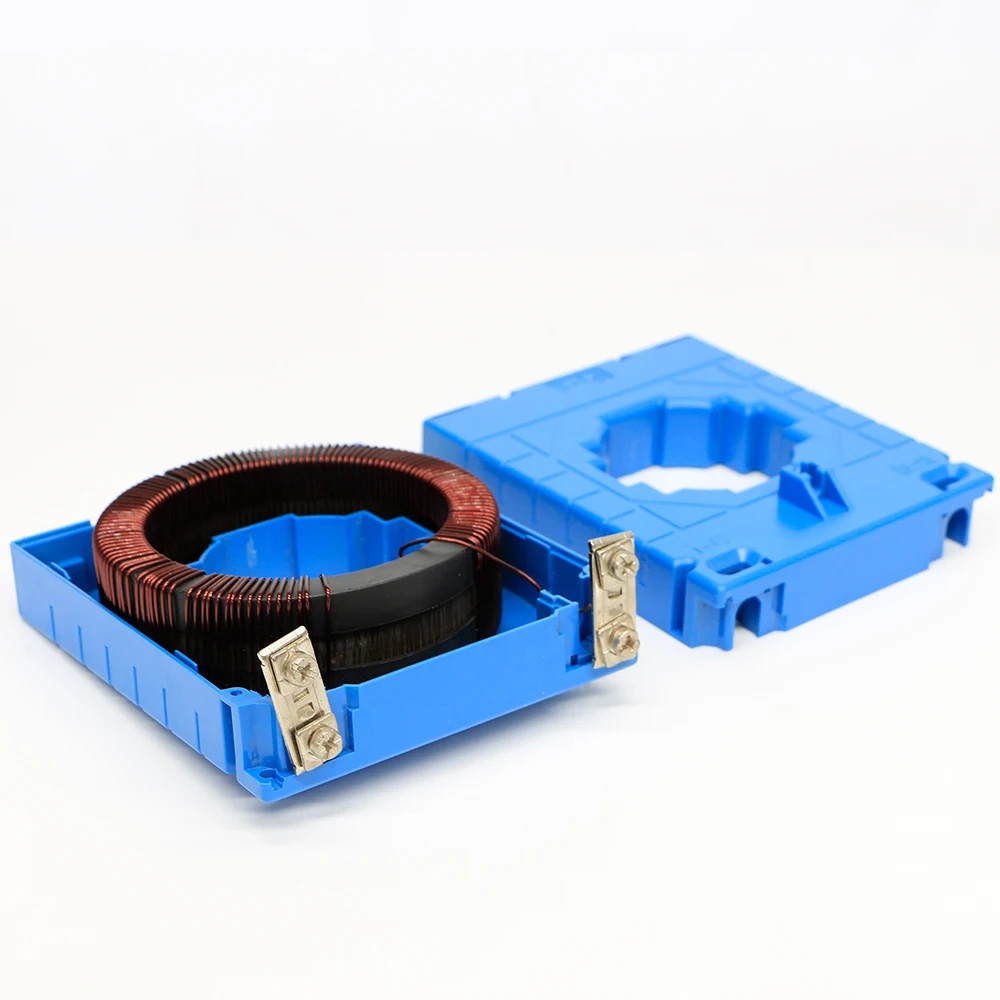

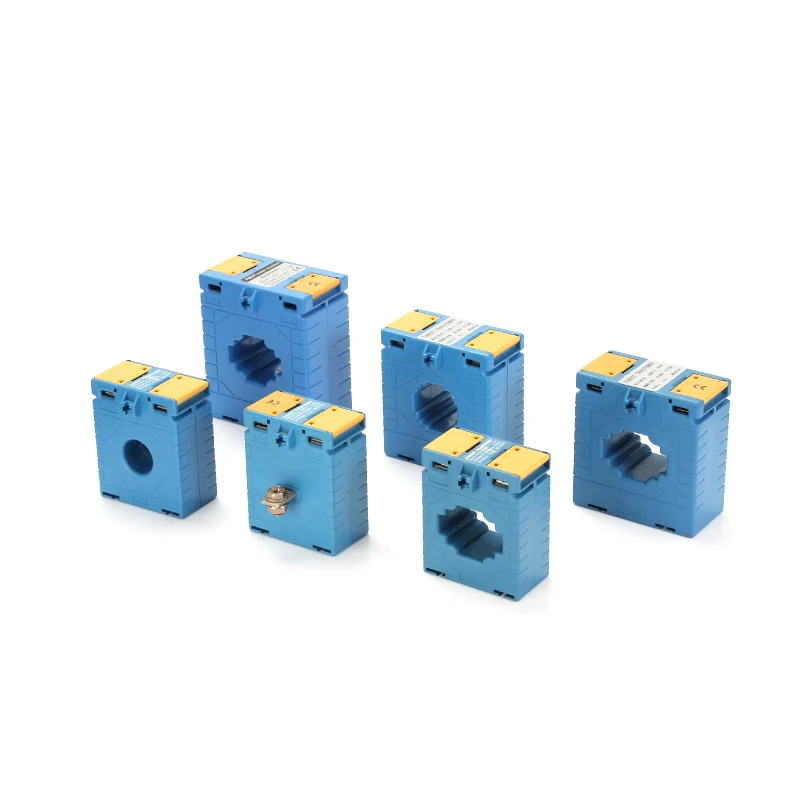

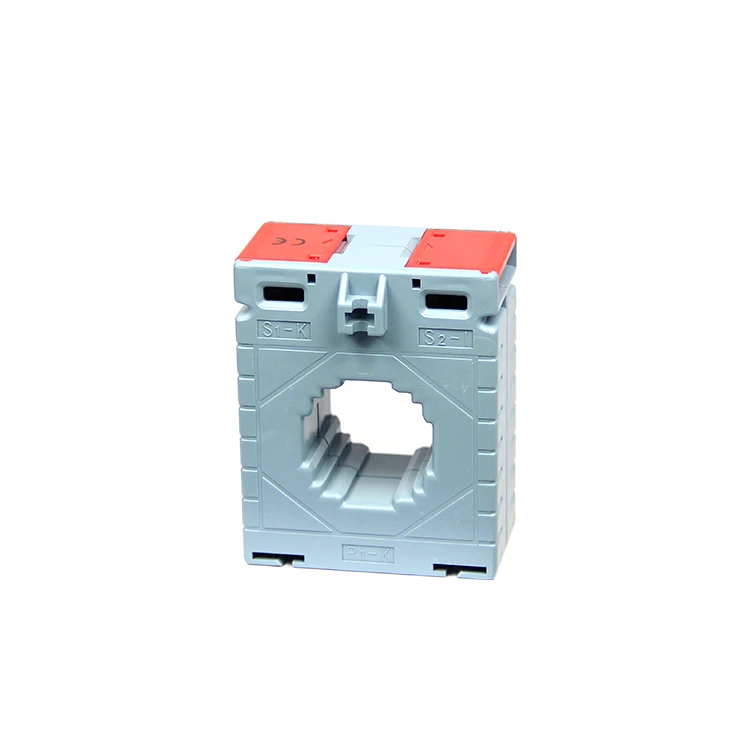

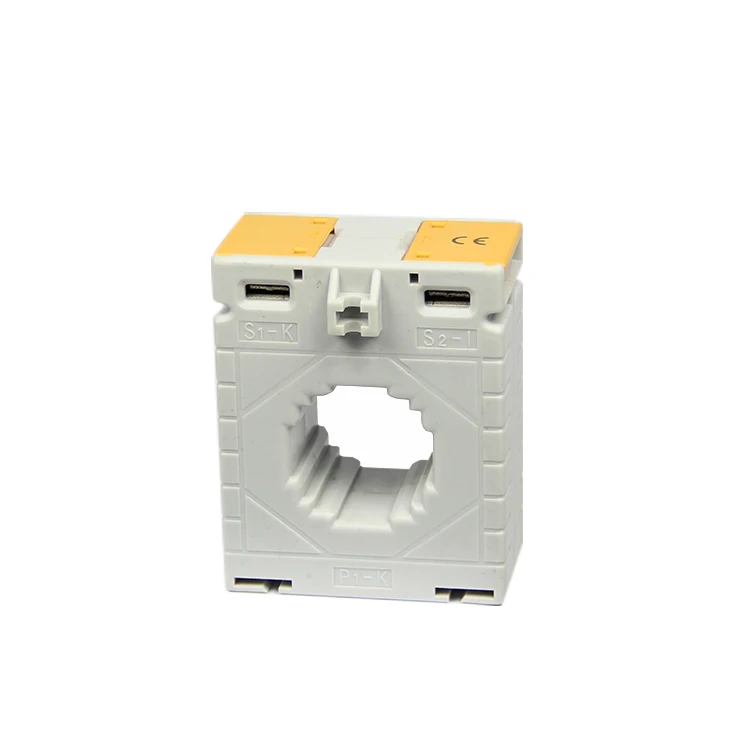

current transformers 5a mes 80/40
- Category: >>>
- Supplier: Yueqing Annai Electrical Co. Ltd.
Share on (60818401049):
Product Overview
Description
Product Description
Features

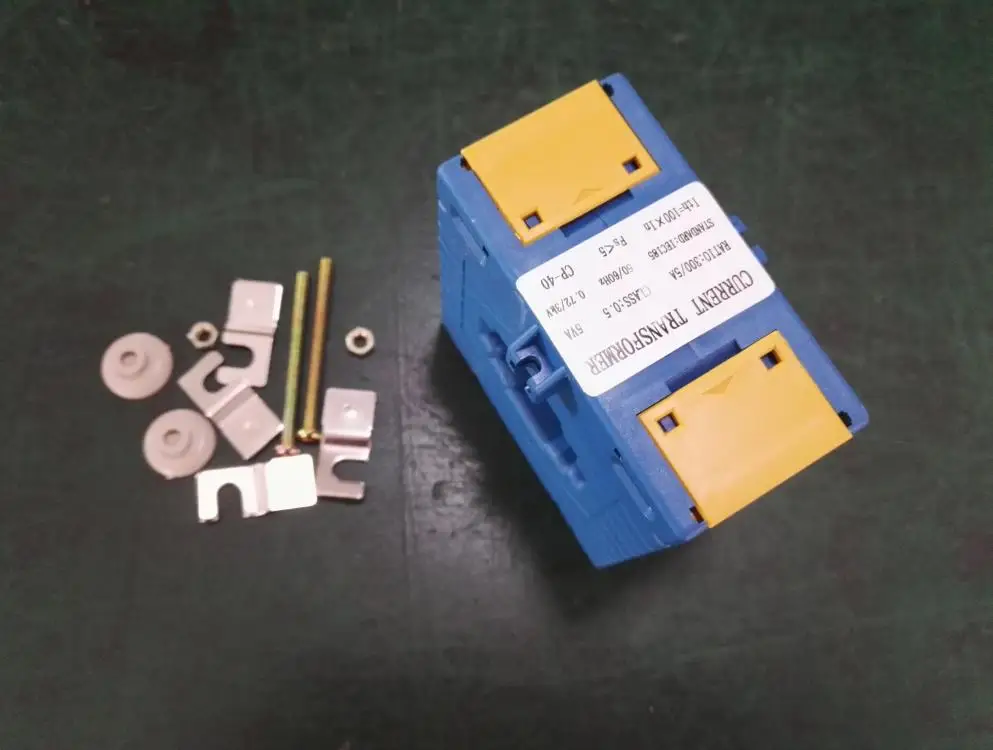

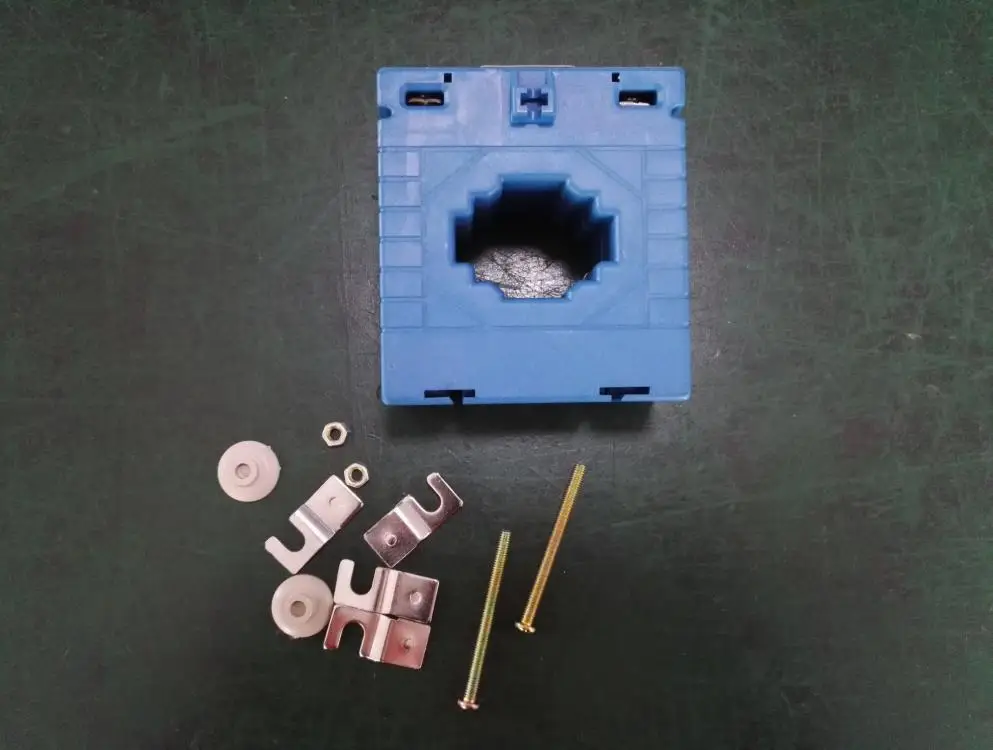

Three built in fixing methods: panel/din rail/busbar
Built in hinged terminal cover
Compact design
Primary current from 5A to 3000A
Description

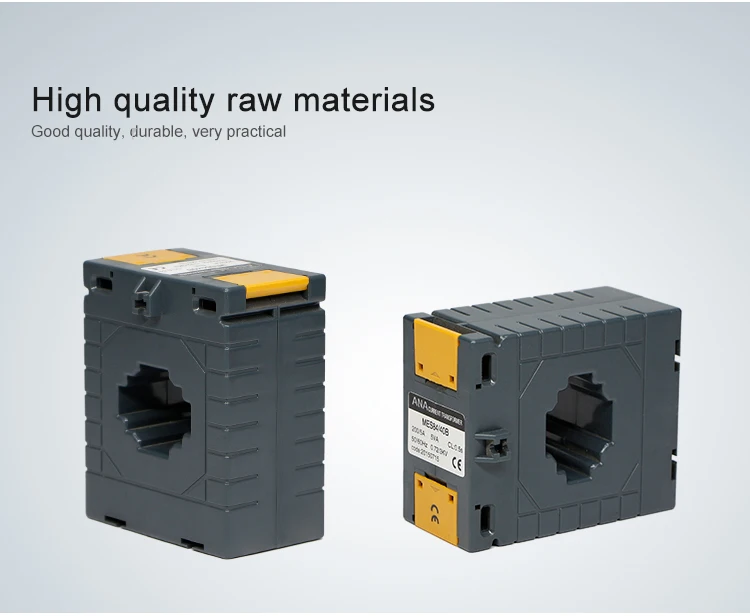

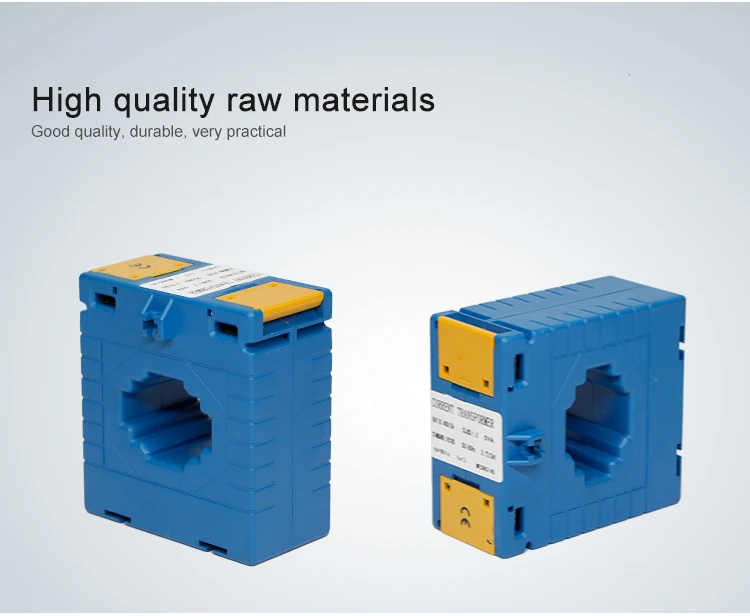

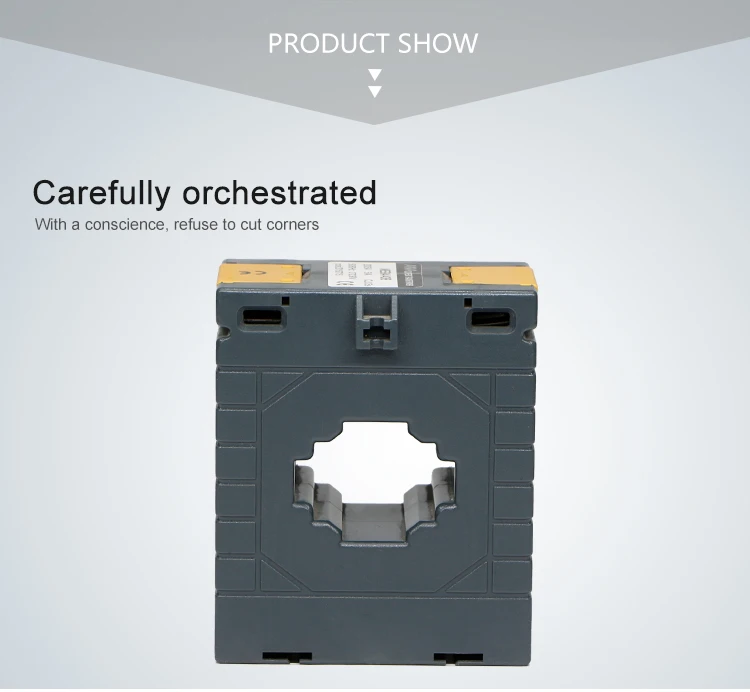

A range of compact plastic case current transformer.
Its volume is much smaller than general model.
Its integral hinged plate terminal cover and din rail mounting all make MES CT match requirements in space
limited panels.
Specifications
| Rated frequency | 50/60Hz |
| Rated test voltage | 3Kv AC (1 min) |
| Rated short-time thermal current (Ith) | 60In |
| 60In Rated dynamic current (Idyn) | 2.5Ith |
| Rated voltage (Um) | 0.72Kv AC |
| Continuous overload (Id) | 1.2In |
| Operating temperature | .-10 degree to 50 degree |
| Housing self-extinguishing class | VO |
| Safety factor | FS 5 |
| Secondary current | 5A/1A |
Standard
IEC60044-1 GB1208-2006
| Type | Ratio(A) | Burden(VA) | |
| Class:0.5 | Class:1.0 | ||
| MES-62/20 | 30/5 | - | 2.5(4T) |
| MES-62/20 | 40/5 | - | 2.5(3T) |
| MES-62/20 | 55/5 | - | 2.5(3T) |
| MES-62/20 | 60/5 | - | 2.5(2T) |
| MES-62/20 | 75/5 | - | 1.5 |
| MES-62/20 | 80/5 | - | 2.5 |
| MES-62/20 | 100/5 | 1.5 | 2.5 |
| MES-62/20 | 150/5 | 2.5 | 3.75 |
| MES-62/20 | 200/5 | 3.75 | 5 |
| MES-62/30 | 30/5 | - | 2.5(4T) |
| MES-62/30 | 40/5 | - | 2.5(3T) |
| MES-62/30 | 50/5 | - | 2.5(3T) |
| MES-62/30 | 60/5 | - | 2.5(2T) |
| MES-62/30 | 75/5 | - | 1.5 |
| MES-62/30 | 100/5 | 1.5 | 2.5 |
| MES-62/30 | 150/5 | 2.5 | 3.75 |
| MES-62/30 | 200/5 | 3.75 | 5 |
| MES-62/40 | 60/5 | - | 1.5(2T) |
| MES-62/40 | 75/5 | - | 1.5(2T) |
| MES-62/40 | 100/5 | - | 1.5 |
| MES-62/40 | 150/5 | - | 2.5 |
| MES-62/40 | 200/5 | 2.5 | 3.75 |
| MES-62/40 | 250/5 | 2.5 | 3.75 |
| MES-62/40 | 300/5 | 3.75 | 5 |
| MES-62/B | 5/5 | 1.5 | 2.5 |
| MES-62/B | 10/5 | 1.5 | 2.5 |
| MES-62/B | 15/5 | 1.5 | 2.5 |
| MES-62/B | 20/5 | 1.5 | 2.5 |
| MES-62/B | 25/5 | 1.5 | 2.5 |
| MES-62/B | 30/5 | 1.5 | 2.5 |
| MES-62/B | 40/6 | 1.5 | 2.5 |
| MES-62/B | 50/5 | 1.5 | 2.5 |
| MES-62/B | 60/5 | 1.5 | 2.5 |
| MES-62/B | 75/5 | 1.5 | 2.5 |
| MES-62/B | 100/5 | 1.5 | 2.5 |
| MES-62/B | 150/5 | 1.5 | 2.5 |
| MES-80/30 | 30/5 | - | 2.5(4T) |
| MES-80/30 | 50/5 | - | 2.5(2T) |
| MES-80/30 | 60/5 | - | 2.5(2T) |
| MES-80/30 | 75/5 | - | 1.5 |
| MES-80/30 | 100/5 | - | 2.5 |
| MES-80/30 | 150/5 | 2.5 | 3.75 |
| MES-80/30 | 200/5 | 3.75 | 5 |
| MES-80/40 | 100/5 | - | 2.5 |
| MES-80/40 | 150/5 | 2.5 | 3.75 |
| MES-80/40 | 200/5 | 3.75 | 5 |
| MES-80/40 | 250/5 | 3.75 | 5 |
| MES-80/40 | 300/5 | 5 | 5 |
| MES-80/40 | 400/5 | 5 | 10 |
| MES-80/40 | 500/5 | 5 | 10 |
| MES-100/60 | 400/5 | 3.75 | 5 |
| MES-100/60 | 500/5 | 5 | 10 |
| MES-100/60 | 600/5 | 10 | 10 |
| MES-100/60 | 750/5 | 10 | 15 |
| MES-100/60 | 800/5 | 10 | 15 |
| MES-100/60 | 1000/5 | 10 | 20 |
| MES-100/60 | 1200/5 | 15 | 20 |
| MES-100/60 | 1500/5 | 15 | 20 |
| MES-100/60 | 1500/5 | 15 | 20 |
| MES-100/60 | 400/5 | 3.75 | 5 |
| MES-100/60 | 500/5 | 5 | 10 |
| MES-100/60 | 600/5 | 10 | 10 |
| MES-100/60 | 750/5 | 10 | 15 |
| MES-100/60 | 800/5 | 10 | 15 |
| MES-100/60 | 1000/5 | 10 | 20 |
| MES-100/60 | 1200/5 | 15 | 20 |
| MES-100/60 | 1500/5 | 15 | 20 |
| MES-100/60 | 1500/5 | 15 | 20 |
Hot Products
Company Information
FAQ
RFQ
Q:I need your price list of all your products, do you have a price list ?
A:We do not have a price list of all of our products. Because we have so many items,and it’s impossible to mark all of their price on a list.And the price are always changing because of the producing cost.If you want to check any price of our products, please feel free to contact us.We will send offer to you soon!
Q:I can find the product on your catalogue, can you make this product for me?
A:Our catalogue shows most of our products,but not all.So just let us know what product do you need,and how many do you want.If we do not have it,we can also design and make a new mould to produce it.For your reference,making a ordinary mould will take about 30 days.
Q:Can you make customized products and customized packing?
A:Yes.We made a lot of customized products for our customer before.
And we made many moulds for our customers already.
About customized packing,we can put your Logo or other info on the packing.There is no
problem.Just have to point out that ,it will cause some additional cost.
Q:Can you provide samples ? Are the samples free ?
A:We offer sample for free,around 4-5days arrived your hand by DHL, UPS, EMS or TNT
Q:What kind of payment do you accept ? Can I pay RMB ?
A:Payment <=1000USD,100% in advance. Payment>=1000USD,30%T/T in advance,70% TT balance amount before shipment.Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem.
Q:How to ship my order ? Is it safe?
A:For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.That’s a Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.
Q:Do you have a guarantee of your product quality?
A:One year within proper operation. If damage caused artificially and naturally, it will not within compensation.
Q:Can I become an Agent / Dealer of your products?
A:Welcome! But please let me know your Country/Area first,We will have a check and then
talk about this.If you want any other kind of cooperation,do not hesitate to contact us.

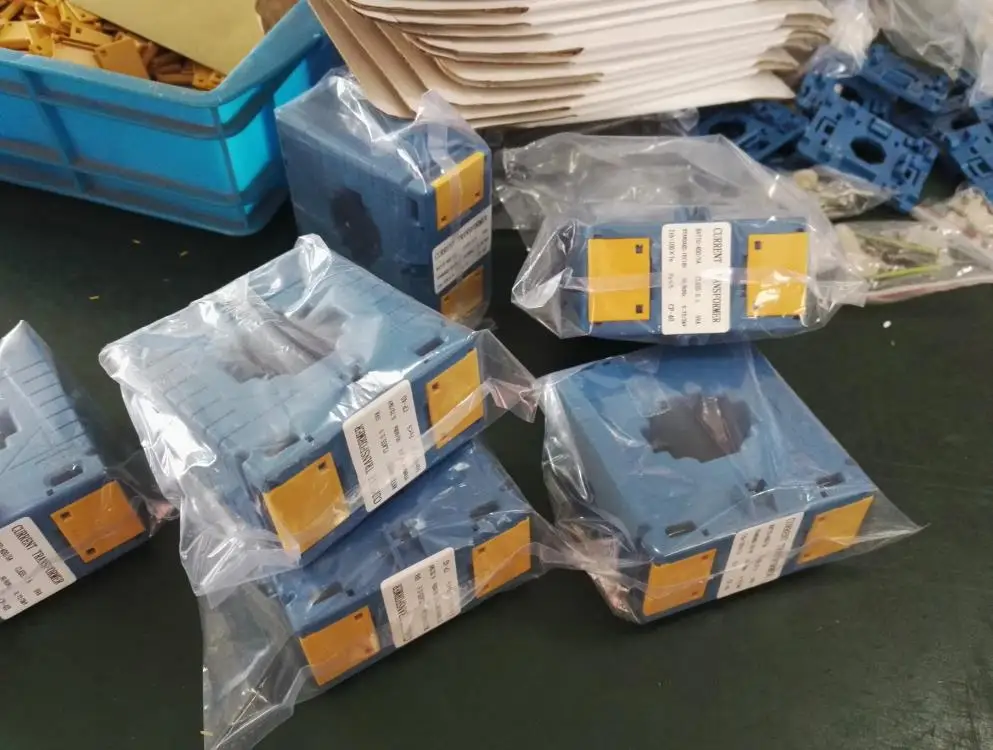

Packaging & Shipping
