JX-2270-C Computer LCD LVDS monitor controller motherboard VGA signal input Controller board
1.General description
1. LCD monitor - the high-end product position ,Using Realtek Single Chip IC RTK2270,With good quality, the system is mature,Support full color,suit for 32 and below the size of LCD LVDS screen.
2. The input signal:VGA
3. support screen resolution :1920*1080,double6/8bit LVDS signal output.
4. Multi Country OSD menu language, panel voltage supply can be select 3.3v/5v/12v.
2. Main technical parameters
Vidio input |
VGA | resolution | MAX 2560*1440 | ||
horizontal Freq. | 30~90KHz | ||||
Vertical Freq. | 56~75Hz | ||||
Power supply | Input power | 12Vdc+/-10% | |||
backlight | 12Vdc+/-10% | ||||
Standby consumption | <0.1W | ||||
OSD language | Chinese English German French Italian Spanish Russian Arabic Persian language and so on. | ||||
Key function | POWER/MENU/SOURCE/UP/DOWN | ||||
Panel interface | LVDS 1-ch,2-ch,6/8bit | ||||
|
| ||||
Resolution | 1920*1080 | ||||
Specifications of the Lcd Universal Board:
Model: | JX-2270-C |

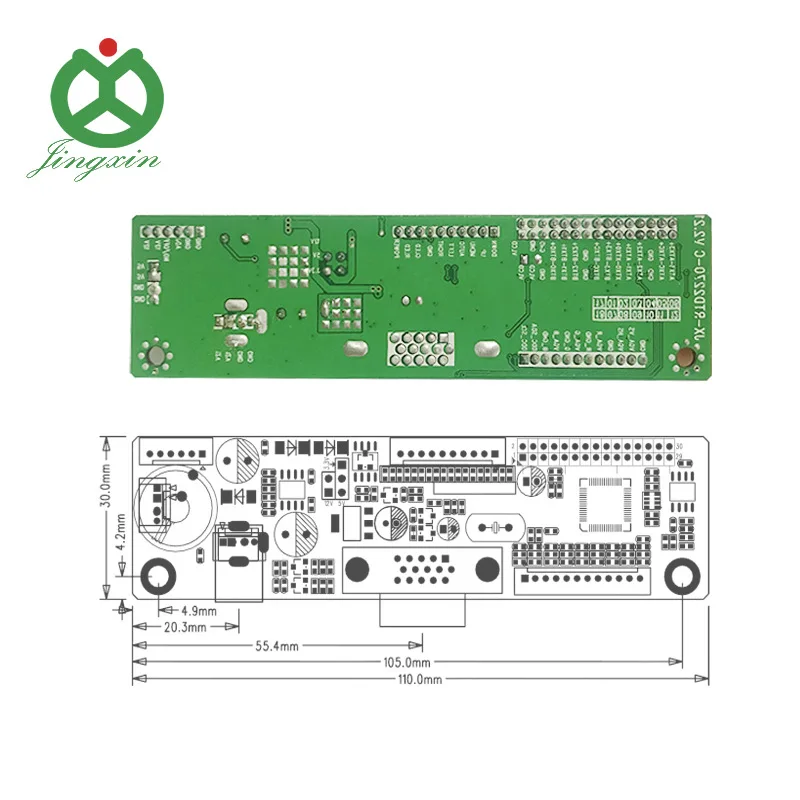

Size : | 110X30mm |
Amplifier: | 2*3W |
Screen Voltage: | 3.3~12V |
Key function: | power/menu/source/up/down/left/right |
VGA: | Input |
Language: | Chinese English German French Italian Spanish Russian Arabic |
Working voltage: | 8~15V |
Panel type: | LVDS |
Standby current: | 10-40mA |
Storage temerature: | -40~85°C |
resolution: | 1920x1080 |
Size: | 110X30mm |
Brand: | JX/ODM |

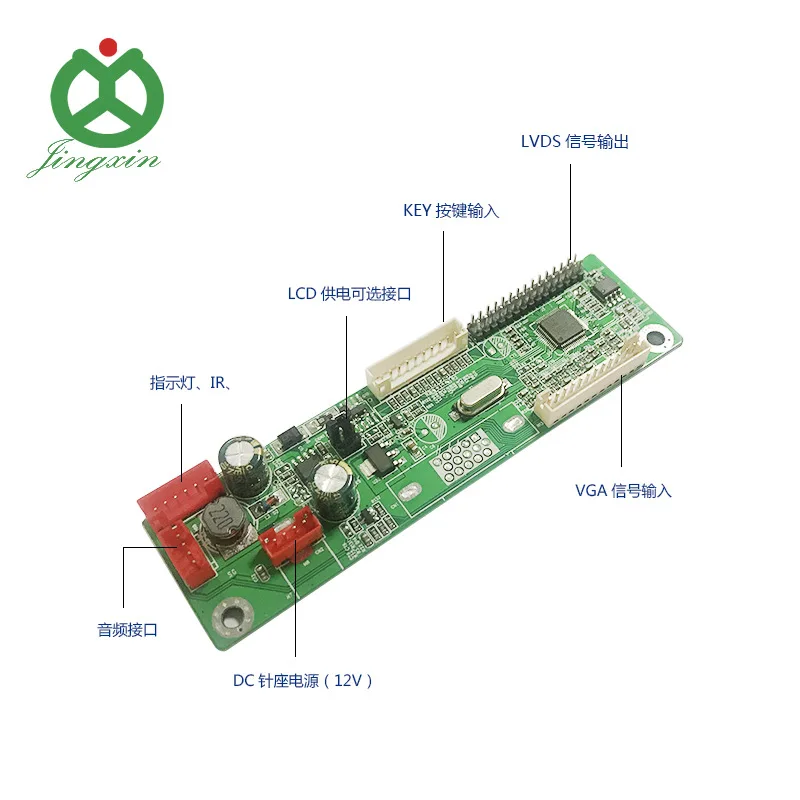

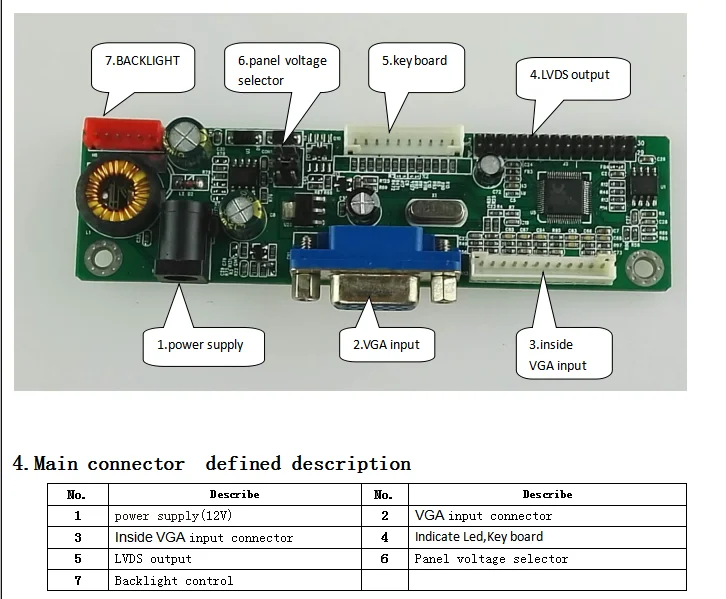

Main connector description
