Beer Filler Can Filling Machine For Carbonated Beverage Factory Direct SHTGF60 8

Product Overview

Description

Welcome to>>Hangzhou Youngsun Intelligent Equipment Co., Ltd.





Machine Features:

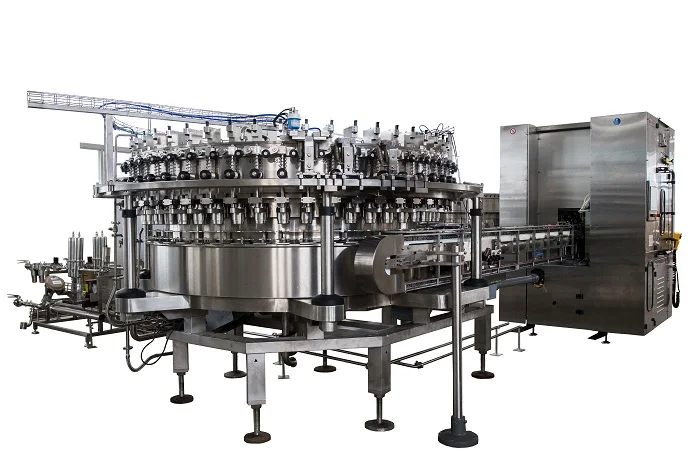

Beer Filler Can Filling Machine For Carbonated Beverage SHTGF60-8 beer beverage can filling and capping machine is a new type of beer or gas beverage filling machine produced by the company based on German company technology. The machine adopts 60 filling valves and 8 models. Capping head for all types of cans (two-piece cans, three-piece cans) Filling and sealing, the maximum production capacity can reach 40,000 cans/hour under high-speed operation, and its technical parameters are at a good level among similar products in China, which can be compared with imported equipment.



Main parameter:



Items	Description	Techinical Spcitication
Capacity	600 cans/ minute	330m
	500  cans/ minute	500ml
Machine efficciency	≥100%
Cans types changing time	about 30 minutes
Cans in/out direction	360°
Filling valve	60
Filling temperature	2-4°C
C02 content	5g/L
Filling pressure(C02)	0. 15~0. 3Mpa







Filler Characteristic SHTGF60-8 :

Filling method	Isobar filling
Filling valve diameter	2760
Pitch of filing valve	117mm
Height of can transport	1150-1300mm
Filling pricision	±2.0mm
Beer loss	1.5%
Oxygen pickup	≤20ppb
Bearing brand	SKF dan QNS
Bag filter	Included(2 bags)	ss
Seam parts brand	Sealtech	Germany
Pneumatic Components	FESTO/SMC
Reducer	SEW
Lubrication system	Centralized lubricatio
Dimension (LxWxH)	3200X 3150 X 2450mn	Lincoln
Cans types	330m. 500ml
Can height	85mm—168mm
Machine weight	7500 KG





 Capper Characteristic SHTGF60-8

Seaming head	8	6000CPM Capacity
Cap size	59.52±0.25
Can diameter	66
Pitch of cap head	157mm
Material of cap roller	9Cr18Mov
Using time of cap roller	≥24000
Materral of cap head	9Cr18
Usingle time of capping head	≥80 million cans
Sealing loss	≤0.03%
Cap loss	≤0.03%
Bearing brand	SKF	Sweden
Seam parts brand	Sealtch	German
Pneumatic Components	FESTO/SMG
Cap storage	1500
Compressed loss	0.85Nm3h(0.4-0.5Mpa)
CO2 loss	23.5Nm3h(500CPM)





Electric:

Total power(KW):11	Frequency converter:DANFOSS	Workingvoltage:AC 380v
Motor brand:SEW	HML:Siemens	Control electric box:ss
PLC:Simens:S7-200	Controlvoltage:DC 24v
