DL32SE E27 type base led Low intensity aircraft warning obstruction light,obstruction lights for towers

Product Overview

Description

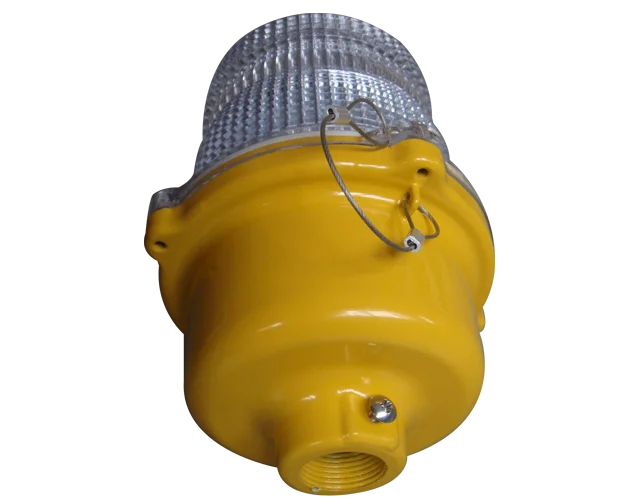

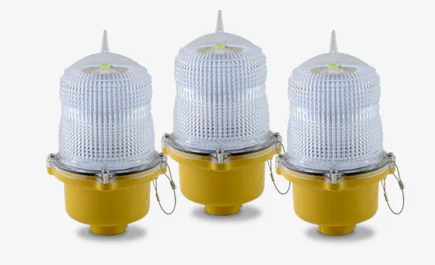

 DL32SE E27 type base led  Low intensity  aircraft warning obstruction light



Description:

  Our DL32SE LED omni-directional, red, steady-burning obstruction light is designed for marking tall structures such as buildings, towers, masts, cranes, meteorological towers, chimneys and other hazards to aircraft. This energy-saving LED light is a direct replacement for incandescent fixtures, providing years of reliable and maintenance-free operation. Available in single, double, and optional solar drive package.

  LED low intensity aeronautical obstruction lights to meet the demanding requirements of offshore environmental conditions. The design is based on low power long life LED technology. The polycarbonate Fresnel lens concentrates and distributes LED light beams to output standard-compliant intensity and distribution. The efficient optical system and low-energy circuit design make the light only consume 5 watts. DL10S aviation light complies with ICAO regulation, low intensity Type A.

  With a G3/4”universal threaded hub on the bottom, DL32SE can be mounted on a conduit or with Lansing brackets designed for towers and buildings. There is a terminal block on its power board inside for wiring.

  DL132SE single aircraft warning light can be used on top of structures less than 45m. In most cases, multiple DL32SE single low intensity aviation obstruction lights are installed in one or more horizontal levels for marking a structure’s outline with medium intensity obstruction lights.



Features& Benefits:

•Based on Led Technologies with E27 Type led bulb

• Available for both AC and DC conditions.

• Can be operated in steady-burning or flashing mode

• Lens made from durable, UV-stabilized LEXAN polycarbonate

• Aluminum base with powder painted, corrosion-resistant

• G3/4 threaded bottom entry for easy mounting

• Multiple light elements in the source reduce the chances of a complete blackout which

  could be caused in case of a single source failure.

• All hardware of obstruction lights are made of corrosion resistant metals.

• Bird spikes for protection against droppings.

• Photocell option for automatic activation at night

• No regular maintenance

• Uses 96% less power than an incandescent light

• With surge protection up to 2KV

• Excellent shock and vibration resistant

• No RF Radiations, EMC Compliant

• Reversed Polarity Protected(DC Type)

• Corrosion resistant lamp & housing-suitable for off-shore use

• Flashing rate adjustable

• Both NO and NC dry alarm contacts are available, and it will give an alarm in case of power and light failure(optional).

• Available both in single and double type

• 5 years warranty



Advantage:

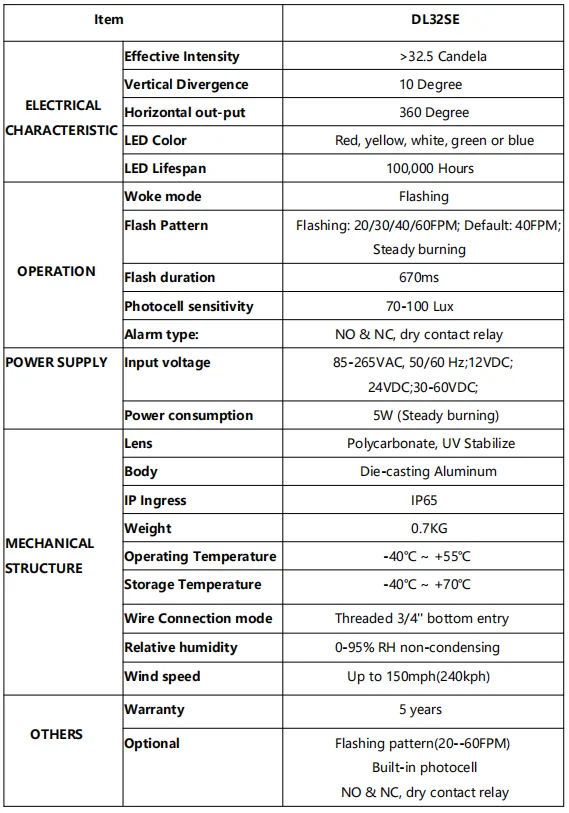

Specifications:
