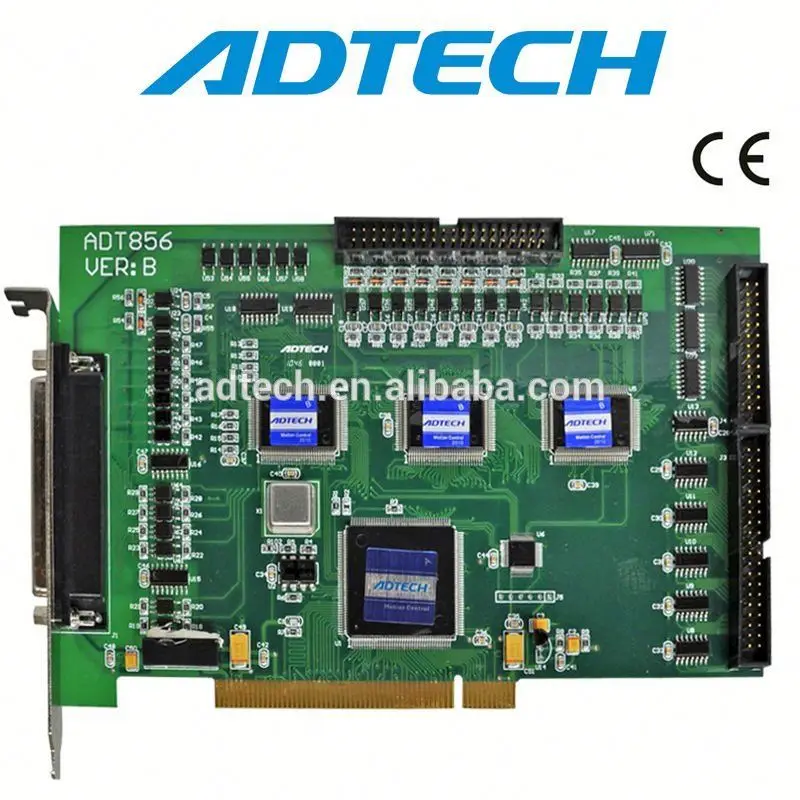

6 axis Motion Control Card of Ethernet Adaptor for PCB

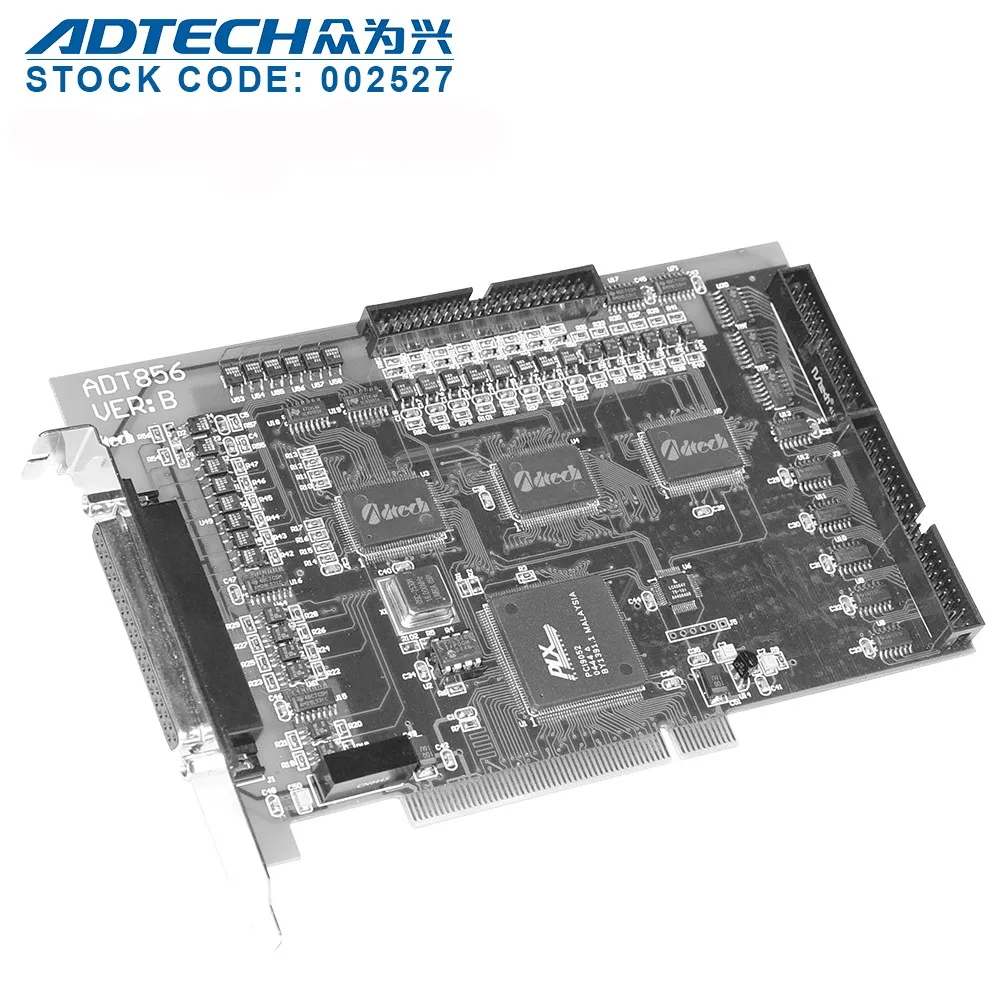

The feature of ADTECH ADT-856 PCI BUS 6-axis Motion Control Card

* 32-bit PCI bus, PnP
* Pulse output mode: pulse + direction, pulse + pulse
* Maximum pulse output frequency is 4MHz
* 6-axis servo/stepper motor control, each axis can control independently
* 2-6 axis linear interpolation ,arc interpolation, multi-axis continuous interpolation
* Linear or S-curve acceleration/deceleration
* Asymmetric linear acceleration/deceleration
* All the 6 axes have position(coder) feedback input; 32-bit counting; maximum frequency is 4MHz, maximum counting * range: -2,147,483,648~+2,147,483,647
* 48-channel optical coupling isolation digital input, 32-channel digital output ,every axis contains two positive and negative limit signals
* The speed and target position can be changed in real-time in the motion process
* Read the logical position, real position, driving speed, acceleration and driving state in real-time in the motion process
* Each axis has 3 STOP signals, which are used to search for home and Z-phase of coder
* Each axis has two 32-bit compare registers, which can be used for software limit
* Each axis has 8 input signal, include 2 positive/negative limit signals,3 stop signals,1 servo in-position signal, 1 servo alarm signal and 1 general input signal. Except 2 limit signals, other 6 signals can be used as general input signals by setting them as invalid.
* Position counter is integrated with variable cyclic function;
the logical position counter and actual position counter are 32-bit up/down cyclic counters
* Receive signals from servo motor drive, e.g. coder Z-phase signal, in-position signal, alarm signal, etc
* Up to 16 motion cards can be used in one system, control 96 axis
* Support operating systems: DOS, WINDOWS95/98/NT/2000/XP, WINCE
* Support developing software with C, VC++, VB, BC++, C++builder, LabVIEW and Delphi.

The function of ADTECH ADT-856 PCI BUS 6-axis Motion Control Card

* Pulse output:
Mode of pulse output: six-channel pulse outputs, pulse/direction, pulse/pulse, maximum output frequency: 4MHz, uses advanced technology tensure the error of pulse output frequency is still within 0.1% even it is in high level.
* Coder input:
Maximum input frequency: 4MHz
Phase difference pulse input or up/down pulse input of 6 axes A/B phase
Pulse frequency multiplication: 4, 2, 1
Noise removing of integration filter
* Digital switch input:
48-channel optical coupling isolation input, every axis contains twpositive and negative limit signals
Input voltage: 5-24V
Isolation voltage 2500VDC

* Digital switch output:
32-channel open-collector output
NPN open-collector, 5-24VDC, maximum current: 100mA

Application:

Biological, medical equipment, semiconductor automatic processing and testing equipment, packaging Equipment: automatic packaging machine, advertising Equipment, drawing word machine, slot machine, printing&pressing machine, PCB processing equipment, SMT machine, PCB drilling machine.
