Automatic security pedestrian speed gates swing barcode barrier gate with qr code reader
- Category: >>>
- Supplier: Shenzhen Wejoin Machinery & Electrical Technology Co. Ltd.
Share on (60818534361):
Product Overview
Description

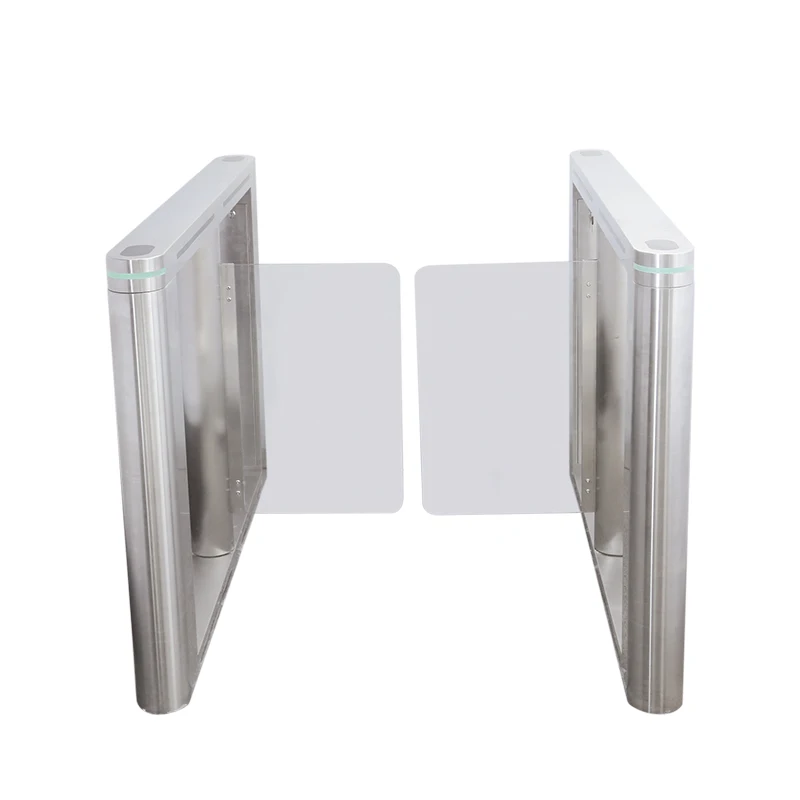

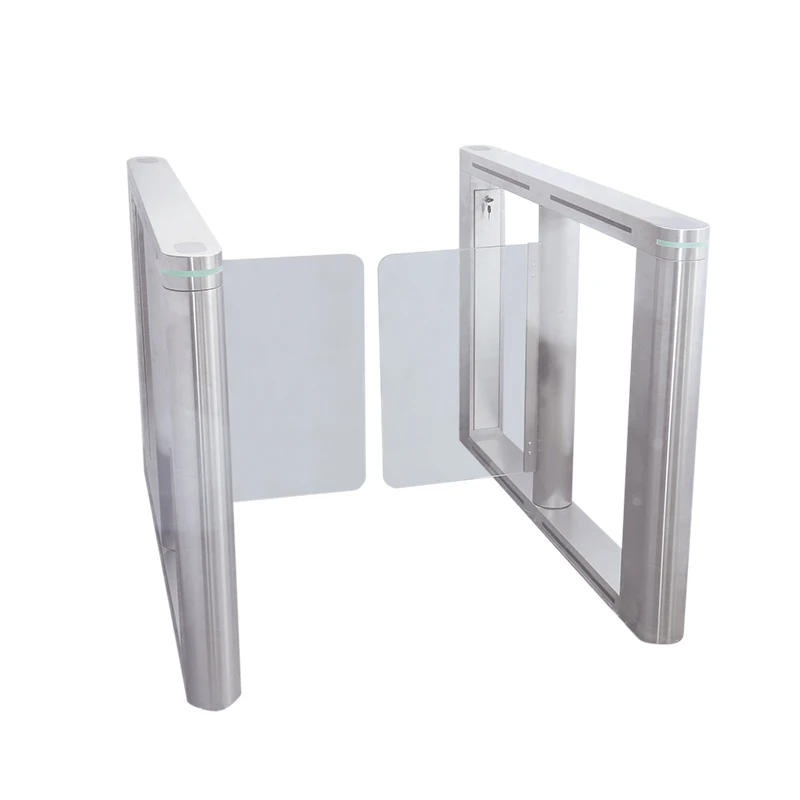

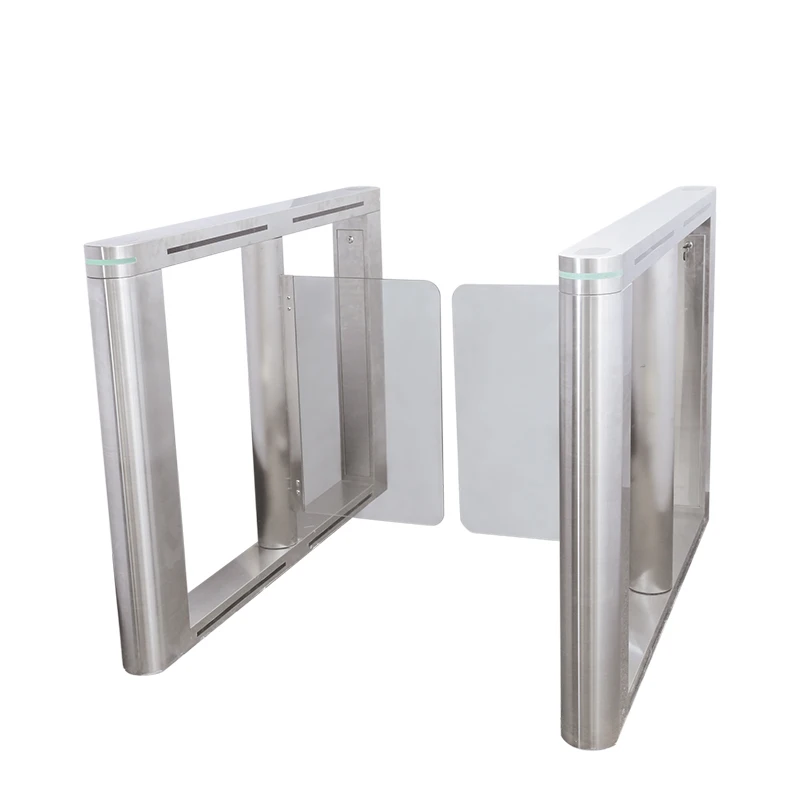

Automatic security pedestrian speed gates swing barcode barrier gate with qr code reader
Product Description
Product Introduction
Intelligent swing barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations, gym and other high level venues, our swing barrier can be integrated with modern intelligent management system to realize the intelligent management of access control. Swing barrier can be classified into cylindrical swing barrier and bridge- type swing barrier.
Intelligent swing barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations, gym and other high level venues, our swing barrier can be integrated with modern intelligent management system to realize the intelligent management of access control. Swing barrier can be classified into cylindrical swing barrier and bridge- type swing barrier.
Production Series
| Model Item | Swing Barrier Mechanism |
| Mechanism Dimension | 108*450mm |
| Arm Length(Optional) | 500-900mm |
| Motor Material | Steel and Aluminum Alloy |
| Driving Motor | 24V Brush DC Motor |
| Swing Direction | Single or Bidirectional Operation are Available |
| Input Interface | Dry Contact and Switch Signal Connection |
| Time for Opening or Closing | 1 second |
| Starting time after power on | 3 seconds |
| Transit Speed | 30~40 persons/min |
| Working Environment | Indoor / Outdoor (Shelter) |
| Working Temperature | —25°C~50°C |
| Relative Humidity | ≤90%, no condensation |
Main Features
Swing Barrier

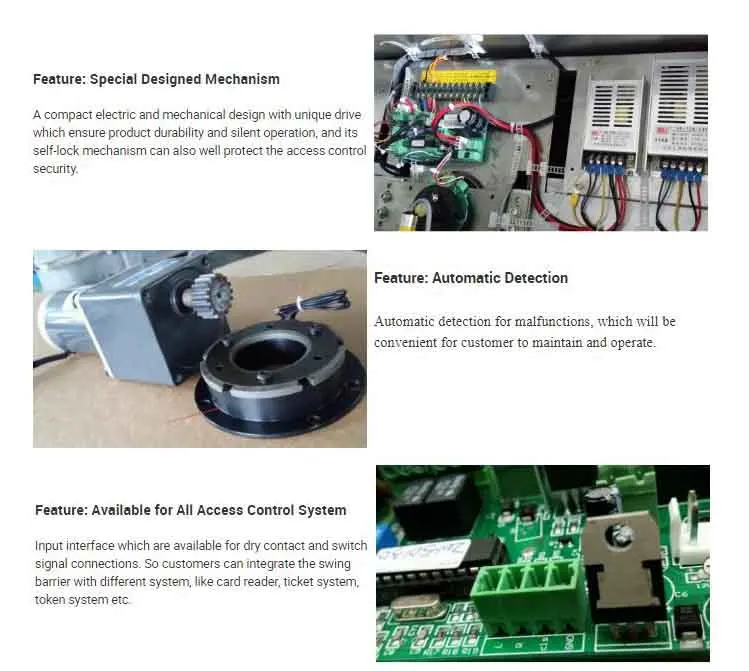

1) A compact electro-mechanical design with unique drive and a self-lock mechanism
2) Automatic detection for malfunctions
3) Input interface available for dry contact and switch signal connection

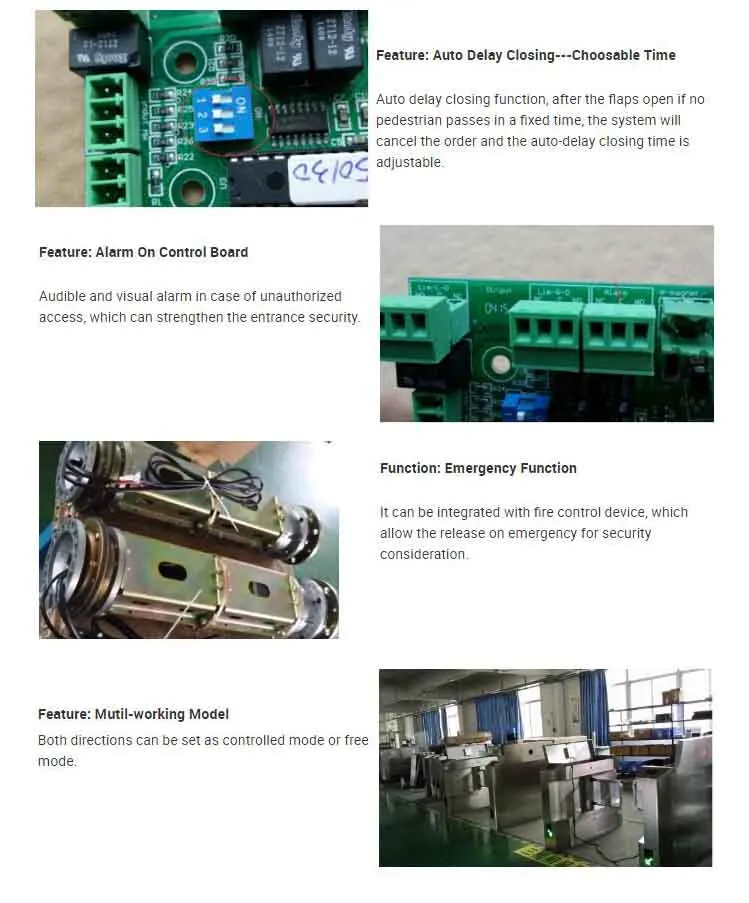

4) Adjustable auto-delay closing
5) Infrared photocells for safety access
6) Alarm for unauthorized access and no access againsl passenger How
7) Auto-closing when power on
8) Free access when power off
9) Adjustable access directions
10) Emergency interface available
11) Traffic lighl indicating passenger access
More swing barrier gate models for you to choose
Advanced Features
| [ ADVANCED FEATURES ] |
Related Products
| [ RELATED PRODUCTS ] |
| click below photo to see more |
Company Information
| [ COMPANY INFORMATION ] |
| click below photo to see more |
SHENZHEN WEJOIN WECHANICAL & ELECTRICAL CO., LTD.
Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
| Buyer Feesback |
Wejoin Manufacturing
[ WEJOIN MANUFACTURING TECHNIQUE ] |
| All Product Tests Before Delivery |
WEJOIN utilizes advanced testing equipment and various testing methods in all production processes.
Packaging & Shipping
|
Packaging
| Size | 150*36*118CM |
| Weight | 96 KG |
| Packaging Details | The normal package is wooden box(Size: 150*36*118CM). If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to |
Our Service
| Pyment Term | Leading Time | Minimum Order | Supply Ability | Package |
| T/T; West Union | 5-7 working days | 1 Unit | 10,000 Unit/ Month | Paper Carton or Wooden Box |
Faq
| [ FAQ ] |
Q1: What is your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you manufacturer? Do you provide ODM / OEM service?
A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.
Q3: I would like to ask if this is with Mifare reader and controller?
A: Yes, there is a controller, our turnstile has control board, can connect with Mifare reader.
Q4: Can we buy this product and grant acess to the user via cell phone app/bar code? What access point options does it come with? Card? Token?
A: Yes, you can connect the turnstile with bar code reader, and other customized access controller.
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Whithin one years, if any problems, we will offer the accessories.
Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?
A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
