Ssp phosphate fertilizer plant/disc pelletizing machine/pelletizer
- Category: >>>
- Supplier: Henan Tongyida Heavy Industry Technology Co. Ltd.
Share on (60818543822):
Product Overview
Description

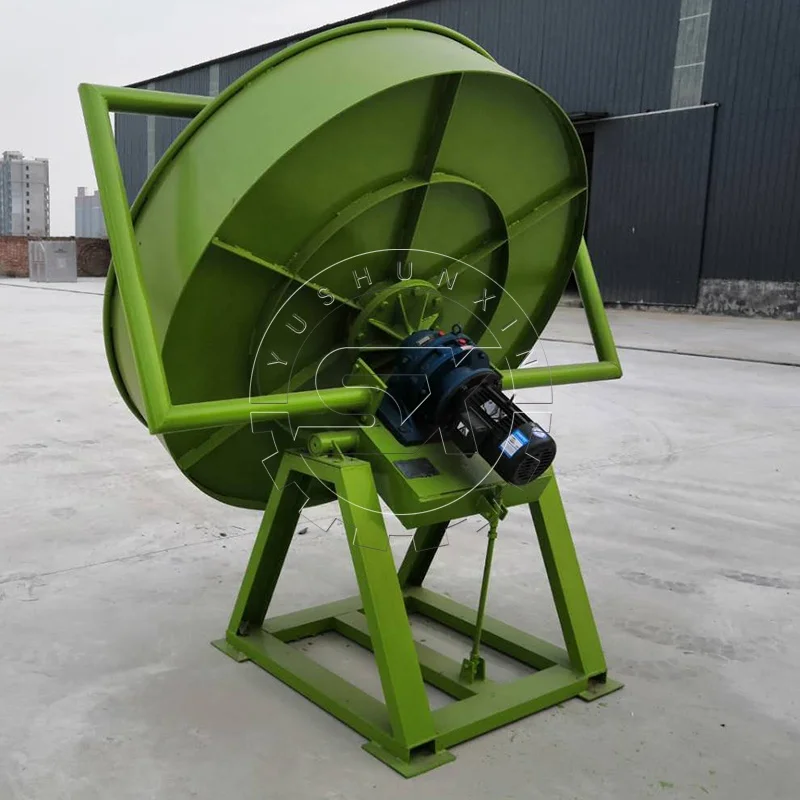

Disc granulator (also known as the ball plate) adopts the whole circular arc structure, and the granulating rate can reach more than 93%. It has three discharging ports, which is convenient for discontinuous production, greatly reducing the labor intensity and improving the labor efficiency. The reducer and motor use flexible belt drive to start smoothly, slow down the impact force and improve the service life of the equipment. The plate bottom is strengthened by a plurality of radiant steel plates, which is durable and never deformed. It is an ideal equipment for organic fertilizer and compound fertilizer, which is designed with thick, heavy and strong base, so it has no fixed anchor bolts and smooth operation.
Working Principle
By adding water raw material powder can mix evenly, then being transported into the disk; as the rotation of disc, material inside gradually formed globular by rolling; After achieving the predetermined diameter, the granulation will be out of the pan to the next procedure again.
Characteristics of Performance
1.High efficiency.
2.Long service life.
3.The plates are reinforced with a number of radiant steel plates, which are durable and never deformed.
4.The main gear of granulator adopts high frequency quenching technology, and its service life is doubled.
5.There is high strength fiberglass in the granulation pan making the machine durable.
6.Uniform granulation, high granulation rate, stable operation, durable equipment and long service life.
By adding water raw material powder can mix evenly, then being transported into the disk; as the rotation of disc, material inside gradually formed globular by rolling; After achieving the predetermined diameter, the granulation will be out of the pan to the next procedure again.
Characteristics of Performance
1.High efficiency.
2.Long service life.
3.The plates are reinforced with a number of radiant steel plates, which are durable and never deformed.
4.The main gear of granulator adopts high frequency quenching technology, and its service life is doubled.
5.There is high strength fiberglass in the granulation pan making the machine durable.
6.Uniform granulation, high granulation rate, stable operation, durable equipment and long service life.
Advantages of disc granulator :
1.high granulating rate
2.low costs
3.high strength
4.easy to operate
5.convenient maintenance
1.high granulating rate
2.low costs
3.high strength
4.easy to operate
5.convenient maintenance
Model | Diameter of Disc(mm) | Edge Height (mm) | Rotary Speed (r/min) | Motor Power (kw) | Capacity (t/h) | Model of Reducer (kw) | Dimensions (mm) |
SXYZ-500 | 500 | 200 | 32 | 0.55 | 0.02-0.05 | BWY0-43-0.55 | 650*600*800 |
SXYZ-600 | 600 | 200 | 33.5 | 0.75 | 0.05-0.1 | BWY0-43-0.55 | 800*700*950 |
SXYZ-800 | 800 | 200 | 21 | 1.5 | 0.1-0.2 | XWD4-71-1.5 | 900*1000*1000 |
SXYZ-1000 | 1000 | 250 | 21 | 1.5 | 0.2-0.3 | XWD4-71-1.5 | 1200*950*1300 |
SXYZ-1200 | 1200 | 250 | 21 | 1.5 | 0.3-0.5 | XWD4-71-1.5 | 1200*1470*1700 |
SXYZ-1500 | 1500 | 300 | 21 | 3 | 0.5-0.8 | XWD5-71-3 | 1760*1500*1950 |
SXYZ-1800 | 1800 | 300 | 21 | 3 | 0.8-1.2 | XWD5-71-3 | 2060*1700*2130 |
SXYZ-2000 | 2000 | 350 | 21 | 4 | 1.2-1.5 | XWD5-71-4 | 2260*1650*2250 |
SXYZ-2500 | 2500 | 450 | 14 | 7.5 | 1.5-2.0 | ZQ350 | 2900*2000*2750 |
SXYZ-2800 | 2800 | 450 | 14 | 11 | 2-3 | ZQ350 | 3200*2200*3000 |
SXYZ-3000 | 3000 | 450 | 14 | 11 | 2-4 | ZQ350 | 3400*2400*3100 |
SXYZ-3600 | 3600 | 450 | 13 | 18.5 | 4-6 | ZQ400 | 4100*2900*3800 |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment>1000USD, 50%TT as deposit, remaining 50%TT before delivery.
If you have any questions about Disc Granulator, can feel free to contact me!
