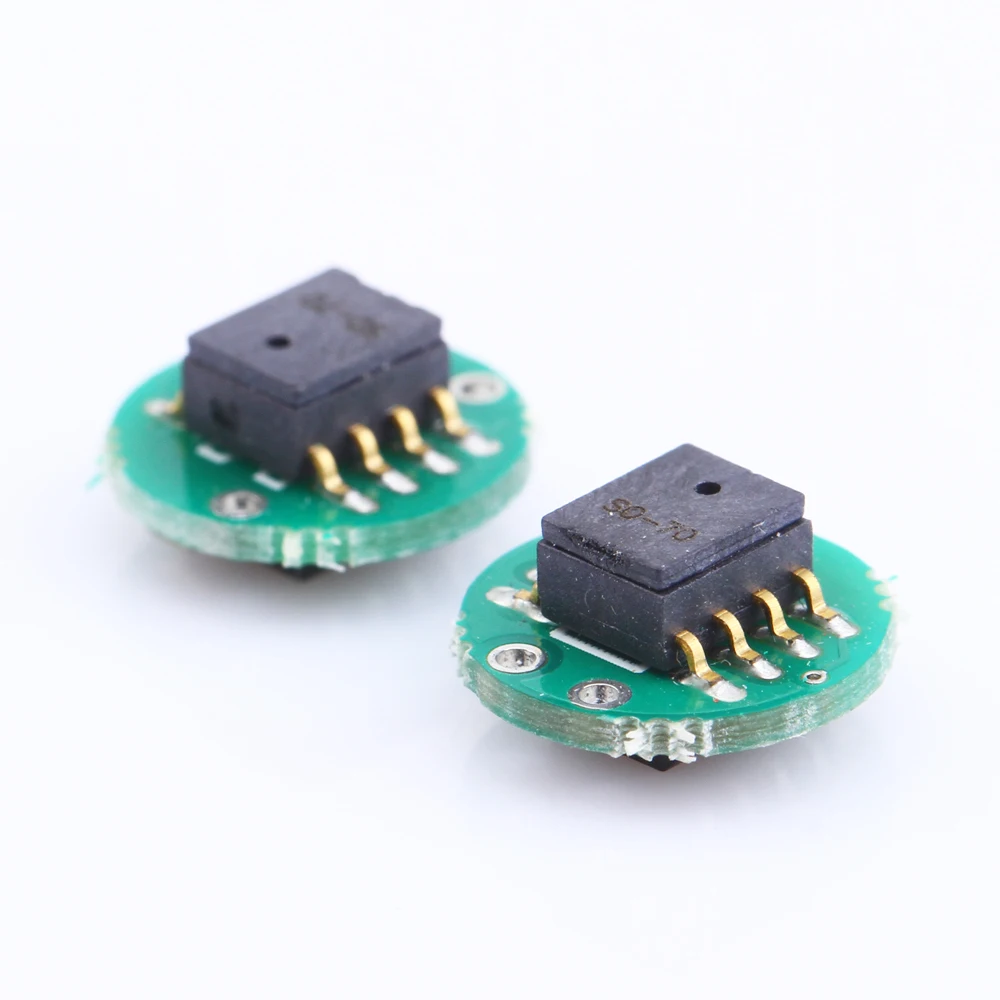

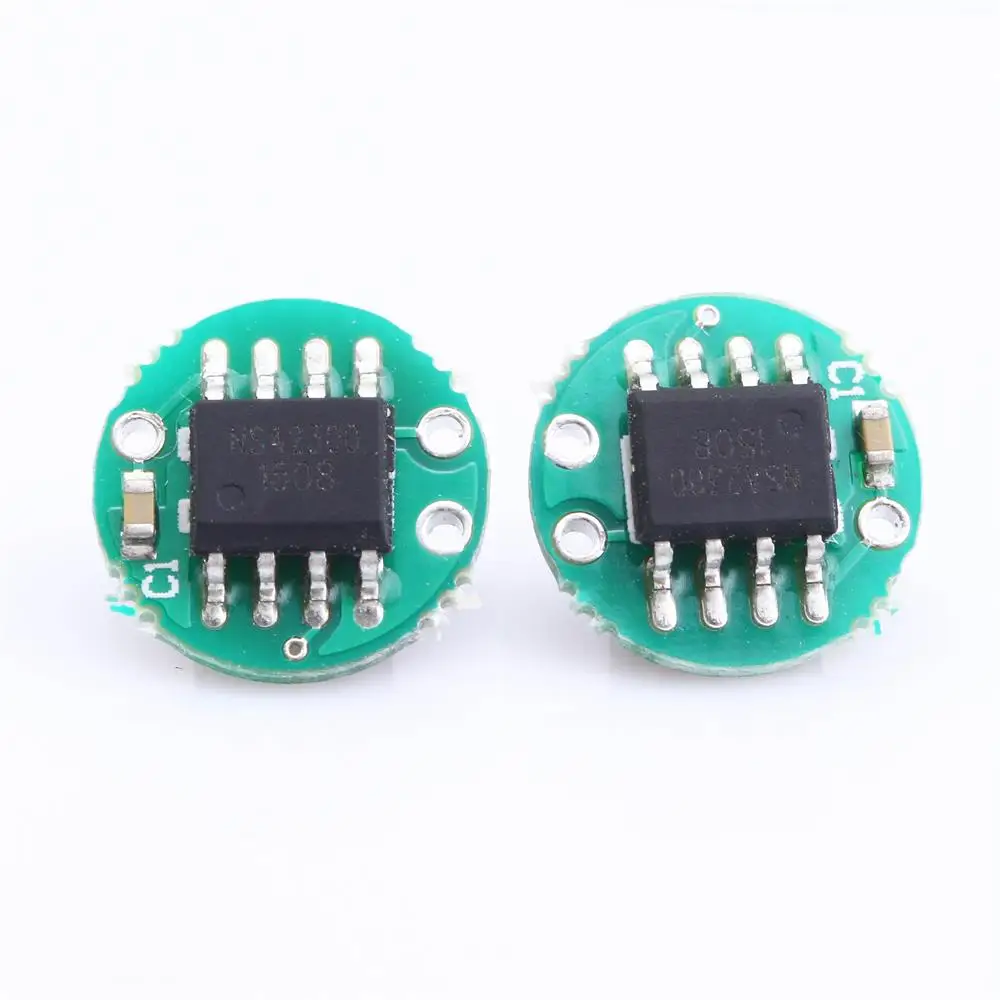

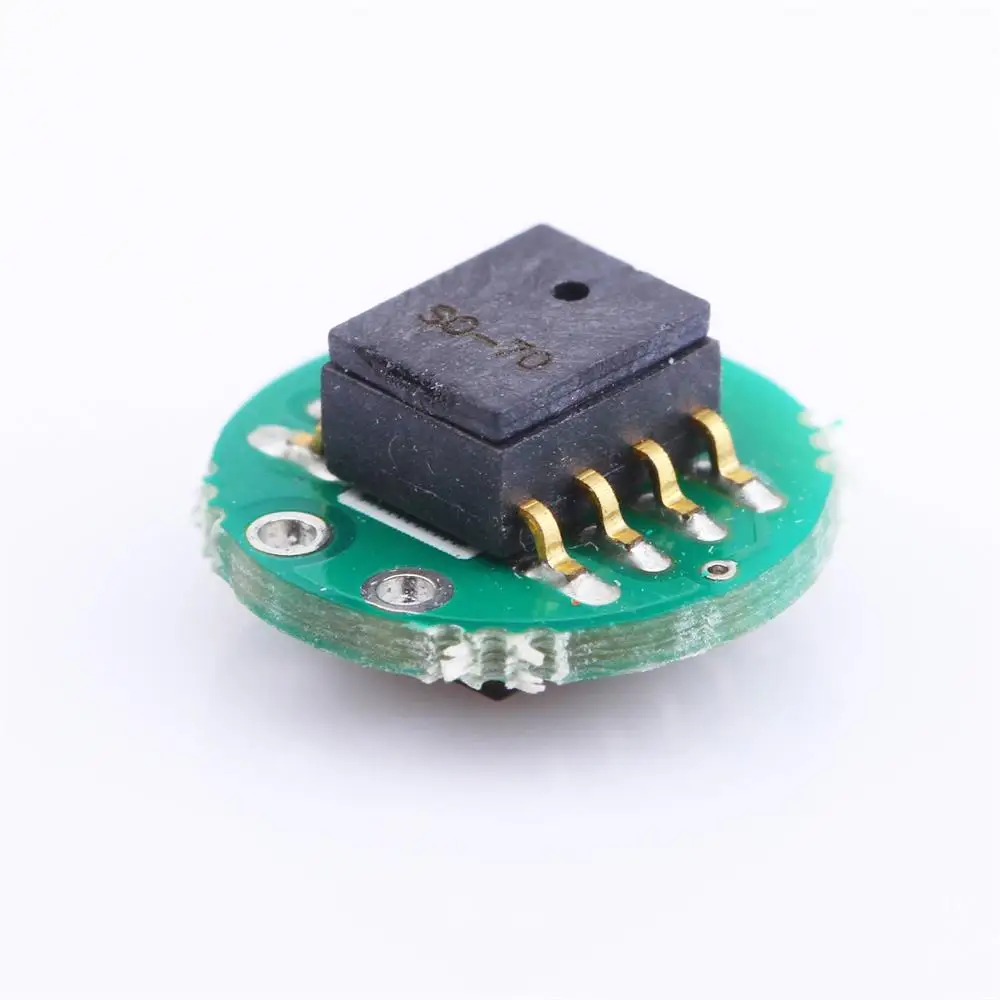

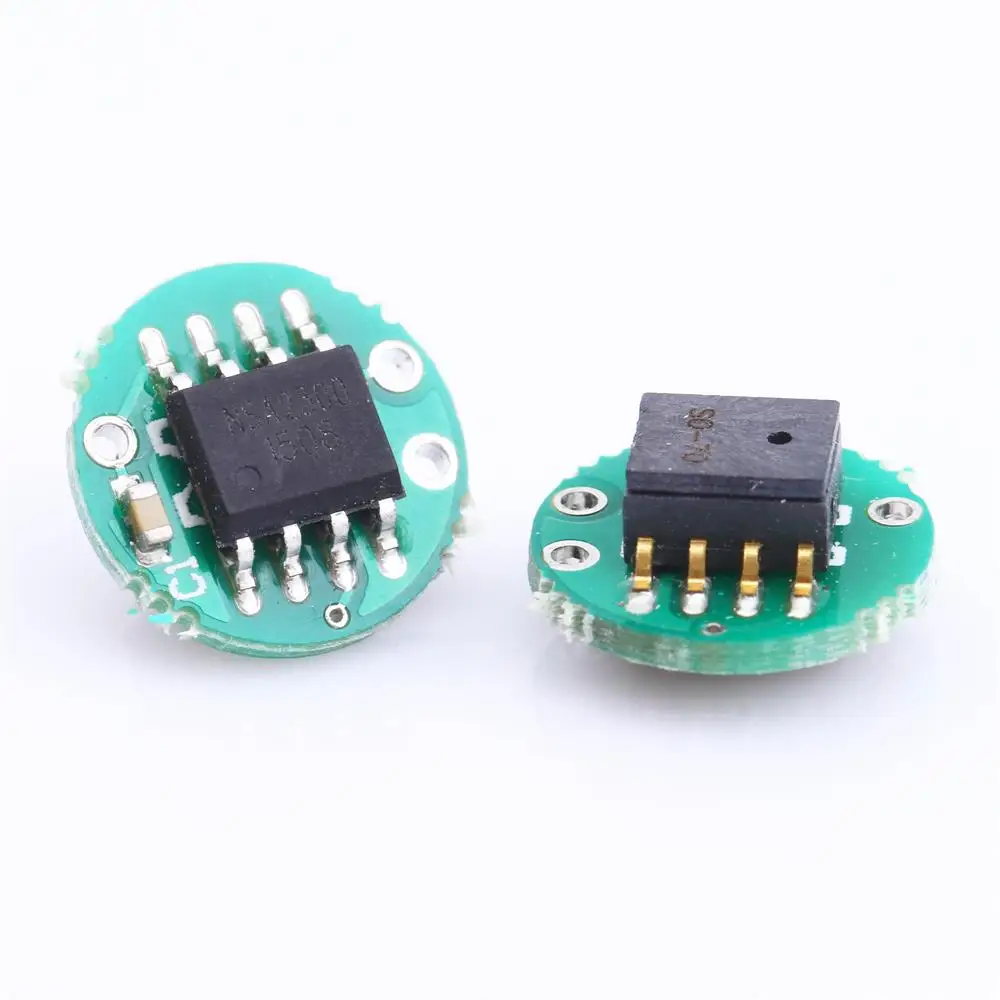

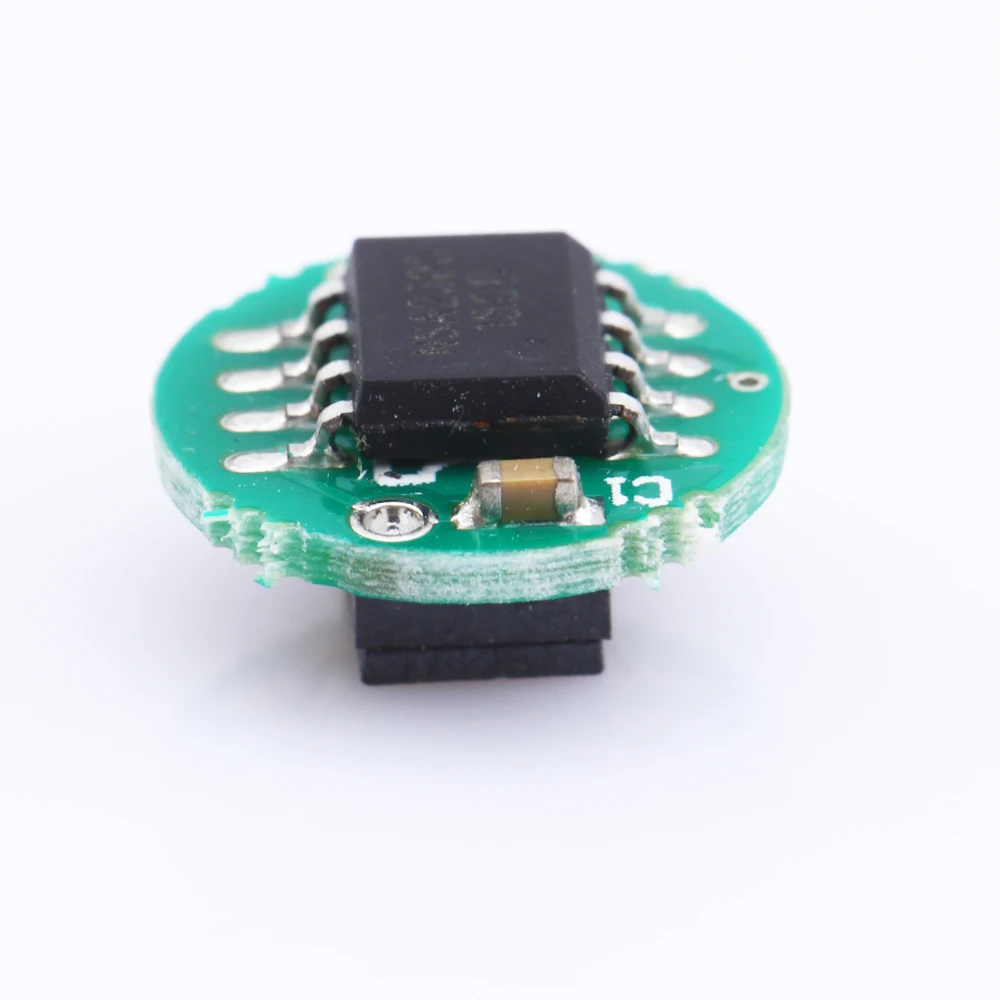

XGZP6848 Absolute Pressure Sensor for medical application
- Category: >>>
- Supplier: Wuhu CFSensor Co. Ltd.
Share on (60818589152):
Product Overview
Description
Product Description
Feature
- Ranges:
0kPa~110kPa…1600kPa(0PSI~16PSI…230PSI)
- Perfect Accuracy: ±1.0% of full scale
- Absolute Type
- For Non-corrosive gas or air
- Calibrated,Amplified analog output
- Temp. Compensated:0℃~+70℃(32℉~+158℉)
- Direct application, Low Cost.
Application
For Automotive electronic field, such as tire pressure meter, MAP sensor, air pump,brake assist system etc.
For Sport and fitness equipment field,such as massage,air spring bed,etc.
For Barometer, altimeter,vacuum pressure measurement.etc., etc.
For Other instruments and meters etc,. absolute pressure measurement fields
Performance Parameter
Unless otherwise specified, measurements were taken with a supply voltage of 5 Vdc at
a temperature of 25±1℃ and humidity ranging from 25%~85%.
| Item | Data | Unit |
| Power Supply | 5 | Vdc |
| Output Signal | 0.5-4.5(or by custom) | Vdc |
| Accuracy | ±1.0 | %Span |
| TCO(Temp. Coefficient of Offset) | ±0.03 | %FS/℃ |
| TCS(Temp. Coefficient of Span) | ±0.03 | %FS/℃ |
| Long Term Stability(1year) | ±1 | %Span |
| Over Pressure | 2X (≤500kPa) | Rated |
| 1.5X(≥500kPa) | ||
| Compensation Temp. | 0 ~ 70/32 ~ 158 | ℃/℉ |
| Ambient Temp. | -10 ~ 85/14 ~ 185 | ℃/℉ |
| Storage Temp. | -40 ~ 125/-40 ~ 257 | ℃/℉ |
Pressure Range (100kPa=0.1MPa=1bar≈14.5PSI≈750mmHg)
| Pressure Range(kPa) | Model |
| 0 ~ 110 | XGZP6848110KPA |
| 0 ~350 | XGZP6848500KPA |
| 0 ~ 700 | XGZP6848700KPA |
| 0 ~ 1000 | XGZP6848001MPA |
| 0 ~ 1600 | XGZP6848016MPA |
Available for more custom pressure range(Zero to Full Scale) | |

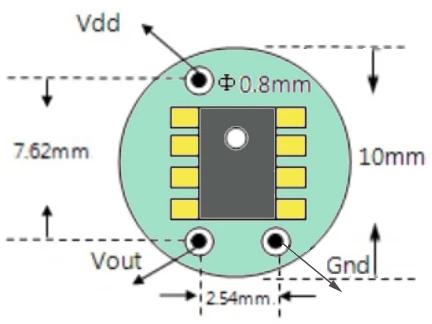

Dimension&Electric Connection(Unit:mm/Inch)
Order Guide
Notes
1.Attention that the medium should be compatible with the pressure parts.
2.Please contact us if special request on parameter and application.
Warranty
CFSensor warrants its products against defects in material and workmanship for 12 months from the date of shipment. Products not subjected to misuse will be repaired or reploced. CFSensor reserves the right to make changes without further notice to any products herein. CFSensor makes no warranty, representation or guarantee regarding the suitability of its products for any particular application. CFSensor does not assume any liability arising out of the application or use of any product or circuit and specifically disclaims, and all liability, without limitation consequential or incidental damages. The foregoing warranties are exclusive and in lieu of all other warranties, whether written, oral, implied or statutory. No implied statutory warranty or merchant ability or fitness for particular purpose shall apply.
