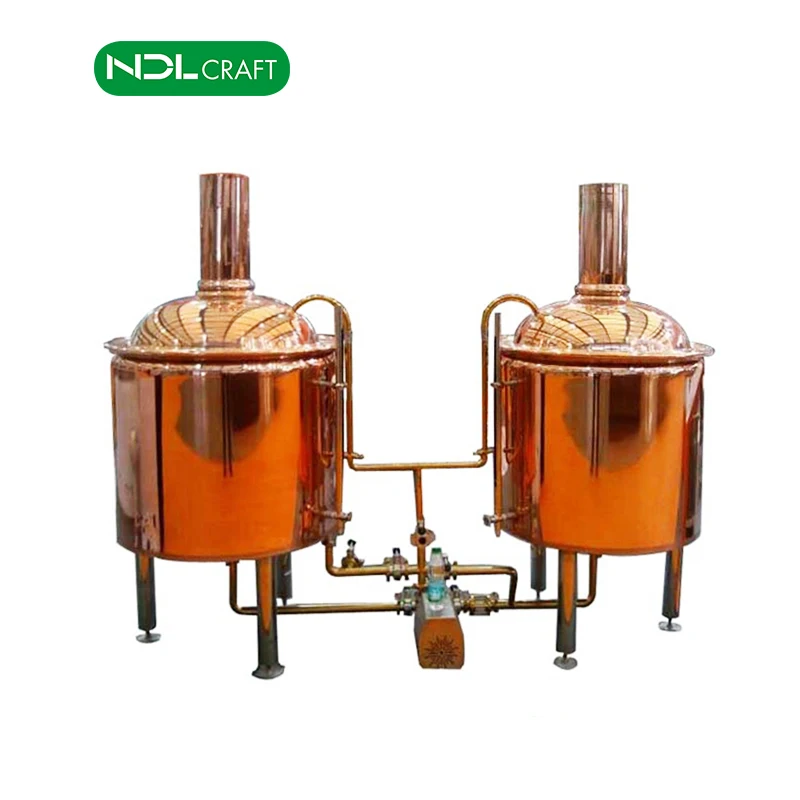

500l red copper brew kettle and conical fermenter for sale
Product Description
Red copper beer brewery equipment is mainly used in beer pub, hotel, restaurant for the better appearance.

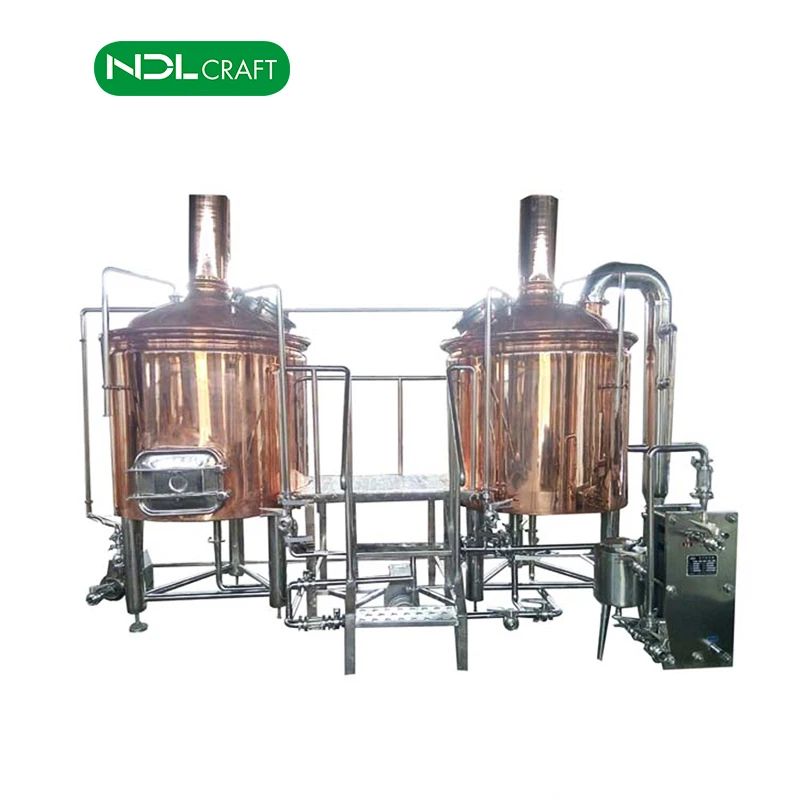

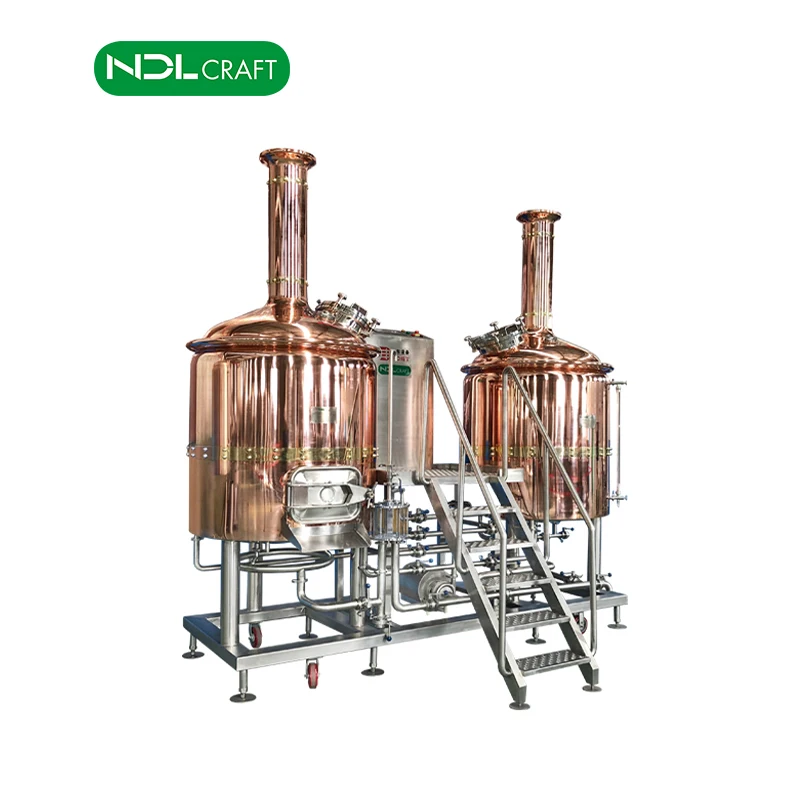

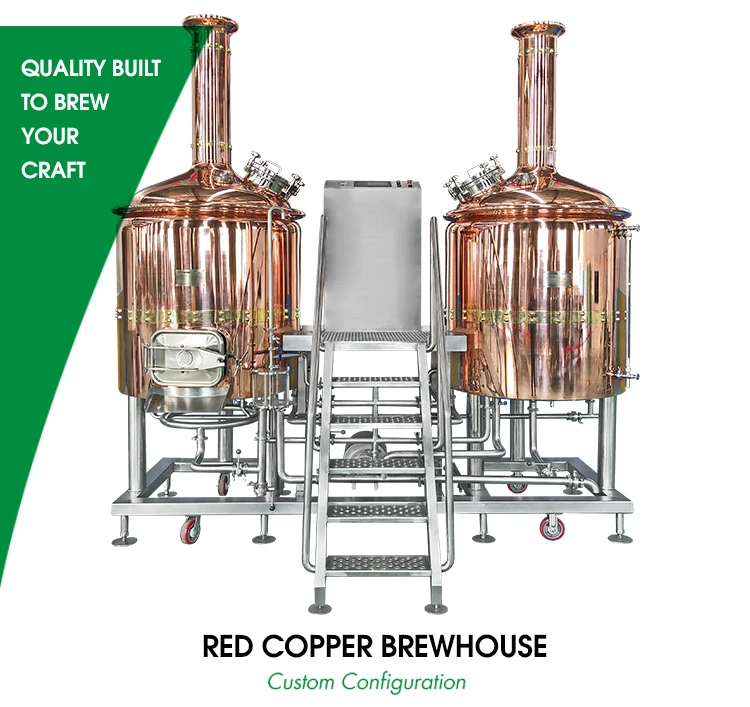

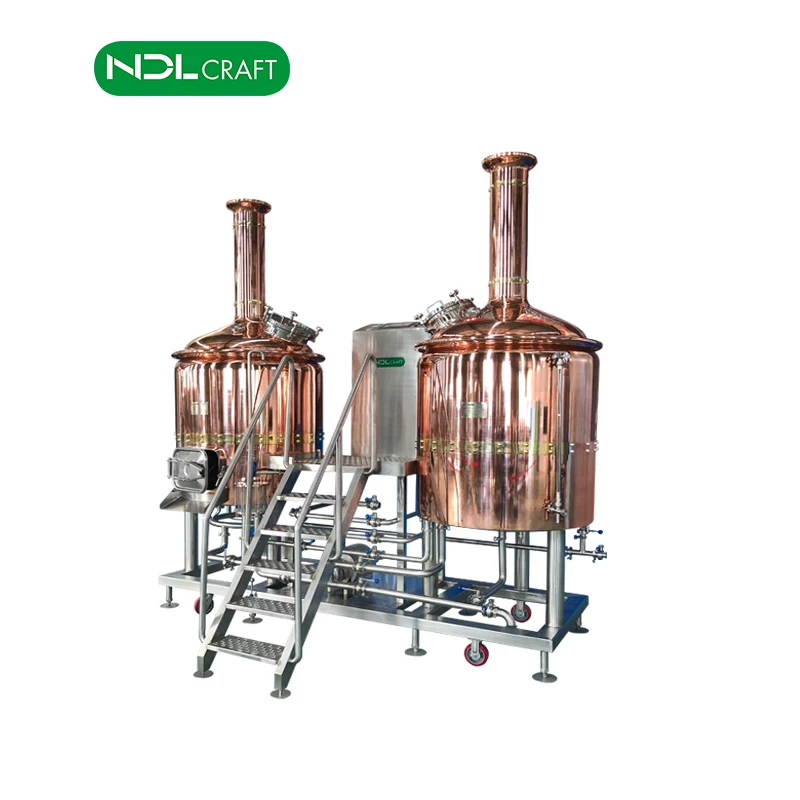

1. 500L Mashing System
A typical two-vessel
Combination Mash Lauter Tuns are the first combination vessel in these brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out. Next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle, but is equipped with a tangential fitting for whirlpooling.
You May Also Like Other Brewhouse Types:
Send Inquiry>>
2. 500L Fermentation System
1). A serials of the fermetation tanks
Fermentation tank series | Volume in US Gallon | Diameter | Height |
100l Fermentation tank | 26US Gallon | 640mm | 1500mm |
200l Fermentation Tank | 53US Gallon | 760mm | 1800mm |
300l Fermentation Tank | 79US Gallon | 860mm | 2000mm |
500l Fermentation Tank | 132US Gallon | 960mm | 2350mm |
1000l Fermentation Tank | 264US Gallon | 1260mm | 2650mm |
2000l Fermentation Tank | 528US Gallon | 1560mm | 3150mm |
3000l Fermentation Tank | 793US Gallon | 1800mm | 3550mm |
5000l Fermentation Tank | 1321US Gallon | 2000mm | 4450mm |
10000 Fermentation Tank | 2642US Gallon | 2200mm | 6100mm |
2). Specifications of 500L fermentation tanks:
| No. | Item | Introduction |
01 | Volume | 500L |
02 | Dimention | 960*2350mm |
03 | Material | Stainless steel 304 |
04 | Insulation | Polyurethane, TH: 80mm |
05 | Fermentation tank | Glycol jacket: Dimpled jacket on the cone and side Or single wall with jacketed,or single layer fermentor. |
06 | Head | Double or single dish head on the top |
07 | Accessories |

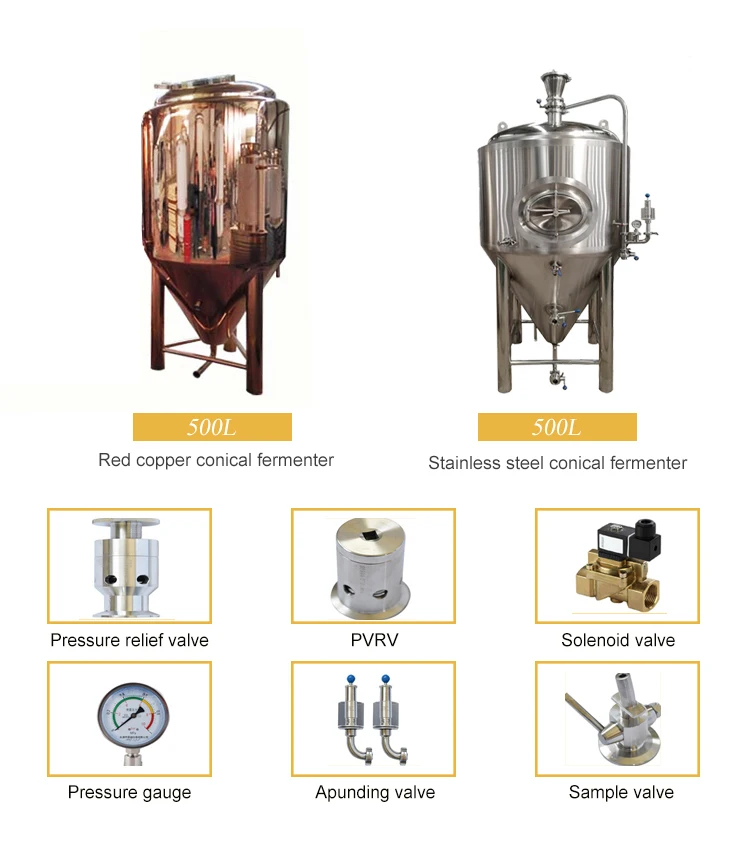

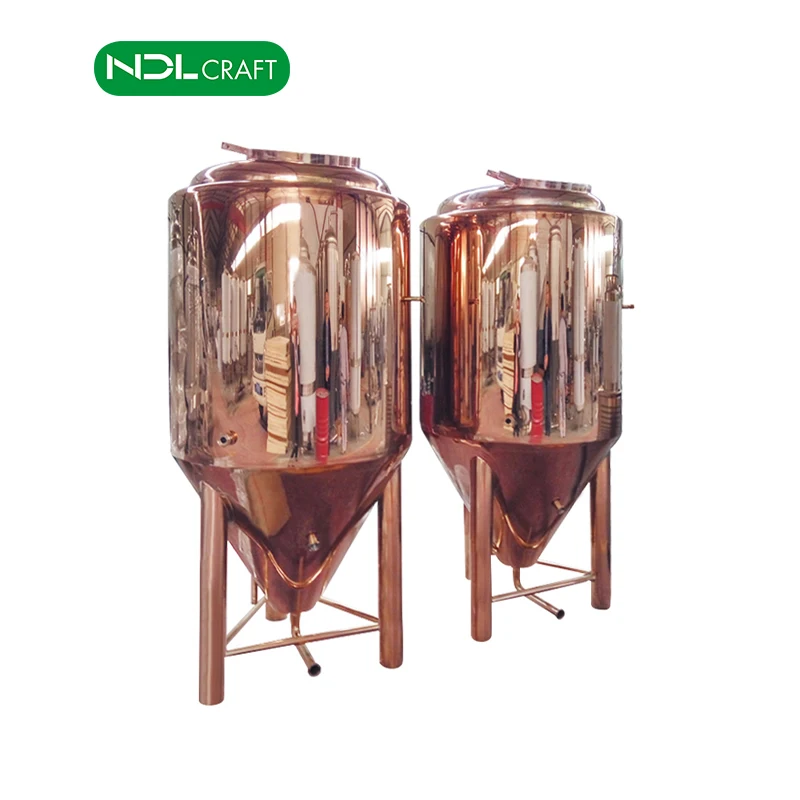

3). Details of 500L Fermentation Tanks:
Send Inquiry>>
3. Accessories & Auxiliary Equipment
Company Information

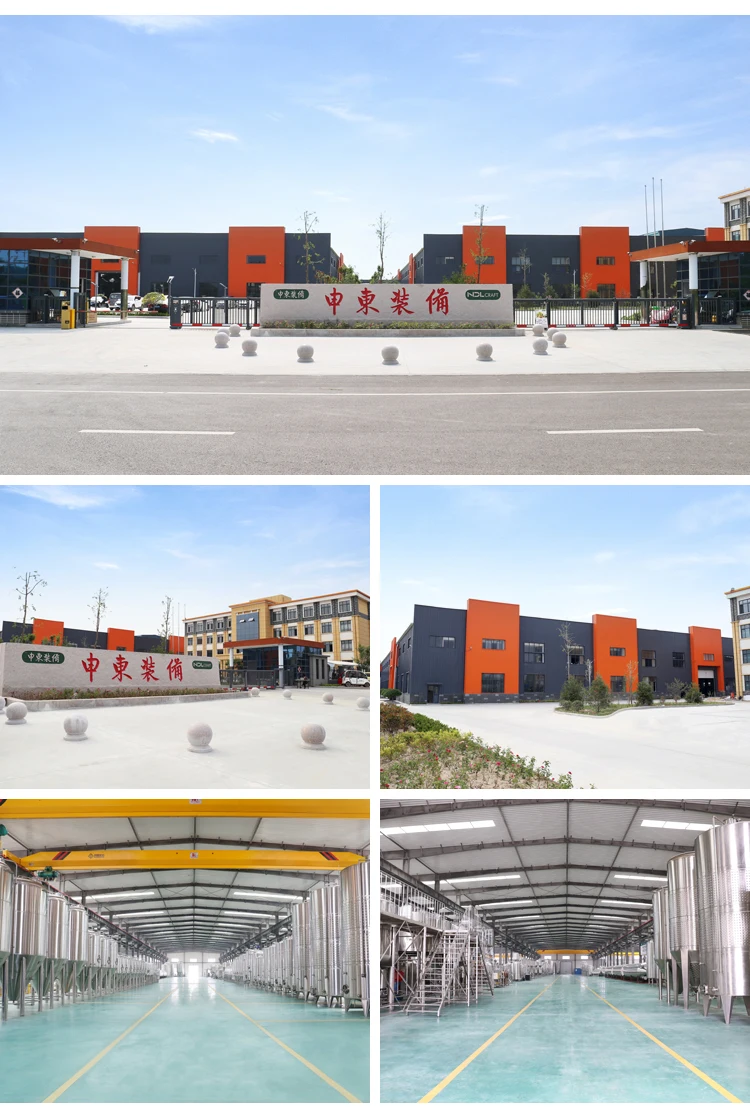

NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.
Certifications
We have established an ERP management system and have passed quality audits for internationally recognized certifications.
ISO 9001: Certification for the Quality Management System
ISO 14001: Certification for the Environmental Management System
ISO 18001: Certification for the Occupational Healthland Safety Management System
CE: Certification of Compliance
PED(TUV): Certification of Compliance, Certification of Conformity
SGS: Gold Plus Supplier Assessment Certificate
