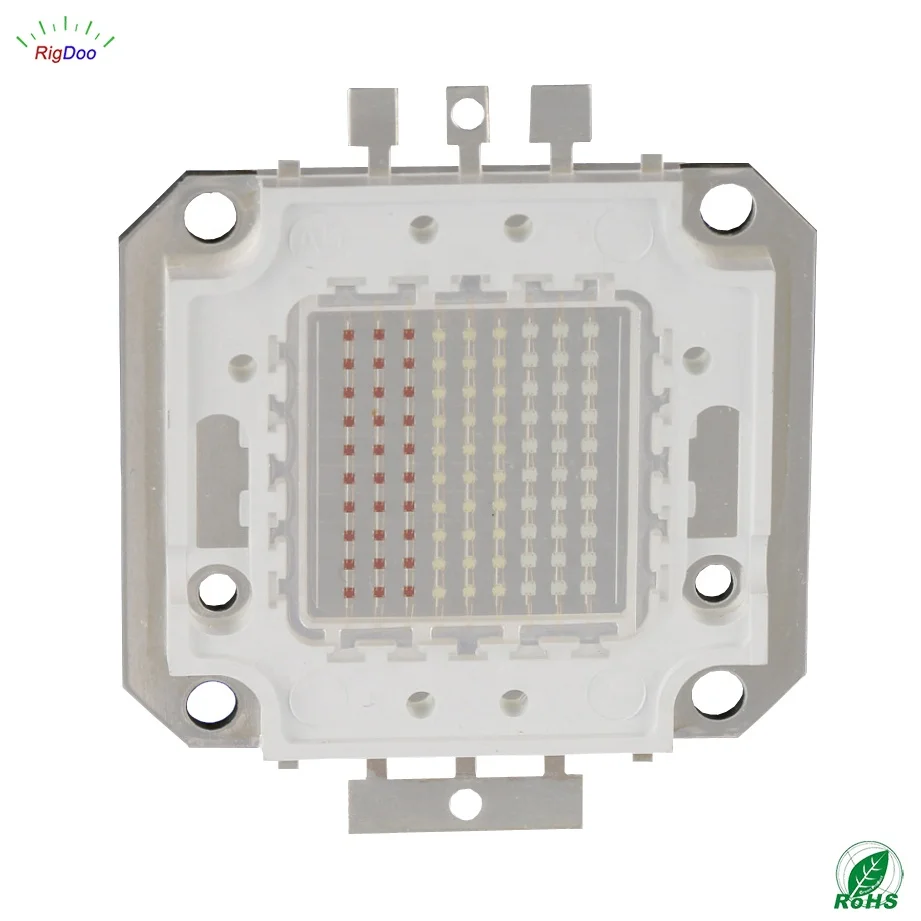

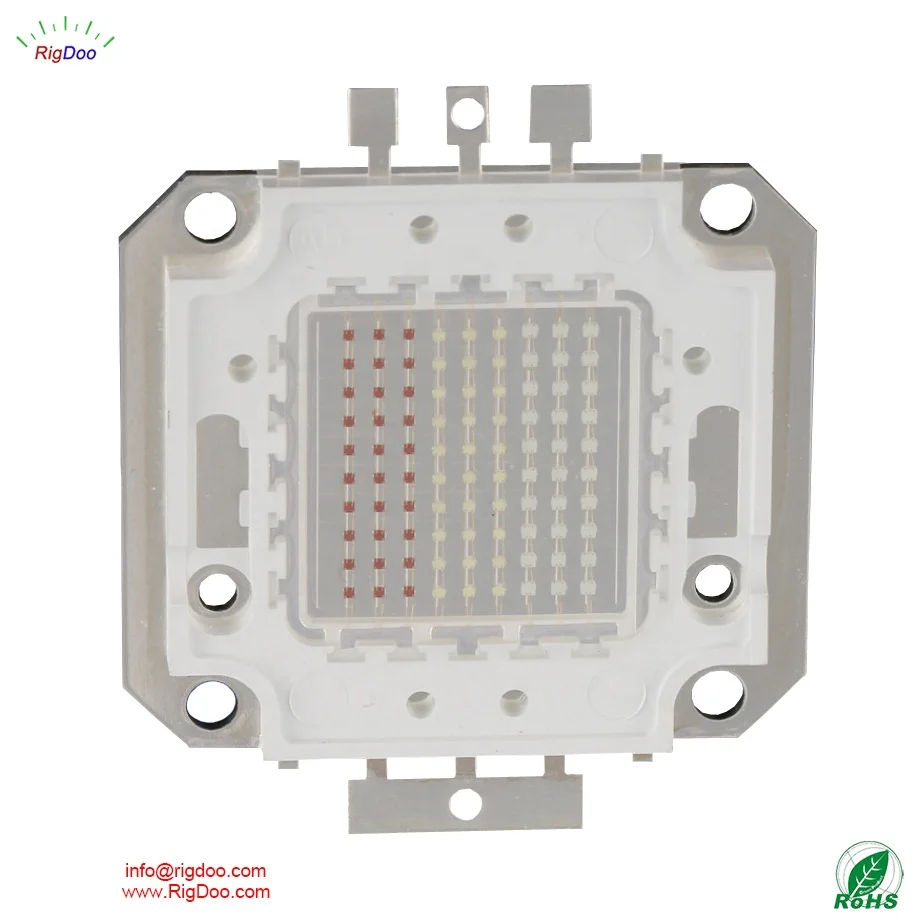

In Warehouse Fast Shipment High Quality 90 Watt Tri Color RGB Light Source LED Chip Full Colour SMD 90W RGB LED Diode
In Warehouse Fast Shipment High Quality 90 Watt Tri-Color RGB Light Source LED Chip Full Colour SMD 90W RGB LED Diode
In Warehouse Fast Shipment High Quality 90 Watt Tri-Color RGB Light Source LED Chip Full Colour SMD 90W RGB LED Diode
In Warehouse Fast Shipment High Quality 90 Watt Tri-Color RGB Light Source LED Chip Full Colour SMD 90W RGB LED Diode

In Warehouse Fast Shipment High Quality 90 Watt Tri Color RGB Light Source LED Chip Full Colour SMD 90W RGB LED Diode

Share on (60818662972):


Price:RUB 7.44 - RUB 743.28

Quantity:


Product Overview

Description

Product Name

In Warehouse Fast Shipment High Quality 90 Watt Tri-Color RGB Light Source LED Chip Full Colour SMD 90W RGB LED Diode

In Warehouse Fast Shipment High Quality 90 Watt Tri-Color RGB Light Source LED Chip Full Colour SMD 90W RGB LED Diode

Products Description

Features

Circuit: 10 in Series & 9 in Parallel

Package ( L/W/H ) : 42×40 mm

Color : Ultra High Bright RGB
Lens: Water Clear Flat Mold
EIA STD Package
Meet ROHS, Green Product

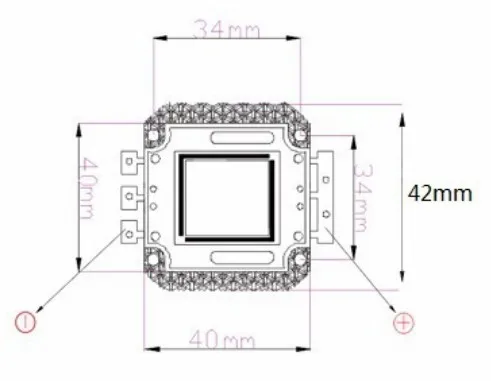

Package Profile & Soldering PAD Suggested

Absolute Maximum Ratings At Ta=25℃

Parameter
Symbol
Rating
Unit
Power Dissipation
Pd
R
26
W
G
32
B
32
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
IFP
R
1050
mA
G
1050
B
1050
DC Forward Current
IF
R
900
mA
G
900
B
900
Reverse Voltage
VR
R
V
G
B
Operating Temperature Range
Topr
-30C ~ + 85C
Storage Temperature Range
Tstg
-40C ~ + 90C
Soldering Condition
Tsol
Reflow soldering : 260C For 5 Seconds
Hand soldering: 300C For 3 Seconds

Electrical Optical Characteristics At Ta=25℃

Parameter
Symbol
Colors
Min.
Typ.
Max.
Unit
Test Condition
Lumens
φV
R
---
1200
---
lm
IF=900mA
G
---
1800
---
IF=900mA
B
---
450
---
IF=900mA
Dominant Wavelength
λd
R
620

630
nm
IF=900mA
G
520
525
IF=900mA
B
460

470
IF=900mA
Peak Wavelength
λp
R
625
IF=900mA
G
525
IF=900mA
B
465
IF=900mA
Spectral Line Half-Width
Δλ
R
18
nm
IF=900mA
G
35
IF=900mA
B
30
IF=900mA
Forward Voltage
VF
R
20
24
V
IF=900mA
G
30
35
IF=900mA
B
30
35
IF=900mA
Reverse Current
IR
R
uA
VR=5V
G
VR=5V
B
VR=5V
Viewing Angle
2θ1/2
140
deg
IF = 900mA

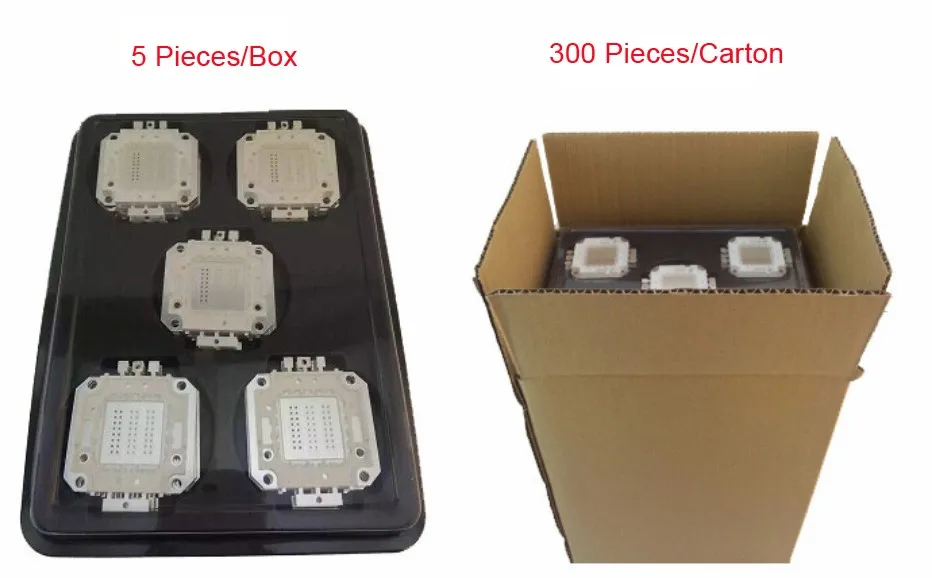

Packing


Certificates
Company Information

Company Profile

Shenzhen RigDoo Optoelectronics Co., Ltd is awarded High-Tech enterprise by China with more than 18 years experience in LED industry. RigDoo specially R&D, manufacture and sales LED, SMD LED, Through Hole LED and High Power COB integrated LED.

For SMD LED, we have package 0402, 0404 (1010), 0603 (1608), 0605 (1615), 0805 (2012), 1206 (3216 3215), 1204 (3210), 3014, 3020, 3528 (1210), 2835, 5050 (5054), 5630 5730, Top View & Side View, in Single Color, Bi-color and RGB Full color, Red, Blue, Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/White, Red/Green, Red/Yellow, Blue/Green, Yellow/Green, RGB, RGBW, RGBWW etc..

For High Power COB integrated LED, we have 1-300W, White, Red, Green, Yellow, Blue, Orange, Bi-Color, RGB etc.

Our factory are with certificates of ISO9001 and ISO14000.
Our products are with certificates of RoHS, CE, SGS, Reach Test etc..
