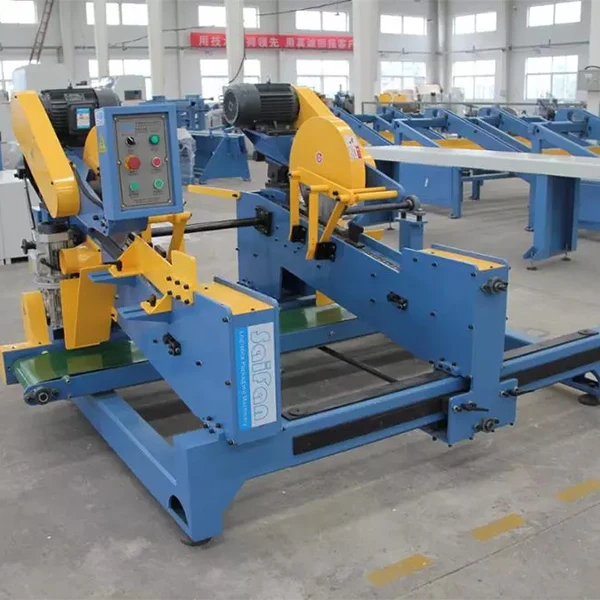

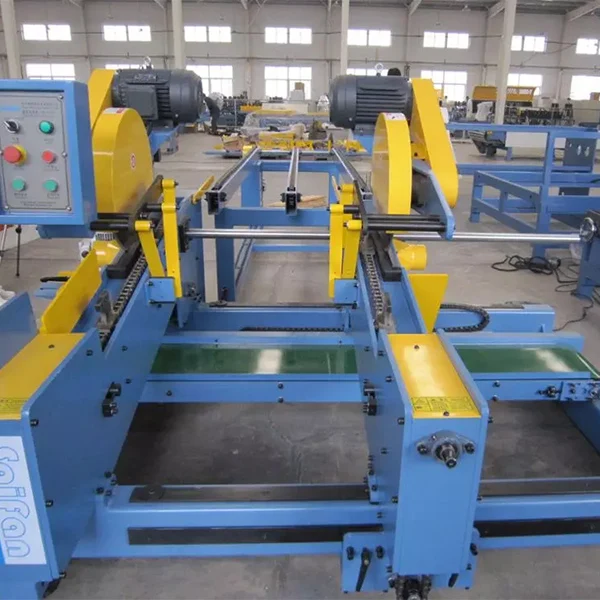

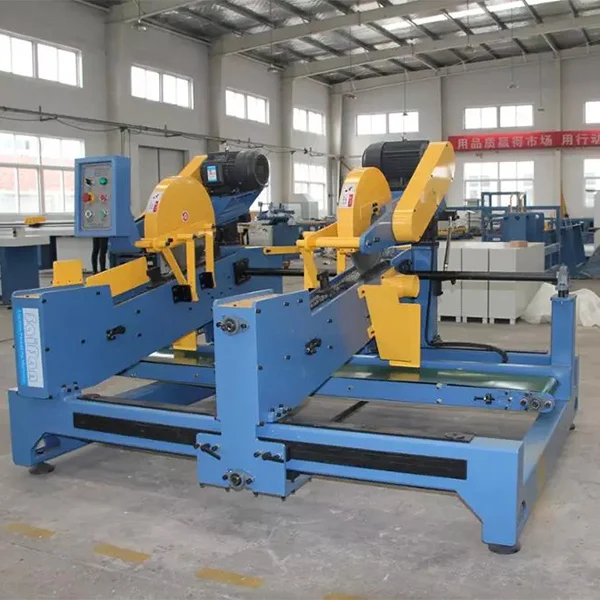

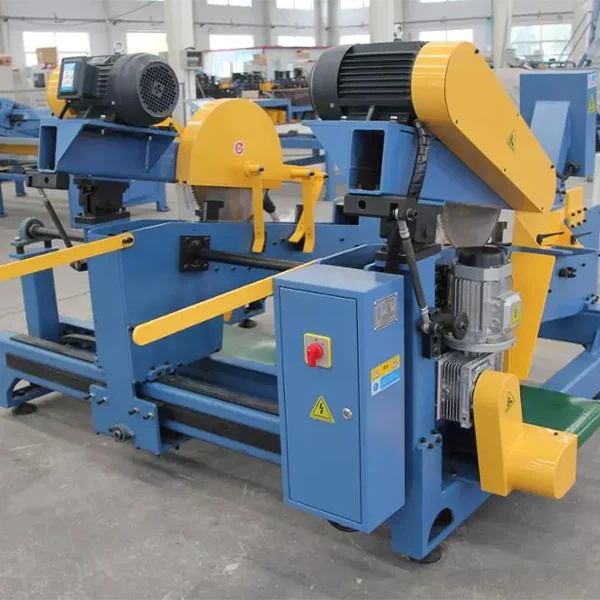

450mm Double Saw Blade Wood Planks Cross Cutting Machine
- Category: >>>
- Supplier: Qingdao Fengkai Machinery And Equipment Co. Ltd.
Share on (60818664679):
Product Overview
Description
Product Description

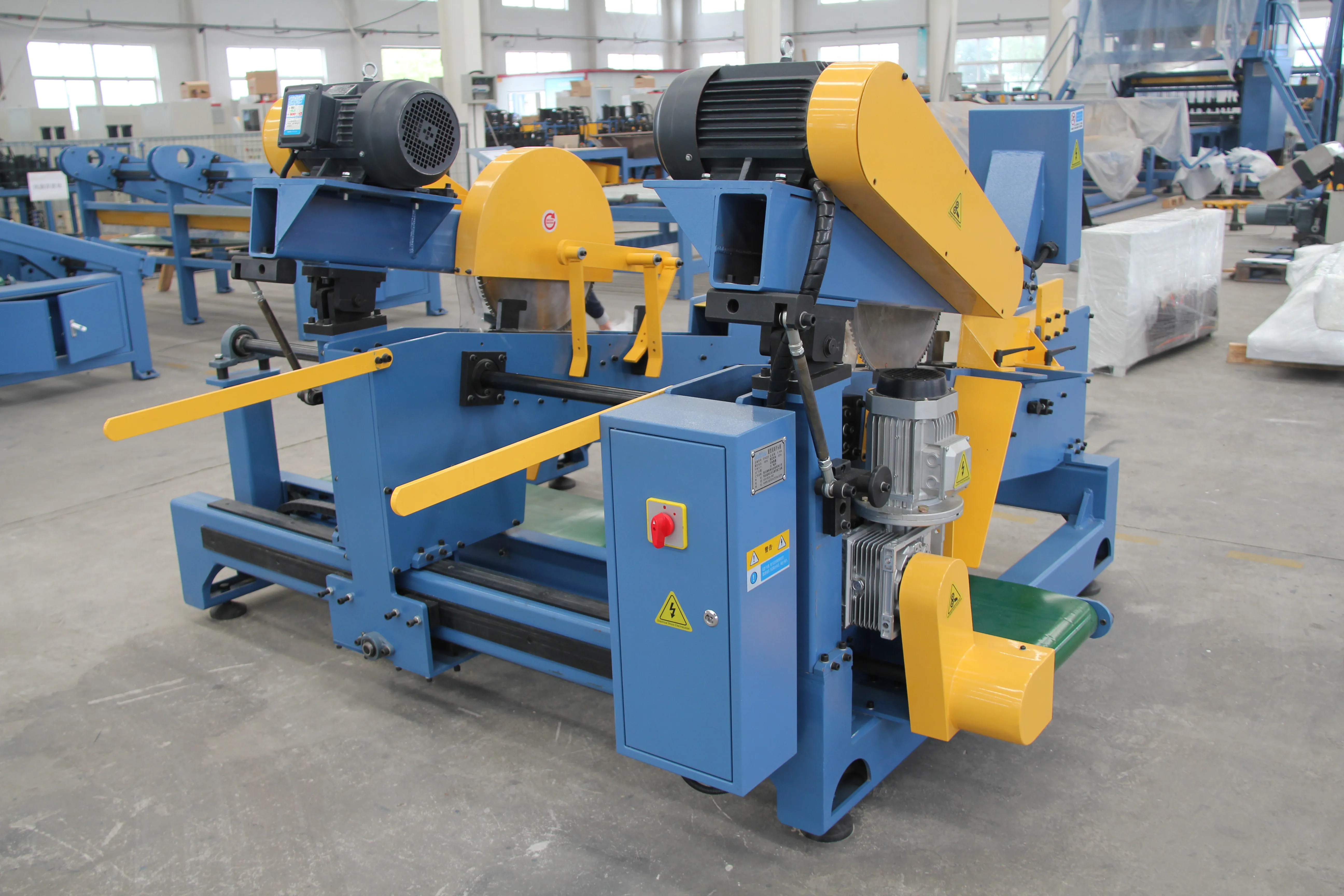

This is automatic double head trim saw, left is fixed, right head movable with hand crank, and with measure tape can know the cutting length.
Product Paramenters
Cutting length | 450-1500mm |
Cut off length | Left max. 70mm, right max. 50mm, total 120mm |
Cutting thickness | Max. 120mm |
Cutting width | Max. 200mm |
Feeding speed | Fixed 20m/min |
Saw blade diameter | Inside Ø30-outside Ø450-120T |
Cutting tolerance | Less than 1mm |
Cutting motor | 4*2kw |
Cutting motor rotation speed | 2830RPM |
Feeding motor | 2.2kw |
Total motor power | 12.2kw |
Voltage | 380v, 3 phase, 50Hz. |
Exhaust duct | Dia. 100mm*2pc |
Machine packing dimension | 2920*2220*1750mm |
Machine weight | 800kg |
Product Details

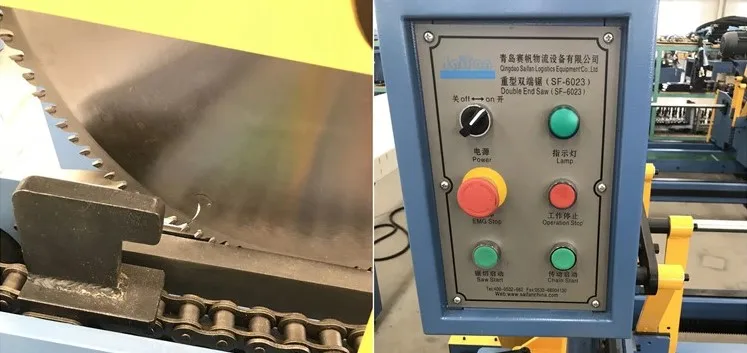

Control panel
Simple control with few buttons
Width adjust hand crank
With measure tape, can see the distance clear
Saw blades
450mm diameter
Saw blade with safety cover
Better for dust collection

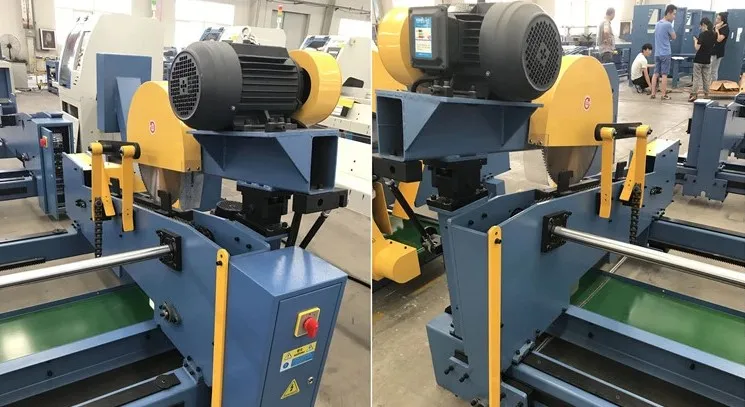

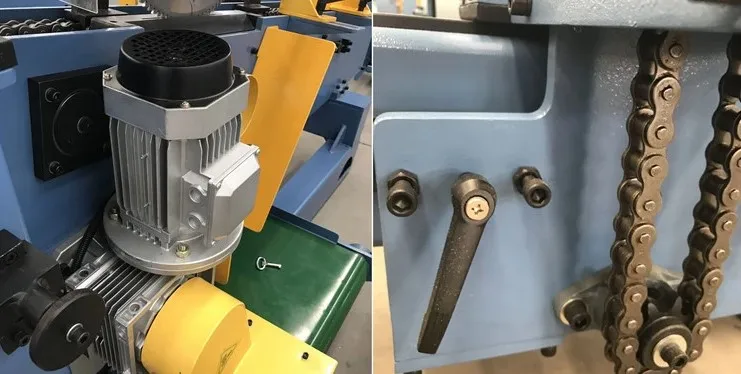

Motor with safety cover
To protect worker and machine
Width measure tape
Can see the cutting width clearly

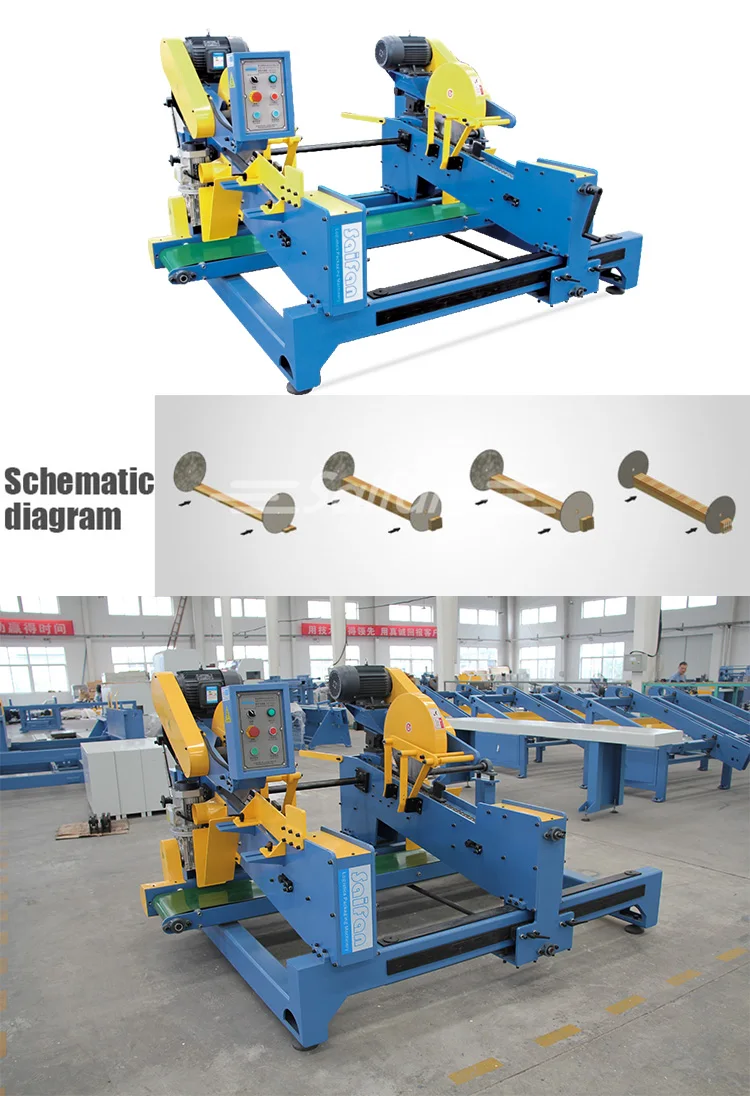

Detailed Images
Company Profile
Our Company：
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless
plywood box.
plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.

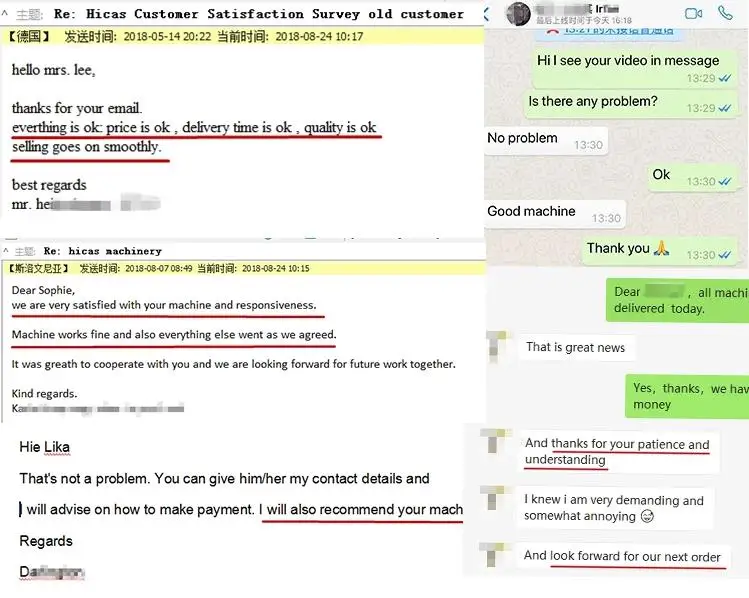

7.Customer and feedback
