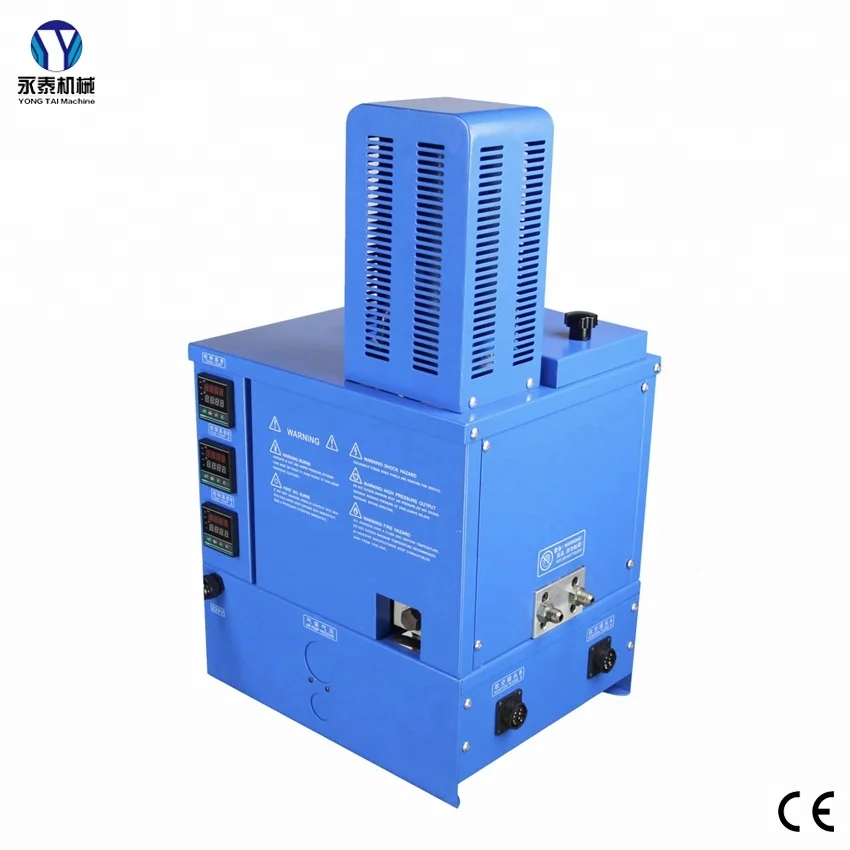

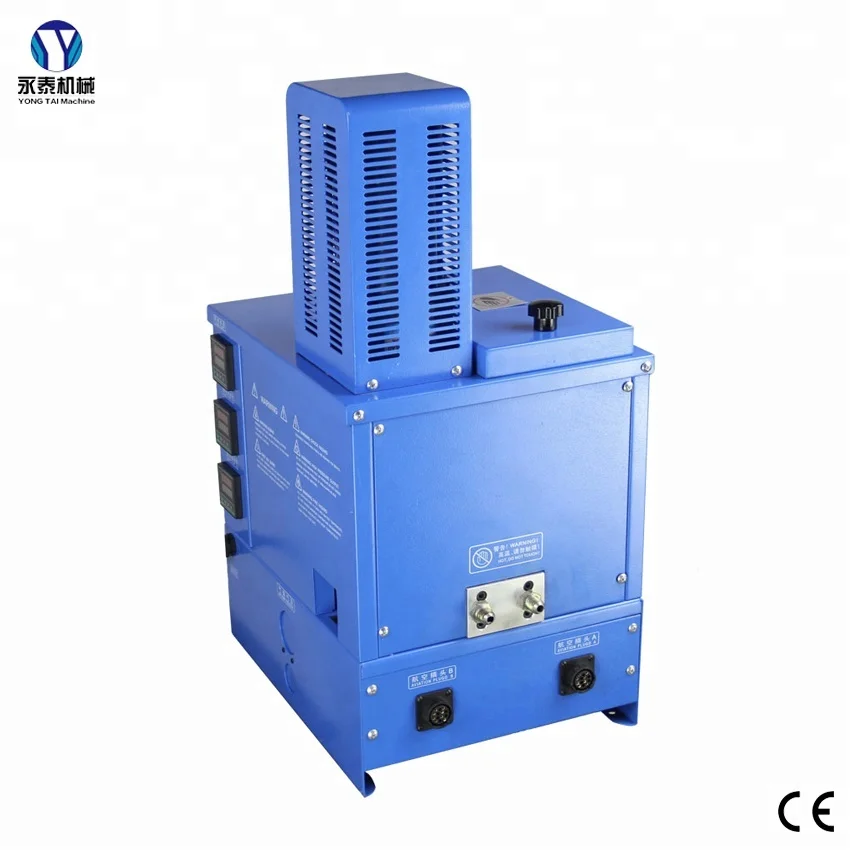

Hot melt glue machine/applicator machine for fridge filling
- Category: >>>
- Supplier: Quanzhou Yongtai Machinery Co. Ltd.
Share on (60818675968):
Product Overview
Description
Product Description
Product Application
1. Glue bucket adopts radial heat, can segmented heating, improve the rate of sol. Glue bucket using teflon coating processing, reduces the glue carbonization rate
2. Using PID computer intelligent temperature control, Uniform heating,
3. Temperature control is accurate not be carbonized, Dual temperature protection system, safe and reliable.
4. Independent suspension gear pump, can stable output a large quantity glue.
5. Precision of automatic flow control valve can ensure the stability of the adhesive(glue), effectively improve the instant adhesive pressure unstable phenomenon.
6. Double-decked gear measurement unitized design that can adjustment two route adhesive pressure return route independently, to solve several gun glue quantity special problem on the same machine, and it can independent accurate output not disturb mutually.
7. The structure of machine adopts modular design, easy to maintenance and repair.
8. Inside with multi-layer stainless steel filter, filter impurities effectively, make output glue wheels.
9. It can select the text, the touchscreen control.
SPECIFICATIONS FOR 5KGS (L) HOT MELT GLUE MACHINE | ||||||||||
ITEM | UNIT | YT-MD502 | YT-MD501 | YT-QB502 | YT-QB501 | |||||
Tank Capacity | Liter | 5.0 | 5.0 | 5.0 | 5.0 | |||||
Max. melting | KG\\HOUR | 7.0 | 7.0 | 7.0 | 7.0 | |||||
Max. Operation Temp. | ℃ | 200 | 200 | 200 | 200 | |||||
Melt Power | Watt | 2200 | 2200 | 2200 | 2200 | |||||
Motor power | Watt | 90 | 90 | |||||||
AIR PRESSUER | KG/CM² | 4-6 | 4-6 | 4-6 | 4-6 | |||||
DIMENSION: L×W×H | MM | 420*380*640 | 420*380*640 | 420*380*640 | 420*380*640 | |||||
WEIGHT | KG | 35 | 35 | 35 | 35 | |||||
MAX.CPS | CPS | 30,000 | 30,000 | 25,000 | 25,000 | |||||
Power Requirement | Single Phase (1Φ), 220 V | |||||||||
HOSE OUTPUT | PCS | 2 | 1 | 2 | 1 | |||||
Pump Type | Gear pump | Gear pump | Piston pump | Piston pump | ||||||
Main Features
This machine is mainly used in: carton packaging, medical and health supplies, car lights, car interiors, filter, toys, arts and crafts. also the machine with the hot melt laminating machine and coating machine, is widely used in the diaper, sanitary towel, package, shoes, furniture , tapes, labels, stickers and the mattress production line etc.
Certifications

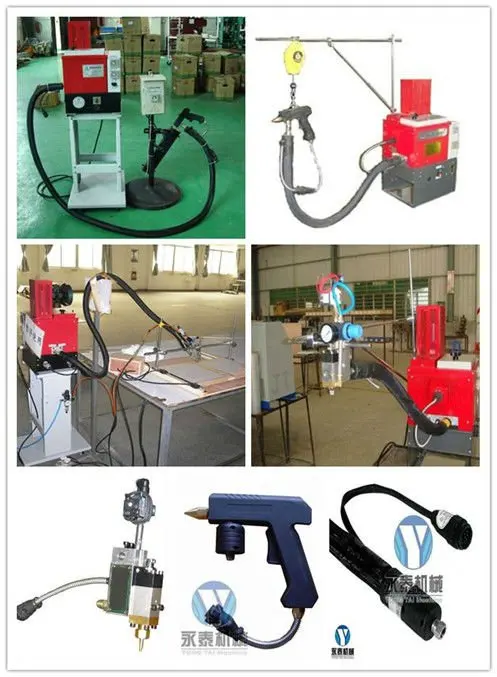

Detailed Images
Machine Parts

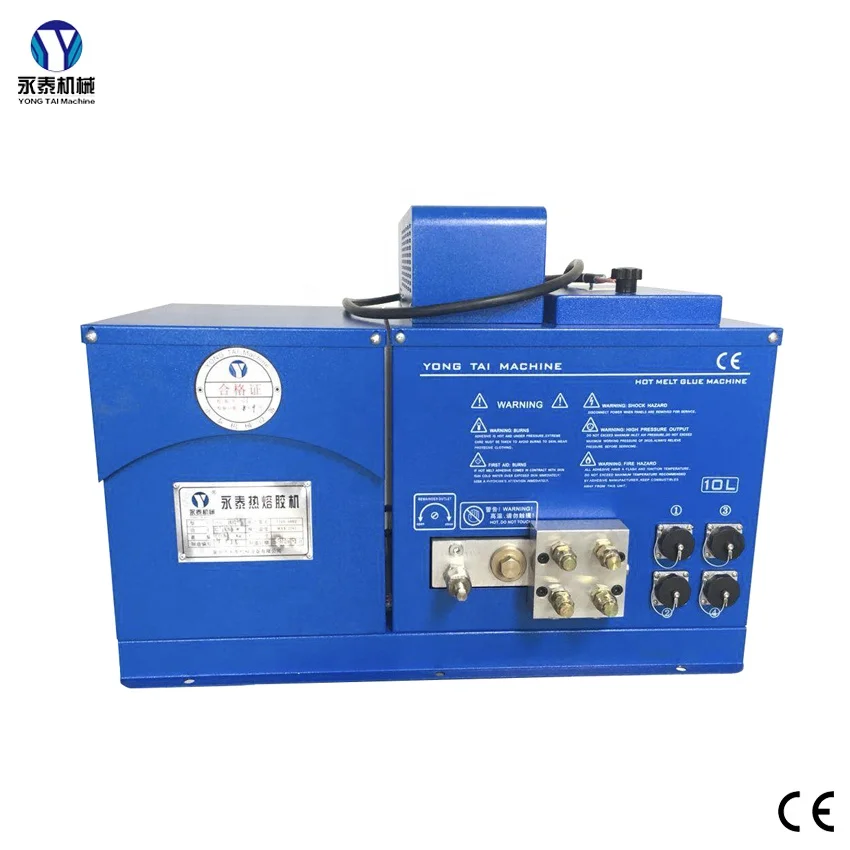

Name: YT-MD501
Brand: YONGTAI MACHINE
Original: FUJIAN,CHINA
Main Features
Name: YT-M10P2
Brand: YONGTAI MACHINE
Original: FUJIAN,CHINA
Machine Parts

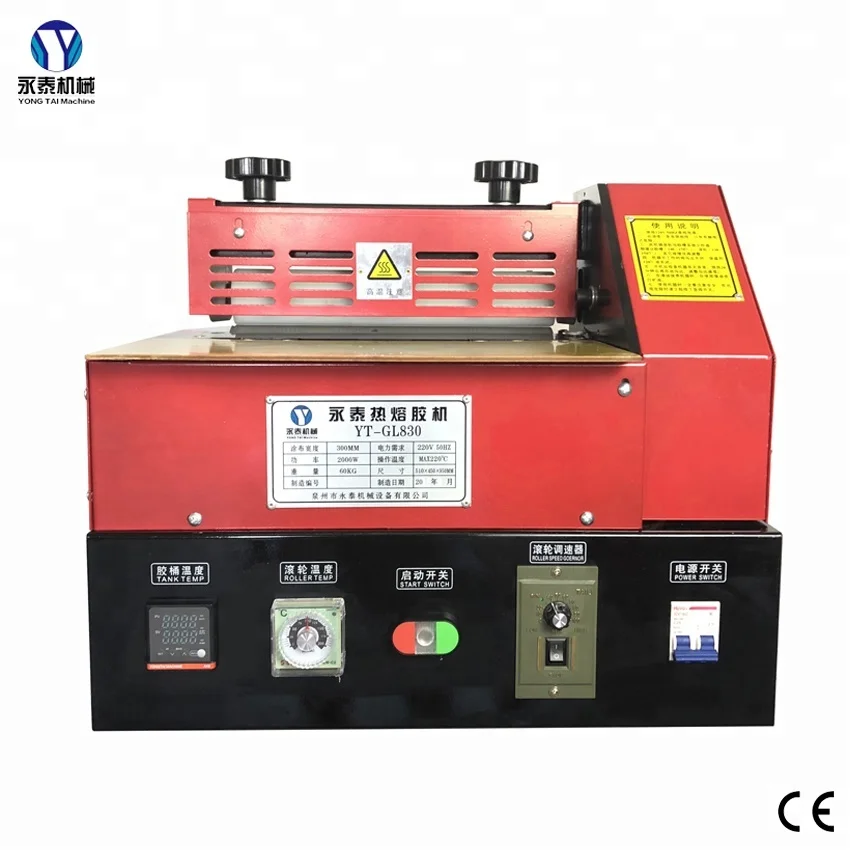

Name: YT-GL830
Brand: YONGTAI MACHINE
Original: FUJIAN,CHINA
Main Features
Name:YT-QB202
Brand: YONGTAI MACHINE
Original: FUJIAN,CHINA
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 410(L) * 360(W) * 690 (D) | |
Weight | 45GS | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
