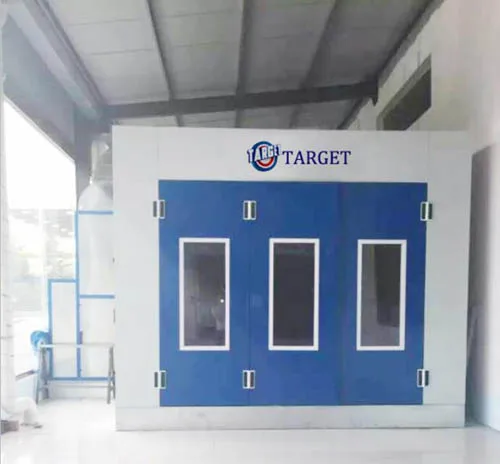

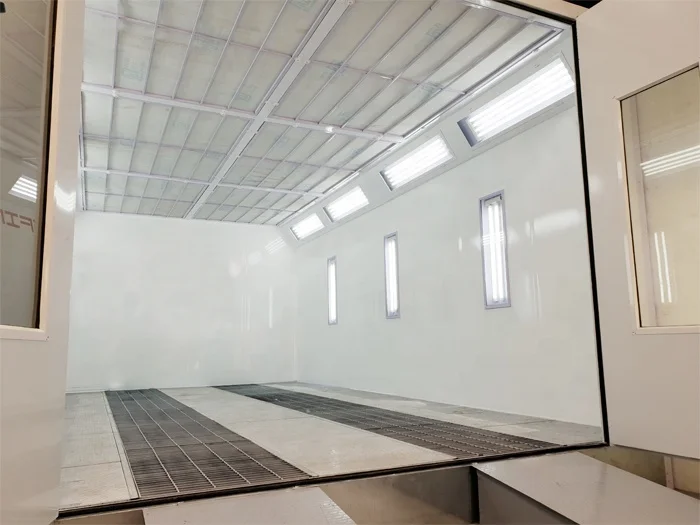

Car Spray Booths paint booth TG 60B Auto body painting and baking spray booth
- Category: >>>
- Supplier: Yantai Target Electromechanical Equipment Co. Ltd.
Share on (60818756434):
Product Overview
Description
Product Description

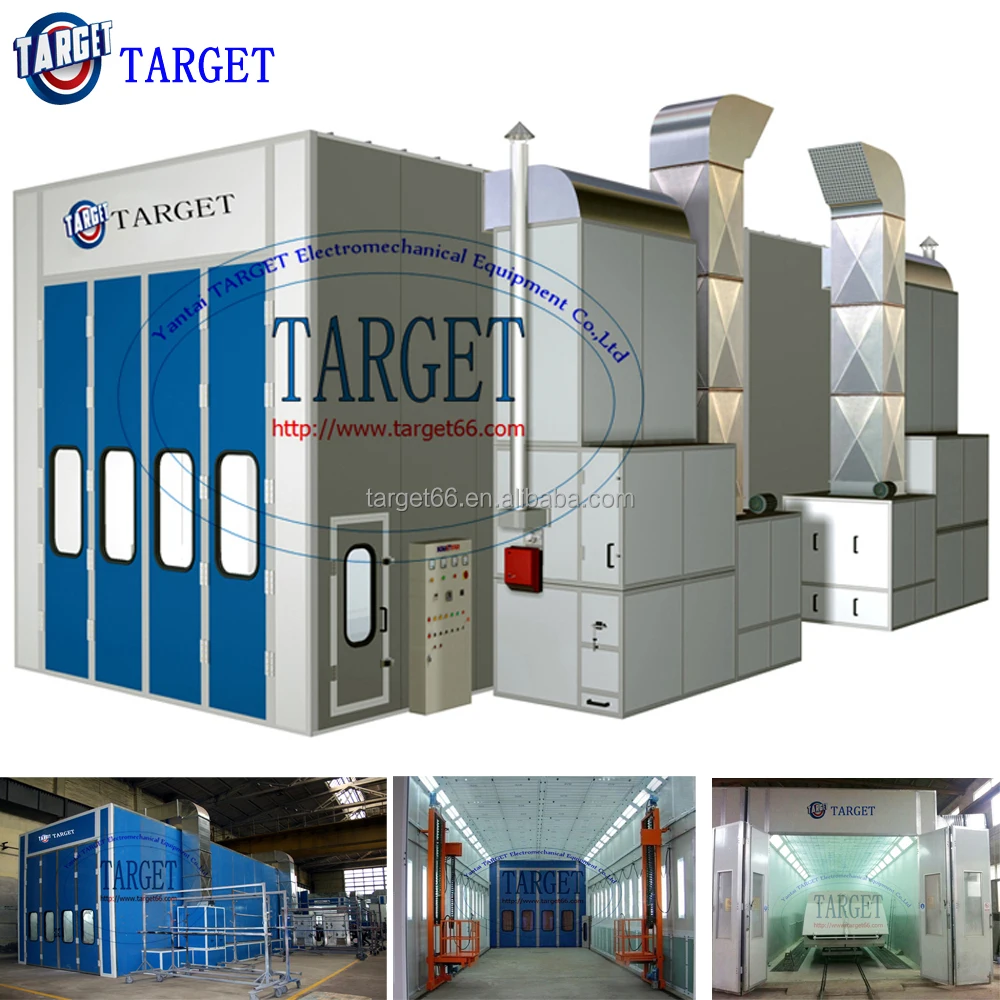

TG-60B Top Quality Diesel Burner Spray Booth | ||||||
Outside dimension (mm)) | 7000*5400*3500 (LxWxH) | Front door(mm) | 3000*2700(W×H) | |||
Inside dimension (mm) | 6900*3900*2800(LxWxH) | Total Power(Kw) | 16 Kw , Noise < 80db | |||
Wallboard | EPS (epispastics polystyrene) colorful steel skin panel, ,50mm thick,steel 0.476mm thick, compound construction, anti-flame and heat-insulation, galvanized steel roof panel. | |||||
Basement | 300mm depth ,Galvanized steel sheet and square steel pipe assembling, 2 rows of grid plates made by flat bar and round steel, 3 rows of diamond plates, galvanized. 2 ramps, external setting, 750 x 2000 mm ( W * L )/pc | |||||
Motor fan | Air Inlet Motor Fan : Blower Capacity: 27000m³/h , 2 sets*4 Kw centrifugal fan Air outlet Motor Fan : Blower Capacity: 17000m³/h , 1 set*5.5 Kw centrifugal fan | |||||
Burner | Italy Riello G20 Diesel Burner, 200000Kcal/h. SUS304 Stainless steel heat exchanger ,argon arc welding. Max Temp:80.C, | |||||
Filter system | Primary filter : Can Capture Granules Larger than 10μm Ceiling filter :600g high efficiency filter, can Capture Granules Bigger than 4μm Floor filter: fiberglass filter,exhaust activated carbon filter, Filtering rate>98% | |||||

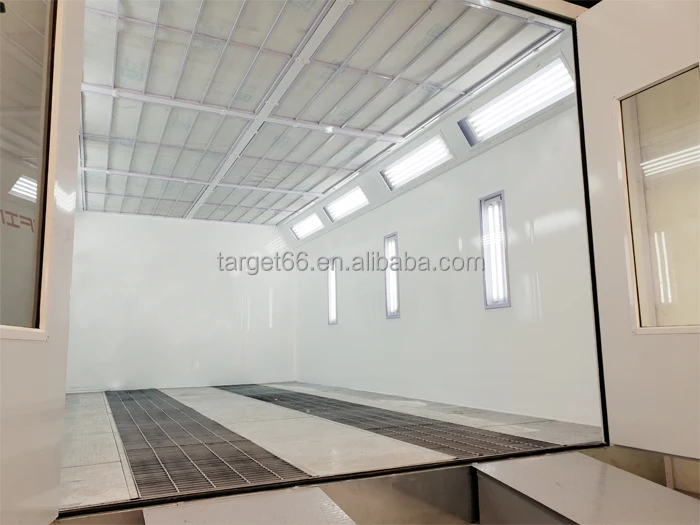

Lighting system | Ceiling light : 8Units×4Pcs=32Pcs×18W 1200LUX ,LED light Side light: 6Units×2Pcs=12Pcs×18W 1200LUX ,LED light | |||||
Control system | Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop. All motors are full voltage start. | |||||
Power Supply | 220/380/400/415V , 3 Phase, 50/60HZ | |||||

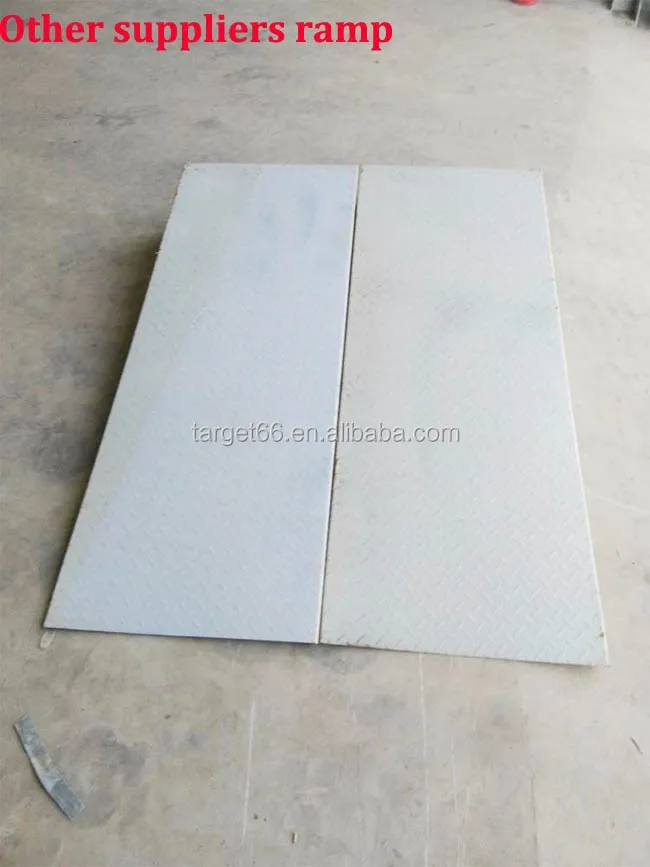

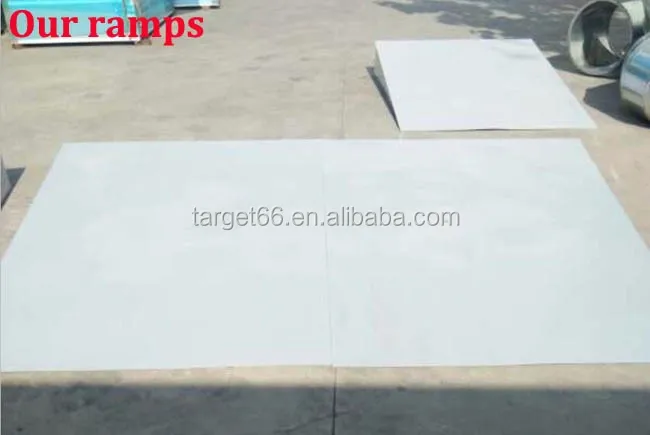

1. Our Ramps, more width and strong than others

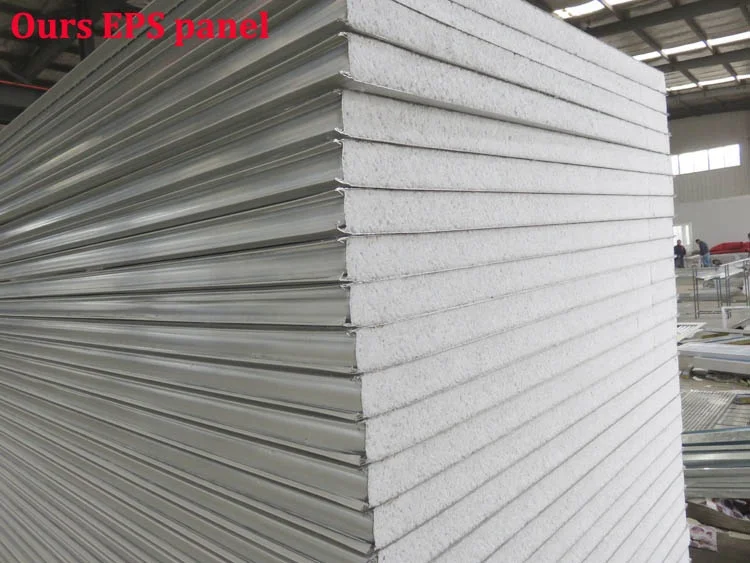

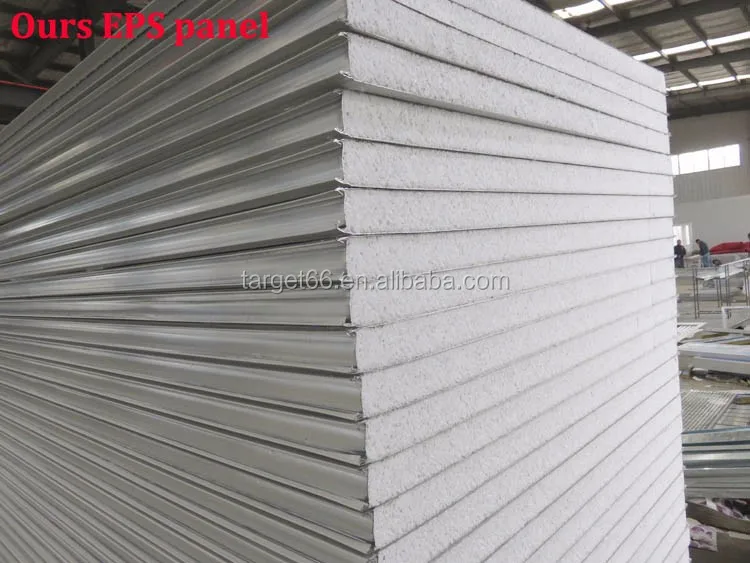

2. EPS panel density is 12kg/m³,Iron covered, the whole board covered with protective film.

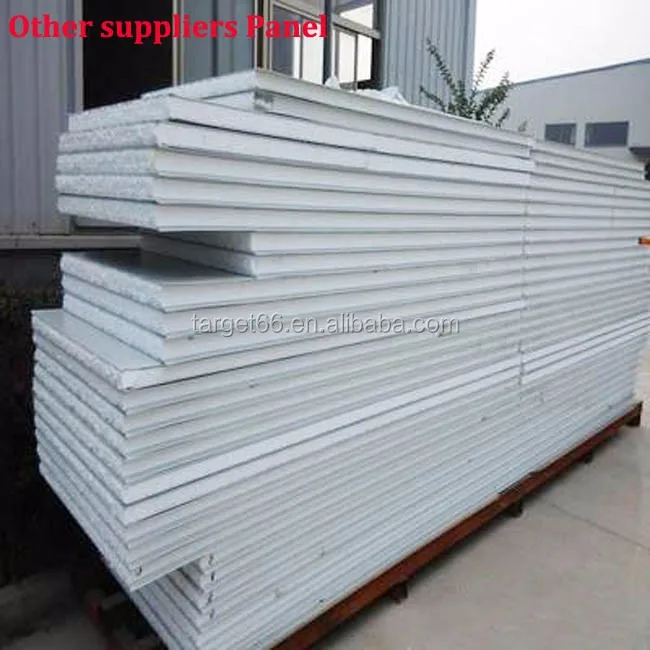

Other suppliers density is 8kg/m³,no Iron covered, no covered with protective film.

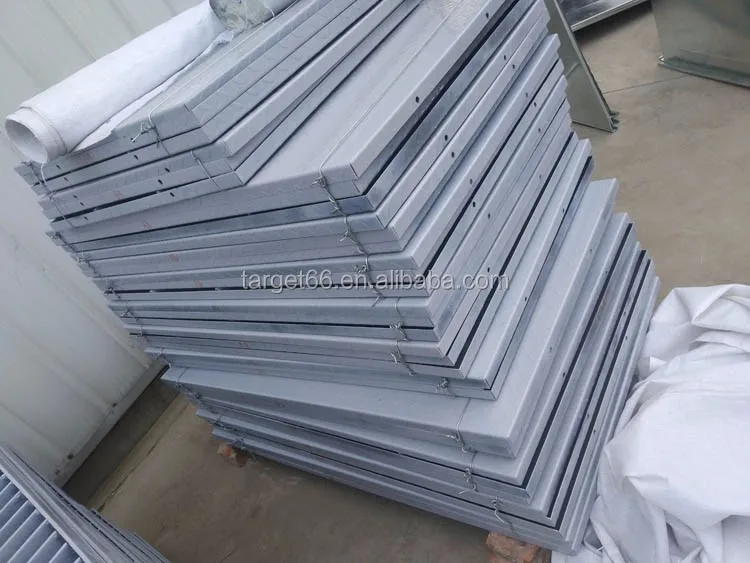

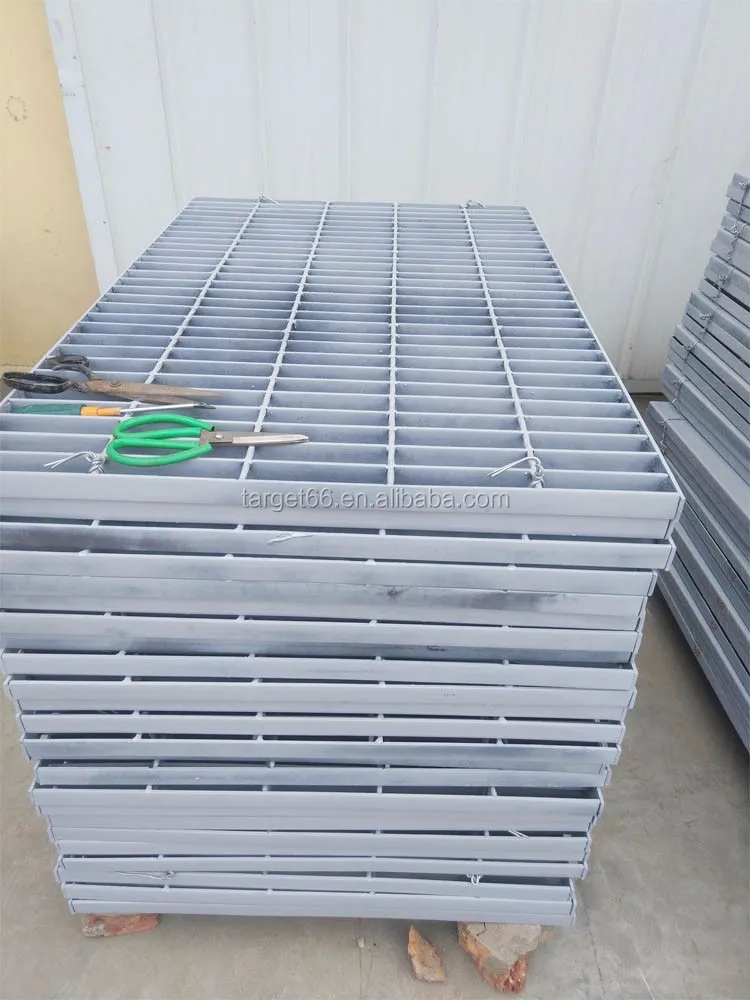

3. Strong grid with powder coating

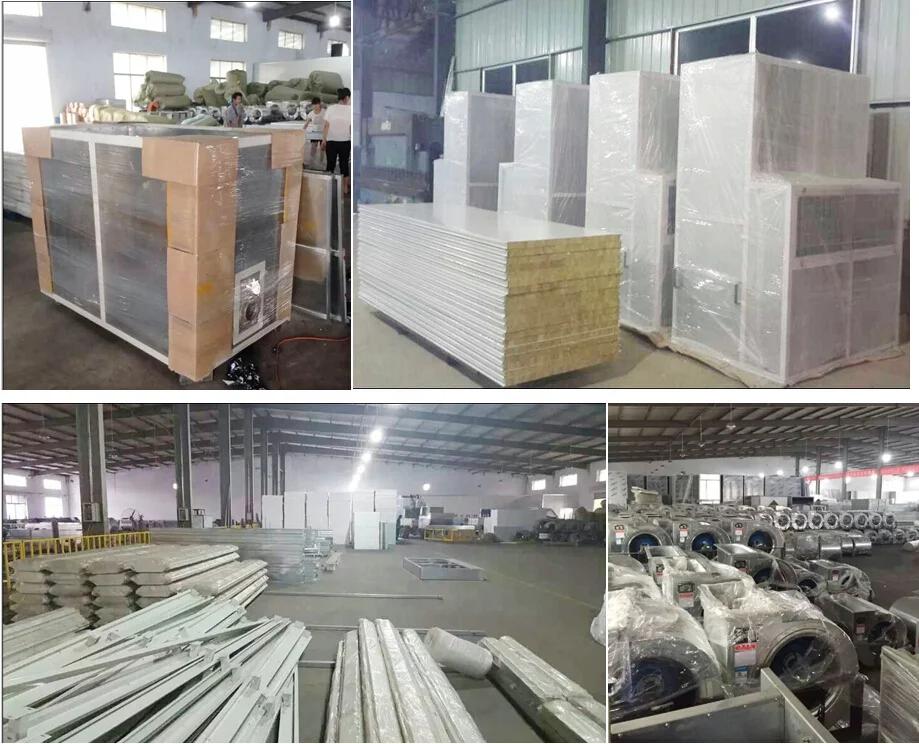

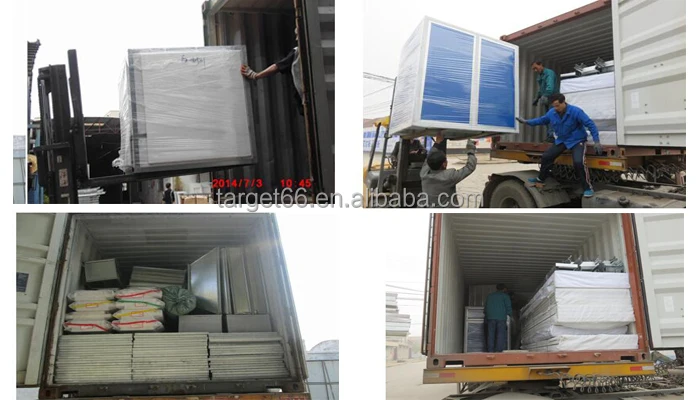

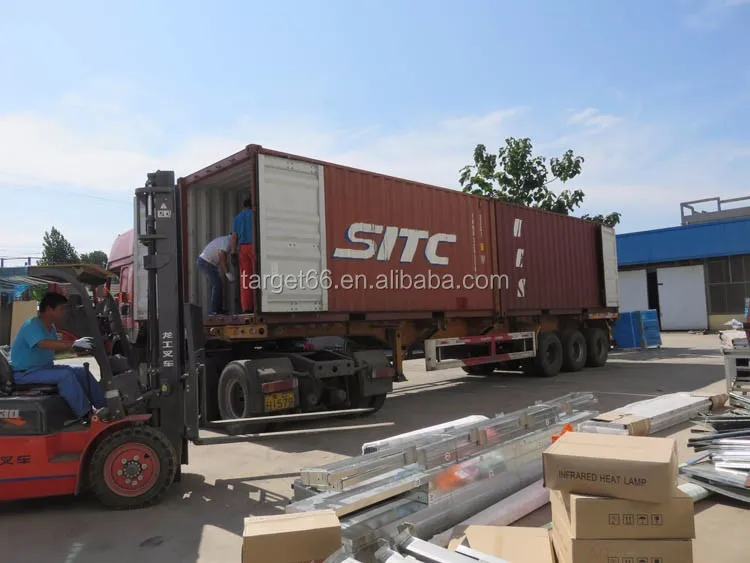

4. Package & Shipping
Main Features:
1) 2 years warranty
2) Customize service: The color and size can be cusomized .
3) 15 years experienced working team
4) Life long technical support service
5) OEM ,ODM sevice

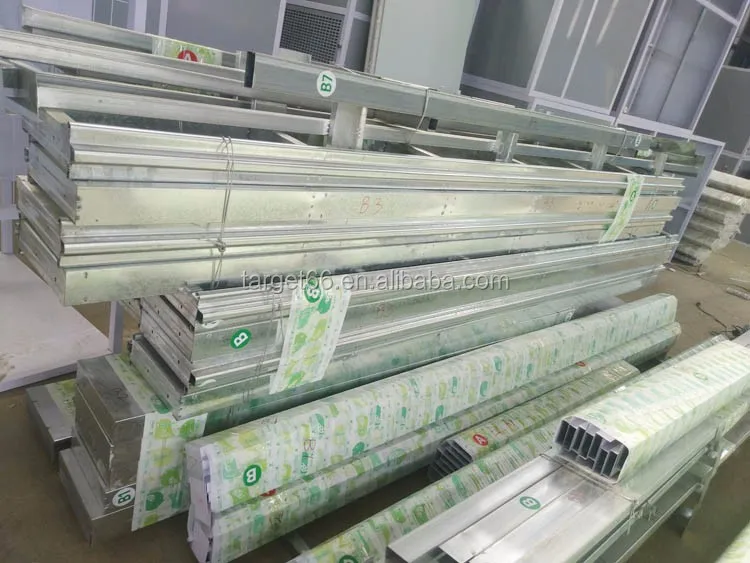

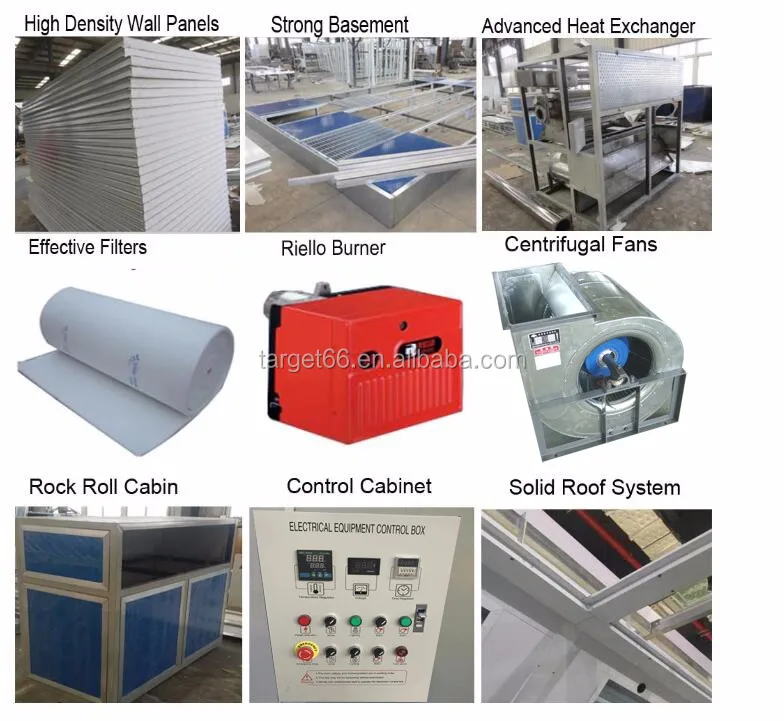

Partial details

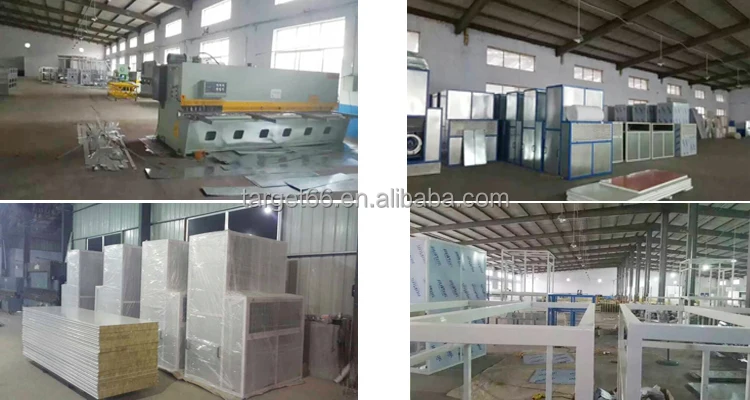

Company Information
Yantai TARGET Electromechanical Equipment Co.,Ltd

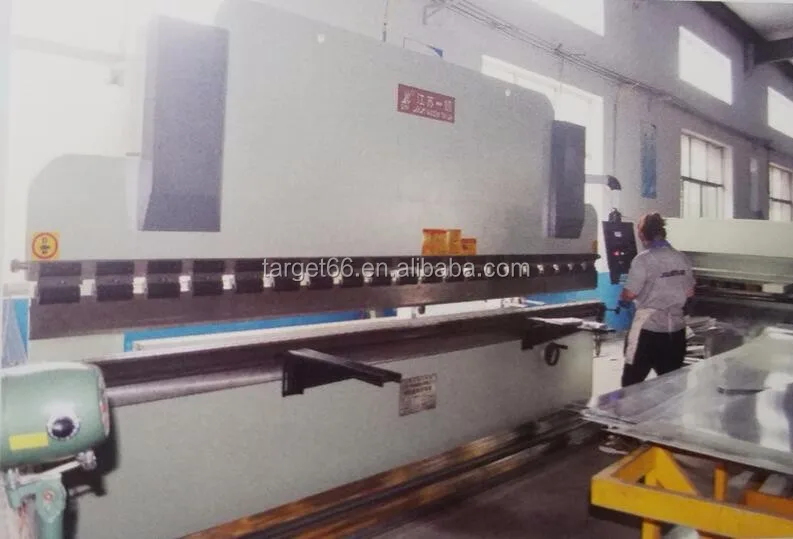

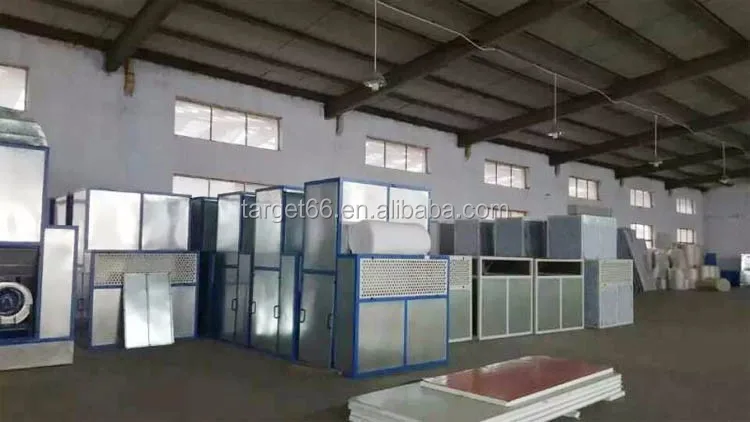

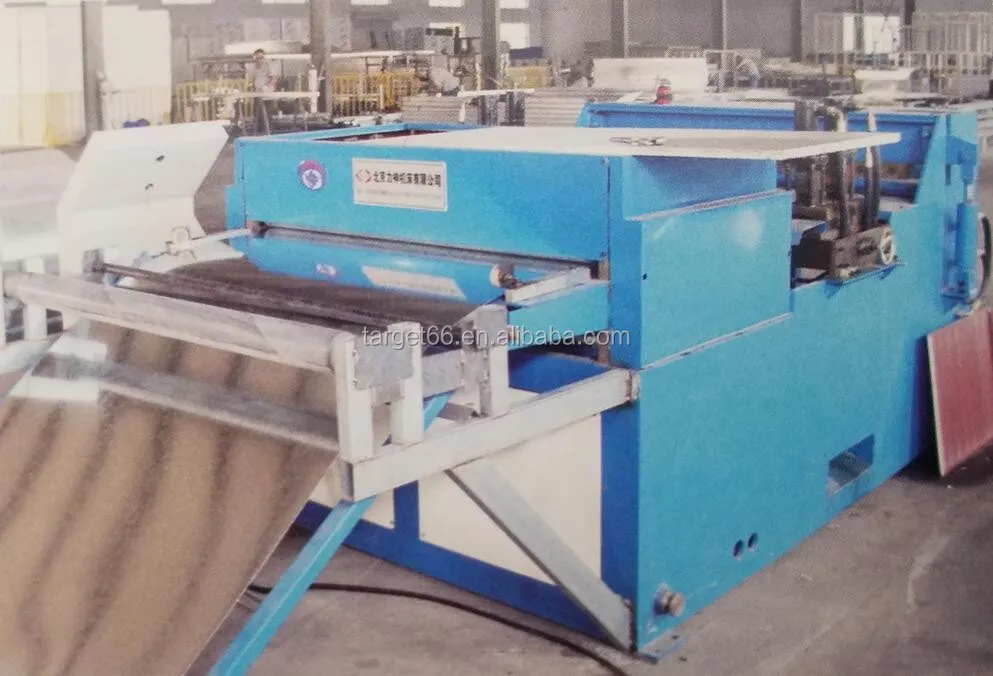

As experienced factory of spray booths,TARGET has been in this area for more than 15 years,Our factory covers an area of more than 2,500 squares metters . Exporting our paint booths to Australia,America,UK,Asia,Africa,Sri Lanka, Thailand, Singapore, Ireland, Korea and many other Europe countries.
Our automotive paint booths are constructed of quality materials and manufactured to exacting standards,designed for extended service and meet high production requirements while providing the best environment for a quality finish.
We also can customize the color , size and other details as your requirement .
Our Service
Why Choose TARGET Equipment :
1. Easy way to submit the order , you can submit the order list in our website , after we get the list, we will issue the PI to you to save your time !
2. Warranty. All TARGET Equipment have two years warranty. Longlife time service. 15 years servce team.
3. Delivery time . Standard equipment 7 days , Truck /Bus equipment need customize,about 15--20 days after confirm the order
4. Payment term. T/T, L/C , Third-party credit insurance , etc.
5. Installation , we will supply full 3D drawing, CD after confirm the order ,that will easy for you to install the whole equipment .
6. Oversea service will supply if need.
