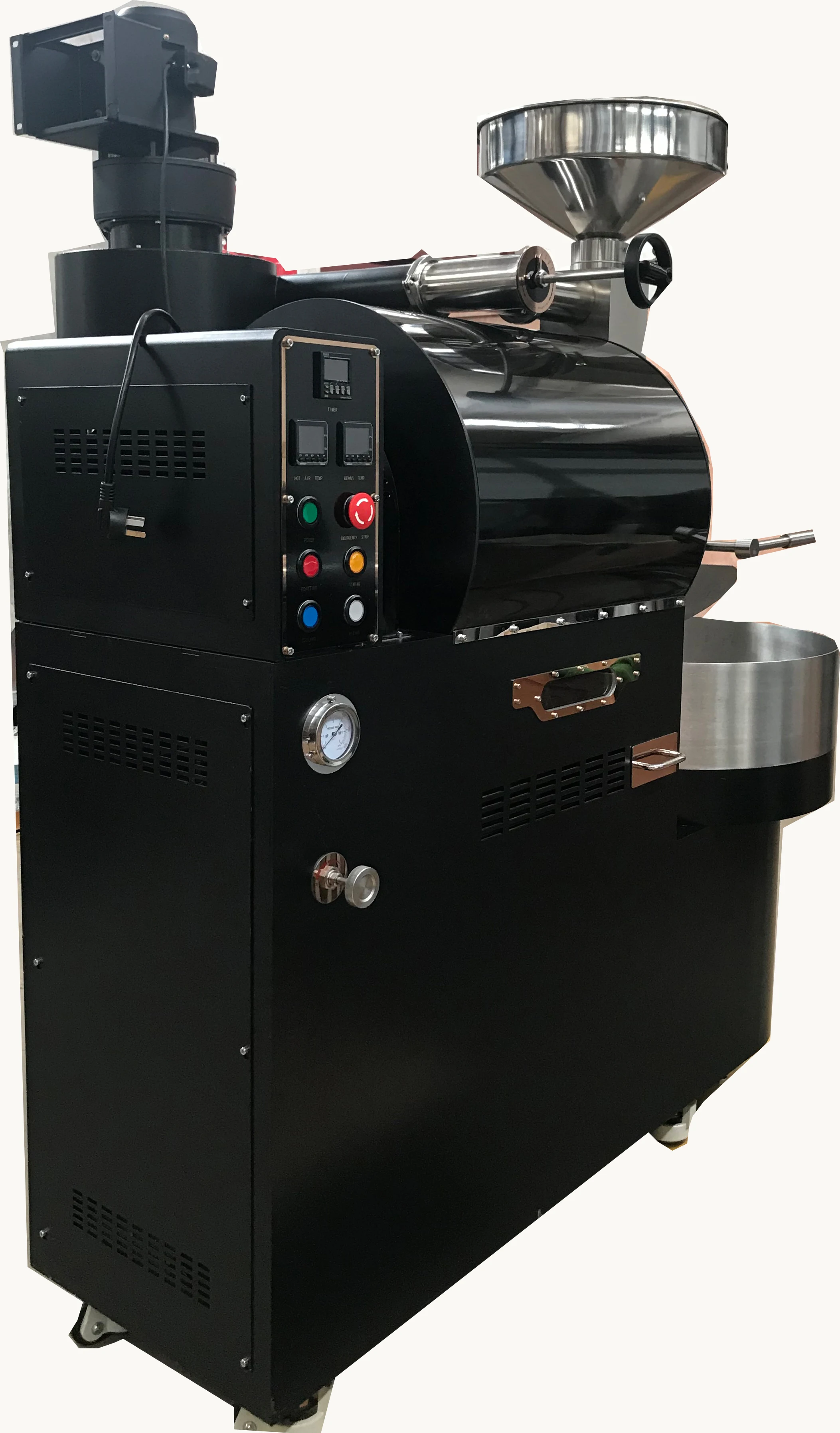

industrial coffee roasting machine affordable coffee roaster coffee roasting equipment for large medium cafes and farms

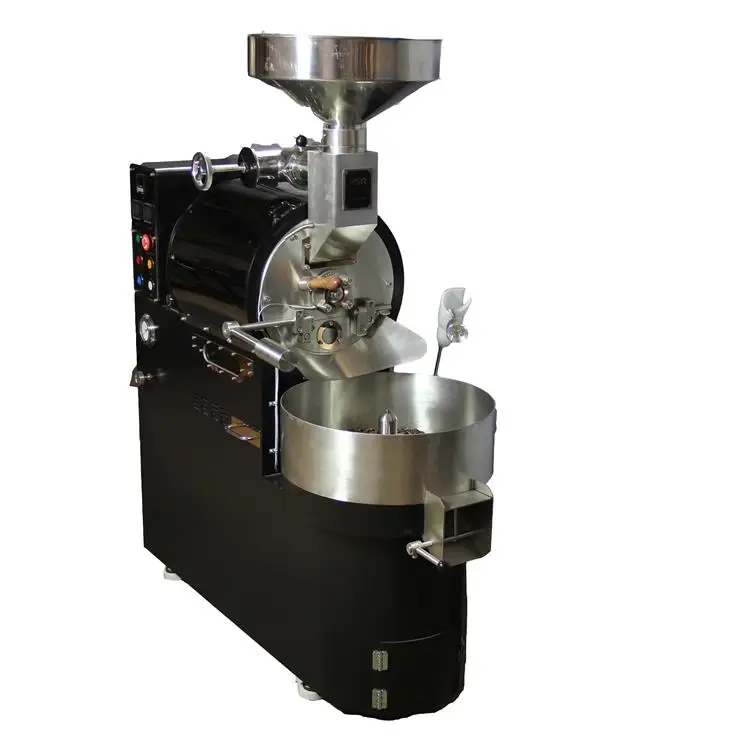

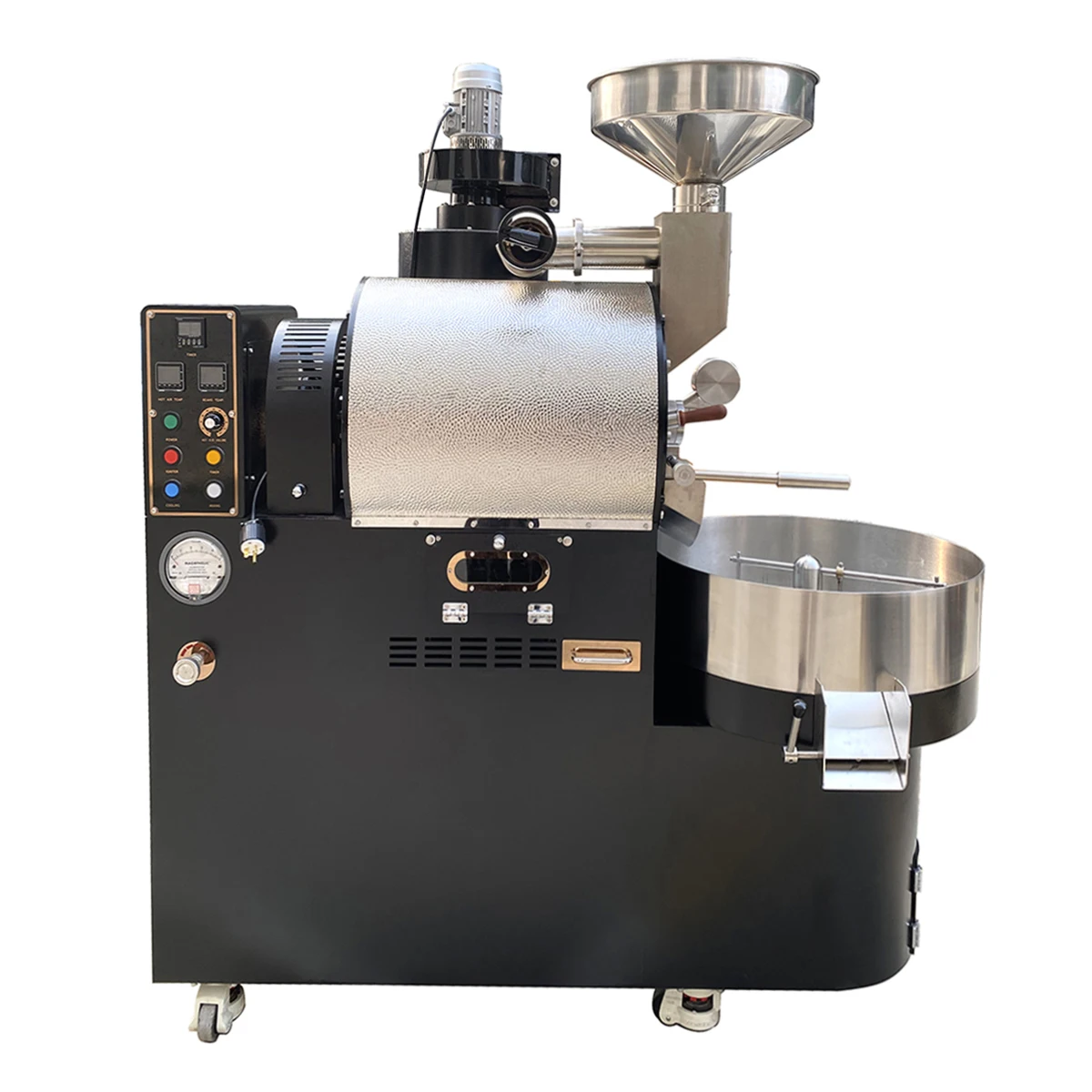

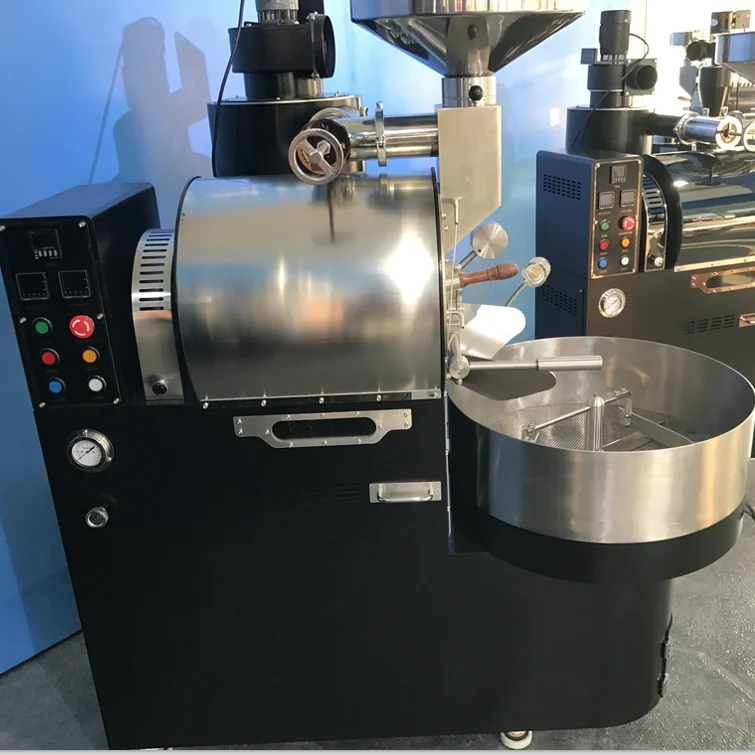

WK-6kg is available in gas type only, designed by single-layer or double-walled 304 stainless steel drum (options), utilize the enough thermal radiation and hot air to deliver the even roast. WK series 6 kg solid drum coffee roasting equipment provides you with a higher level of efficiency and consistency roasting for many years to come.

Half direct fire and half hot air type coffee roaster, maximum heat utilization, 15-18 minutes can finish the dark roast, manual and electric hot air volume adjustments, built in cooling fan motor plus cooling mixing to lock the aroma inside the beans by rapid cooling within 2 minute.

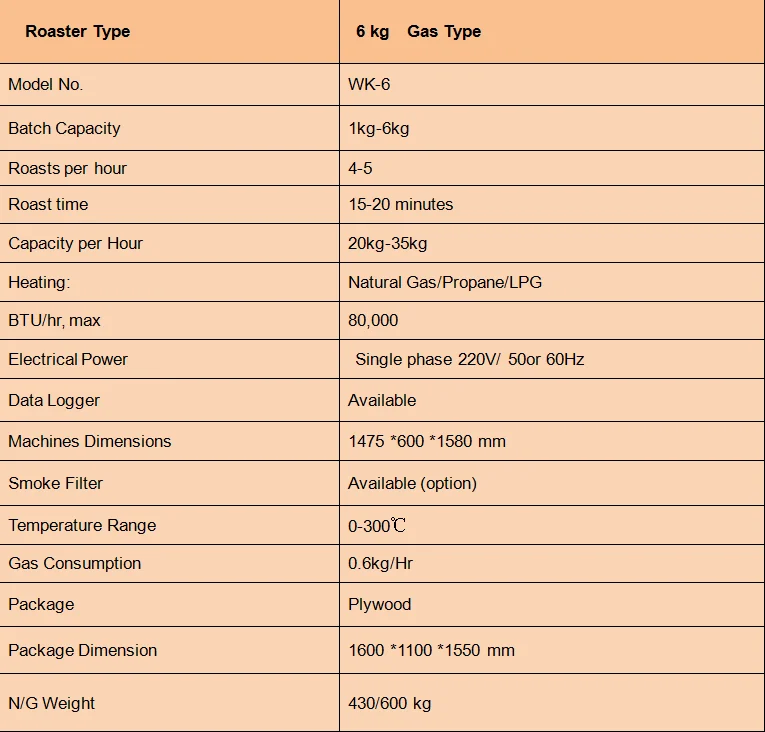

Technical Specifications

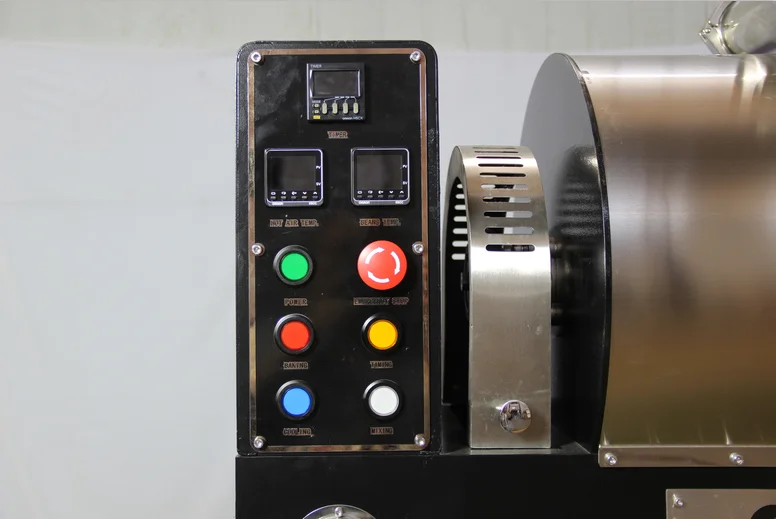

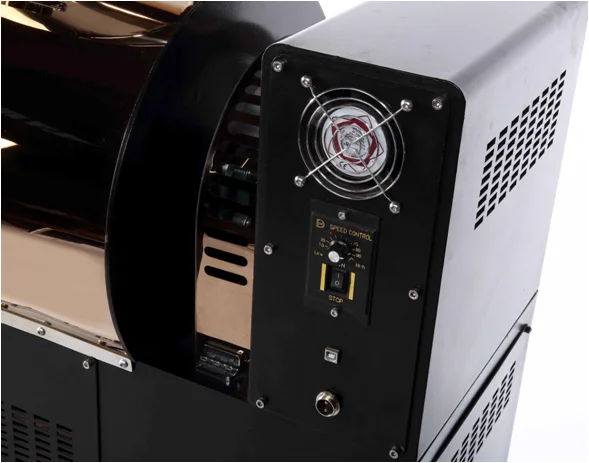

WK series bigger capacity commercial coffee roasting equipment (3 kg and up) produces more heats over small capacity roasters, so we put the electric box with control panel in back of the machine which is far away from the burner room to avoid overheats to electric control box, that ensures long service life of electrics. Bigger Siemens industrial buttons with lamps give you the better operation experience.

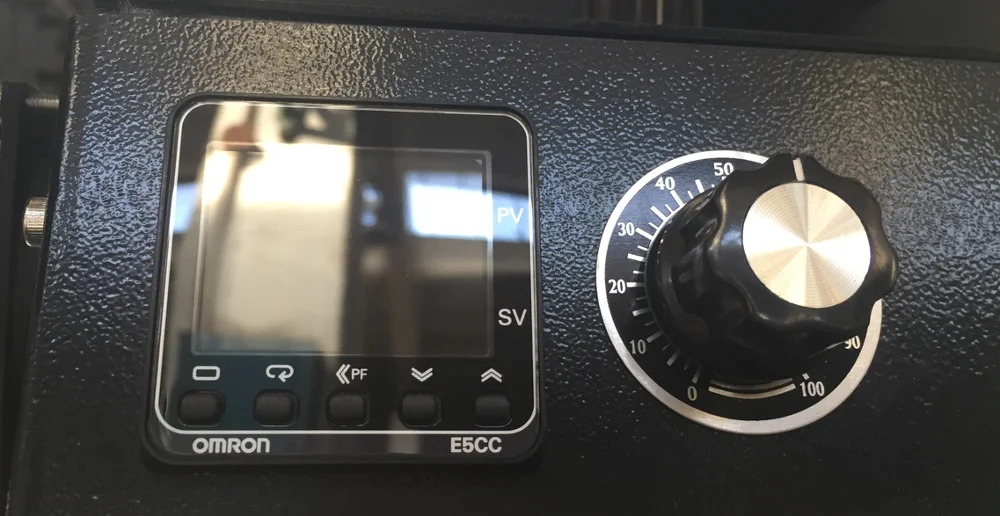

1, OMRON brand controllers, the temperature display is more sensitive and accurate.
2, Equipped with an OMRON timer for easy viewing of baking time.

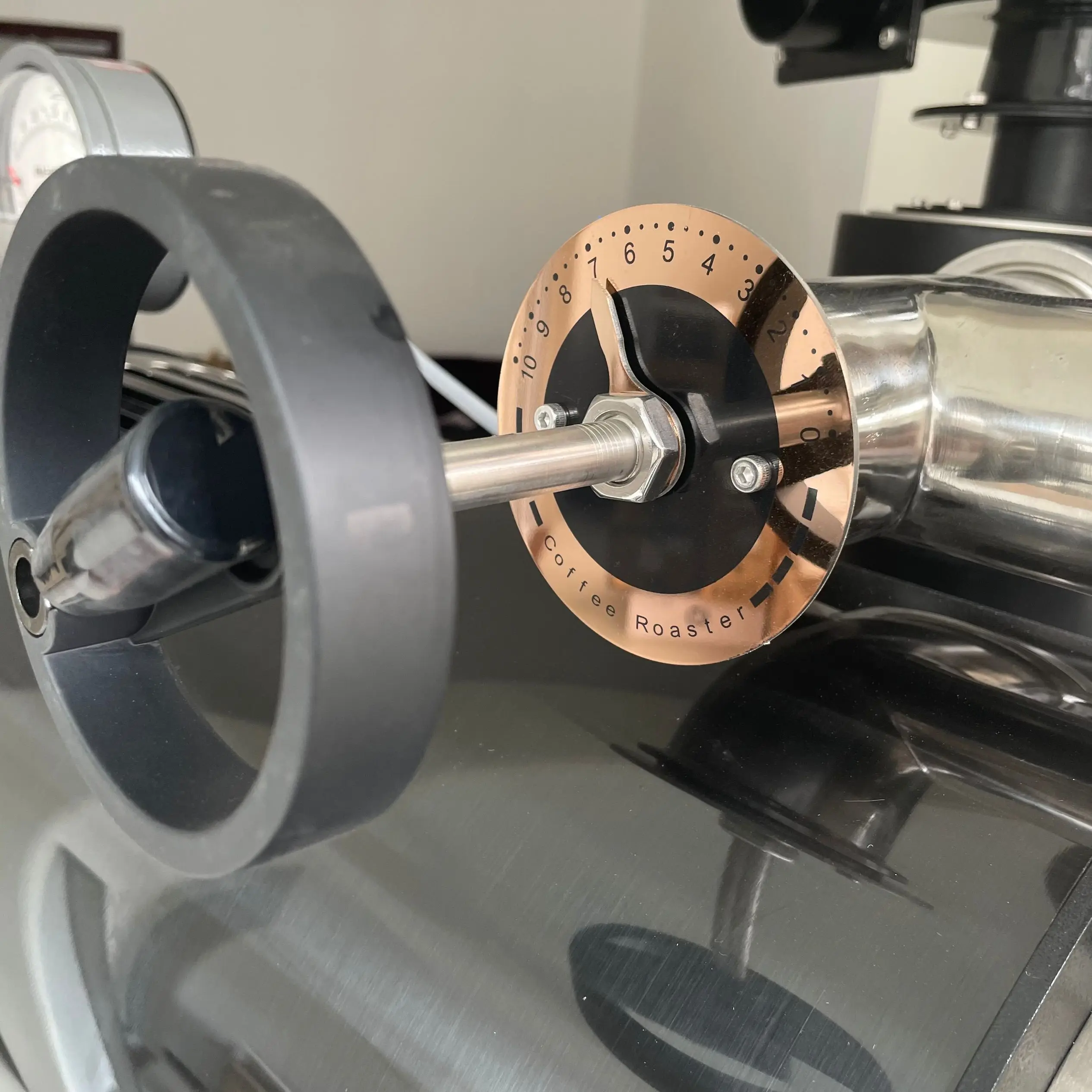

3, Electronic damper control, through the knob to change the speed of the exhaust motor, thus changing the size of the exhaust, truly achieve the ultimate control.
4, With Siemens APT industrial button, the mechanical life is up to 1 million times. Pressing out 5 different colors of light is not only beautiful, but also easier to operate.
5, The large flame observation window allows the situation in the roasting chamber to be seen at a glance.
6, The sampling handle is made of fine rosewood and artificial mechanics to make your grip more comfortable.

Drum motor is adjustable, the range is 0~100 rpm.
The machine is equipped with a USB interface for communication with the computer. Artisan software is perfectly compatible
Water proof aviation socket for smoke exhaust motor connection.

Roasting Drum: It is made of 304 food level staniless steel and mixing blades attaches

inside the drum by TIG welding, clean and low noise.

Gas Burner: It adopts high-efficiency energy-saving burner, which is more powerful and more economical to use. The maximum heating rate is 20C/ min to fit the changing roasting needs.
Insulation Layer: The roaster has a 30mm thick insulation layer to minimize the loss of temperature.

Listen to the sounds of first and second crack

Front bearing is full stainless steel type which avoid any  possible crack, large volume sampler spoon and roasting room glass window help you check your roasting level by every second.   Machine runs very quiet, you can clearly hear the sounds of the first and second cracks, we are sure you will you love your roasts with WK coffee roasters.

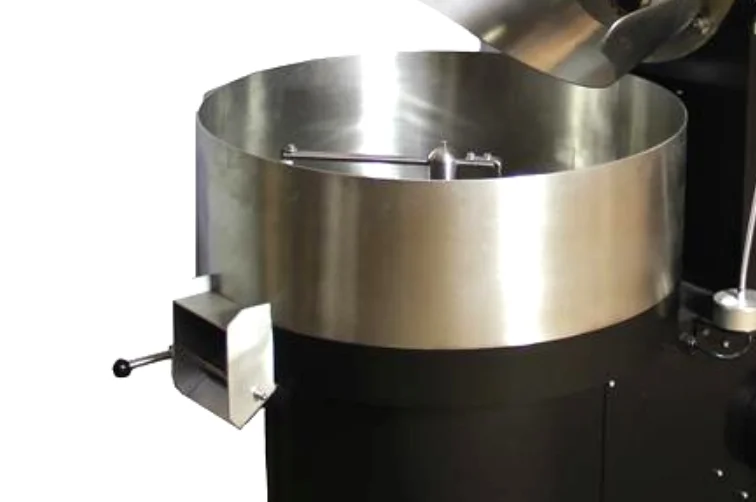

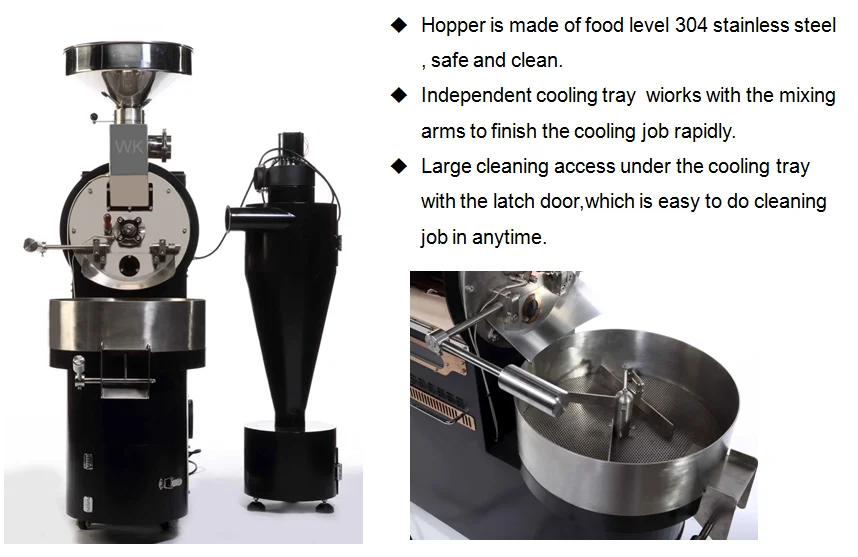

Cooling Tray and Cleaning Access

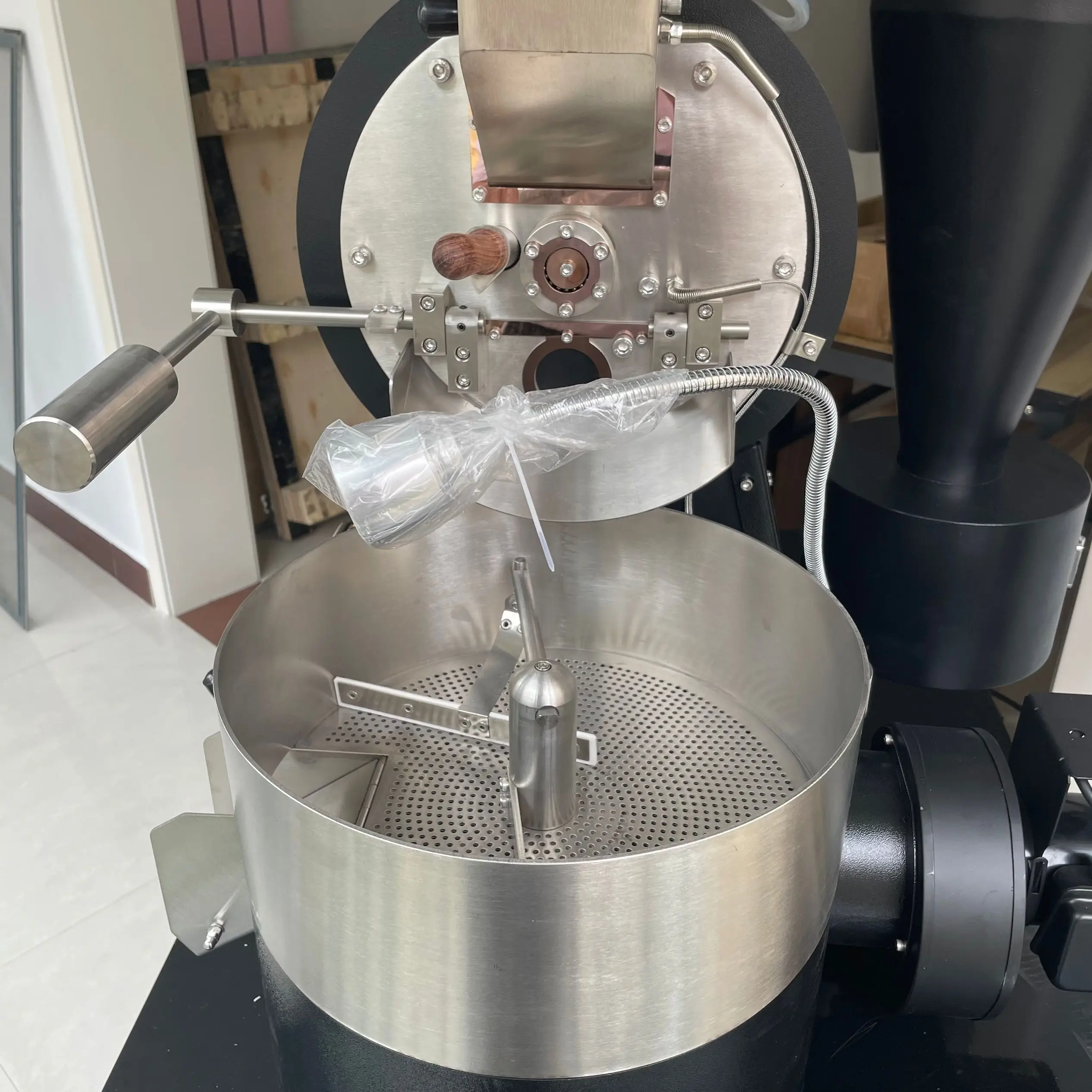

Cooling tray works separately from the main unit,  you can do roast and cooling job at the same time.  Cooling tray powerful motor works with mixers for cooling down the roasted beans rapidly.

The cleaning access is on bottom of the cooling tray with a latch door,  if you roast often, Please clean it once a week by a brush.

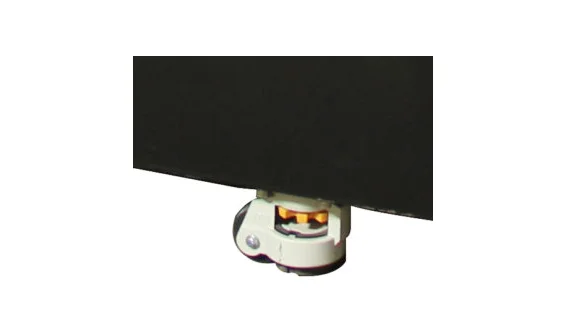

Two-in-one casters and ground legs

WK 3 kg and up capacity machines are built by very high quality 2-in-1 casters and ground legs, customers can easy move it to anywhere by casters and balance it by ground legs.

1. What's your MOQ order?
Always, we accept 1 set at least, but order more, then we can give you a nice discount.
2. What differenhce between your 3 series coffee roaster machines?
Main about roaster drum, WK roaster is singlr layer, But WB and WS roasters adopt double wallet roaster drum.
And WK, WB roasters only connect PC-USB data logger, But the WS roaster can Bluetooth phone connection.
3.How long is your manufacturing time?

30-40 days
4.How to ensure and protect customer's roaster quality?
a. During Production, we have strict work requirement, Mustn't use any materials with scratches.
b. From our own factory, we must test at least 4 times before shipping.
c. After sale service, we have our own team with engineers sloving any problem 24 hours.
d. Trade on Alibaba, can protect your roaster quality and Money.
