Berani BK 782TX UHF Professional stereo wireless in ear monitor system
- Category: Microphones >>>
- Supplier: Enping,Lane,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

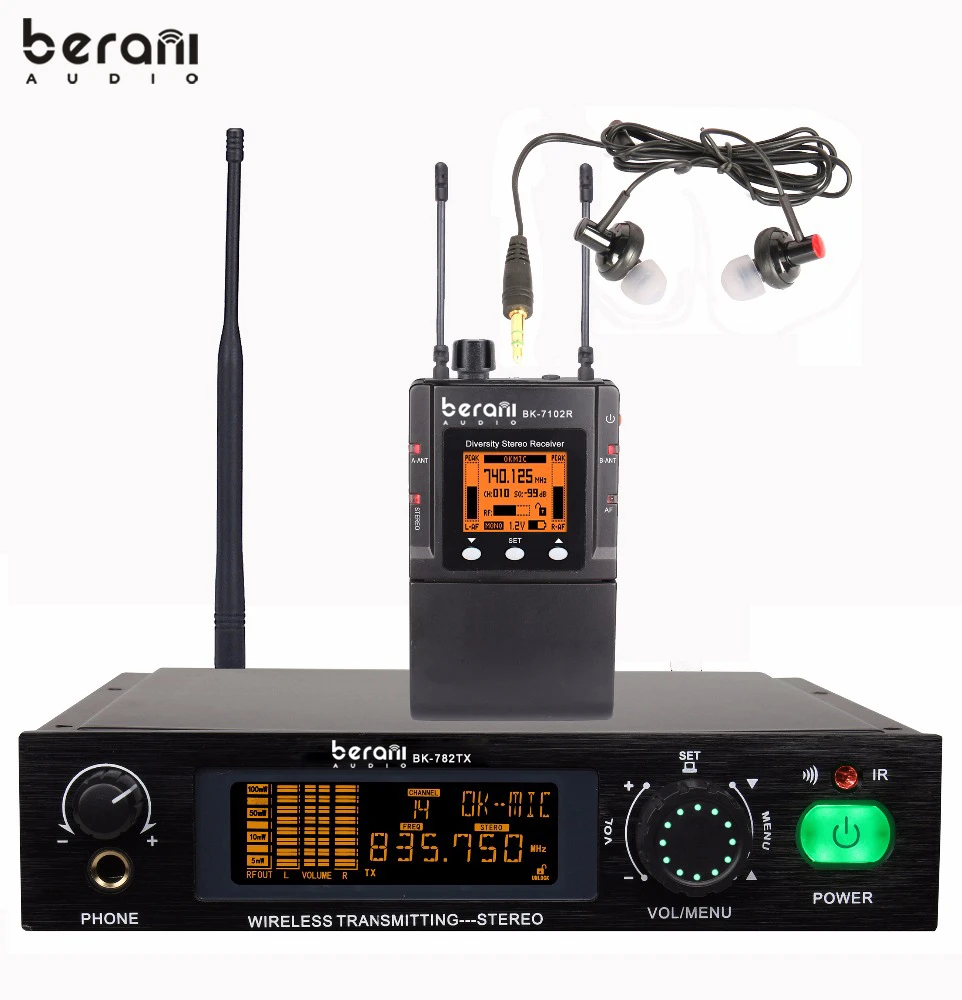

Berani BK-782TX UHF Professional Stereo Wireless In Ear Monitor System
Transmitter Parameters
| Frequency Range | UHF 500-980MHz |
| Chasis Size | 1/2 EIA Standard 1U |
| Channel | Single Channel |
| Frequency Stability | ±0.005% (-10~50℃) |
| Modulation System | FM |
| Output Power | 10mW-100mW |
| Oscillation Mode | PLL Synthesized |
| Frequency Bandwidth | 12~24MHz |
| Harmonic Radiation | < -60dB |
| Maximum Deviation | ±45KHz |
| S/N Ratio | >97dB |
| T.H.D | ≤1%@1KHz |
| Frequency Response | 50Hz-15KHz±3dB |
| Audio Input | Line level * 2, XLRφ6.3mm |
| Audio Output | φ6.3mm unbalanced socket * 2 |
| Measure(mm) | 205(W)x44(H)x203(D) |
Receiver Parameters
| Frequency Range | UHF 500-980MHz |
| Channel | Single Channel |
| Frequency Stability | ±0.005%(- 10 ~50 ℃) |
| Modulation System | FM |
| Working Distance | About 60m (open place) |
| Oscillation Mode | PLL Synthesized |
| Sensitivity | Drift Rate is 25KHz, input 6dBμV, S/N>60dB |
| Frequency Bandwidth | 12~24MHz |
| Max Drift Rate | ±45KHz |
| S/N Ratio | >97dB |
| T.H.D | ≤1%@1KHz |
| Frequency Response | 50Hz-15KHz±3dB |
| Stereo Isolation | ≥[email protected] |
| Output Socket | φ3.5mm stereo earphone socket |
| Output Power | [email protected](T.H.D. 3%) |
| Battery | AA*2 |
| Current Consumption | 150mA |
| Battery Life | About 8 hours |
| Dimension(mm) | 108(H)*63(W)*25(D) |
Note: The EARPHONE IS NOT INCLUDED.
