JT 106AM 10L Courier Bags Hot Melt Glue Machine Gear Pump Dispensing Applicator
- Category: >>>
- Supplier: Fujian Jingtai Equipment Co. Ltd.
Share on (60818774315):
Product Overview
Description
Product Application
1. Applying to a variety of packing cartons, packing boxes, paper bags, paper packing boxes, such as competitive book box, mooncake box, food box, wine gift box.
2. The glue spraying of many kinds of products, for example, cosmetics aluminum cap/lid, cream cap/cover/lid, spray head, pump head, Chiaki cover, essential oil cap/lid, gift boxes.

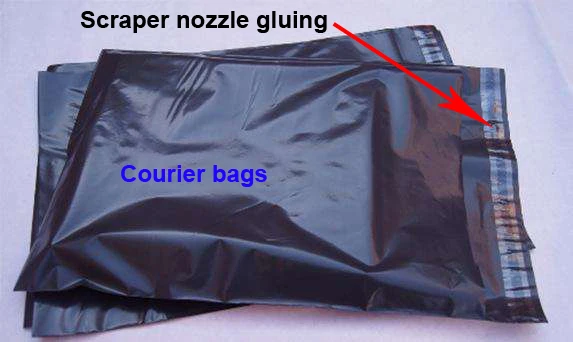

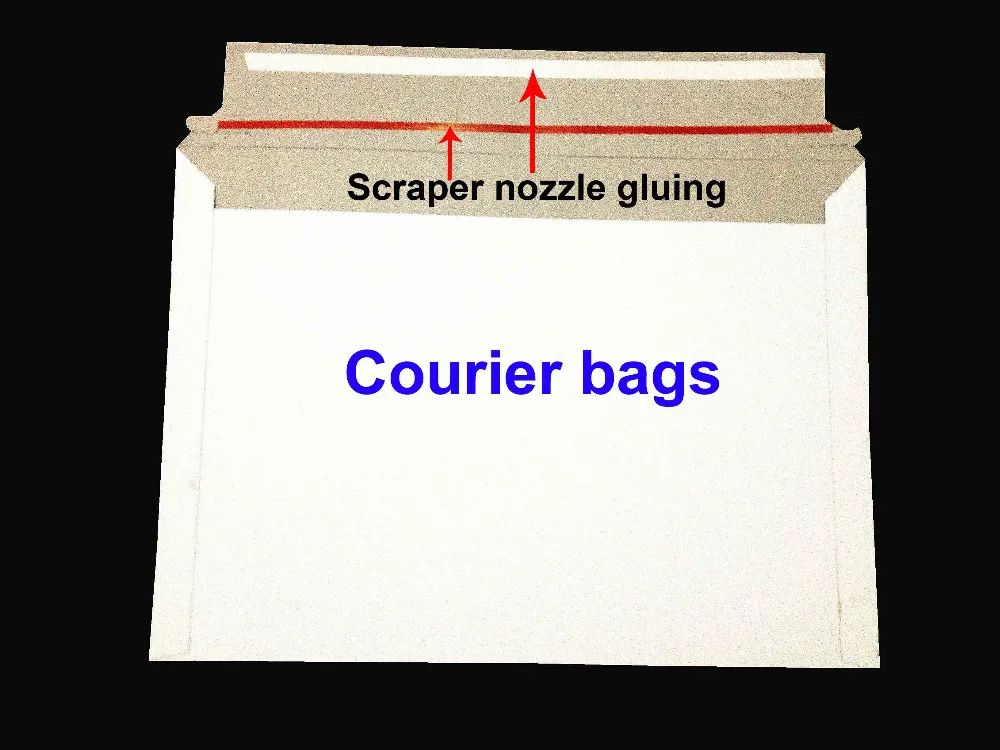

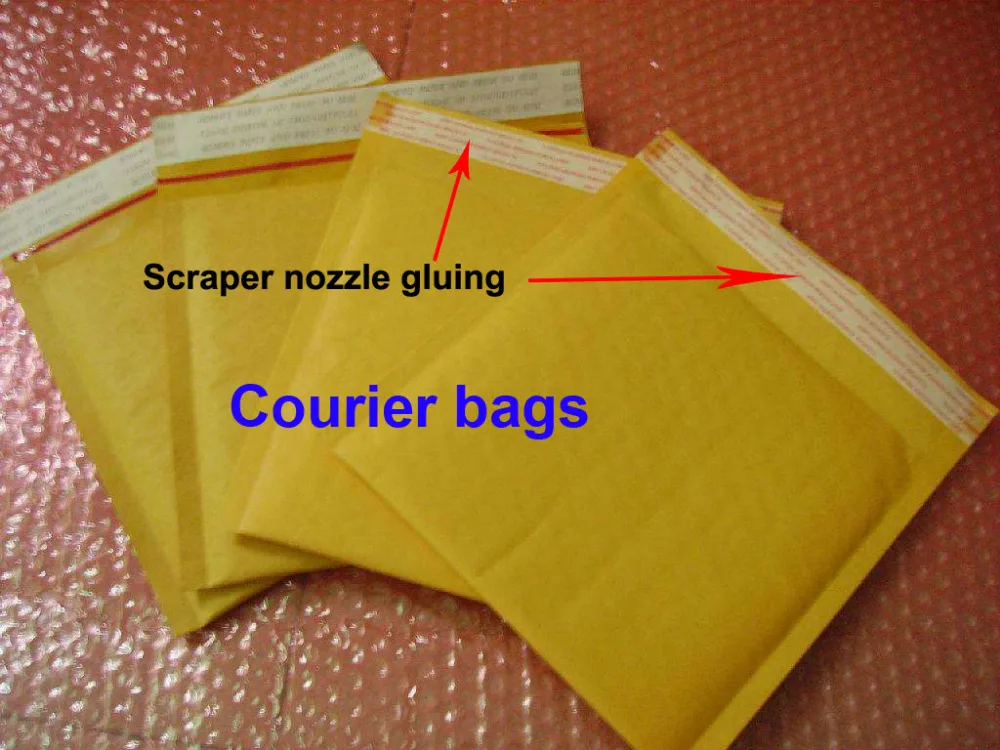

3. Instead of double-sided glue tapes, the glue spraying craft of paper bags sealing like sticky tapes/velcro tapes, courier bags, bubble bags, envelop bags, document bags, handbags.
4. Automotive industry(interior seal, lamp manufacturing, windshield assembly, car body, foot plate, seat,ceiling doors and windows seal etc.)
5. Household electrical appliances and furniture industry like refrigerator seal and fill, filters industry, household products assembly such as the glue spraying of mattress, sofa, sponge, sticky household appliances.
6. Crystal ball, security hat, hair accessories, handmade accessories, toys, seal cartons/boxes, woodworking, papers, decorated colorful boxes, Buffer material, drink labels, book bonding, electronic industry and any other packing application.
SPECIFICATIONS FOR JT-106AM HOT MELT GLUE MACHINE | ||||||
ITEM | PARAMETER | UNIT | MARK | |||
MODEL | JT-106AM | -- | ||||
TANK CAPACITY | 10 | L | ||||
1MAX. MELTING RATE | 15 | L/hour | ||||
MAX. OPERATION TEMP. | 200 | ℃ | ||||
SETS OF HOSE & GUN | 1-2 | -- | ||||
AIR PRESSURE | 4-6 | kg/cm2 | ||||
TOTAL POWER | 4520 | w | DEMAND:220V/50HZ | |||
PUMP TYPE | GEAR PUMP | -- | ||||
MAX. VISCOSITY | 50000cps | 50000cps | ||||
WEIGHT | 61 | kg | ||||
DIMENSION | 670*500*470 | mm | ||||
Main Features
1) Heated hose and additional automatic controller for easy adjustment of spraying height and angle.
2) Large area operation can be achieved without moving machine.
3) 1 to 2 sets of hose & gun can be chose to be installed so as to save purchase cost.
4) High strength integral molding glue tank, leaf shape heater can increase the heating area and improve the melting rate. The inner tank is sprayed teflon, so its internal face is smooth without corner structure , and it can protect glue stick to the internal face and get carbonized efficiently.
5) Gear pump's working accuracy (adopt import technology) can efficiently ensure the stable output glue.
Detailed Images
Machine
Name: JT-106AM Hot Melt Glue Machine/Applicator
Brand: JINGTAI
Original: China
1. The glue output is stable;
2. The max. operation temperature is 200℃;
3. High quality and good price;
4. It can be equipped with 1-2 sets of heated hose & glue gun.
Machine Accessories

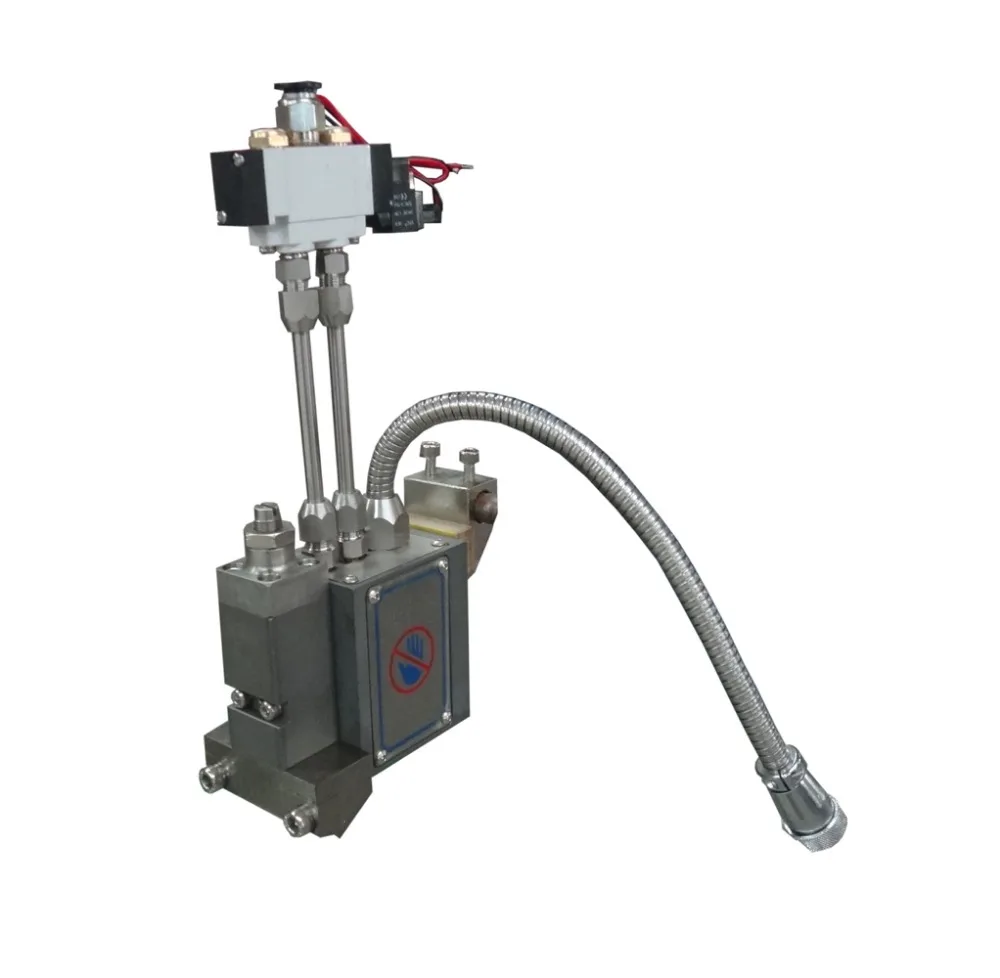

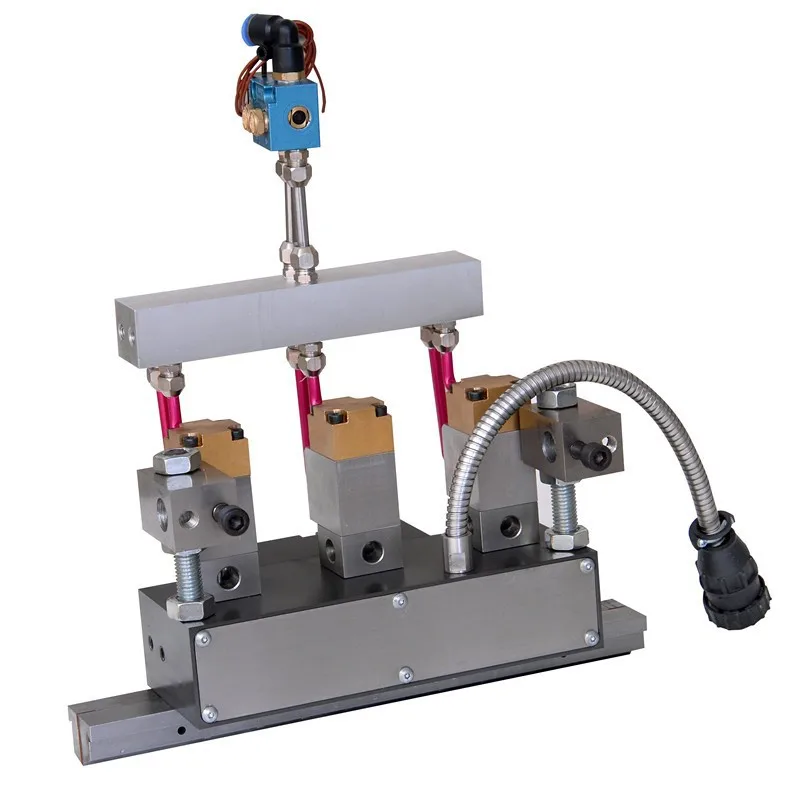

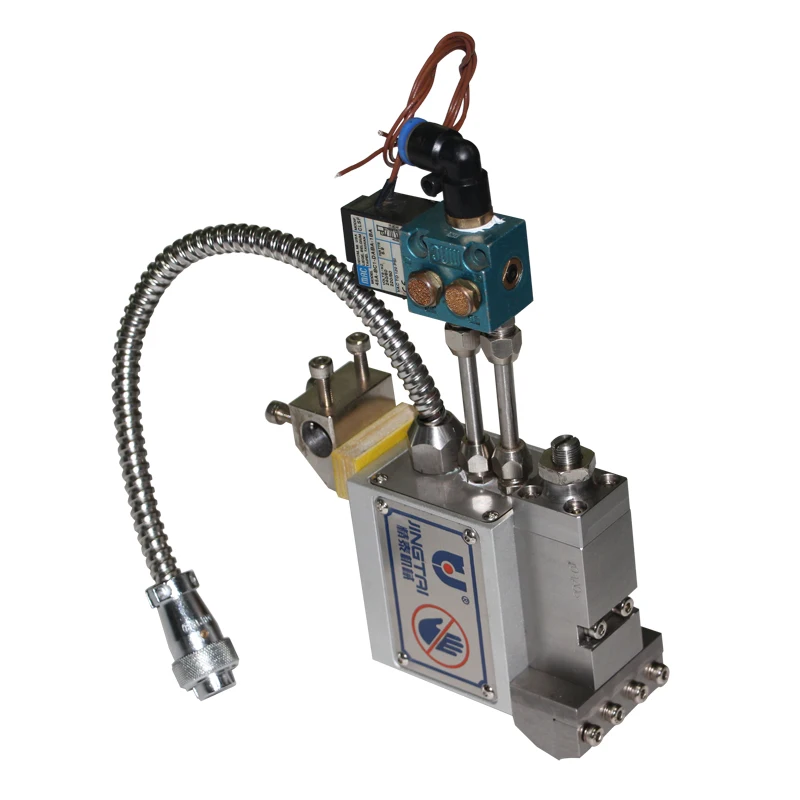

Name: Glue Gun - slot die
Brand: JINGTAI
Original: China
1. 5mm-50mm width flat strip gluing;
2. DC 24V solenoid valve
3. Double layers filter
4. Changeable nozzle
5. Accept the csutomized slot die
Machine Accessories

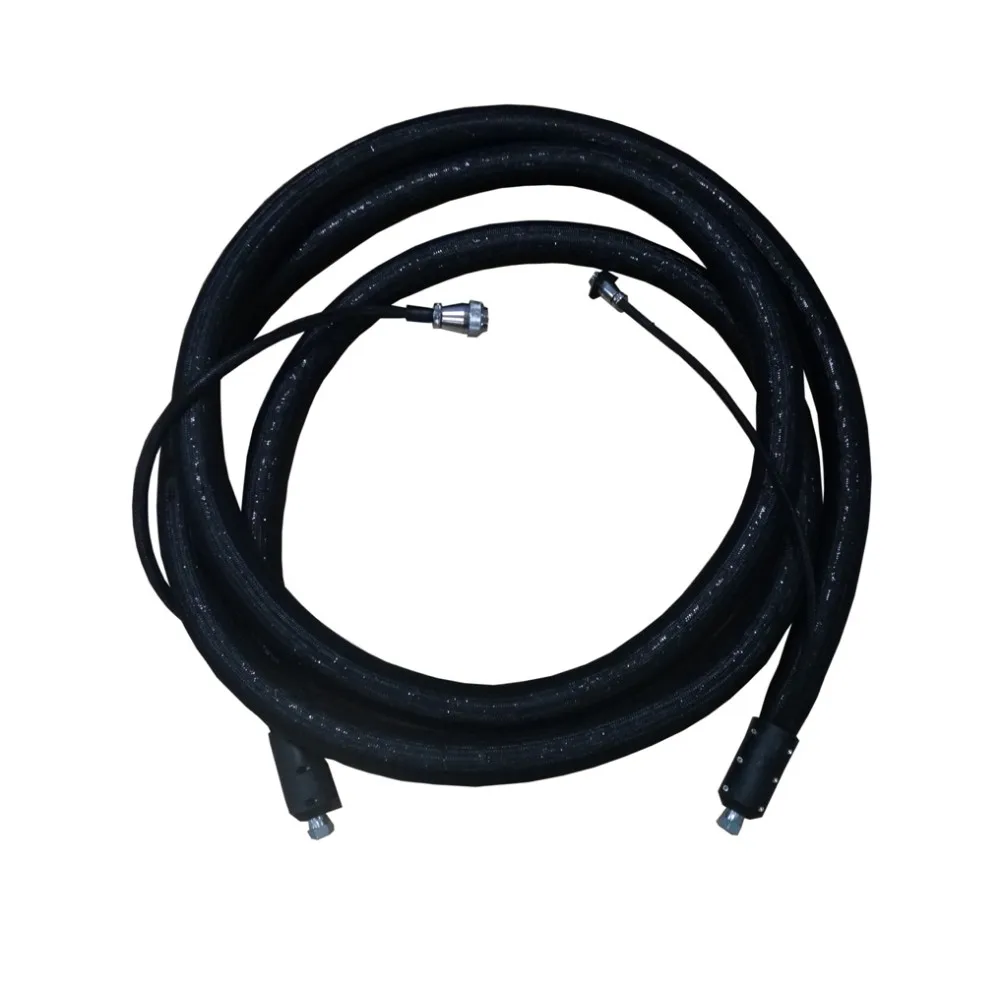

Name: Heated Hose
Brand: JINGTAI
Original: China
1. Customized hose length, min. length is1 meter;
2. The color can be chose, black or blue.
Our Service
After-Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Testing support.
* View our Factory.
After-Sales Service
* Technology support.
* Specification and video direction.
Packing & Delivery
Packaging | ||
Size | 670 (L) * 500 (W) * 470 (D) | |
Weight | 61kg | |
Packaging Details | 1. The packing is confirmed to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm. 2. In order to be waterproof, we usually use bubble film to wrap machine. 3. In order to avoid the machine being damaged in transit, the foam will be full filled between the machine and wooden carton. | |
