Factory Wholesale Micro LCD OLED Display
- Category: >>>
- Supplier: Shenzhen Lummax Electronics Co. Limited [Guangdong China]Shenzhen
Share on (60818784069):
Product Overview
Description
Product Description

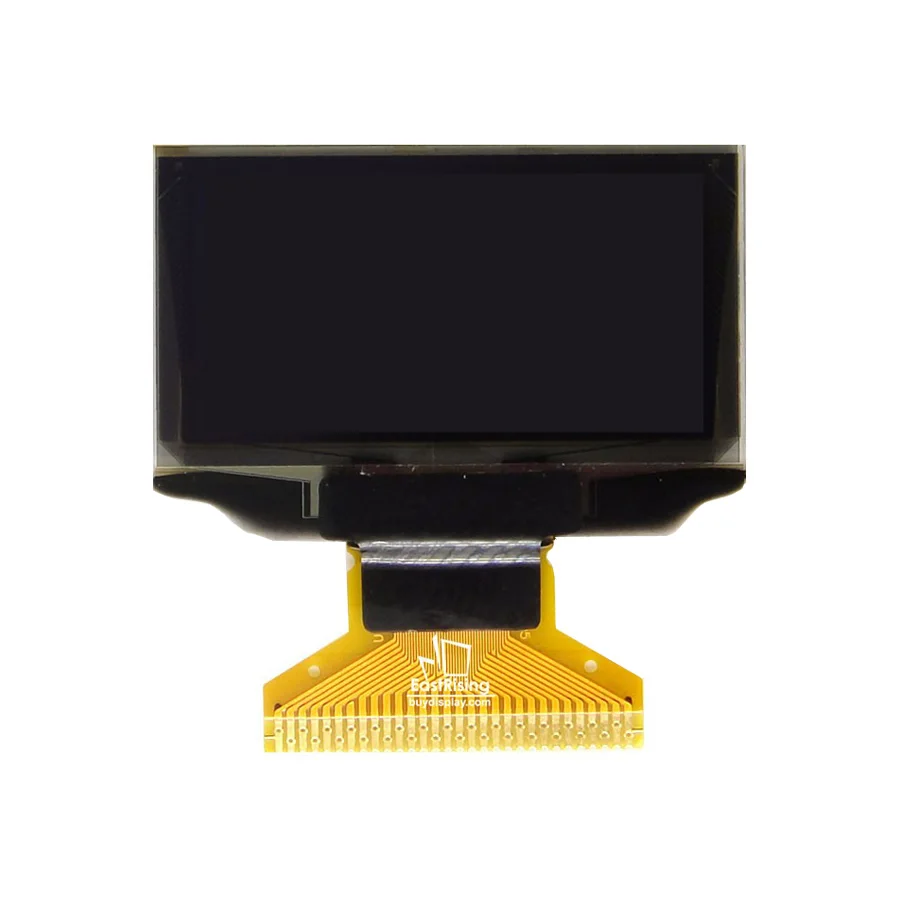

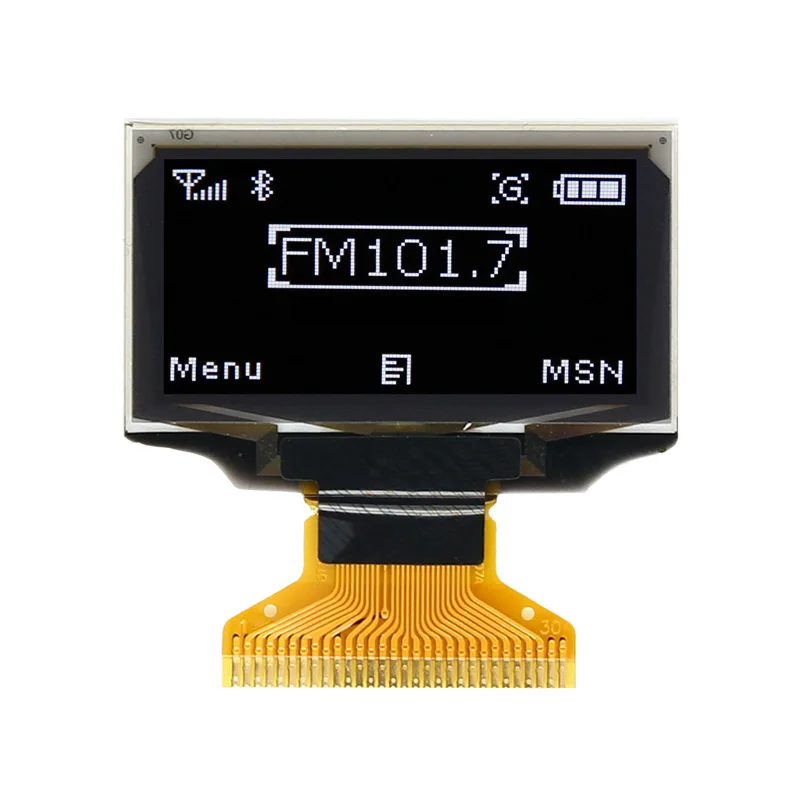

1.30 Inch 128x64 Dots White OLED
Interface: Parallel, 4-wire SPI, I2C
Driver IC: SH1106G
Excellent quick response time: 10 μS
Extremely thin thickness: 1.21 mm
High contrast: 2000: 1, Wide viewing angel: 160°
Anti-glare polarizer
High brightness, Sunlight Readable
low power consumption
Life Time: 12000 Hrs

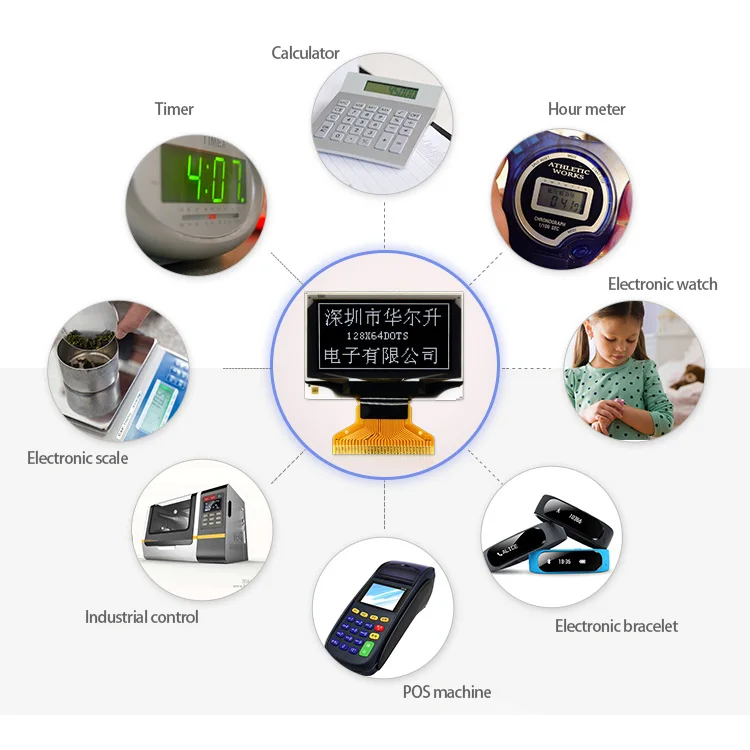

Product Applications

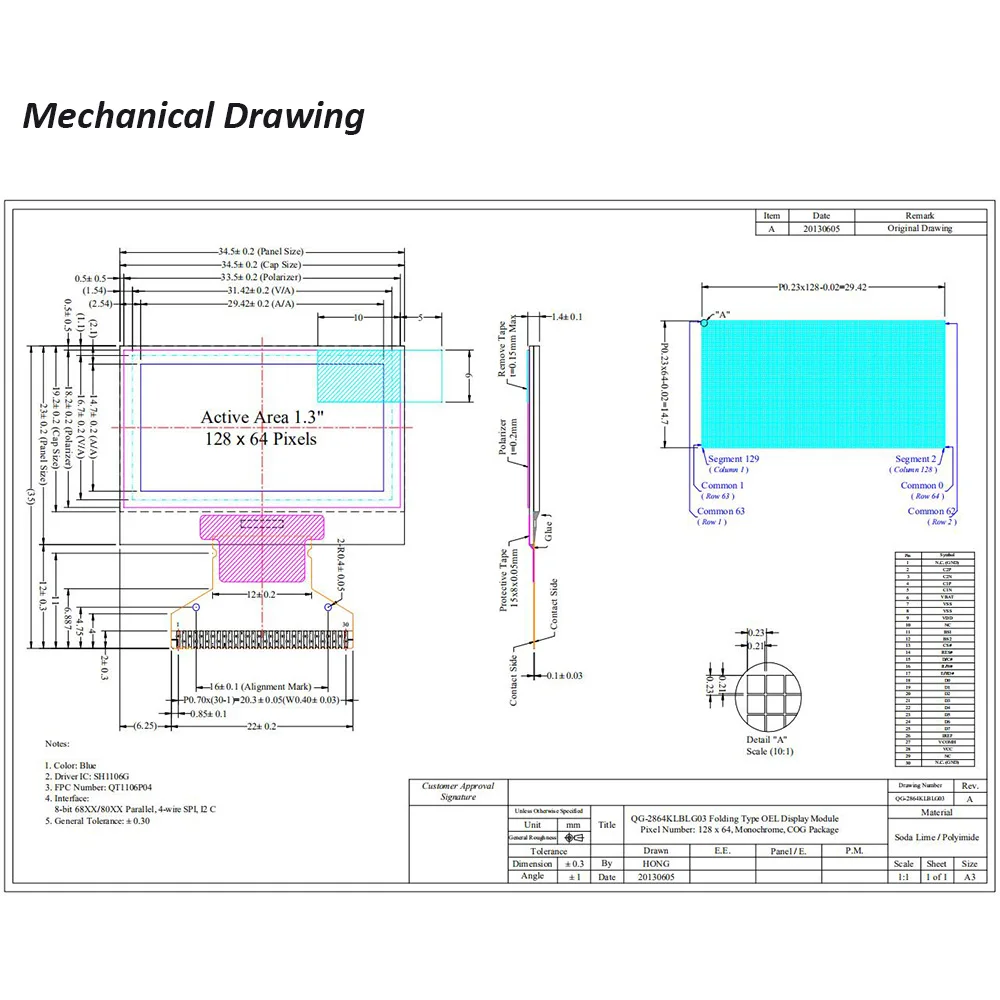

Mechanical Datas
| NO | ITEM | SPECIFICATION | UNIT |
| 1 | Dot Marrix | 128(W) x 64(H) | dot |
| 2 | Dot Size | 0.21(W) x 0.21(H) | mm |
| 3 | Dot Pitch | 0.23(W) x 0.23(H) | mm |
| 4 | Active Area | 29.42(W) x 14.7(H) | mm |
| 5 | Panel Size | 34.50(W) x 23.0(H) | mm |
| 6 | Panel Thickness | 1.40 | mm |
| 7 | Module Size | 34.50(W) x 23.0(H) x 1.40(T) | mm |
| 8 | Diagonal A/A Size | 1.30 | inch |

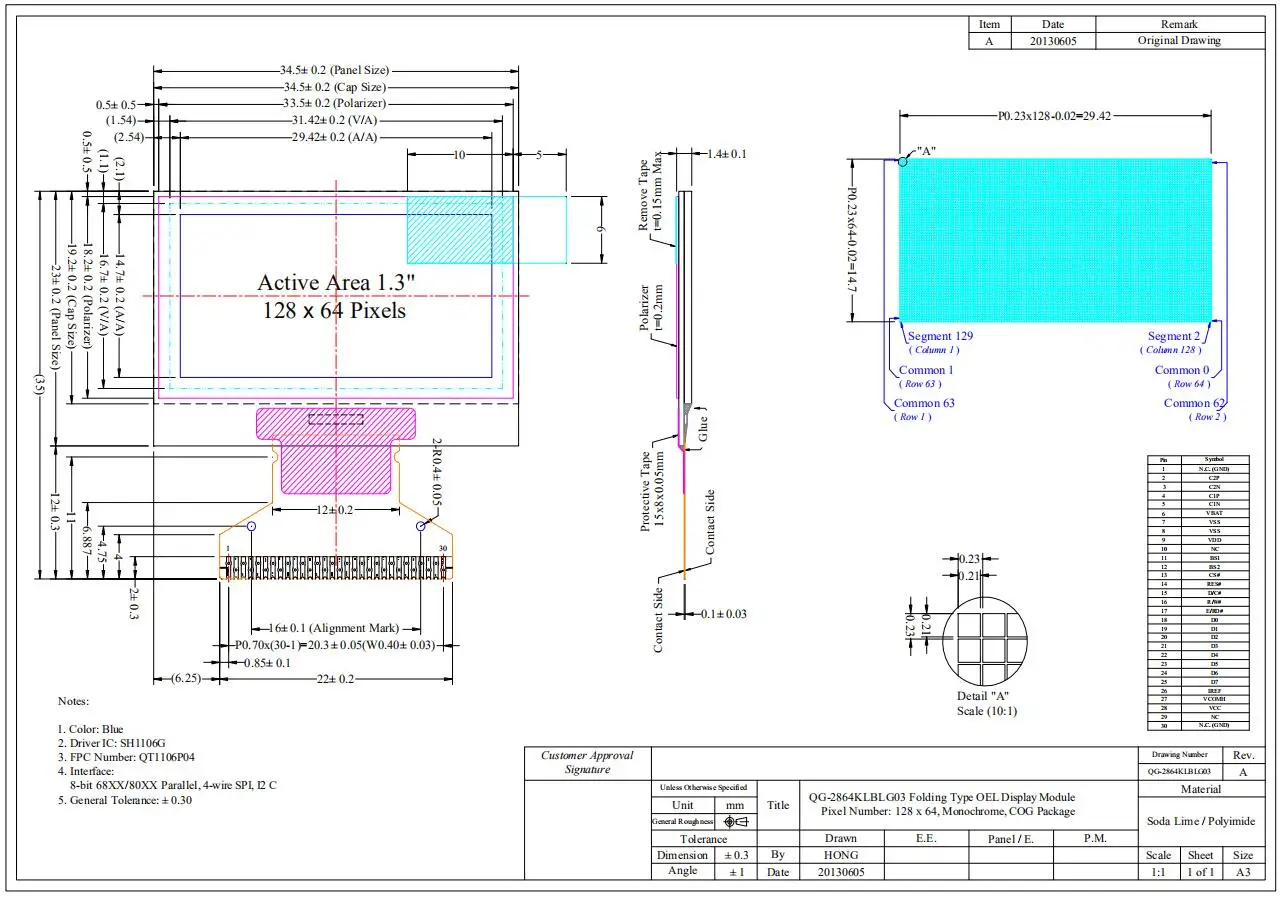

External Dimension
Company Overview
Established in 2004.
Specialized in LCD, TFT, OLED and resistive & capacitive touch panel products.
8,000 square meters of factory workshop.
Over 400 employees, including15 R&D staff and 40 QC personnel.
Our major customers include: HITACHI, EMERSON, SIEMENS, JABIL, WKK and ASTROTECH GROUP etc.
TUV (SUD) certification of ISO9001:2008.

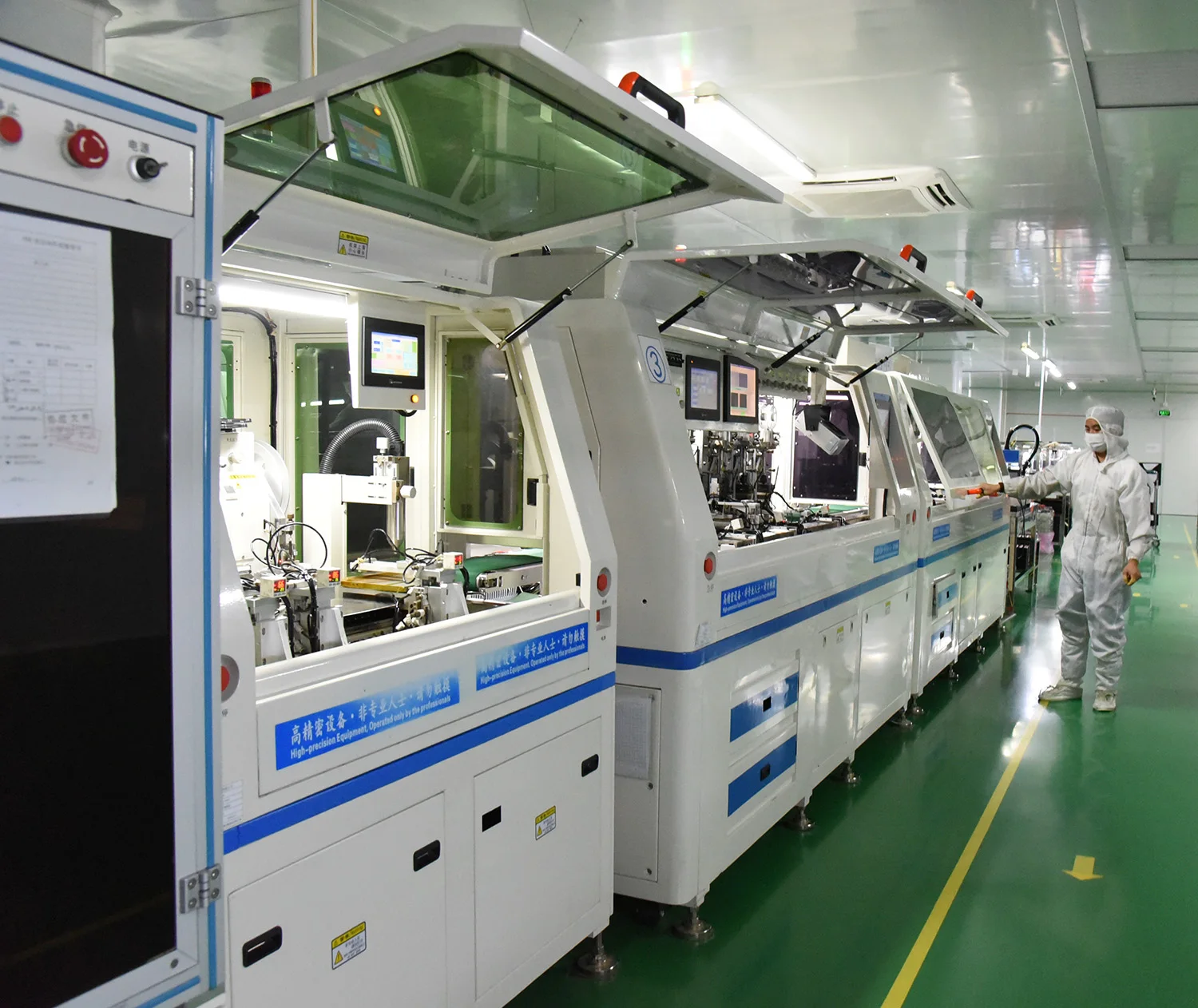

Manufacturing
More OLED Displays
| Lummax Electronics Standard PMOLED Display Model List | ||||||
| Model | Size (inch) | Resolution (dots) | Color | Outline Dimension (mm) | Active Area (mm) | Interface |
| OHEM6448-01 | 0.66 | 64x48 | White | 18.46x18.1 | 13.42x10.06 | 4-Wire SPI |
| OHEM12832-09 | 0.91 | 128X32 | White | 30.0x11.5 | 22.38x5.58 | I2C |
| OHEM12864-13B2 | 0.96 | 128x64 | White | 24.74x16.9 | 21.74x10.86 | 3/4 wire Serial Peripheral, I2C |
| OHEM12864-03 | 0.96 | 128x64 | White | 26.7x19.26 | 21.744x10.864 | 8bit 68XX/80XX Parallel, 3-/4-Wire SPI, I2C |
| OHEM12864-05 | 1.30 | 128x64 | White | 34.5x23.0 | 29.42x14.7 | 8bit 68XX/80XX Parallel, 3-/4-Wire SPI, I2C |
| OHEM160160-02B | 1.30 | 160x160 | White | 26.74x30.0 | 23.34x23.34 | Serial Peripheral |
| OHEM128128-01 | 1.50 | 128X128 | White | 33.8x36.5 | 26.86x26.86 | 4-Wire SPI |
| OHEM12864-11 | 1.54 | 128x64 | White | 42.04x27.22 | 35.052x17.516 | 8bit 68XX/80XX Parallel, 4-Wire SPI, I2C |
| OHEM25632-01 | 1.80 | 256x32 | White | 52x11.5 | 46.06x5.74 | 8bit 6800/8080 Series Parallel, Serial Peripheral, I2C |
| OHEM12864-09 | 2.40 | 128X64 | Yellow | 60.5x37.0 | 55.01x27.49 | 8bit 6800/8080 Series Parallel, Serial Peripheral, I2C |
| OHEM25664-01 | 3.20 | 256x64 | White | 87.4x28.5 | 79.084x19.756 | 8bit 6800/8080 Series Parallel, 3/4 wire Serial Peripheral |
| Lummax Electronics Standard AMOLED Display Model List | ||||||
| Model | Size (inch) | Resolution (dots) | Shape | Outline Dimension (mm) | Active Area (mm) | Interface |
| AHEM0095-02 | 0.95 | 180(RGB)x120 | Rectangular | 22.23*18.32 | 20.03*13.36 | SPI |
| AHEM0119-02 | 1.19 | 390(RGB)*390 | Round | 33.22*34.72 | Φ30.42 | MIPI, SPI |
| AHEM0139-01 | 1.39 | 400(RGB)x400 | Round | 38.6x40.5 | 35.40x35.40 | MIPI |
| AHEM0141-01 | 1.41 | 320(RGB)x360 | Rectangular | 26.04x31.78 | 23.84x26.82 | MIPI |
| AHEM0295-01 | 2.95 | 1080(RGB)x1200 | Rectangular | 52.91x62.58 | 50.11 x 55.6 | MIPI 4 lanes |
| AHEM0497-03C | 4.97 | 720(RGB)x1280 | Rectangular | 64.12x116.72 | 61.88x110.02 | MIPI, DSI |
| AHEM0549-06 | 5.49 | 1080(RGB)*1920 | Rectangular | 70.66x128.36 | 68.30*121.42 | MIPI 4 lanes |
