Hystou дешевый промышленный мини ПК Core I5 7200U компьютер Sever Dual Nuc 4K Wifi двойной дисплей
- Category: Barebone System >>>
- Supplier: Shenzhen Hystou Technology Co. Limited
Share on (60818800127):
Product Overview
Description
Product Description
Details Images
Processor (Any questions or customization? ) | ||
CPU | Intel Celeron 1007U (3M Cache, 2 Cores 2 Threads, Base Frequency 1.50 GHz ) Intel Core i3-4005U (3M Cache, 2 Cores 4 Threads, Base Frequency 1.70 GHz ) Intel Core i3-5005U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.0 GHz ) Intel Core i3-6006U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.0 GHz ) Intel Core i3-6157U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.40 GHz ) Intel Core i3-7167U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.0 GHz ) Intel Core i5-4200U (3M Cache, 2 Cores 4 Threads, Base Frequency 1.60 GHz Turbo Frequency 2.60 GHz) Intel Core i5-5250U (3M Cache, 2 Cores 4 Threads, Base Frequency 1.60 GHz Turbo Frequency 2.70 GHz) Intel Core i5-7200U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.50 GHz Turbo Frequency 3.10 GHz) | |
TDP | 15W, 17W for celeron 1007u | |
CPU Lithography | 14 nm for 5th cpu, 22 nm for 4th cpu | |

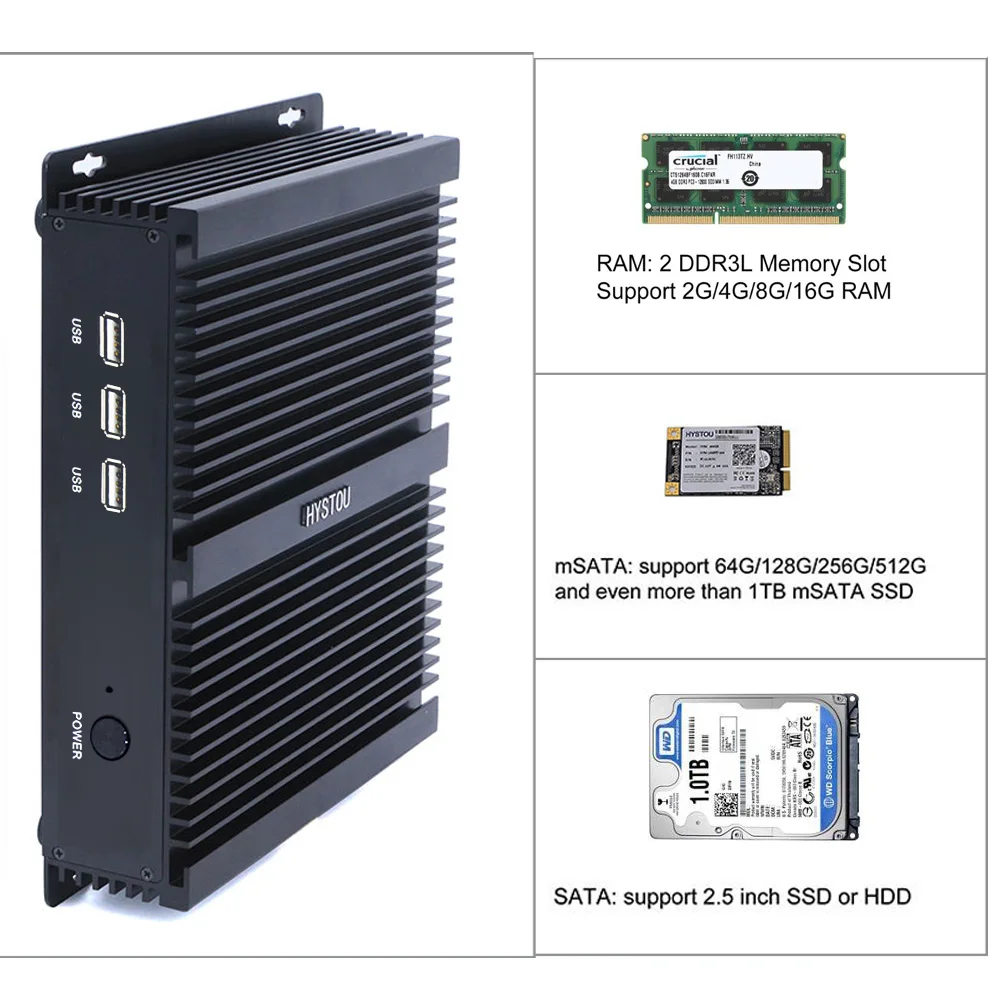

Memory Specifications | ||
Max Memory Size | 16GB, 8GB for celereon model 1007u | |
Memory Types | 204 Pin DDR3L SO-DIMM Socket | |
Memory Channels | Dual Channels, single channel for celeron model 1007u | |
ECC Memory | Don’t support | |
Storage Specification | ||
m.2 SSD | No M.2 slot | |
SATA | 1 x SATA3.0 for 2.5 inch HDD/SSD | |
mSATA | 1 x mSATA slot | |
Graphics | ||
Processor Graphics | i3 4005u/i5 4200u Intel® HD Graphics 4400; i3 5005u Intel® HD Graphics 5500; i5 5250u Intel® HD Graphics 6000 | |
HDMI | 1 x H-DMI | |
VGA | 1 x VGA | |
Power Specification | ||
Power Adapter | 12V Power Input, supply 12V 5A power adapter within the package | |
Auto Power On | Support Auto Power On Function | |
In & Out interfaces | ||
USB Port | 4 x USB 3.0 port, 3 x USB 2.0 port | |
Audio | 3.5mm 1 Jack, MIC in/ Line out | |

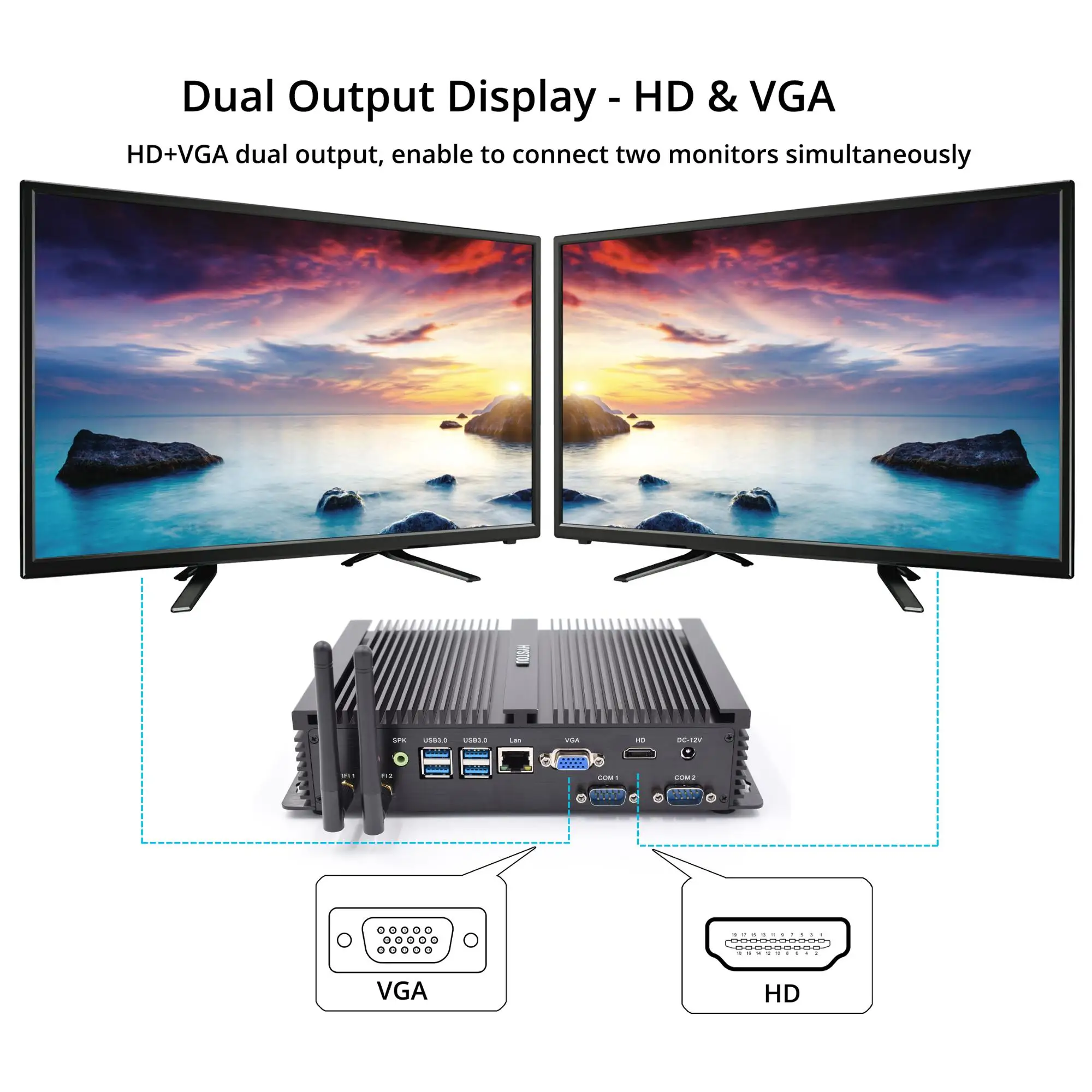

Video | VGA + H-DMI Daul Display | |
Power Input | 5.5mm 12V In | |
Lan Port | 1 x RTL 8168/8111/8112 Gigabit NIC | |
Com Port | 2 x RS232 Com port | |
Others | ||
System | Support Windows 7/10, Linux | |
Case Material | Aluminium Alloy | |

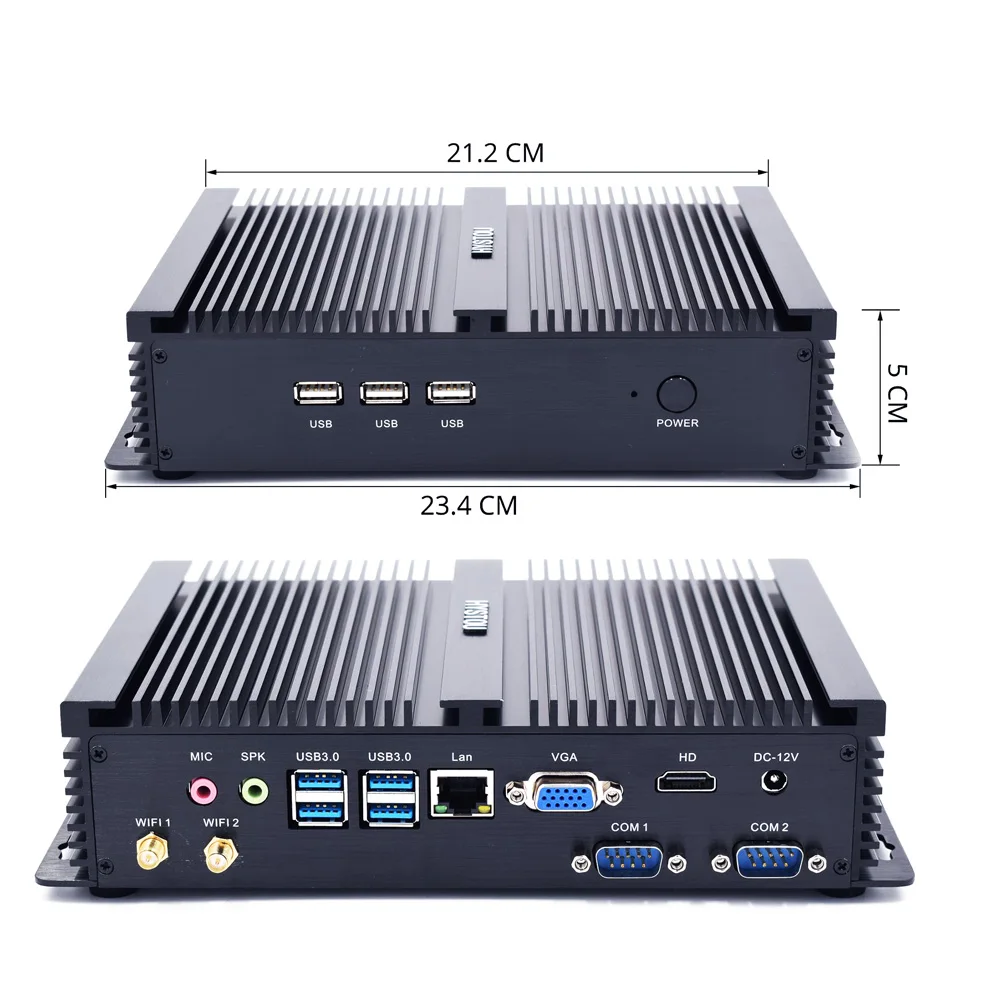

Dimension | Mini PC size 234x150x50mm Package size 321x258x78mm | |
Weight | Gross weight 2.1 kg | |
Company Introduction
Hystou is a professional manufacturer and exporter of desktop mini PC.OEM and ODM orders are welcomed.The more you purchase, the cheaper the prlce.
Product Usage
Packing&Shipping
PackIng Llst:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card &user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card &user manual
