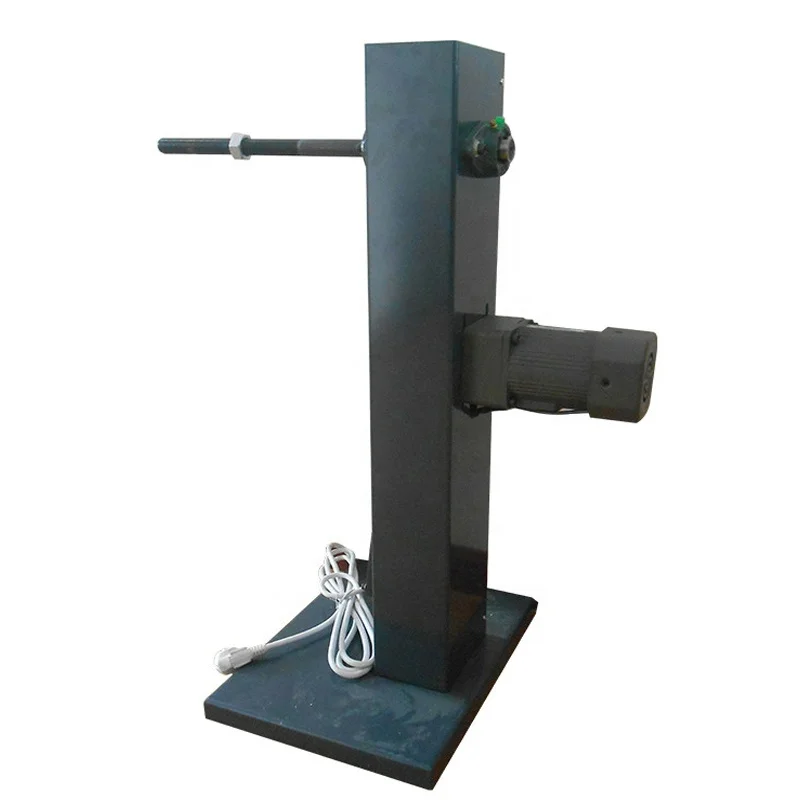

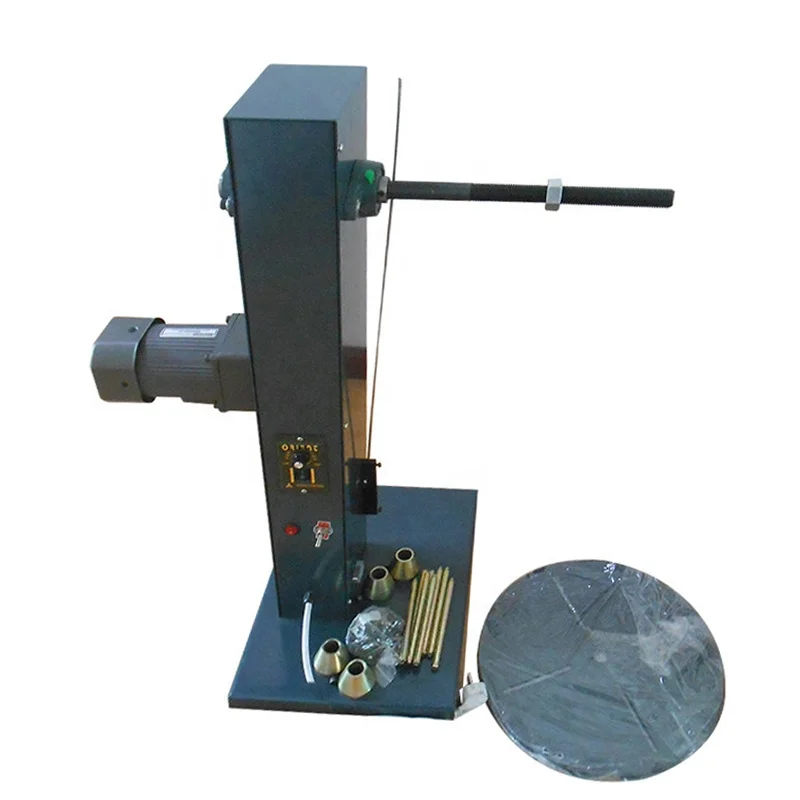

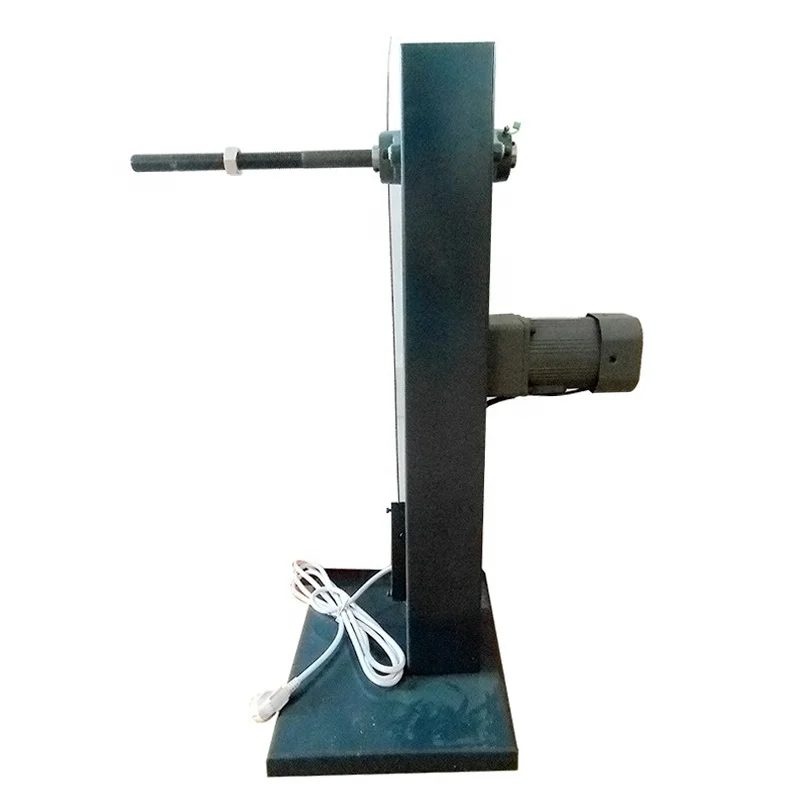

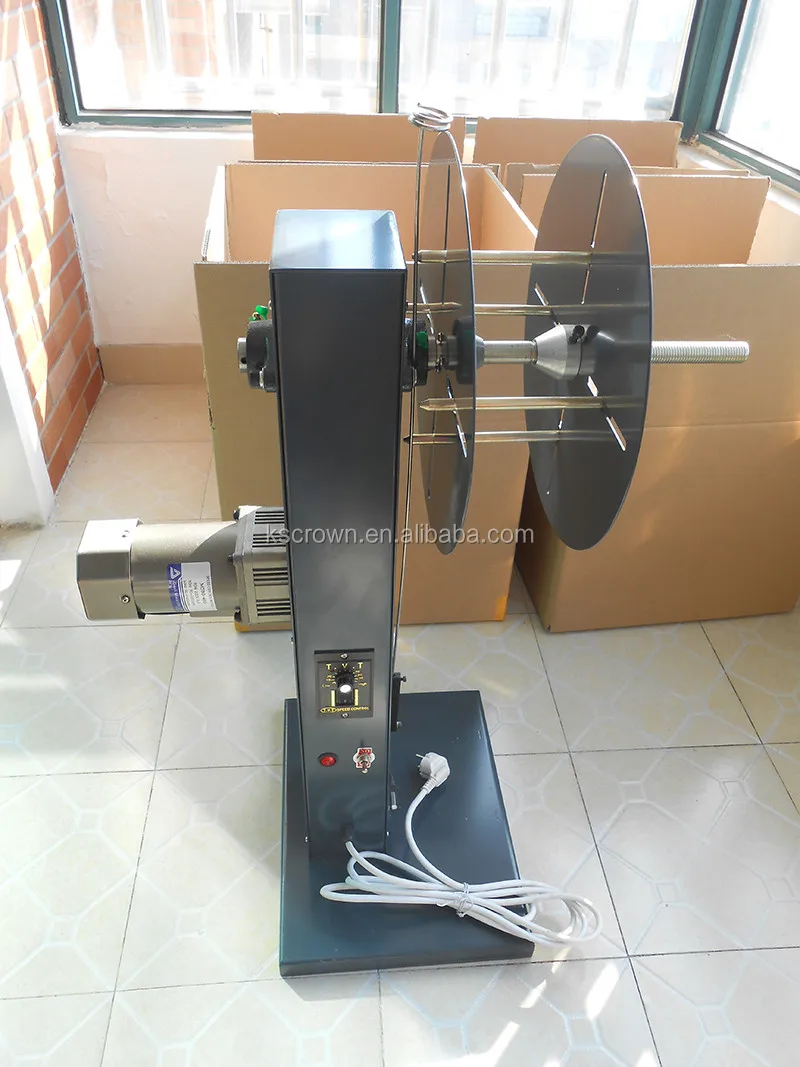

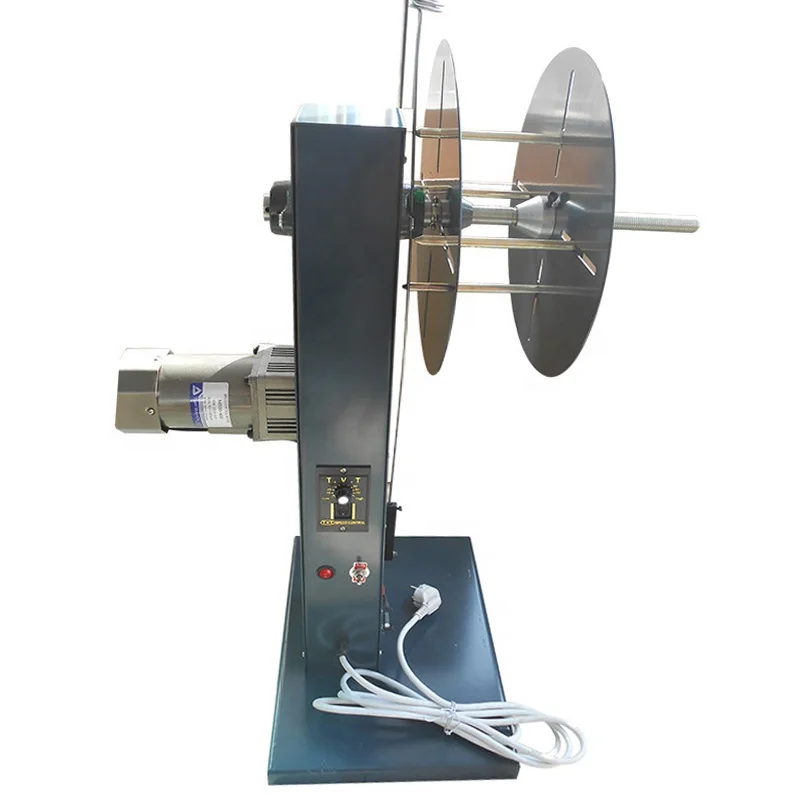

automatic wire pay off machine for cable feeding machine pre-feeder
Product description:
This wire feeder is designed for automatic computer wire stripping machine, which can automatically feed the wire stripping machine, eliminating the trouble of manual wire laying. You only need to fix the whole coil wire on the pay-off rack. The sensor can automatically detect the tightness of the wire. The motor needs to be automatically started when feeding, and the cable will automatically stop when it is related to a certain extent!
This motorized designed for fully automatic computer wire stripping machine, for the wire stripping machine, automatic wire feeding, the bother of manual alignment. You only need to fix the whole roll of wire in the steel frame, the tension sensor can automatically detect wire, need to start automatically when feeding motor, wire, and relaxation to a certain degree of automatic stop!
Features:
1. terminal processing machine, wire crimper machine, feed machine
2. Spool of maximum weight: 15 kg
3. Spool of requirements: wire with and without core winding is ok
4. If with core winding minimum diameter of 30 mm, the maximum diameter is 350 mm
Specifications:
| Name | pay-off machine WL-FB3, pay-off and take-up machine for wire drawing |
| Max. spool weight | 15kg |
| Reel Type | with /without a core is ok |
| Min ID of the reel | 30mm |
| Max. OD of reel | 350mm |

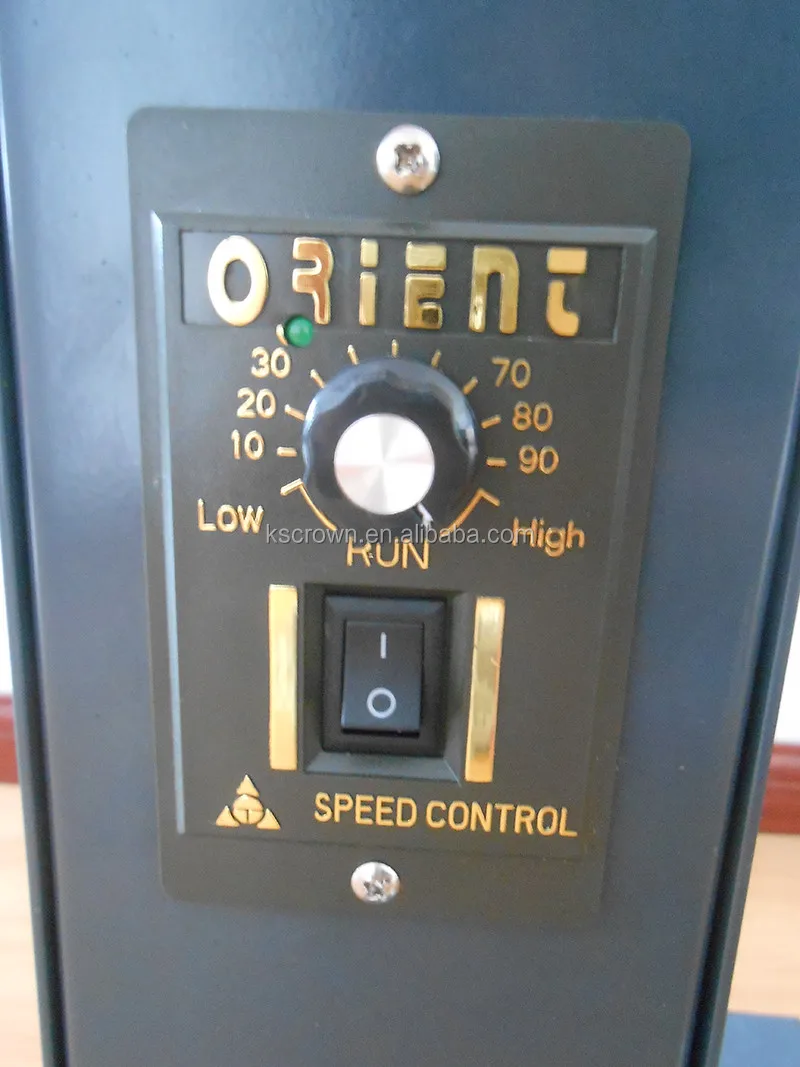

| Speed | stepless speed regulation |
| Rotation direction | Forward or reverse rotation is ok |
| Sensitive switch | Line tight automatic alignment, automatic stop when line relaxation |
| Rated power | 60W |
| Operating voltage | 200 to 240V |
| Size | 600*400*850mm |
Detailed Images
Hot sale free-standing electrical wire cable feeders
Pay-off machine WL-FB3, pay-off and take-up machine for wire drawing
Cable Wire feeding machine, wire feeder
Automatic wire pay- off machine wire feeder machine
Electric free-standing wire prefeeder original manufacturer cable feeding system
Hot sale Automatic wire feeder motor cable reel pre-feeder FB-3
Related Products
Company Information
Our Services
1, One year guarantee for the whole machine except blade and belt.
2, 24 hours technical support by email.
3, User-friendly English software and user manual.
-Purchase guidance
If you are not sure which model is the best option within your budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models
to you.
---After Sale Service
Don’t worry, we are here to help. JUNQUAN provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!
--- Technical Support
In some cases, professional technical support will be needed, such as parameter meter set-up
for difficult-to process wires. JUNQUAN engineers are here for your assistance.
---Others
Compensation: If any unqualified product is found, we’ll pay the compensation or send newly qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
