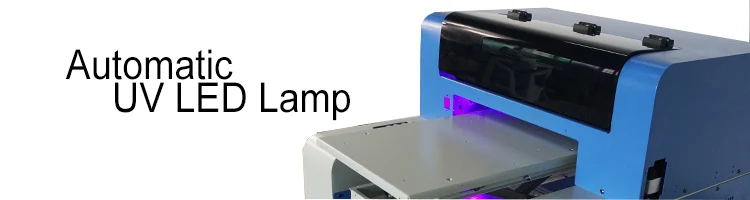

Automatic Build-in UV LED Lamp - InstallingNX-Automatic Overheating protection system and Automatic On/Off system, most effectively to last the working lifttime of the UV LED Lamp.
Epson Printhead -
Max Printing Resolution: 5740x1440 DPI;
Reliable Original Epson printhead which cost lowest ink to gain best printing effect.
High Quality Anti-Corrosion & Pre Moun-in Damper System -To keep the UV ink flow smoothly from ink bottle to printhead.All the dampers including inside-filter to filtrate the impurity of ink to protect the printhead during printing.

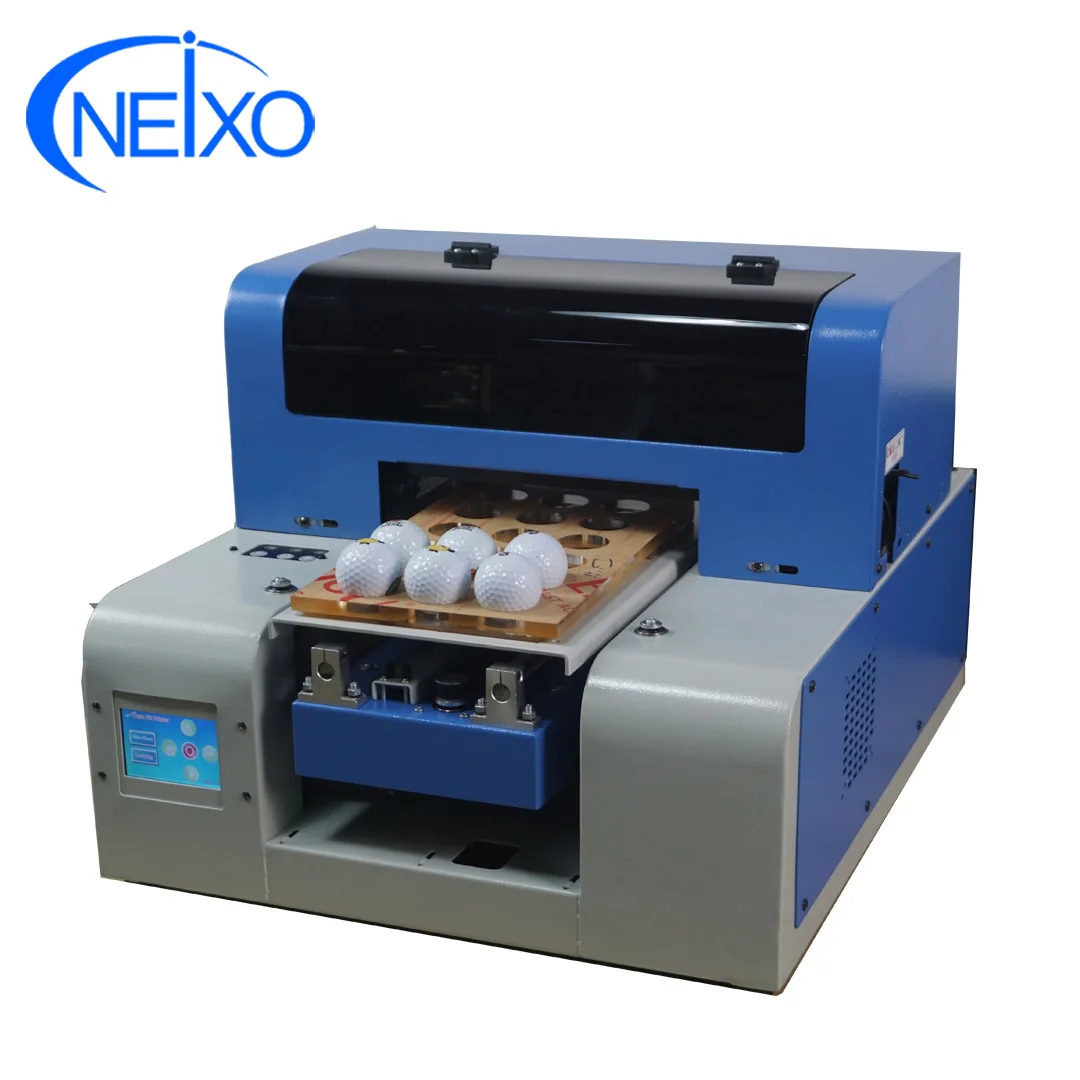

Specification of NX43200UV Printer
Model
NX4320UV
Print head technology
Micro Piezo Technology
UV lamp system
Automatic On/Off
UV Power
60W
UV lamp life time
50000 hours
UV light wavelength
390-400nm
Cooling system
Dual-Cooling System
(Water circulating and Fan cooling)
Control software
RIP software
Ink system
UV damper CISS ink refilling system
Max. printing size
175mm*330mm
Print head
Epson L805
Print color
CMYK+WW
Print speed
8 min for Full A4 size @1440 x720 dpi
Max. media thickness
7CM
Ink consumption
15 ML/SQM (Appr. 1250-1500 A4 for 500ml set ink)
Printing resolution
RIP(1440*720 ; 1440*1440dpi)
Ink type
UV Environmentally ink
Working power
110-220V;50-60HZ;100W
For PC socket
USB2.0
System require
Windows XP/Vista/ Win7/WIN8/WIN10
Working enviroment
25-30 Celsius Degree, 50% Humidity, Dust free
Net weight/Gross weight
26KG/38KGS
Printer size
56.5*48*40CM
Packing size
64.5x58x47CM
3D Printing & Non Off-Set Printing
Non-offset repeated printing satify different kinds of Special printing requirement like 3D effect.
Special Gradient white ink printing mode will create the different Embossed Effect (3D Effect).
Printable Products
Packaging & Shipping
Packing inStrengthed wooden box, with buffer material inside for preventing the machine from any damage during delivery.
Automatic Build-in UV LED Lamp - Installing NX-Automatic Overheating protection system and Automatic On/Off system, most effectively to last the working lifttime of the UV LED Lamp.
