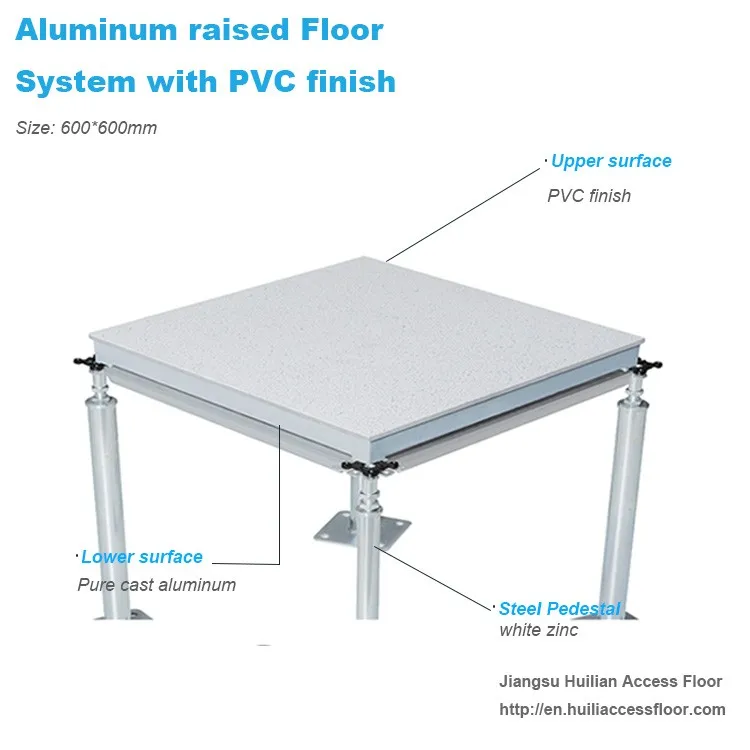

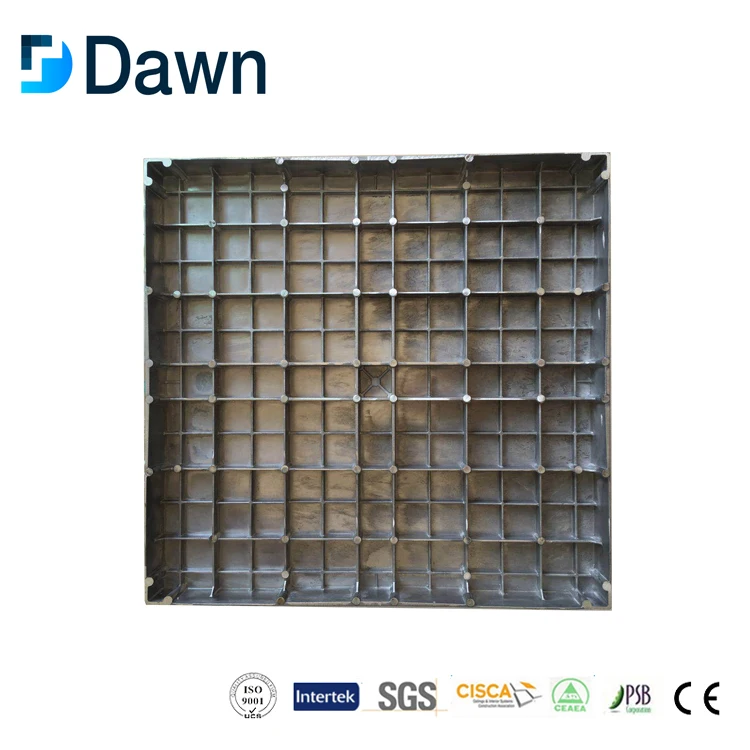

Made of high strength and pure cast aluminum, and due to vacuum die casting process, the aluminum panels has superior mechanic strength and excellent performance of anti-corrosion. All aluminum panel can be coated with static epoxy powder and light gloss, that is good for anti-wear and anti-static. The top sheet is stuck with anti-wear and antistatic HPL or PVC surfaces.

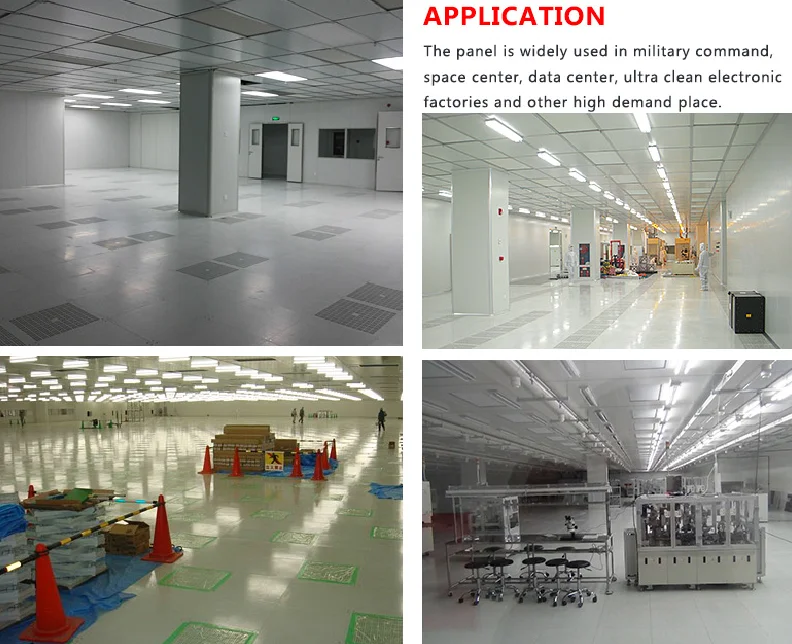

Clean rooms, military command, space center, data center, ultra clean electronic factories and other high demand place.
Features
♦Good performance of waterproof, excellent fire-proof, contains no ferrous material to disrupt magnetic fields; ♦Light weight, and very high loading capacity; ♦Patent design with high dimensional accuracy; ♦Conductive gasket ensures continuous and steady conductivity; ♦Recyclable and economical system;
Type
Concentrated load
Ultimated load
Uniform load
Special Treatment
System Resistance
HLS300
300kgf/6.45cm2 Deflection≤2.0mm
600kgf/6.45cm2
800kgf/m2 Deflection≤1.0mm
♦High pressure laminate ♦Stainless steel plate finish ♦Panel with PVC edge trim ♦Panel with corner-lock holes ♦Epoxy powder coating ♦Nickel chrome coating ♦Various panel thickness
Anti-static floor Conductive 104-106Ω
Static dissipative 106-109 Ω
HLS500
500kgf/6.45cm2 Deflection≤2.0mm
1000kgf/6.45cm2
1250kgf/m2 Deflection≤1.0mm
HLS700
700kgf/6.45cm2 Deflection≤2.0mm
1400kgf/6.45cm2
1700kgf/m2 Deflection≤1.0mm
HLS1000
1000kgf/6.45cm2Deflection≤2.0mm
2000kgf/6.45cm2
2000kgf/m2 Deflection≤1.0mm
HLS1200
1200kgf/6.45cm2Deflection≤2.0mm
2400kgf/6.45cm2
2200kgf/m2 Deflection≤1.0mm
HLS1500
1500kgf/6.45cm2Deflection≤2.0mm
3000kgf/6.45cm2
2500kgf/m2 Deflection≤1.0mm
Products Show
Our Company
Changzhou Huili Accesss Floor CO.,Ltd is an export oriented access floor manufacturer with design, distribution and installation. The factory covers an area of 400acres, which the workshop area is around 500,000 squaremetres and more than 500workers. In the past 20 years, we cooperated with many famous companies, such as TATE, ASM, TOPCRETE, UNITILE AND USG., etc.
For the sake of company IPO progress, under the approval of Jiangsu Administration for Industry and Commerce, "Changzhou Huili Access Floor Co., Ltd" has been officially changed to "Jiangsu Huili Access Floor Co., Ltd" from 04th. Dec, 2017. New title will remain same license level and will not affect any daily operation.
