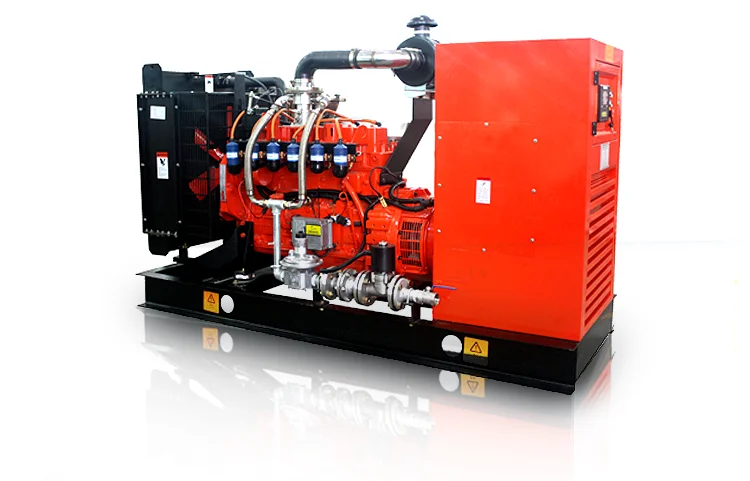

hot sale 50kva/40kw Camda H series biogas generator for sale/factory price/Hight quality
Ratings
Rated Power | kVA | 50 |
kW | 40 | |
Voltage type | 50Hz,380/220V, 3 phases and 4 wires | |
Ratings at 0.8 power factor
Performance Data
Engine Brand & Model | HGT4B |
Alternator Brand & Model | LSA42.3M8/40KW |
Control System | Deepsea DSE6120 |
Standard Noise Level@7m (Soundproof Sets) | 75 dBA |
Circuit Breaker Type | 3 Poles MCCB |
Frequency & Phase | 50hz 3Phases + 4Wires |
Engine Speed (RPM) | 1500 |
Fuel Consumption (Nm3/hr) 100% Load | 13.4 |
Dimensions and Weights
Content | Open type | Soundproof Sets | |
Dimensions: (mm) | L | 1850 | 2370 |
W | 750 | 1100 | |
H | 1480 | 1650 | |
Weights (kg) | 1000 | 1350 | |
Date of Engine Brand & Model: HGT4B
No. of Cylinders | 4 in-line | Engine power(KW)
| 45 |
Cycle | 4 Stroke | Cylinder Type | Dry |
Bore * Stroke (mm) | 102 * 120 | Compression Ratio | 10.5:1 |
Induction | Turbocharged | Displacement (L) | 3.92 |
Cooling Method | Water cooled | Governing Type | Electronic |
Starting method | 24V DC motor | Coolant capacity, including radiator (L) | 24.79 |
Lubricant Oil | 15W40-CF4 or above grade | Oil pan capacity (L) | 11 |
Alternator Brand & Model: LSA42.3M8, 50Hz.
Continuous power | 50kVA/40kW | Efficiency (%) | 90 |
Power factor | 0.8 | Temperature rise | 125K |
Excitation system | Brushless, self-excited | Insulation class | H |
A.V.R. | R220 | Enclosure protection | IP23 |
Voltage regulation | ± 0.5 % | Winding leads | 12 |
Altitude | ≤ 1000 m | Ambient temperature (°C) | 40 |
