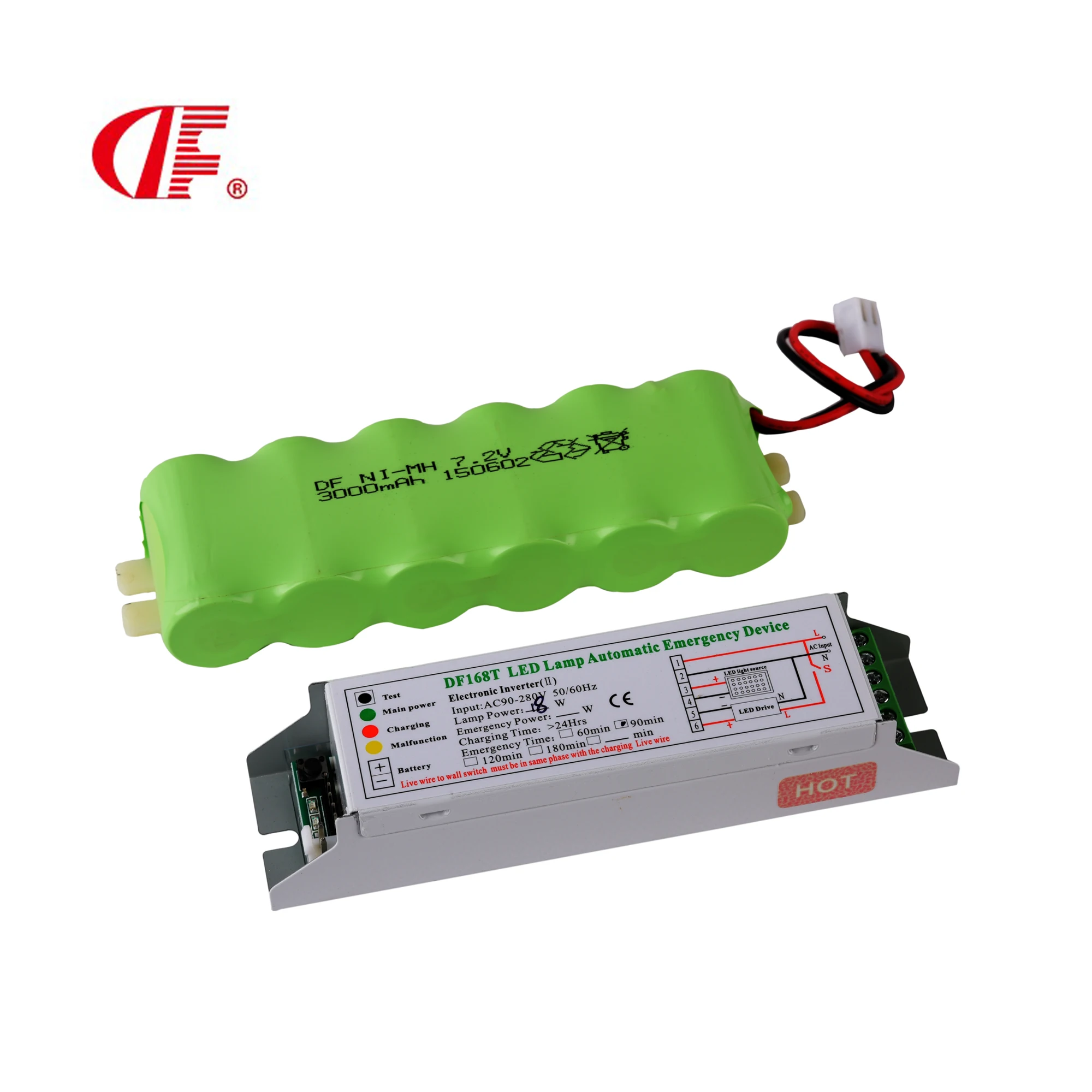

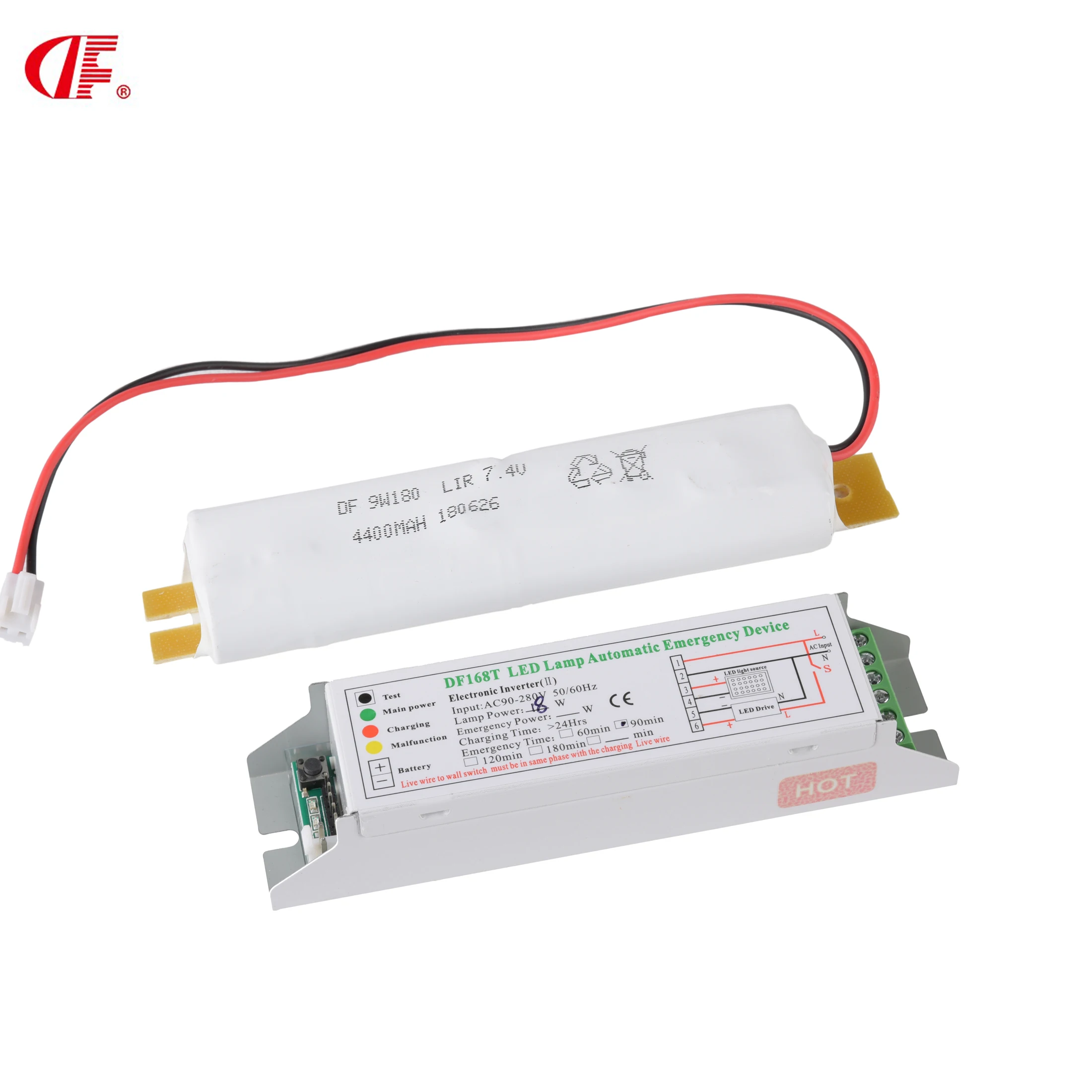

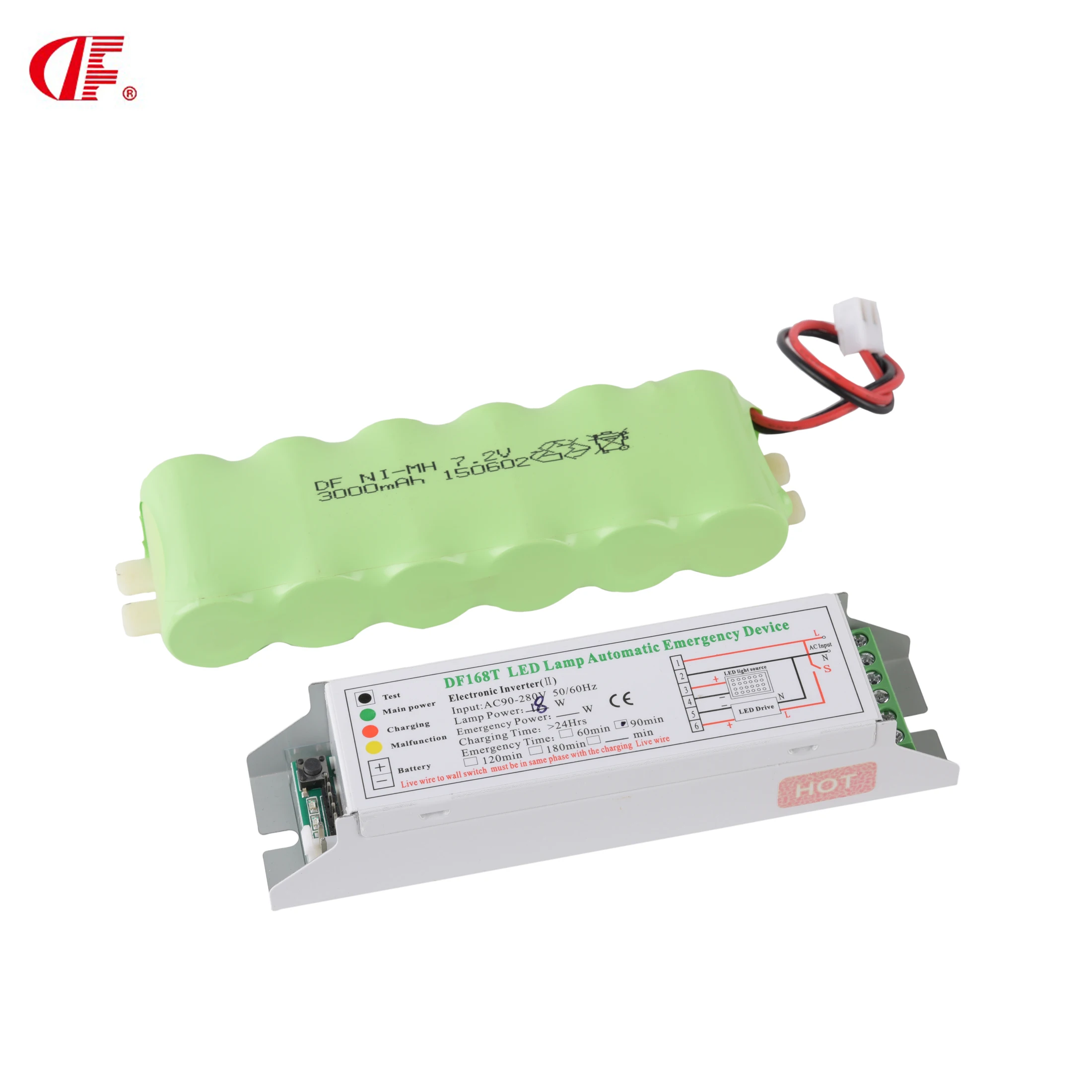

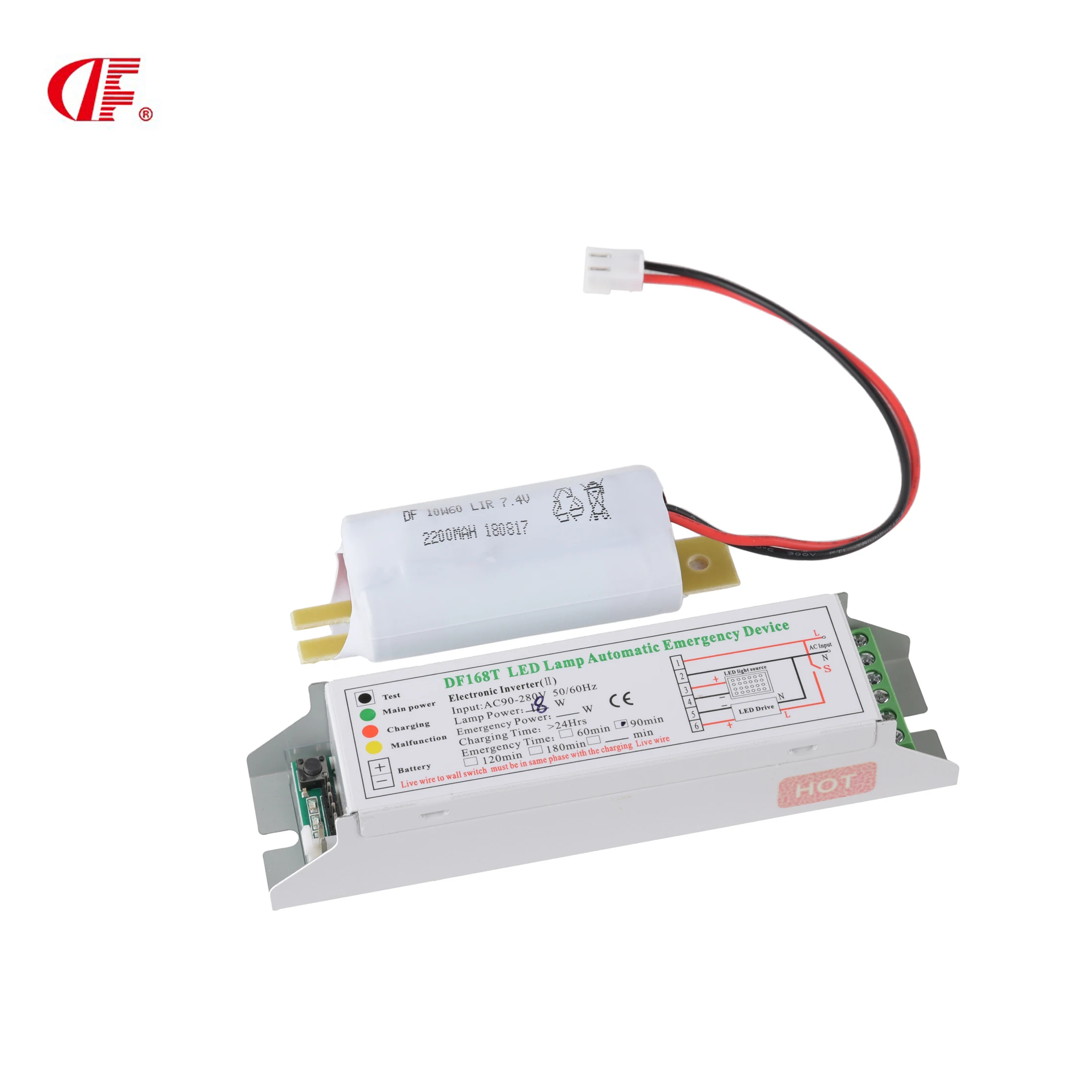

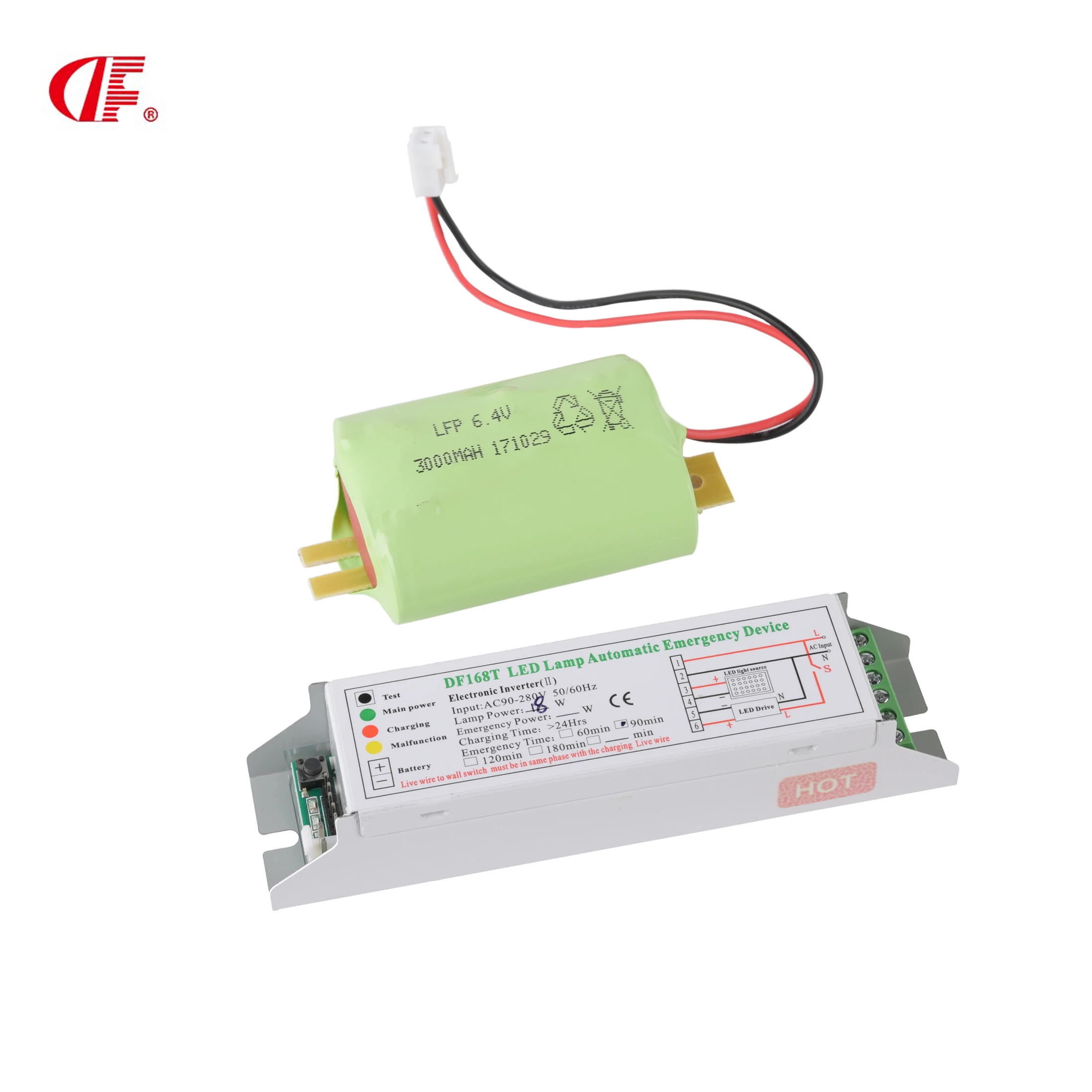

Светодиодный аварийный источник питания DF168T, аварийный комплект подходит для раздельного освещения в пределах 60 Вт, 90 минут

LED Power Down Emergency Power Supply DF168T Emergency Kits is Suitable For Split-driver Lighting Within 60W.90Min

Highlight Features:

-This kit can suit maximum 60W light and has 6w~10w emergency power output!

-Small Size, easy installation,can put inside some lamps.

-Support Ni-MH,Ci-Cd and Li-lon battery.

-DF168T is designed to convert a wide range of LED types which has an external led driner.

-This model can automatically test light chip's series and adjust the output voltage to best match between the inverter and the load,proving 6W~10W illumination customized.

Wiring methods and precautions

1——connet the fire line +LED external driver power line input end,driver the power line to the wall switch S,connect the line 1 foot,and protect the same phase with the fire line 1 protection

2——Connect the neutral line N+LED external driver power supply zero input.

3——Connect the ground wire.

4——Connect the output positive pole of the LED driver power supply.

5——Connect the negative pole of the light source negative +light sourve external driver power.

6——Connect the light source positive

Kindly reminder

1.This is Non-water protected,not aviable to use outdoors

2.Equipment should be mounted in locations and at heights where it wil not be subject to tampering by unauthorized personal

3.Do not mount near gas or electric heater

Certification:CE/ROHS/SAA

Wattage:0~60W

Input Voltage:90-265VAC,50/60Hz
