50mm 24v waterproof outdoor curtain 3d SPI led pixel sphere pixel ball string light
- Category: >>>
- Supplier: Shenzhen Shiji Lighting Co. Ltd.
Share on (60818964120):
Product Overview
Description
50mm 24v waterproof ws2811 led pixel rgb string outdoor full color led stage curtain 3d ucs1903 rgb sphere pixel ball
Product Description
Technical Parameters for 50mm led pixel point light
| Part NO | SJ-506-1903-35 |
| Lighting Source | 6pcs SMD3535 RGB LED |
| Beam Angel | 360 degree |
| Operate Voltage | DC24V |
| Consumption Watt/M | 1.44 Watt (max) |
| Diameter (mm) | 50mm diameter |
| Chain | 20pcs/Chain |
| IC chip | UCS1903 |
| Cover | Milky/Clear |
| Waterproof Grade | IP65 |
| Lifetime | 50000H |
| Working temperature | -20℃-60℃ |
| Storage temperature | -30℃-80℃ |

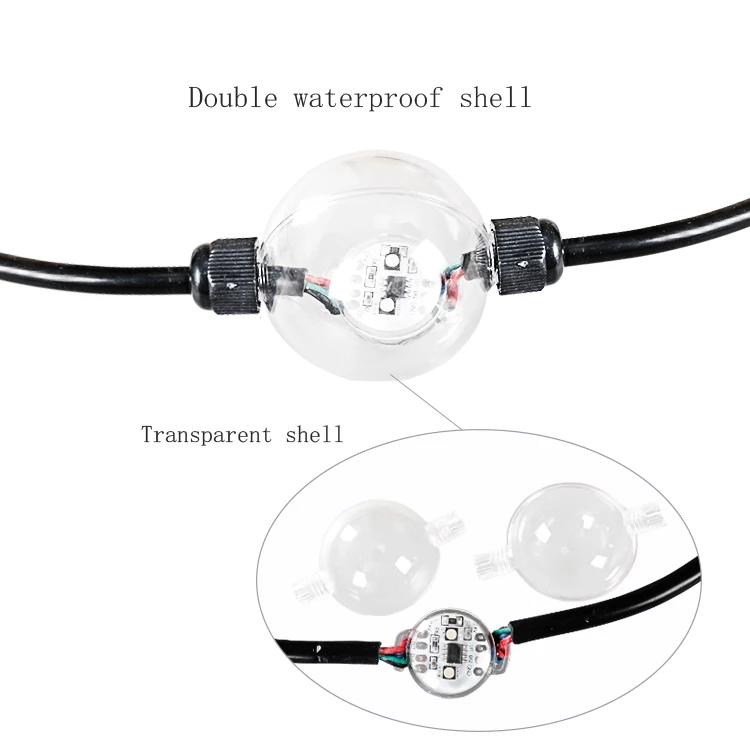

Difference shell and color wire for 50mm led pixel point light

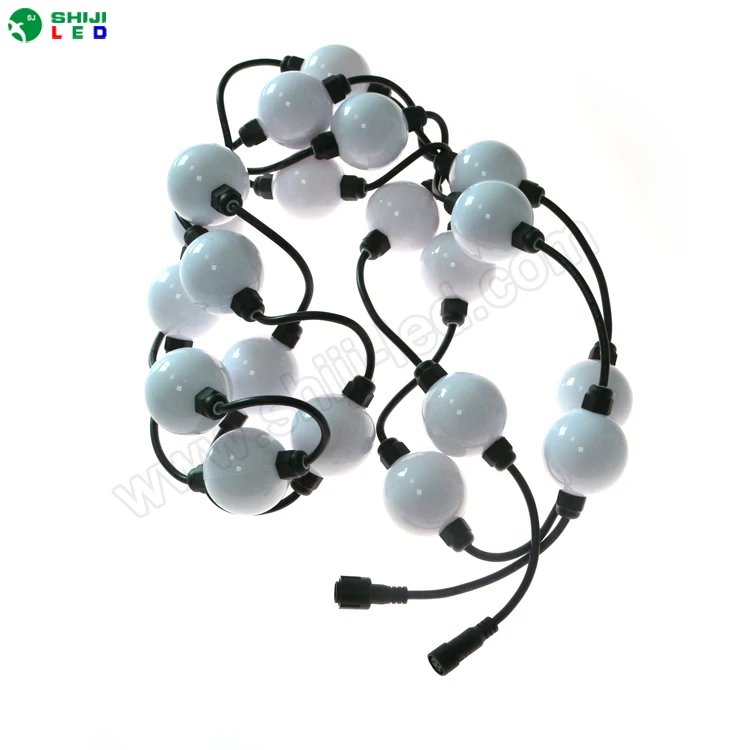

White shell with black wire 3d led ball

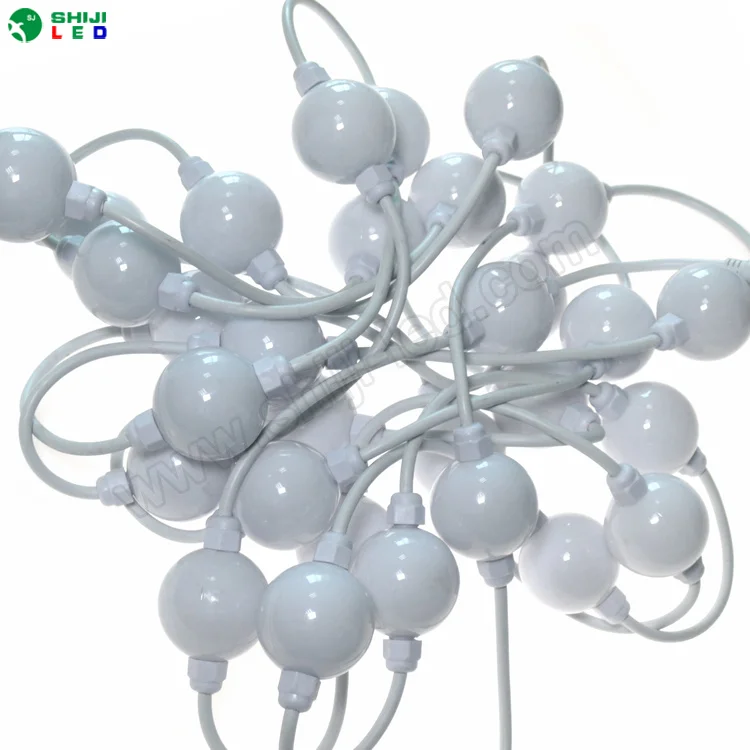

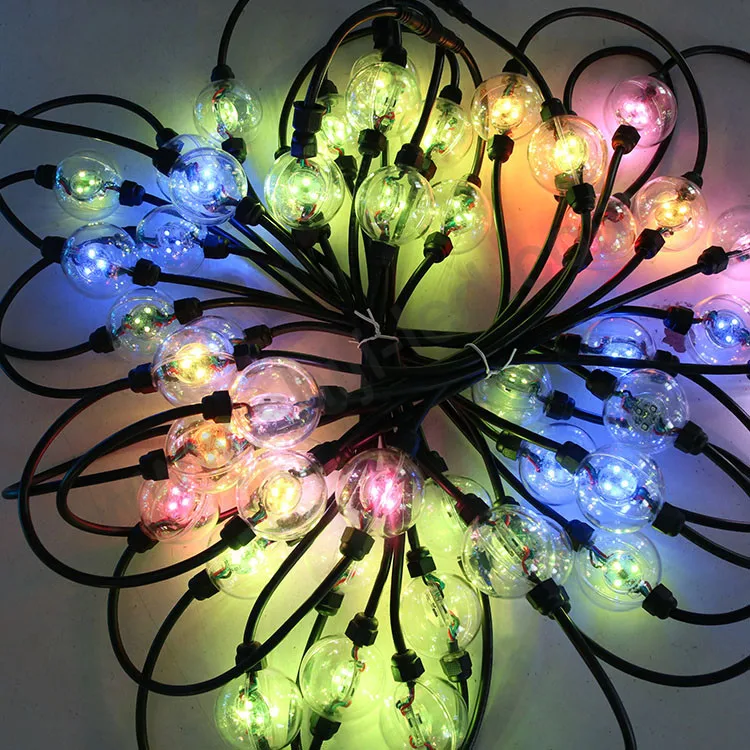

Milky shell with white wire 3d led ball

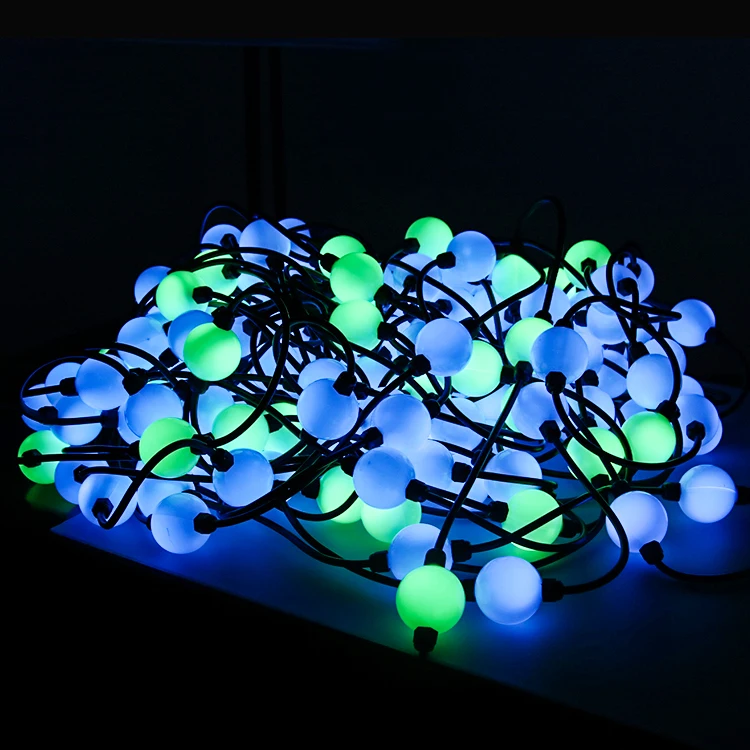

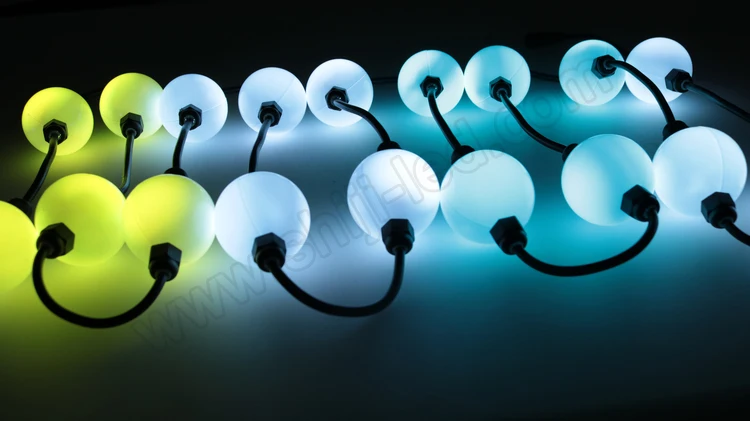

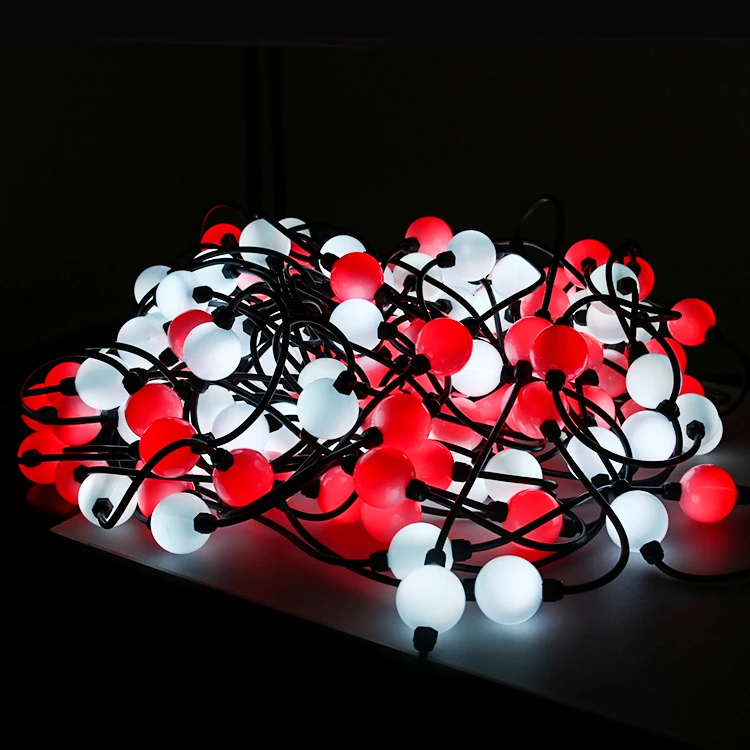

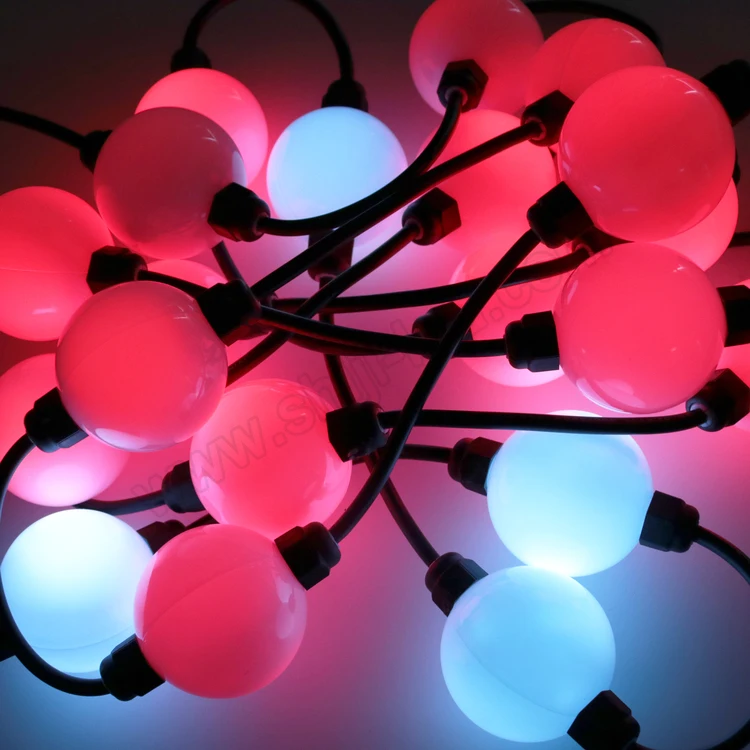

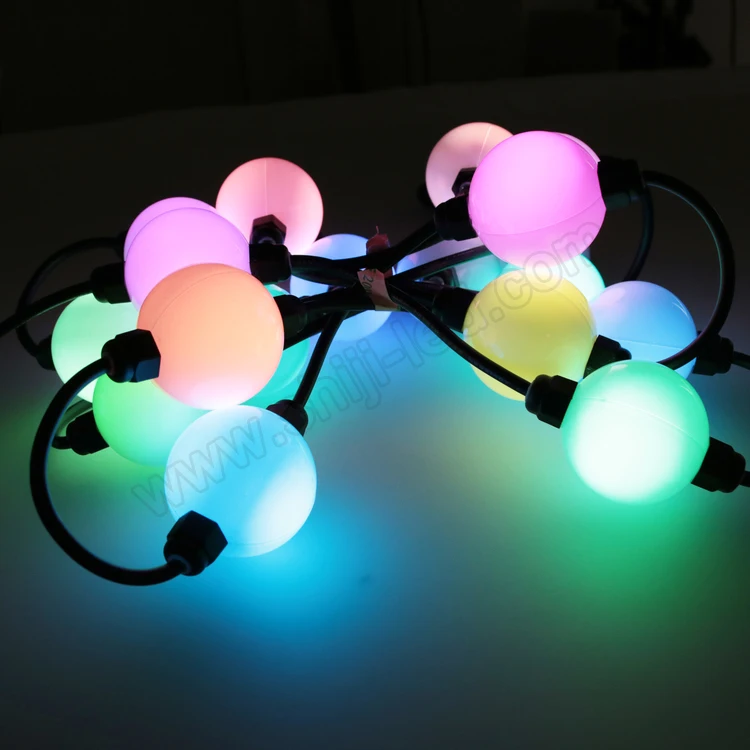

50mm ucs1903 rgb sphere pixel ball lighting effect
Product Features for 50mm pixel point light string ball
1. Individually control: 6PCS LED pixel & IC (UCS1903 ).
2. Color and effect: addressable lights you can set to any color, or animate, like running water, chasing and scanning etc.
3. Combination: PVC shell(thermostability, cold-resistant, resistant to UV) and PCB board, connector cables.
4. Waterproof IP65, with silicon glue waterproof protection.
5. Easy to install.
6. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
7. Power supply should use a 24V DC power supply to power this pixel, do not use higher than 25V or it will burn the pixel.

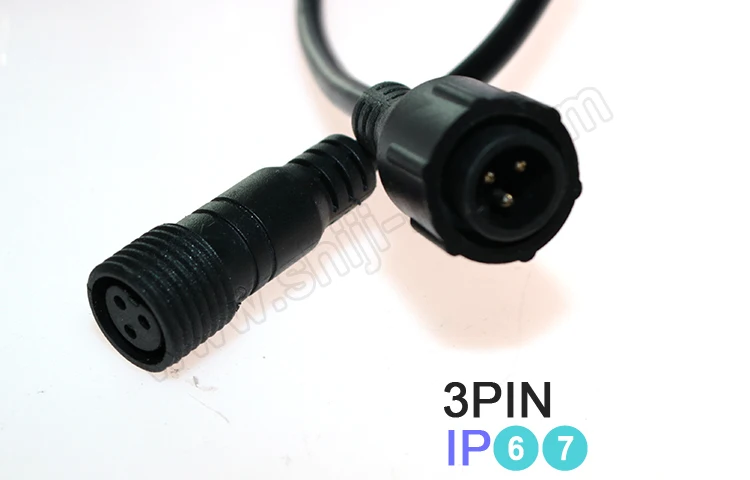

8. Connectors: 3PIN JST female and male connectors, also can be waterproof connectors, DAT, DC12V+, GND.
There is 3 Pin JST SM female/male connector on both end for signal input/output ;
Related Pixel Light
20mm pixel light(SJ-20-APA102C) 45mm pixel light(SJ-459-12V/24V) 35mm pixel light (SJ-359-N12V/24V)
Controller & Connect
- Controller System

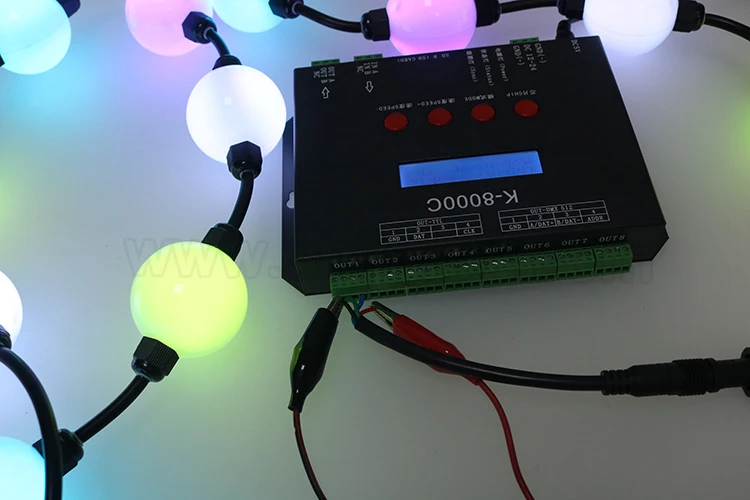

1. SD Controller T400K, T500K, T4000C, K1000C, K8000C; Online Controller; Artnet;Arduino and DMX controller.
2. Software to make program, now we often use LEDEDIT, LED EASY and MADRIX.
3.Contact me for more information.
Normal Controller
Meanwell power supply and chuanglian power supply, waterproof/non-waterproof.
- Connection
1. Signal wire:DC+, DAT, GND.
2. DC+ and GND connect to power supplier; DAT and GND connect to controller.
3. Relative Controller: SPI controller, DMX controller .
4. SPI Signal:LED pixels + LED Power Supply + LED Controller.
5. DMX Control:LED pixels + LED Power Supply + DMX Controller + DMX Decoder.
6. LED Power Supply:meanwell power supply and chuanglian power supply(waterproof/non- waterproof).
Application
The 50mm 12v led rgb pixel light ball excellent light and user-friendly design makes LED pixel light perfect
for numerous applications.
1.KTV,Disco,Stage,Curtain
2.Channel letter
3.Advertisements sign
4.Amusement ride,amusement machine
5.LED display screen, painted screen
6.LOGO, advertising billboard,exposed luminous characters
etc...
Packaging & Shipping
1.Goods will be delivered within 3-5 working days after the payment received.
2.We ship item via DHL, Fedex,UPS,Door to Door service express or air and sea.
Company Information
Our Services
Services:
1.Reply your inquiry in 24 hours.
2.Experienced staffs answer all your questions in fluent English.
3.Customized design is available.OEM&ODM are welcomed.
4.Exclusive and unique solution can provide to customer by our well trained and professional technicians.
5.Special discount and protection of sales area provided to our distributor.
Warranty:
1. All products we sell are in good quality and have been tested before they are shipped out
2. We offer 2 years Warranty
Certification :CE&Rohs
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Need about 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
