Sweden AM Paper Machine Doctor Blade

Product Overview

Description

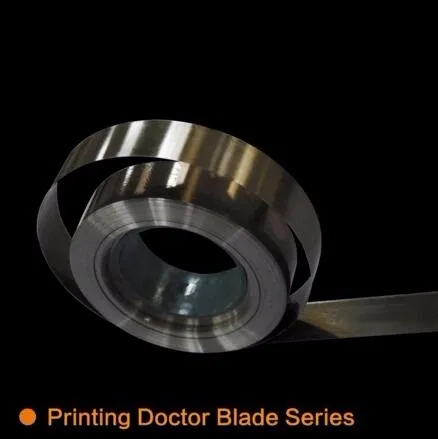

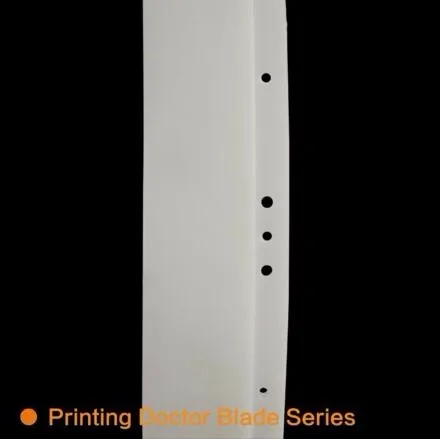

 Sweden AM Paper Machine Doctor Blade

1. doctor blade

2. flexo doctor blade

3. doctor blade grinding machine



Product Description:

1.Doctor Blades are wiping blades used to wipe excess ink in the flexographic or rotogravure printing and coating processes.

2.Doctor Blades can be used in the process of printing/coating paper, films such as PET, BOPP, PVC etc., and foils used in packaging, labeling, publication and corrugation.

3.The wiping action of a Doctor Blade directly affects the quality of printing/coating, making the quality of the Doctor Blade a key factor in printing productivity.

4.Choosing an incorrect doctor blade can significantly affect print quality and dramatically increase machine downtime & waste.

5.Using the right doctor blade becomes an integral part of a high quality & cost effective printing/coating operation.

6.Together with our partner we believe in providing the right Doctor Blade Solutions to our customers.

7.Our high-precision blades are manufactured from extremely sophisticated strip-steel material, made exclusively for doctor blades.

8.The edges of these blades are very smoothly finished, ensuring a perfectly clean wiping action on the gravure cylinder/anilox roller immediately upon start-up.

9.We use only the highest quality raw materials in manufacturing and have developed state-of-the-art manufacturing techniques, which are reflected in the quality of our products.



The main advantage of our MDC doctor blade

----customized types to meet requirement

----the maximum fit to your machine

----15 years experience

----professional test to guarantee the quality of products

----to reduce the cost of other fees because we are the manufacture

 Technical data sheet of printing machines/MDC doctor blade:

Level	low speed blade	middle speed blade	above the average	high speed blade
Speed	0-80/min	0-120/min	0-150/min	0-180/min
Material	T10	SK4	C100	20C

 Specification of printing machines/MDC doctor blade:

Specification	Detail
Hardness	1960N/mm(580HV+/-15)
Edge thickness	0.07mm-0.10mm
Edge height	1.3mm
Blade thickness	0.15mm-1.5mm
Blade height	10-60mm

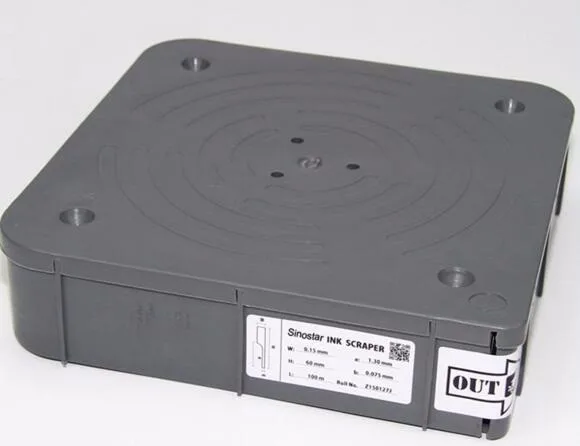

Length of each box	100m

 Dimension of printing machines/MDC doctor blade:

regular size

30(40,50,60)×0.15

25(30,35,40,50,60)×0.2

10×0.1

17(30,40,50,60)×0.3

60×0.4

50×0.5

Customized

 Features of printing machines/MDC doctor blade:

Feature	Detail
1	Good scraping effect &high printing quality
2	Good elasticity & strong layering feeling
3	Durable &Long life

 Application :

printing machines/MDC doctor blade is widely used in gravure packing printing, publication gravure printing, flexography printing, coating printing, offset coating etc.

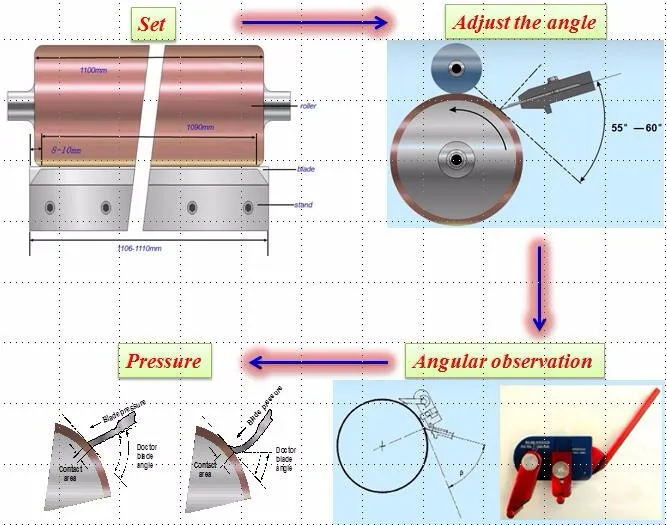

How to set:

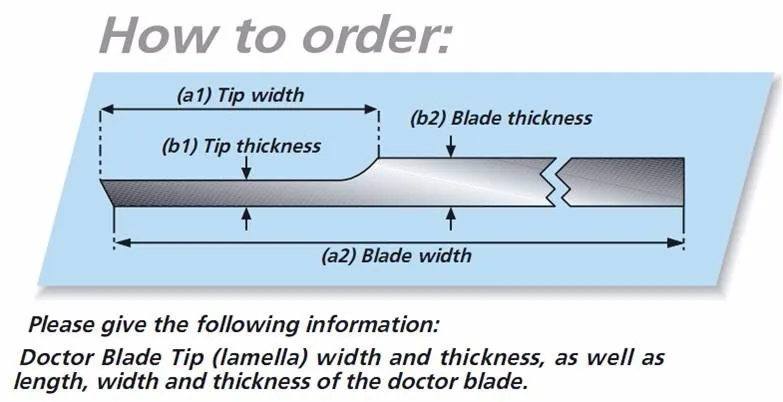

How to order:

Our Service:

Our Company:

Contact Us:
